Description: Energy-efficient roof fan with the new FLOW-cowl and an EC motor for radon ventilation. Also suitable for ventilating an ecological toilet. The motor is specially protected. A separate controller is needed to adjust the roof fan: Eco Ideal Wireless or VILPE ECo Controller 0–10 V. A VILPE pass-through according to the roofing material is required separately. Dimensions: Duct size Ø 110 mm, external Ø 225 mm, height above roof approx. 500 mm. Contents: Roof fan, screws, installation, operating and maintenance instructions.

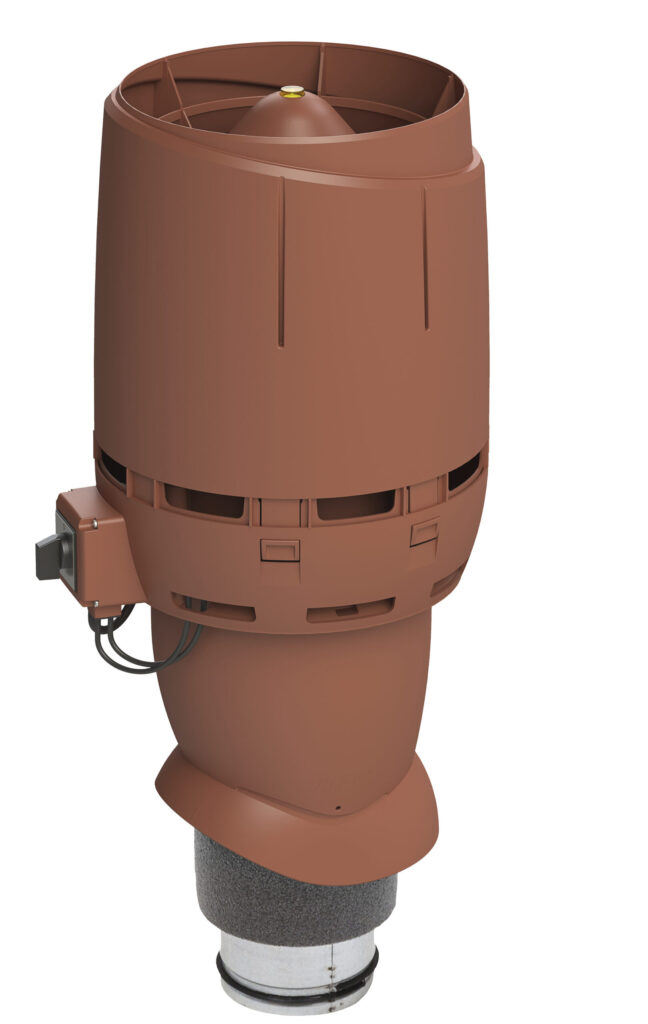

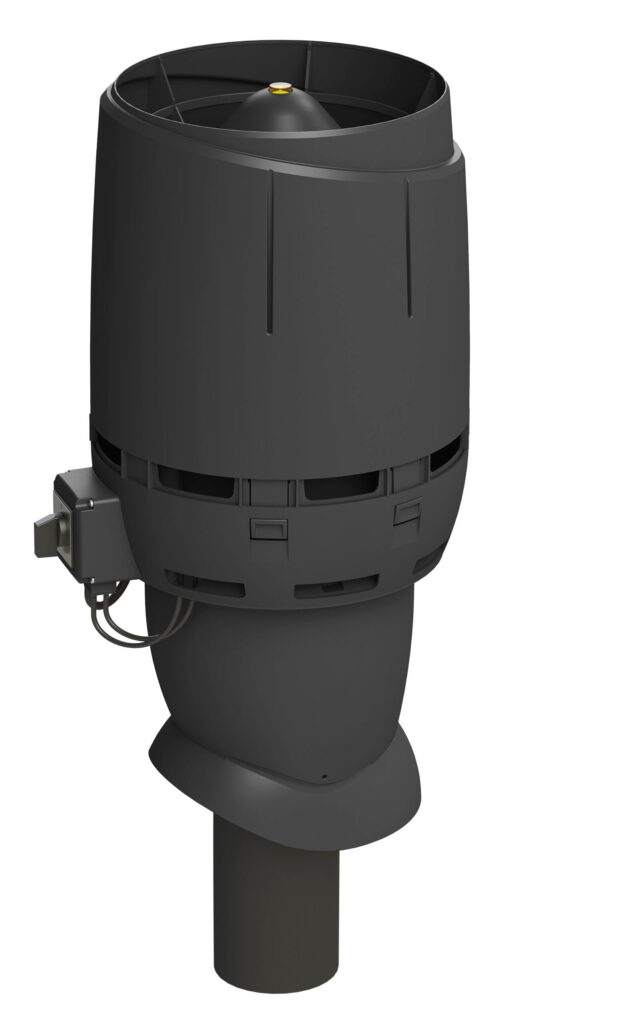

Description: Energy efficient insulated roof fan with the FLOW-cowl. Uses an EC motor with a 0-10V control voltage. Includes a galvanized steel inner pipe with a lip seal and a built-in silencer. A VILPE^® ECo controllers and a VILPE^® pass-through chosen according to roof type and material sold separately. Dimensions: Duct size Ø 125 mm, external Ø 225 mm, height above roof approx. 500 mm. Contents: Roof fan, screws, installation, operating and maintenance instructions.

Description: Energy efficient insulated roof fan with the FLOW-cowl. Uses an EC motor with a 0-10V control voltage. Includes a galvanized steel inner pipe with a lip seal. A VILPE^® ECo controllers and a VILPE^® pass-through chosen according to roof type and material sold separately. Dimensions: Duct size Ø 160 mm, external Ø 225 mm, height above roof approx. 500 mm. Contents: Roof fan, screws, installation, operating and maintenance instructions.

Description: Energy efficient insulated roof fan with the FLOW-cowl. Uses an EC motor with a 0-10V control voltage. Includes a galvanized steel inner pipe with a lip seal. A VILPE^® ECo controllers and a VILPE^® XL passthrough chosen according to roof type and material sold separately. Dimensions: Duct size Ø 200 mm, external Ø 300 mm, height above roof approx. 500 mm. Contents: Roof fan, screws, Installation, operating and maintenance instructions.

Description: Energy-efficient roof fan with a EC motor for radon ventilation. Also suitable for ventilating an ecological toilet. Also suitable for ventilating an ecological toilet. The motor is specially protected and preadjusted to 3V. If necessary, can be adjusted with the potentiometer situated in the cowl of the roof fan. Separate controller is not needed. A VILPE® pass-through according to the roofing material is required separately. Dimensions: Duct size Ø 110 mm, external Ø 160 mm, height 500 mm. Contents: Roof fan, screws, installation, operating and maintenance instructions.

Description: Energy-efficient insulated roof fan with a DC motor, controlled with a 0–10 V voltage. The pipe has a built-in silencer. Inner pipe is made of galvanized sheet metal and has a lip seal. A VILPE^® ECo Controller and a VILPE^® pass-through according to the roofing material are required separately. Dimensions: Duct size Ø 125 mm, external Ø 225 mm, height above roof approx. 500 mm. Contents: Roof fan, screws, installation, operating and maintenance instructions. This product will be replaced by a modern and energy efficient FLOW product.

Description: Energy-efficient insulated roof fan with a DC motor, controlled with a 0–10 V voltage. Inner pipe is made of galvanized sheet metal and has a lip seal. A VILPE^® ECo Controller and a VILPE^® pass-through according to the roofing material are required separately. Dimensions: Duct size Ø 160 mm, external Ø 225 mm, height above roof approx. 500 mm. Contents: Roof fan, screws, installation, operating and maintenance instructions. This product will be replaced by a modern and energy efficient FLOW product.

Description: Insulated roof fan. Inner pipe is made of galvanized steel and has a lip seal. A VILPE^®pass-through according to the roofing material is required separately. Dimensions: Duct size Ø 125 mm, external Ø 160 mm, height above roof approx. 500 mm. Contents: Roof fan, screws, installation, operating and maintenance instructions.

Description: Insulated roof fan. The pipe has a 50-mm built-in silencer. Inner pipe is made of perforated, galvanized steel and has a lip seal. A VILPE^® pass-through according to the roofing material is required separately. Dimensions: Duct size Ø 125 mm, external Ø 225 mm, height above roof approx. 500 mm. Contents: Roof fan, screws, installation, operating and maintenance instructions.

Description: Insulated roof fan. Inner pipe is made of galvanized sheet metal and has a lip seal. A VILPE^® pass-through according to the roofing material is required separately. Dimensions: Duct size Ø 160 mm, external Ø 225 mm, height above roof approx. 500 mm. Contents: Roof fan, screws, installation, operating and maintenance instructions.

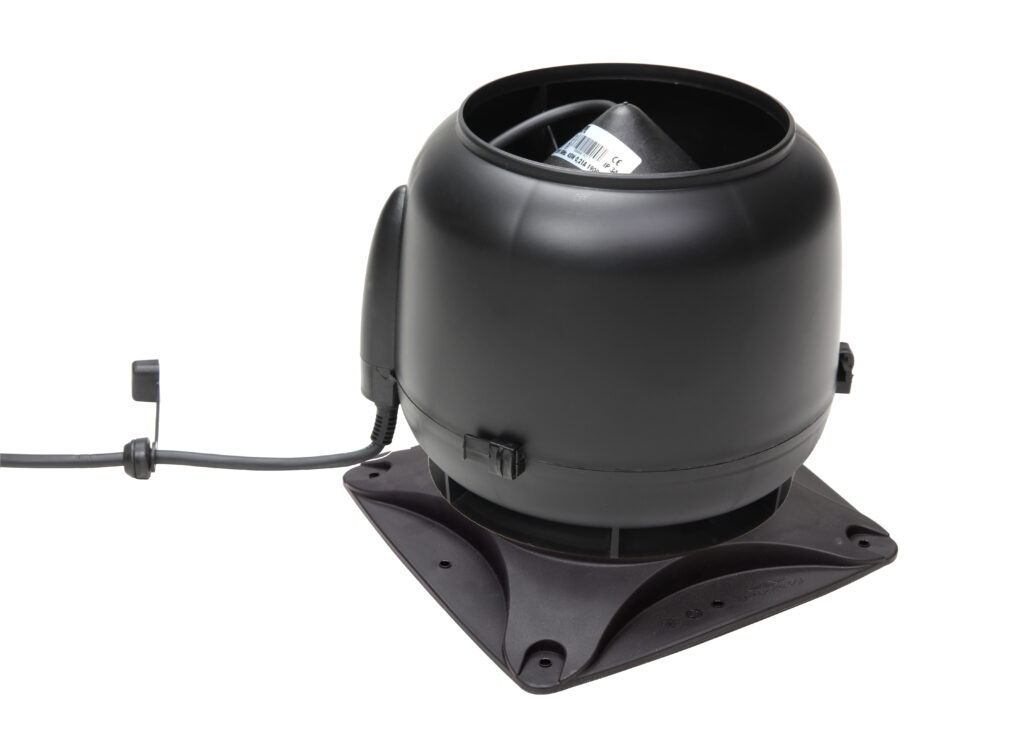

Description: Energy-efficient roof fan with the new Flow-cowl and a EC motor for radon ventilation. Also suitable for ventilating a garage or an ecological toilet. Compatible for VILPE® 110 mm insulated pipe or other pipe with external dimensions Ø 160 mm. The motor is specially protected. A separate controller is needed to adjust the roof fan: Eco Ideal Wireless or VILPE ECo Controller 0–10 V. An installation set for a flat surface is included. Dimensions: Duct size Ø 110 mm, (installation set 300 x 300 mm, installation area must be at least the same size). Contents: Roof fan, installation set, screws, Installation, operating and maintenance instructions.

Description: Energy-efficient roof fan with the new Flow-cowl and an EC motor for the top of an air conduit or silencer, controlled with a 0–10 V voltage. An installation set for a flat surface is included. VILPE® ECo Controller is available separately. Dimensions: Duct size Ø 125 mm, (installation set 300 x 300 mm, installation area must be at least the same size). Contents: Roof fan, installation set, screws, Installation, operating and maintenance instructions.

Description: Energy-efficient roof fan with the new Flow-cowl and a EC motor for the top of an air conduit or silencer, controlled with a 0–10 V voltage. An installation set for a flat surface is included. VILPE® ECo Controller is available separately. Dimensions: Duct size Ø 160 mm, (installation set 300 x 300 mm, installation area must be at least the same size). Contents: Roof fan, installation set, screws, Installation, operating and maintenance instructions.

Description: Energy-efficient insulated roof fan with the new Flow-cowl and an EC motor for the top of an air conduit or silencer, controlled with a 0–10 V voltage. If installed on a flat surface a separate installation set is required. Dimensions: Duct size Ø 200 mm, (installation set 400 x 400 mm, installation area must be at least the same size). Contents: Roof fan, installation set, screws, Installation, operating and maintenance instructions.

Description: Energy-efficient roof fan with a DC motor for radon ventilation. Also suitable for ventilating a garage or an ecological toilet. Compatible for VILPE^® 110 mm insulated pipe or other pipe with external dimensions Ø 160 mm. The motor is specially protected and preadjusted to 3V. If necessary, can be adjusted in a potentiometer situated in the cowl of the roof fan. Separate controller is not needed. An installation set for a flat surface is included. Dimensions: Duct size Ø 110 mm, (installation set 250 x 250 mm, installation area must be at least the same size). Contents: Roof fan, installation set, screws, Installation, operating and maintenance instructions. This product will be replaced by a modern and energy efficient FLOW product.

Description: Energy-efficient roof fan with a DC motor for the top of an air conduit or silencer, controlled with a 0–10 V voltage. An installation set for a flat surface is included. VILPE^® ECo Controller is available separately. Dimensions: Duct size Ø 125 mm, (installation set 300 x 300 mm, installation area must be at least the same size). Contents: Roof fan, installation set, screws, Installation, operating and maintenance instructions. This product will be replaced by a modern and energy efficient FLOW product.

Description: Energy-efficient roof fan with a DC motor for the top of an air conduit or silencer, controlled with a 0–10 V voltage. An installation set for a flat surface is included. VILPE^® ECo Controller is available separately. Dimensions: Duct size Ø 160 mm, (installation set 300 x 300 mm, installation area must be at least the same size). Contents: Roof fan, installation set, screws, Installation, operating and maintenance instructions. This product will be replaced by a modern and energy efficient FLOW product.

Description: Roof fan installed on the top of an air conduit or silencer. An installation set for a flat surface is included. Dimensions: Duct size Ø 125 mm, (installation set 300 x 300 mm, installation area must be at least the same size). Contents: Roof fan, installation set, screws, Installation, operating and maintenance instructions.

Description: Roof fan installed on the top of an air conduit or silencer. An installation set for a flat surface is included. Dimensions: Duct size Ø 160 mm, (installation set 300 x 300 mm, installation area must be at least the same size). Contents: Roof fan, installation set, screws, Installation, operating and maintenance instructions.

Description: Suitable for fireplaces with max. 0.35 m2 clear opening. The size of the flue can be min. 123 x 123 mm and max. 160 x 160 mm. The highest allowed temperature of the portable gas is 200°C. Contents: Chimney fan.

Description: Wireless control system for demand controlled ventilation. Can be used to control VILPE^® ECo roof fans, Includes a control unit (CU) wireless user panel (UP) and a wireless relative humidity (RH) sensor. Carbon dioxide sensors (CO2) sold separately. Contents: User Panel (UP), Control Unit (CU), Relative Humidity Sensor (RH), installation instructions.

Description: A Relative humidity sensor for the VILPE^® ECo Ideal Wireless demand controlled ventilation system. Contents: Relative humidity (HR) sensor, installation instructions

Description: A Carbon dioxide sensor for the VILPE^® ECo Ideal Wireless demand controlled ventilation system. Contents: Carbon dioxide (CO2) sensor, installation instructions.

Usage: Potentiometer for stepless steering of EC roof fan speed. Voltage signal 0-10 V from the potentiometer. Installation on surface. IP65 Dimensions: 86x86x39 mm Contents: Controller, instructions.
