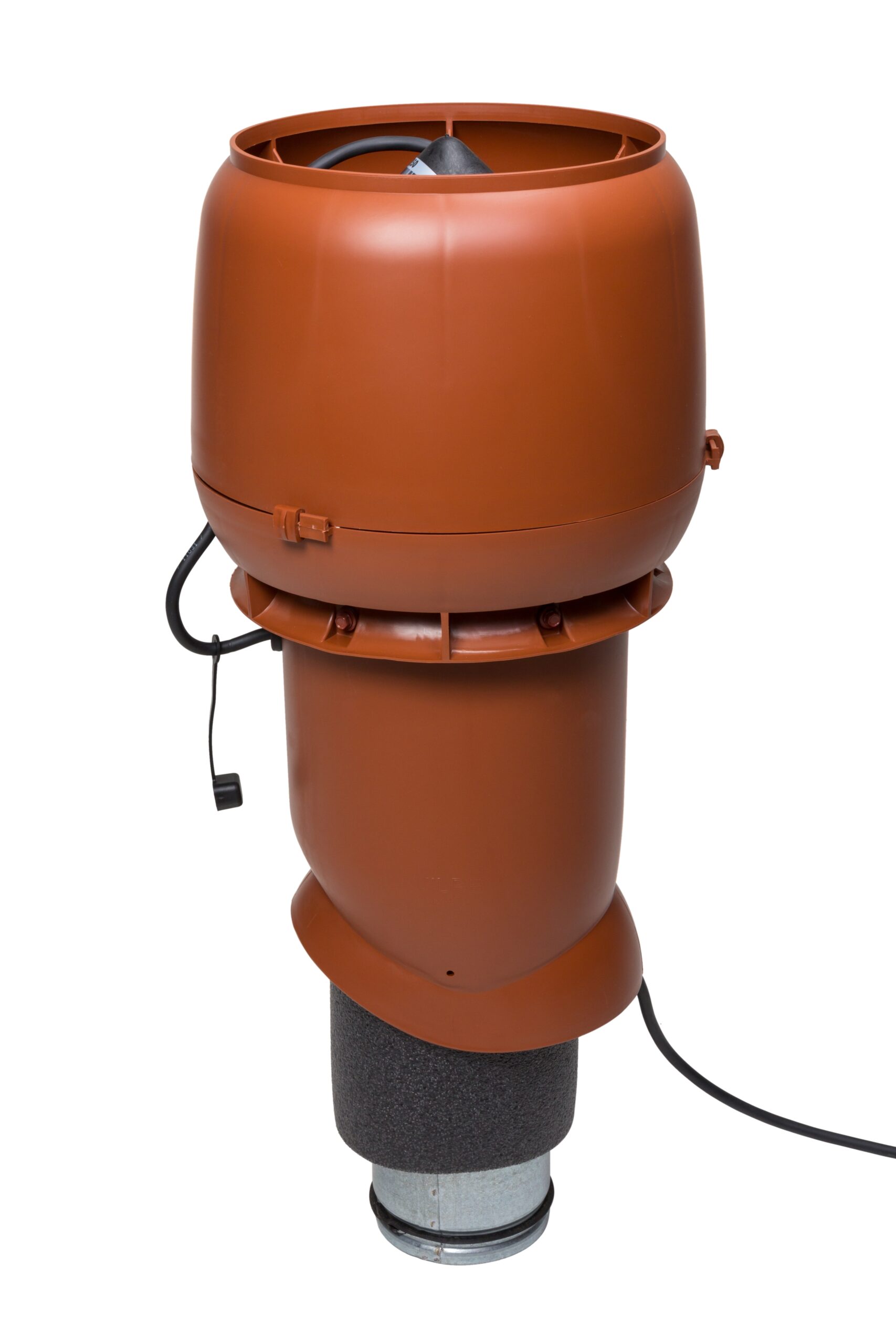

E190P/Ø125/500 Roof Fan

Description: Insulated roof fan. Includes a galvanized steel inner pipe with a lip seal. VILPE pass-throughs suitable for a range of roofing types and material are available separately. VILPE P-series roof fans are compatible with all VILPE pass-through set types, although please note that P-series XL roof fans require an XL pass-through.

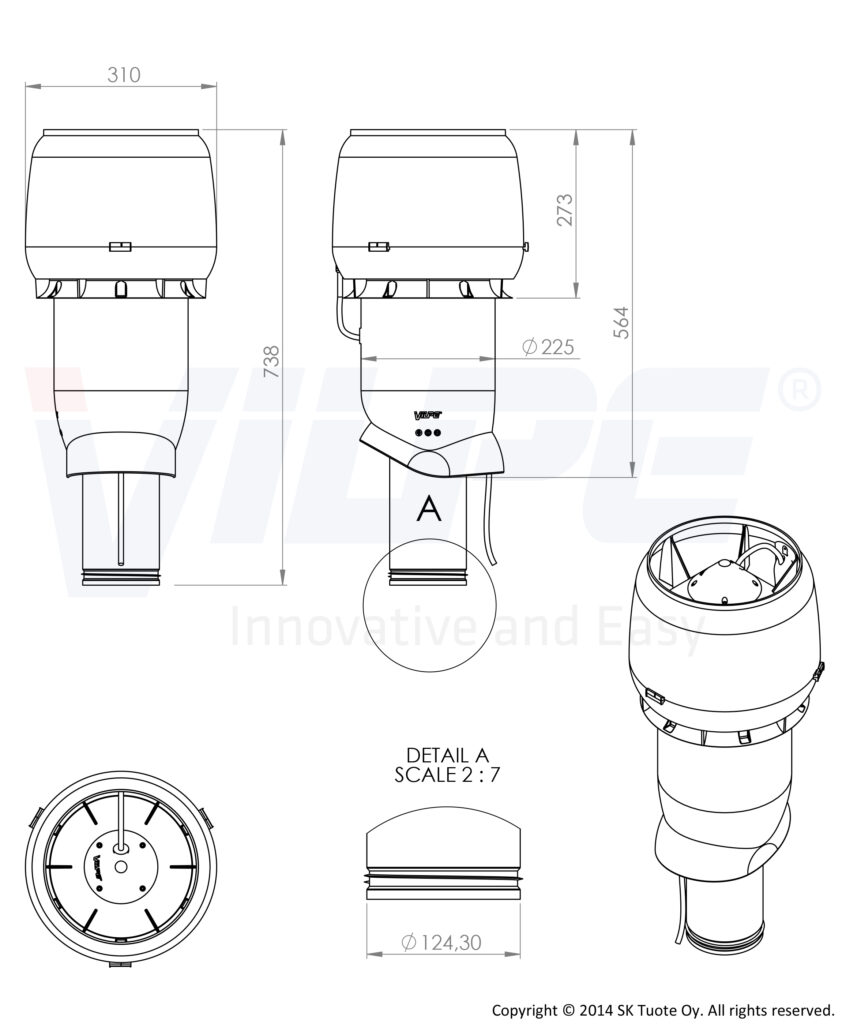

Dimensions: Duct size Ø 125 mm, external Ø 225 mm, height above roof approx. 500 mm.

Contents: Roof fan, screws, installation, operating and maintenance instructions.

Compatible controllers
Color
Black
Brown
Green
Grey
Red
Brick Red
Product number73592
EAN Code6417323735924
Color Black | RR33 | RAL9005
Weight Gross: 7.433kg, Net: 6.625kg
Product number73594
EAN Code6417323735948
Color Brown | RR32
Weight Gross: 7.433kg, Net: 6.625kg
Product number73596
EAN Code6417323735962
Color Green | RR11
Weight Gross: 7.433kg, Net: 6.625kg
Product number73597
EAN Code6417323735979
Color Grey | RR23 | RAL7015
Weight Gross: 7.433kg, Net: 6.625kg
Product number73598
EAN Code6417323735986
Color Red | RR29 | RAL3009
Weight Gross: 7.433kg, Net: 6.625kg
Product number73599
EAN Code6417323735993
Color Brick Red | RR750 | RAL8004
Weight Gross: 7.433kg, Net: 6.625kg
SKU: N/A Categories: ,
Share product page
Print pdf
Duct size125 Ø
Materialsexpanded polystyrene, galvanized sheet steel , polypropene plastic (PP)
Package includescowl, fixing screws
Voltage230V/50Hz
Current0,23 A
Rotation speed (rpm)2350 rpm
Capacitor1,5 µF
Power52 W
Fan typeAC

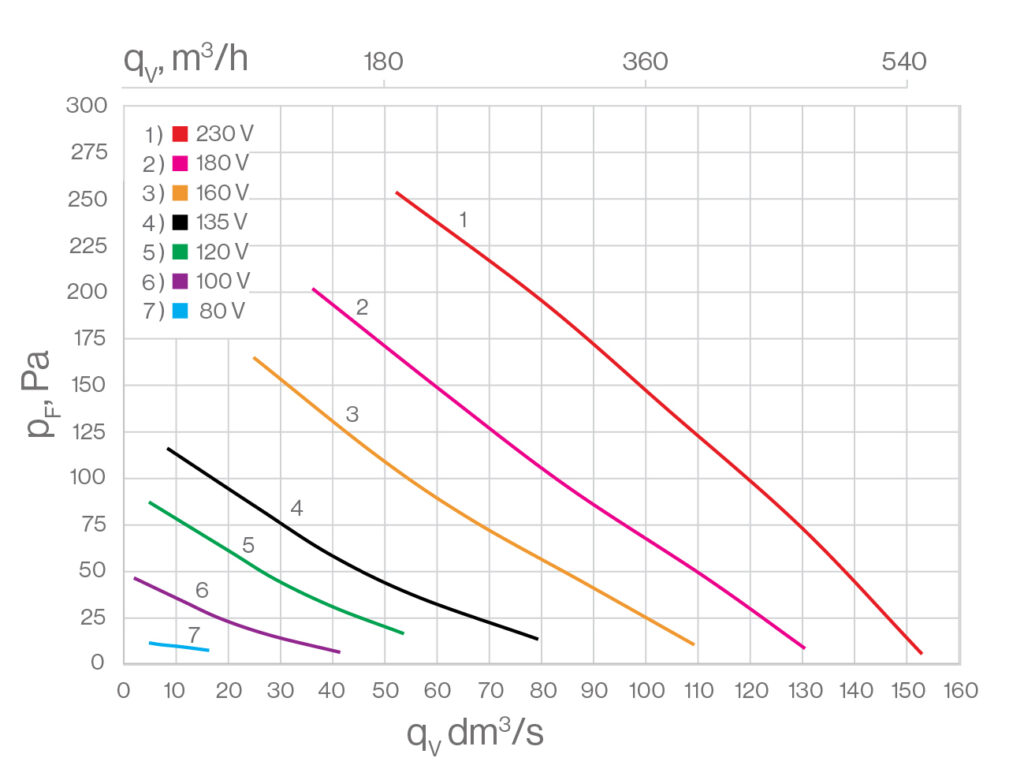

Performance data graphs

VILPE E190 - ISO 5221:1984 - ISO 3471:1988

Air density: 1.2

10V
180V
165V
135V
110V
60V
10V
180V
165V
135V
110V
60V
10V
180V
165V
135V
110V
60V
