High-quality pass-throughs for all climates

Pass-throughs are required when installing VILPE roof fans and exhaust ventilation pipes. They prevent water from flowing into openings made in the underlay and the roofing material, thereby ensuring that it remains watertight. Our product selection includes high-quality and easy-to-install pass-throughs for all kinds of roofing materials, colours and pitches. Pass-throughs should be installed with VILPE Underlay 2K Seals to ensure they are 100 % waterproof. The pass-throughs are designed with ease of installation in mind, so these products are suitable for DIY installation conducted by one person without the need for specialist knowledge. Find the right product for your needs below
Read the FAQ

Show all products

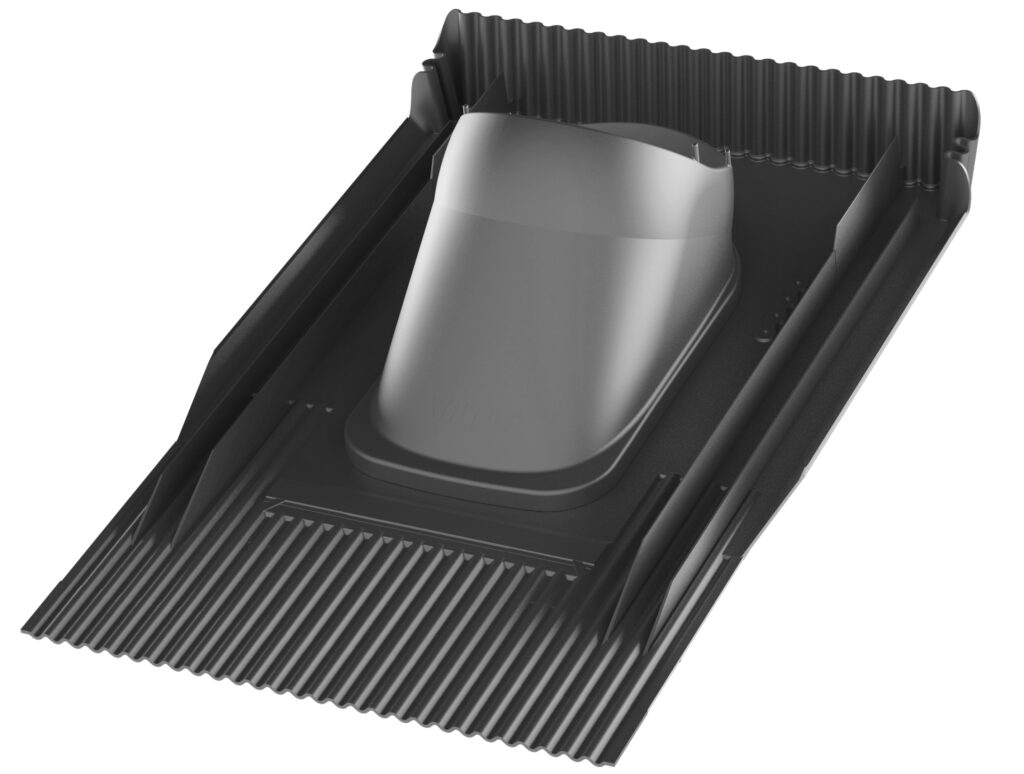

CLASSIC PASS-THROUGH LOW PITCH

Description: Plain standing seam roofing with roof pitches of 5-27°. Thick rubber seal on the bottom of the flange. Contents: Pass-through, underlay ring, screws, installation instructions/templates for the underlay seal and the pass-through.

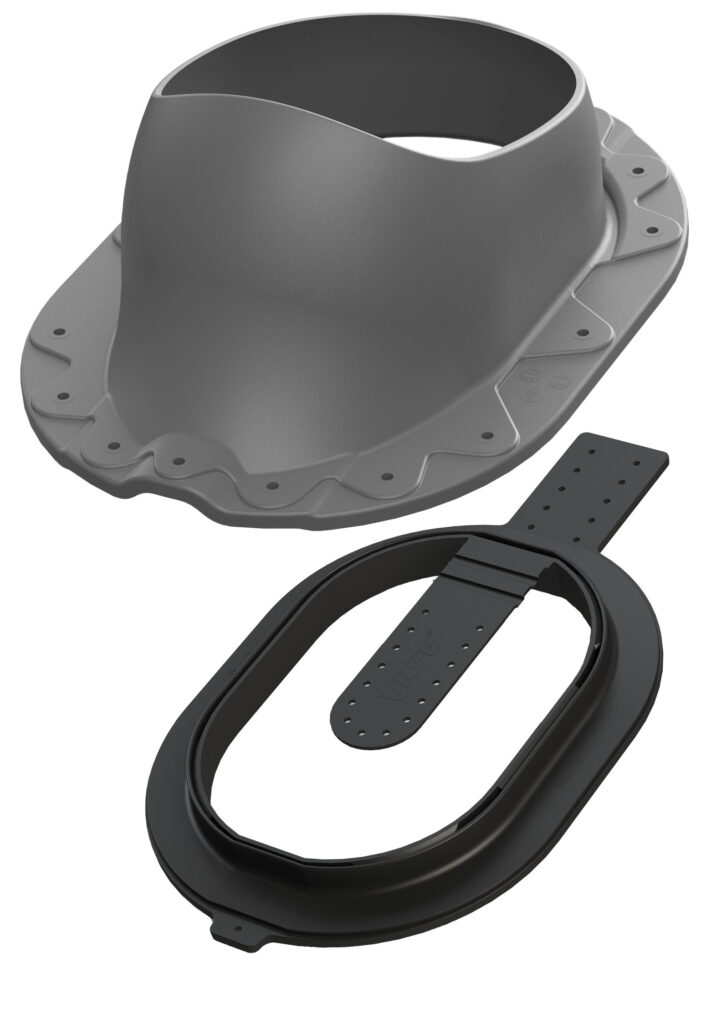

Evo 2K Pass-Through

For plain Monier/Braas Teviva/Braas Tegalit tile roofs (with 420 mm by 330 mm tiles)

Includes Underlay 2K Seal, the new-generation VILPE® solution for completely waterproofing the underlay

Designed for Ø 75, 110, 125 or 160 mm pipes

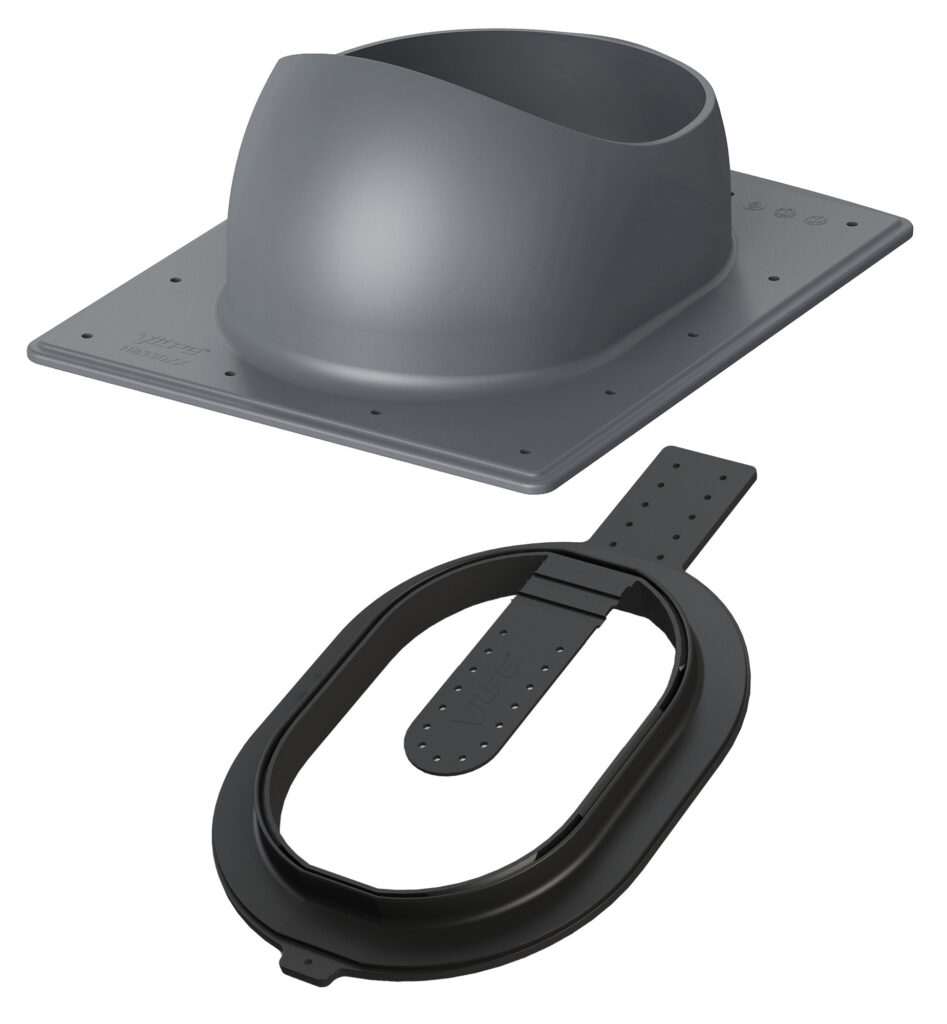

Classic Vino 2K Pass-Through

For plain standing seam roofs or felt roofs (if retrofitted); can be installed on roofs with pitches between 1:5 (11.5 degrees) and 57 degrees

Includes Underlay 2K Seal, the new-generation VILPE® solution for completely waterproofing the underlay

Designed for Ø 75, 110, 125 or 160 mm pipes

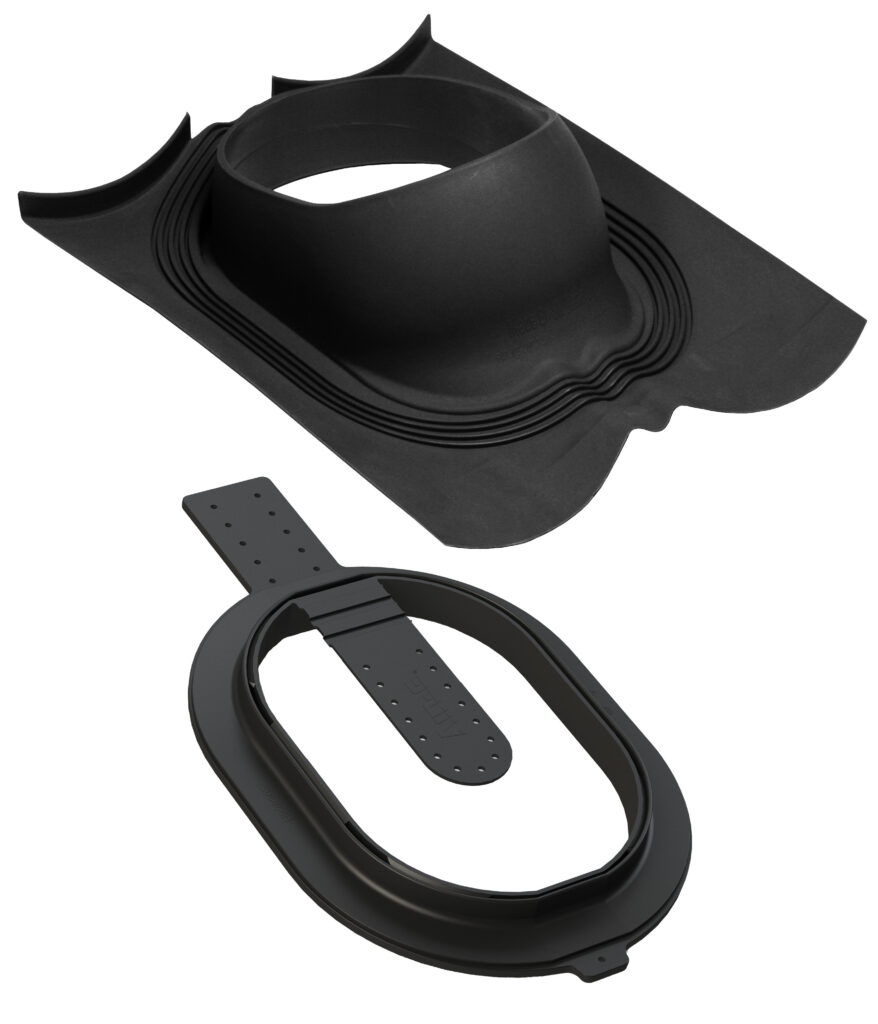

Unitile 2K Pass-Through

For all tile roofs (ceramic, clay, concrete and special tiles, 1- and 2-wave tiles and plain tiles)

Includes Underlay 2K Seal, the new-generation VILPE® solution for completely waterproofing the underlay

Designed for Ø 75, 110, 125 or 160 mm pipes

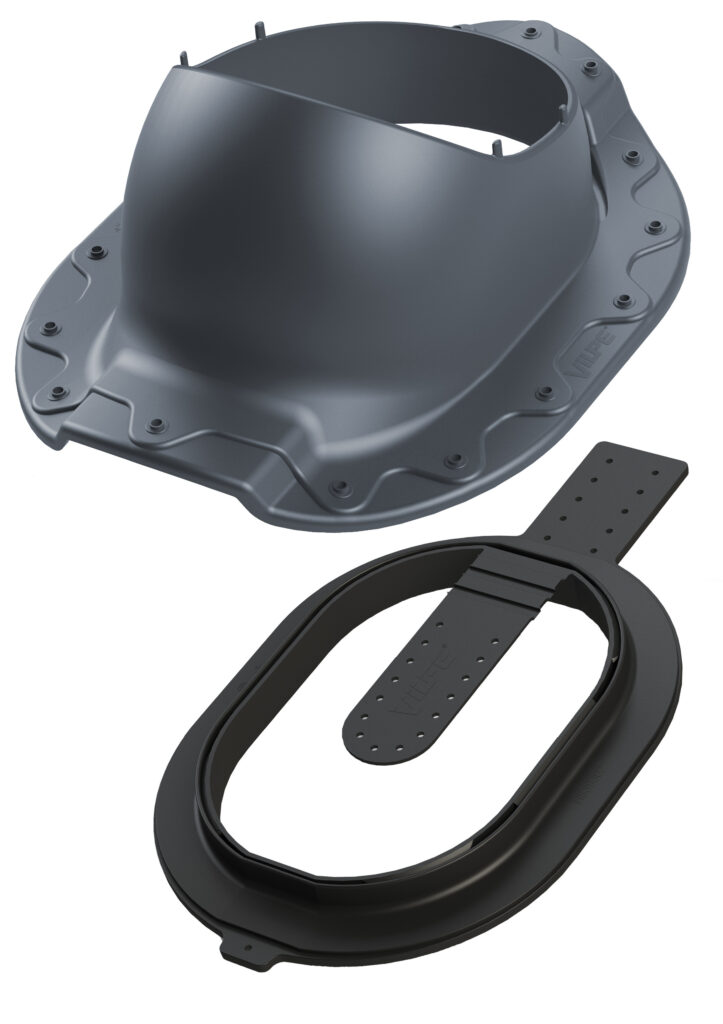

Profiled Steel 2K Pass-Through

For round-profile sheet metal roofs (minimum profiled roof tile length 350 mm)

Includes Underlay 2K Seal, the new-generation VILPE® solution for completely waterproofing the underlay

Designed for Ø 75, 110, 125 or 160 mm pipes

Aalto 2K Pass-Through

For sheet metal roofs such as Ruukki’s Adamante, or other equivalent round-proﬁle, tile-patterned roofs

Includes Underlay 2K Seal, the new-generation VILPE® solution for completely waterproofing the underlay

Designed for Ø 75, 110, 125 or 160 mm pipes

Tile Pass-Through

For most common concrete tile roofs (replaces one 2-wave concrete tile with a width of up to 330 mm and a wave height of 27-40 mm)

Seal on the bottom of the pass-through guarantees a fully waterproof end result

Designed for Ø 75, 110, 125 or 160 mm pipes

Unitile Pass-Through

For all tile roofs (ceramic, clay, concrete and special tiles, 1- and 2-wave tiles and plain tiles)

Seal on the bottom of the pass-through guarantees a fully waterproof end result

Designed for Ø 75, 110, 125 or 160 mm pipes

Vittinge Pass-Through

For vittinge clay tile roofs

Seal on the bottom of the pass-through guarantees a fully waterproof end result

Designed for Ø 75, 110, 125 or 160 mm pipes

Evo Pass-Through

For plain Monier/Braas Teviva/Braas Tegalit tile roofs (with 420 mm by 330 mm tiles)

Seal on the bottom of the pass-through guarantees a fully waterproof end result

Designed for Ø 75, 110, 125 or 160 mm pipes

Classic Vino Pass-Through

For plain standing seam roofs or felt roofs (if retrofitted); can be installed on roofs with pitches between 1:5 (11.5 degrees) and 57 degrees

Seal on the bottom of the pass-through guarantees a fully waterproof end result

Designed for Ø 75, 110, 125 or 160 mm pipes

Steel Pass-Through

For low-profile sheet metal roofs; not suitable for high-angular profiles

Seal on the bottom of the pass-through guarantees a fully waterproof end result

Designed for Ø 75, 110, 125 or 160 mm pipes

Hyygge Pass-Through

For Ruukki´s Hyygge or similar sheet metal roofs

Seal on the bottom of the pass-through guarantees a fully waterproof end result

Designed for Ø 75, 110, 125 or 160 mm pipes

Aalto Pass-Through

For sheet metal roofs such as Ruukki’s Adamante, or other equivalent round-proﬁle, tile-patterned roofs

Seal on the bottom of the pass-through guarantees a fully waterproof end result

Designed for Ø 75, 110, 125 or 160 mm pipes

Classic Pass-Through

For plain standing seam roofs or felt roofs (if retrofitted); minimum roof pitch 1:5 (11.5 degrees)

Seal on the bottom of the pass-through guarantees a fully waterproof end result

Designed for Ø 75, 110, 125 or 160 mm pipes

HS Slate Pass-Through

For all slate, shingle and felt roofs; ; can be installed on roofs with pitches between 1:5 (11.5 degrees) and 50 degrees

Seal on the bottom of the pass-through guarantees a fully waterproof end result

Designed for Ø 75, 110, 125 or 160 mm pipes

Felt Pass-Through

For felt roofs, minimum roof pitch 1:5 (11.5 degrees); also suitable for slate roofs

Seal on the bottom of the pass-through guarantees a fully waterproof end result

Designed for Ø 75, 110, 125 or 160 mm pipes

Tall Felt Pass-Through

For felt roofs with a pitch of less than 1:5 (11.5 degrees)

Seal on the bottom of the pass-through guarantees a fully waterproof end result

Designed for Ø 75, 110, 125 or 160 mm pipes

PVC Collar for Tall Felt Pass-Through

Used to facilitate easy installation of the Tall Felt Pass-Through onto a PVC roof

Cone-shaped collar ensures a waterproof finish

EPDM Collar for Tall Felt Pass-Through

Used to facilitate easy installation of the Tall Felt Pass-Through onto an EPDM roof

Cone-shaped collar ensures a waterproof finish

Eternit B9 Pass-Through

For fibre-cement roofs (with a tile width of 177 mm and a wave height of 57 mm)

Seal on the bottom of the pass-through guarantees a fully waterproof end result

Designed for Ø 75, 110, 125 or 160 mm pipes

Underlay Ring

For fastening underlay material to roof battens, raising the underlay and ensuring that water is kept out of roof structures and insulation material

Also included in all VILPE^® pass-through sets

For a more advanced solution, try the VILPE^® Underlay 2K Seal instead

Underlay 2K Seal

For fastening underlay material to roof battens, extending to the upper edge of the pass-through and ensuring a watertight seal between the underlay and the roofing material

Also included in all VILPE^® 2K pass-through sets

Patented two-component (2K) underlay seal which is just as easy to install as the older VILPE® Underlay Ring

XL Tile Pass-Through

For most common concrete tile roofs (replaces two 2-wave concrete tiles with a width of up to 330 mm and a wave height of 27-40 mm)

Seal on the bottom of the pass-through guarantees a fully waterproof end result

Designed for Ø 160-250 mm pipes

FAQ

What is the best pass-through alternative for solar panel pipes and cables?

VILPE Solar pass-through sets are intended for passing the supply and return pipes of solar thermal collectors, cables and other smaller pipes through the roof. VILPE Solar pass-throughs can be used with all of the most common roof types and roofing materials.

How do I select a suitable pass-through for my roof and roofing material?

Selecting a pass-through is easy with the VILPE pass-through selector. If you cannot find the right alternative from the selector, please contact VILPE technical support.

Why do I have to install an Underlay seal?

Underlay seals protect roof structures and insulation material from water condensation on the lower surface of the roof. The seal also prevents any humidity caused by water and snow from entering the intermediate floor through ventilation openings in the ridge. The VILPE Underlay 2K seal extends from the surface of the roof covering to the upper surface of the pass-through, and thus completely closes the gap between the roof covering and the roofing material, prevents humidity from entering the building's roof structures, and ensures that the roof remains waterproof. See the section “What is a VILPE Underlay 2K seal, and why should it be used?” Learn about the VILPE Underlay 2K seal by watching this installation video.

What is a VILPE Underlay 2K seal, and why should it be used?

The VILPE Underlay 2K seal is the only pass-through accessory on the market which guarantees that the roofing structures it is installed onto remain fully waterproof. Using the Underlay 2K seal also ensures that natural discontinuity points in the roofing material, combined with winds and driving snow, do not impose any extra humidity load on the roof structures. The Underlay 2K seal effectively seals the pass-through and the roof-covering into a single watertight and wind-tight component. Learn about the VILPE Underlay 2K seal by watching this installation video.
