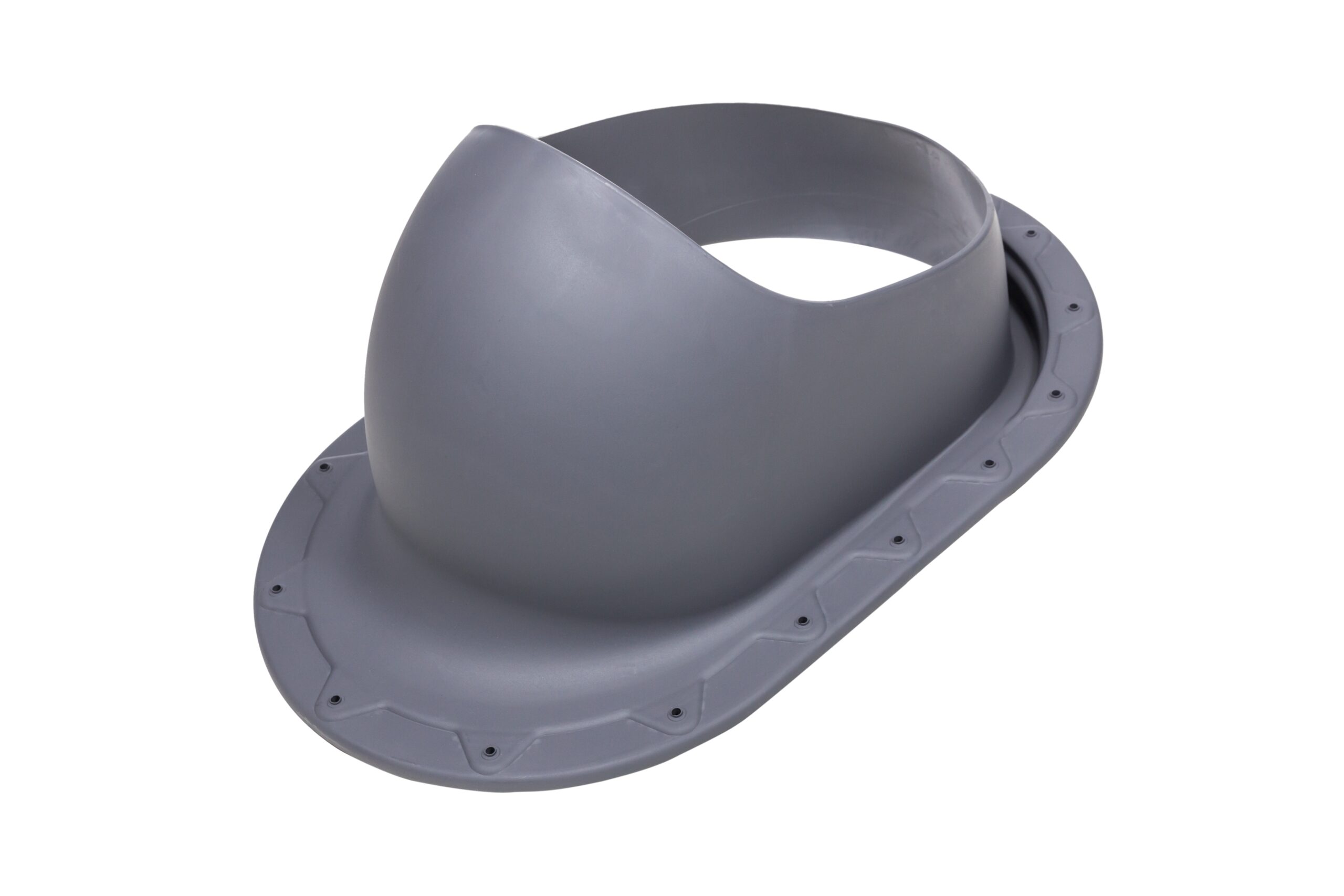

XL Classic Pass-Through

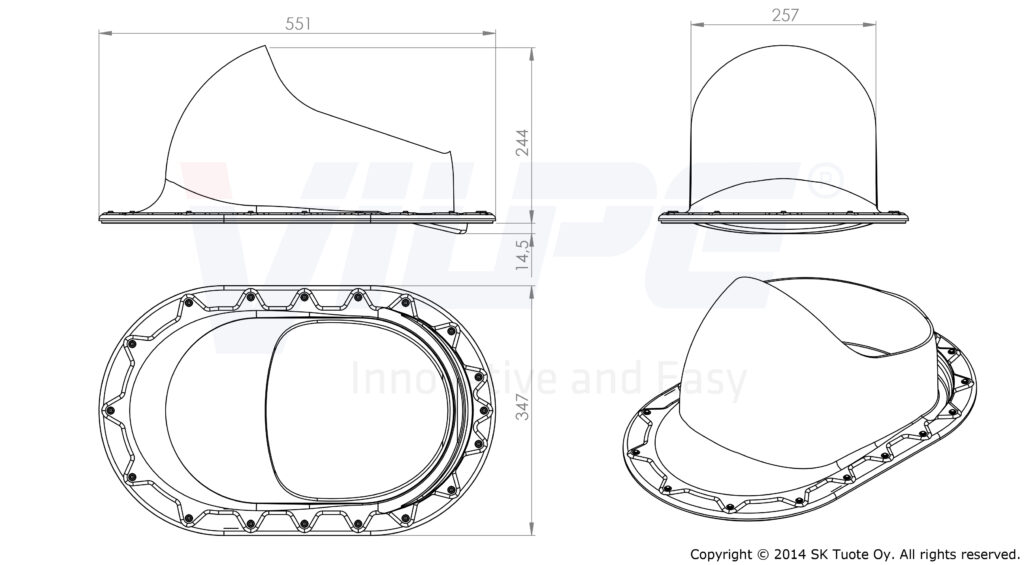

Description: For plain standing seam roofs or felt roofs (if retrofitted); minimum roof pitch 1:5 (11.5°). The seal on the bottom of the pass-through guarantees a fully waterproof end result, and is attached to the bottom of the flange. Installing the VILPE XL Classic Pass-Through is simple and easy: the kit includes all installation materials and clear instructions. The pass-through enables the installation of VILPE roof fans, exhaust pipes, ventilation pipes and antenna pass-throughs onto the roof. Designed for Ø 160-250 mm pipes. Sealing compound (not incl.) required for installation on felt roofs.

Contents: Pass-through, two-piece XL underlay ring, screws, installation instructions.

Color
Light Grey
Black
Brown
Grey
Red
Brick Red
Anthracite
Black
Brown
Green
Grey
Red
Brick Red
Product number732541
LVI Code7820564
EAN Code6410457652280
Color Light Grey | RAL7040
Weight Gross: 2.228kg, Net: 1.522kg
Product number756052
EAN Code6410457653218
Color Black | RR33 | RAL9005
Weight Gross: 2.228kg, Net: 1.522kg
Product number756054
EAN Code6410457653225
Color Brown | RR32
Weight Gross: 2.228kg, Net: 1.522kg
Product number756057
EAN Code6410457653232
Color Grey | RR23 | RAL7015
Weight Gross: 2.228kg, Net: 1.522kg
Product number756058
EAN Code6410457653249
Color Red | RR29 | RAL3009
Weight Gross: 2.228kg, Net: 1.522kg
Product number756059
EAN Code6410457653256
Color Brick Red | RR750 | RAL8004
Weight Gross: 2.228kg, Net: 1.522kg
Product number73254G
EAN Code6410457655441
Color Anthracite | RR750 | RAL8004
Weight Gross: 2.228kg, Net: 1.522kg
Product number732542
LVI Code7813642
EAN Code6410457325429
Color Black | RR33 | RAL9005
Weight Gross: 2.228kg, Net: 1.522kg
Product number732544
LVI Code7813644
EAN Code6410457325443
Color Brown | RR32
Weight Gross: 2.228kg, Net: 1.522kg
Product number732546
LVI Code7813646
EAN Code6410457325467
Color Green | RR11
Weight Gross: 2.228kg, Net: 1.522kg
Product number732547
LVI Code7813647
EAN Code6410457325474
Color Grey | RR23 | RAL7015
Weight Gross: 2.228kg, Net: 1.522kg
Product number732548
LVI Code7813648
EAN Code6410457325481
Color Red | RR29 | RAL3009
Weight Gross: 2.228kg, Net: 1.522kg
Product number732549
LVI Code7813649
EAN Code6410457325498
Color Brick Red | RR750 | RAL8004
Weight Gross: 2.228kg, Net: 1.522kg
