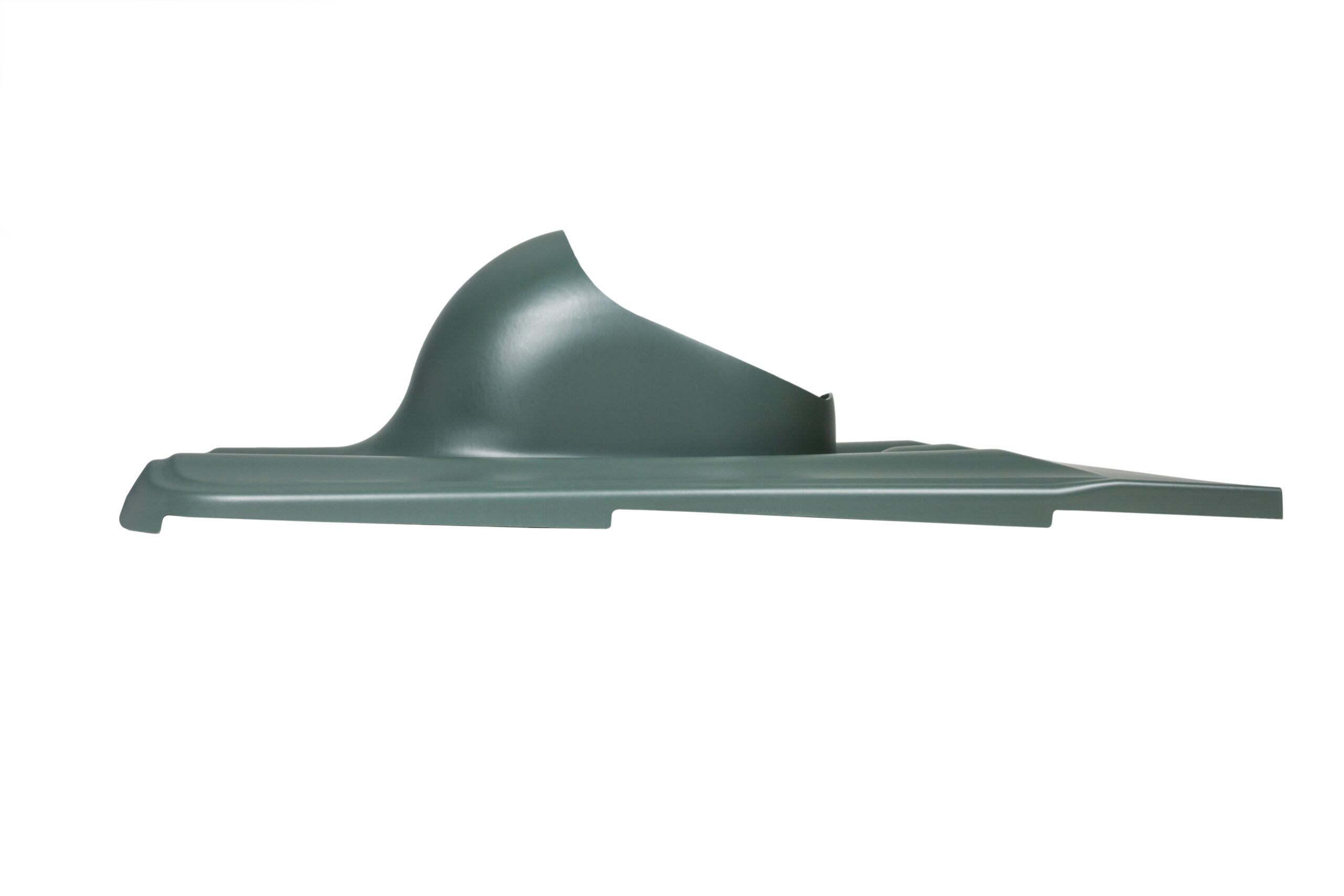

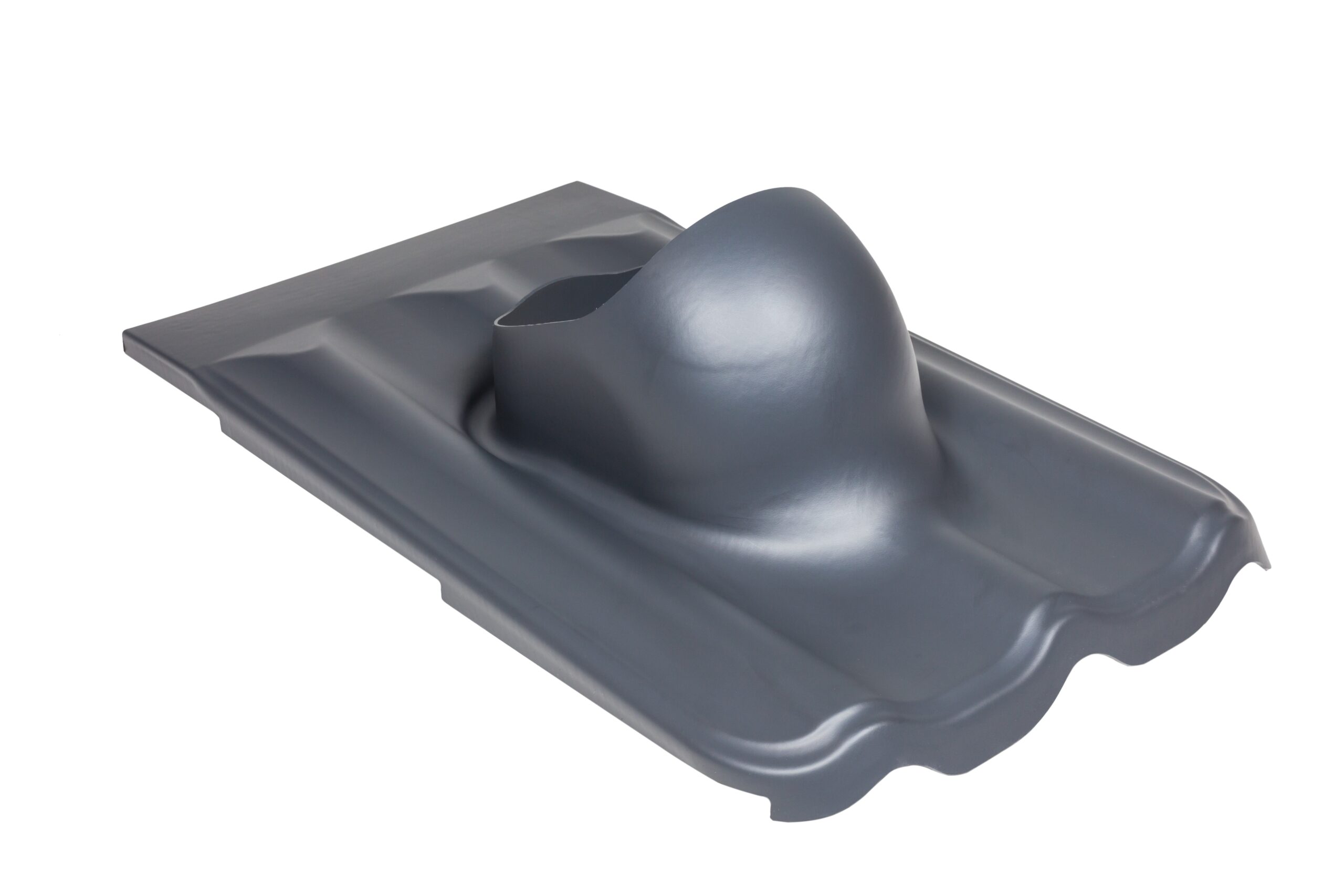

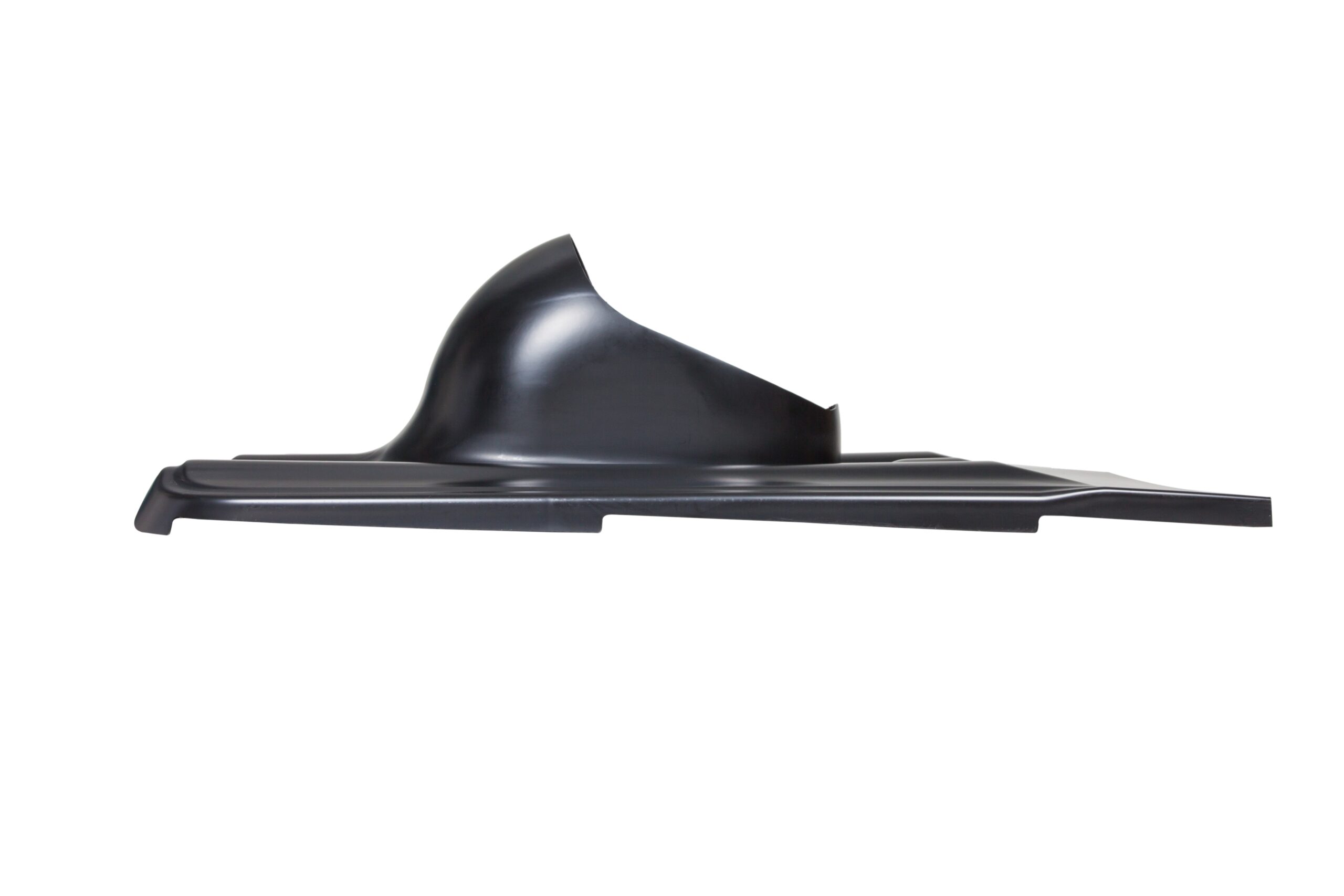

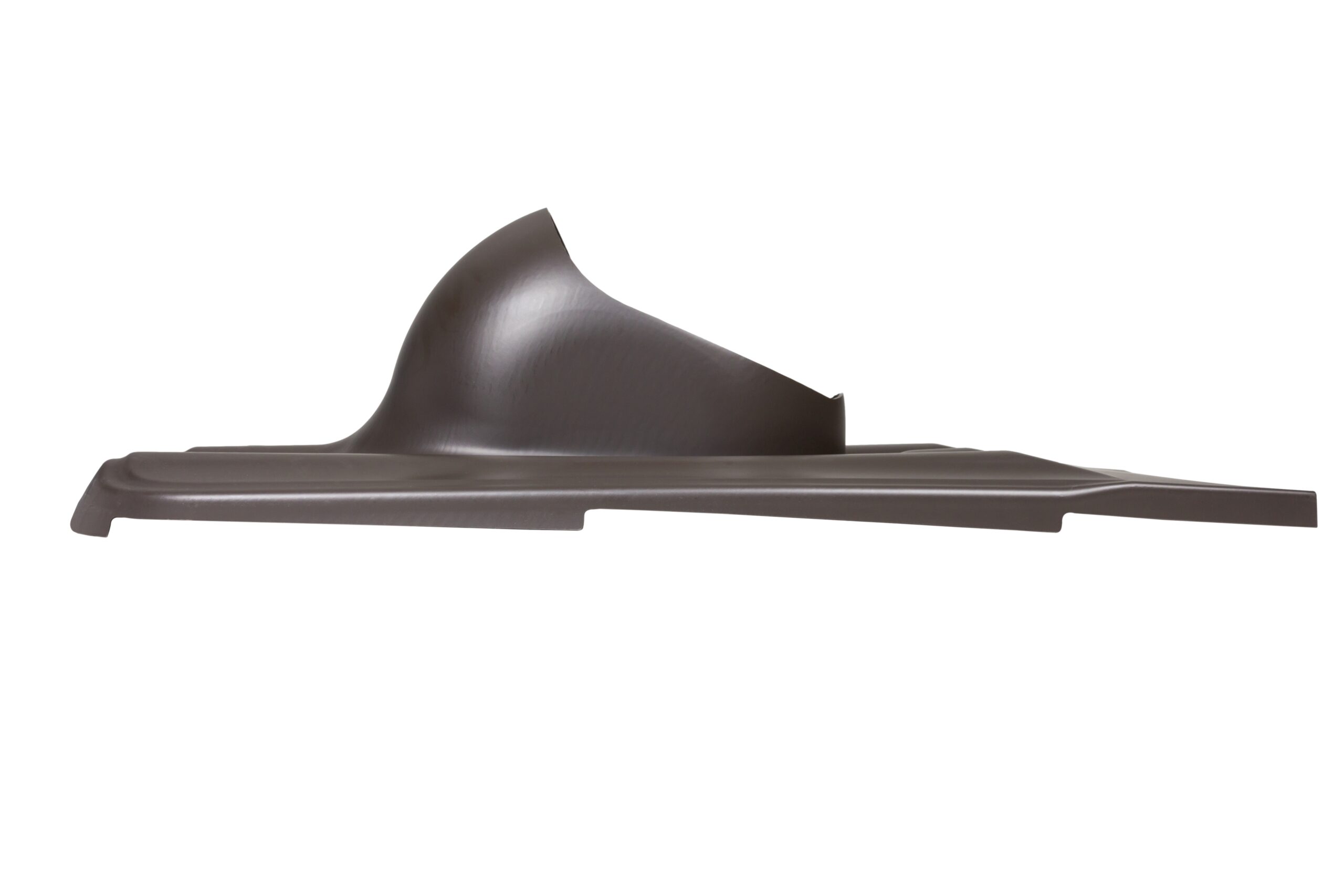

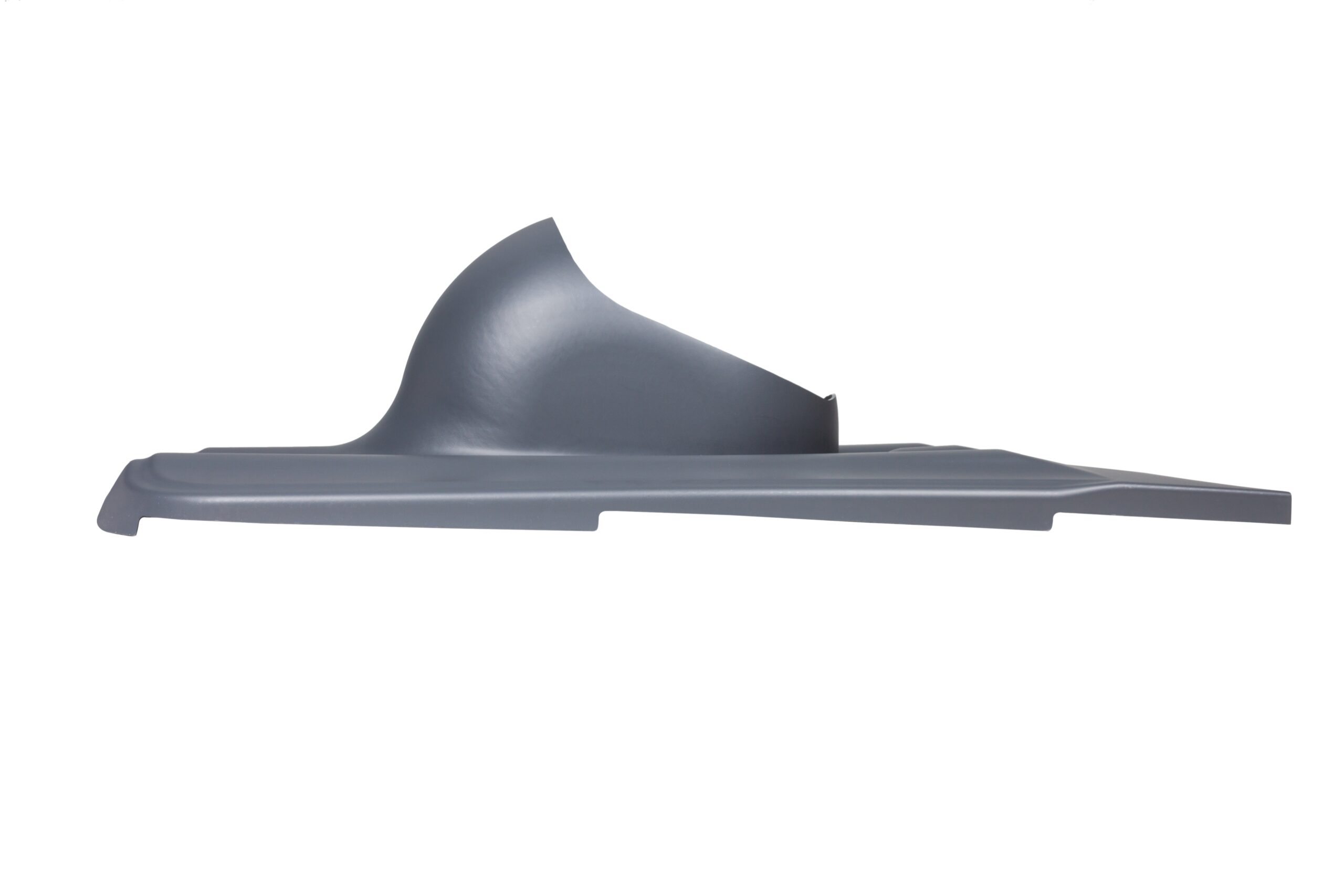

XL Universal MK1 Pass-Through

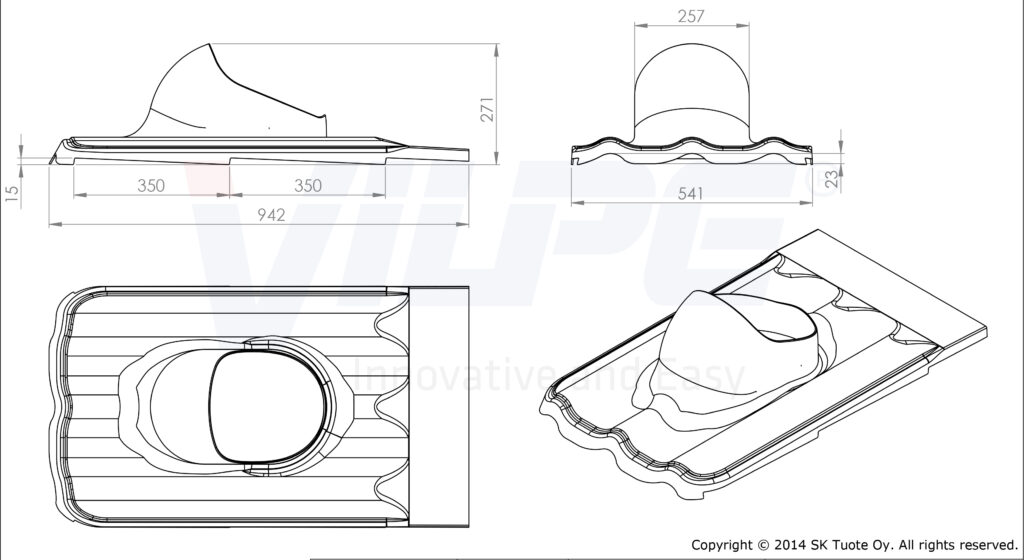

Description: For profiled steel roofs (with tiles which have a wave distance of 183.3 mm, wave length of 350 mm and wave height of 39 mm–e.g. Ruukki Monterrey). The seal on the bottom of the pass-through guarantees a fully waterproof end result, and is attached to the bottom of the flange. Installing the VILPE XL Universal MK1 Pass-Through is simple and easy: the kit includes all installation materials and clear instructions. The pass-through enables the installation of VILPE roof fans, exhaust pipes, ventilation pipes and antenna pass-throughs onto the roof. Designed for Ø 160-250 mm pipes.

Contents: Pass-through, two-piece XL underlay ring, screws, installation instructions.
