XL Universal Pass-Through

Description: For all profiled steel and tile roofs. The seal on the bottom of the pass-through guarantees a fully waterproof end result, and is attached to the bottom of the flange. Installing the VILPE XL Universal Pass-Through is simple and easy: the kit includes all installation materials and clear instructions. The pass-through enables the installation of VILPE roof fans, exhaust pipes, ventilation pipes and antenna pass-throughs onto the roof. Designed for Ø 160-250 mm pipes.

Contents: Pass-through, two-piece XL underlay ring, screws, installation instructions.
Color
Black
Brown
Green
Grey
Red
Brick Red
Product number735502
LVI Code7813622
EAN Code6410457355020

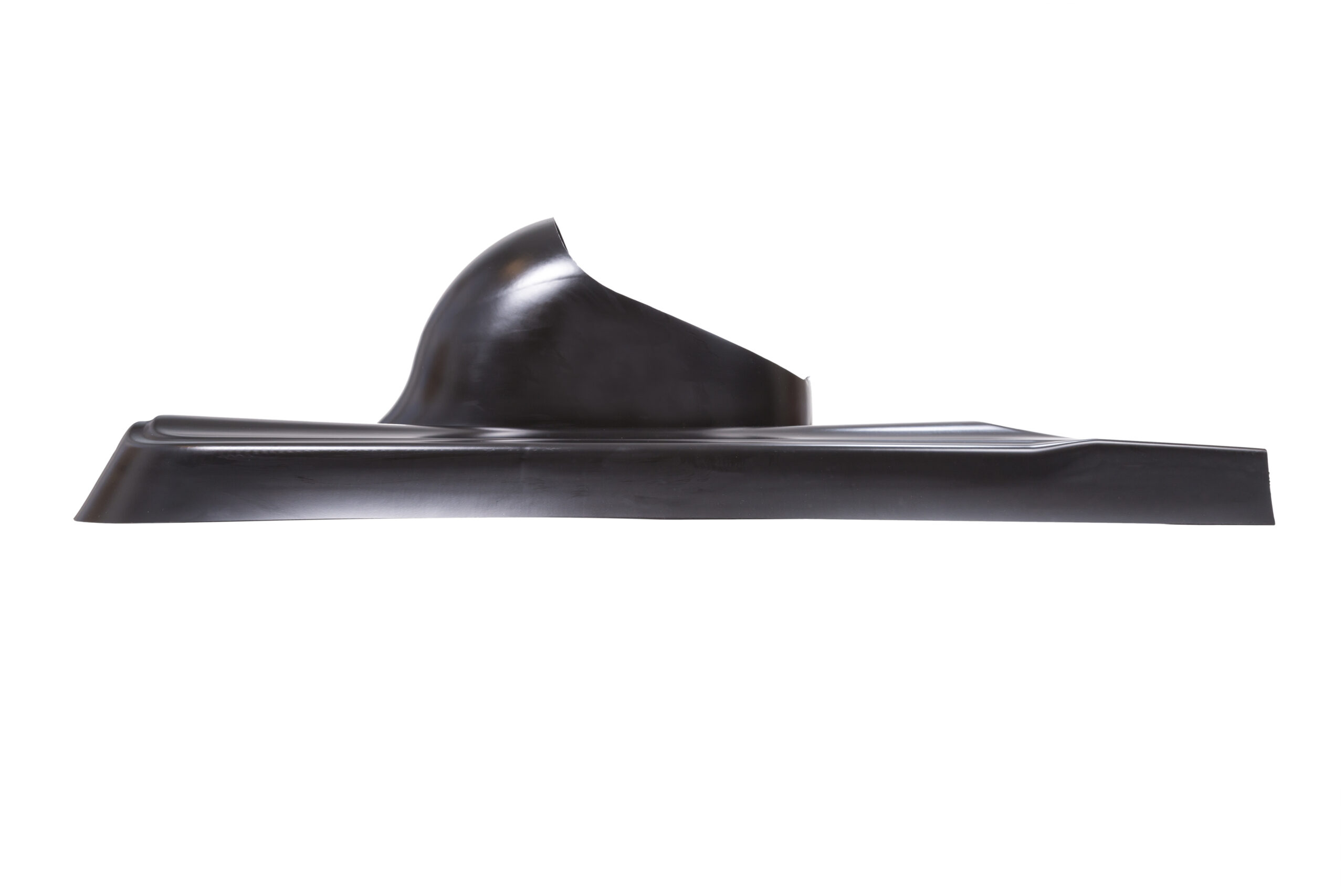

Color Black | RR33 | RAL9005
Weight Gross: 3.134kg, Net: 2.046kg
Product number735504
LVI Code7813624
EAN Code6410457355044
Color Brown | RR32
Weight Gross: 3.134kg, Net: 2.046kg
Product number735506
LVI Code7813626
EAN Code6410457355068
Color Green | RR11
Weight Gross: 3.755kg, Net: 2.685kg
Product number735507
LVI Code7813627
EAN Code6410457355075

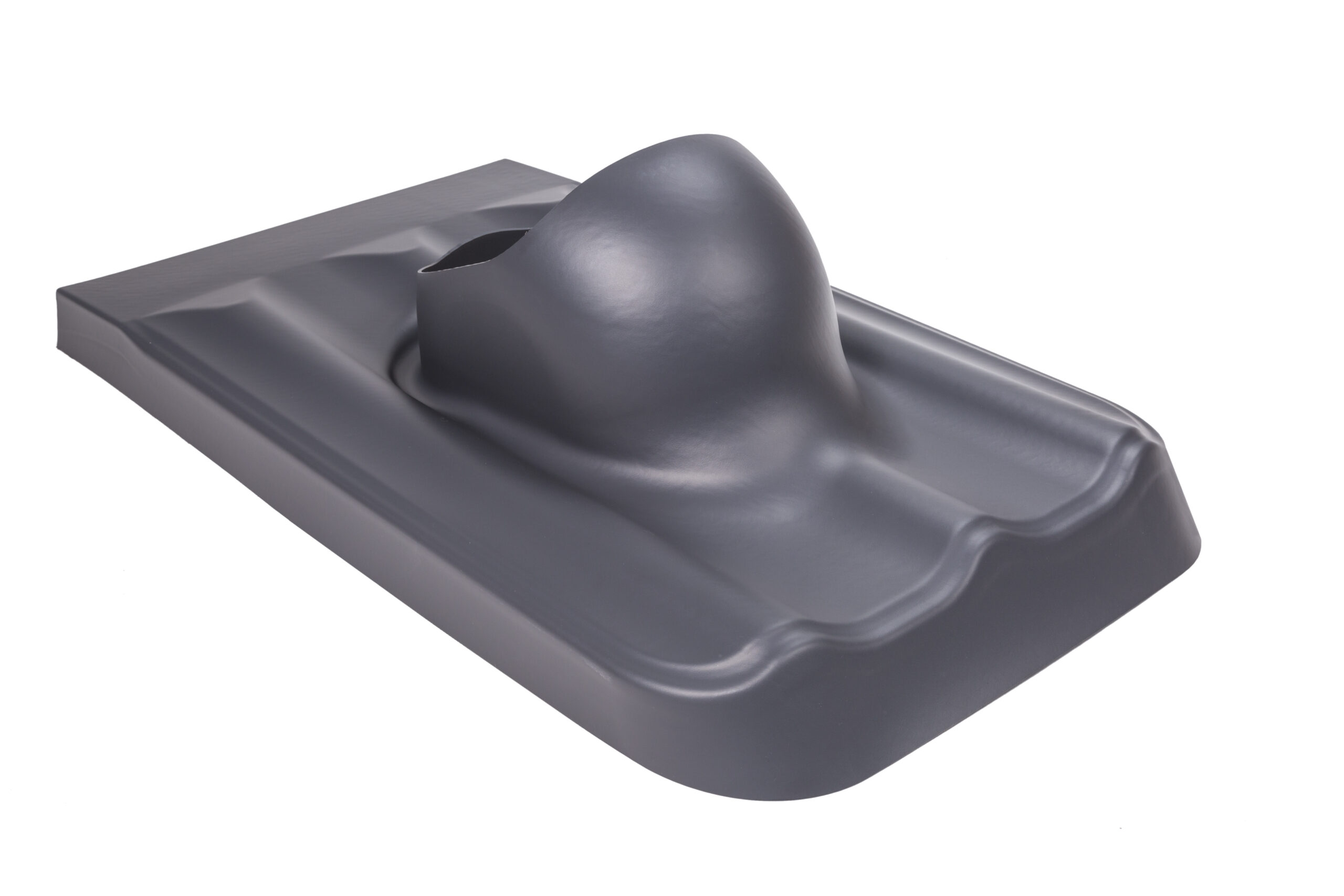

Color Grey | RR23 | RAL7015
Weight Gross: 3.083kg, Net: 1.994kg
Product number735508
LVI Code7813628
EAN Code6410457355082

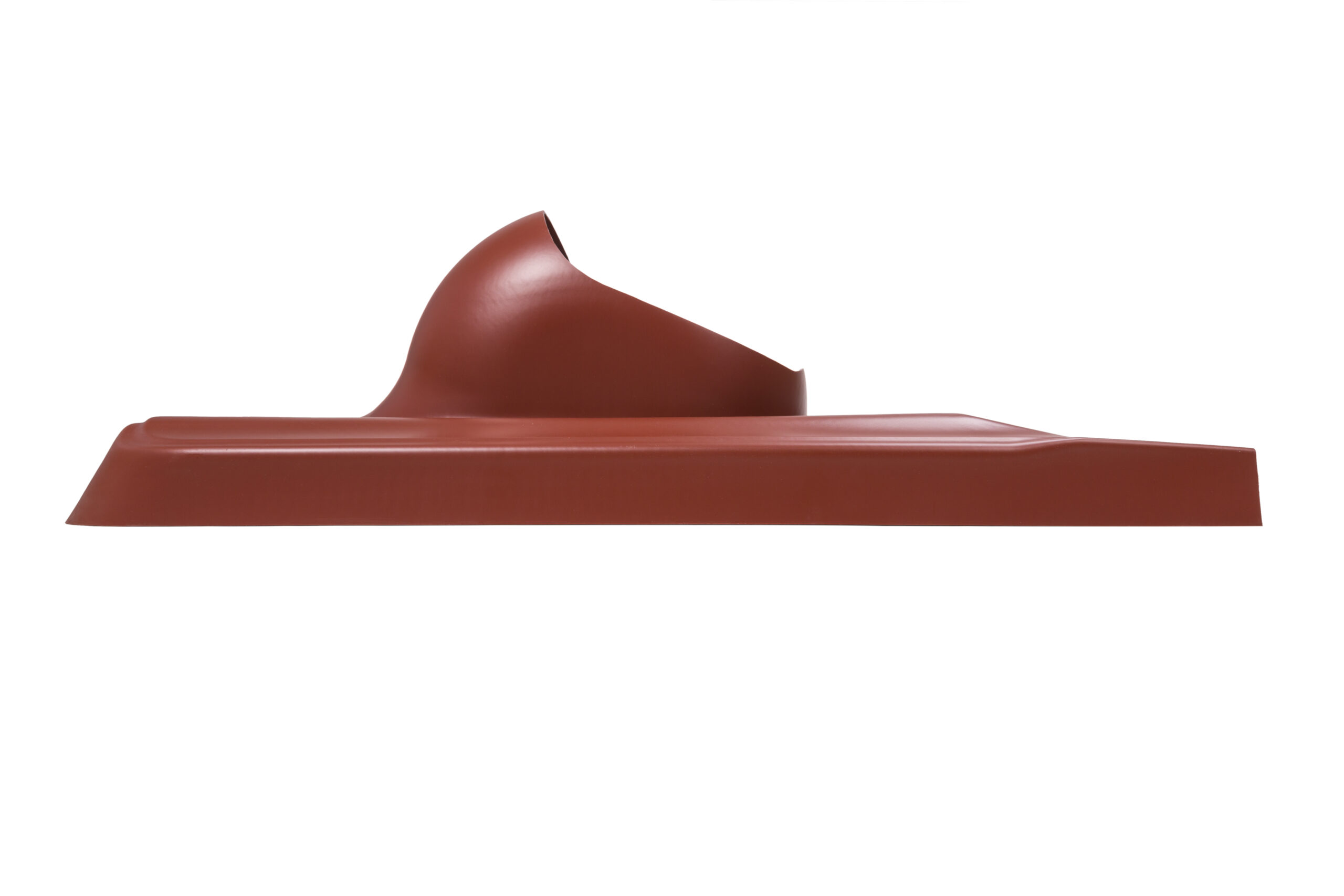

Color Red | RR29 | RAL3009
Weight Gross: 3.083kg, Net: 1.994kg
Product number735509
LVI Code7813629
EAN Code6410457355099

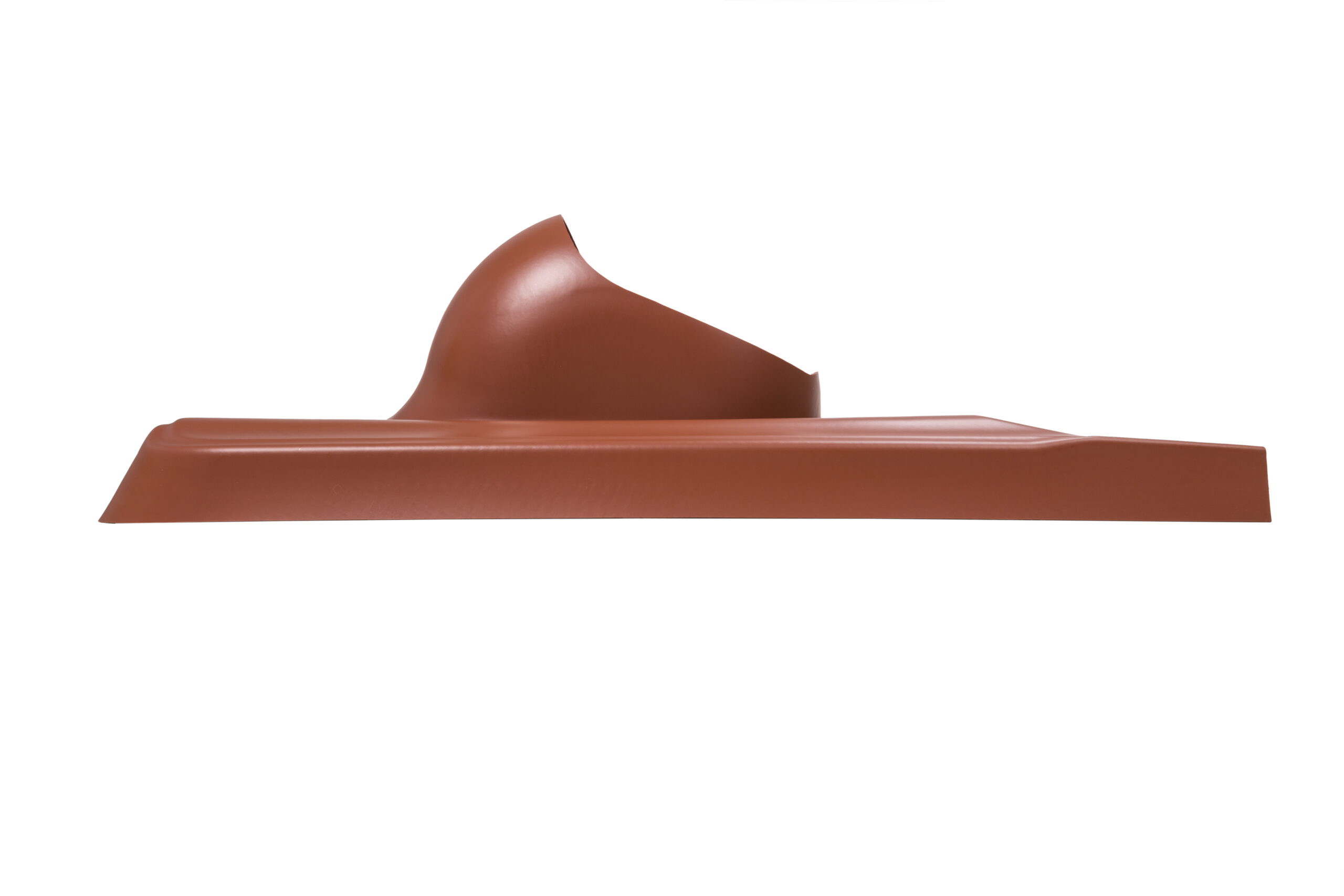

Color Brick Red | RR750 | RAL8004
Weight Gross: 3.083kg, Net: 1.994kg
SKU: N/A Categories: ,
Share product page
Print pdf
Roof MaterialSteel

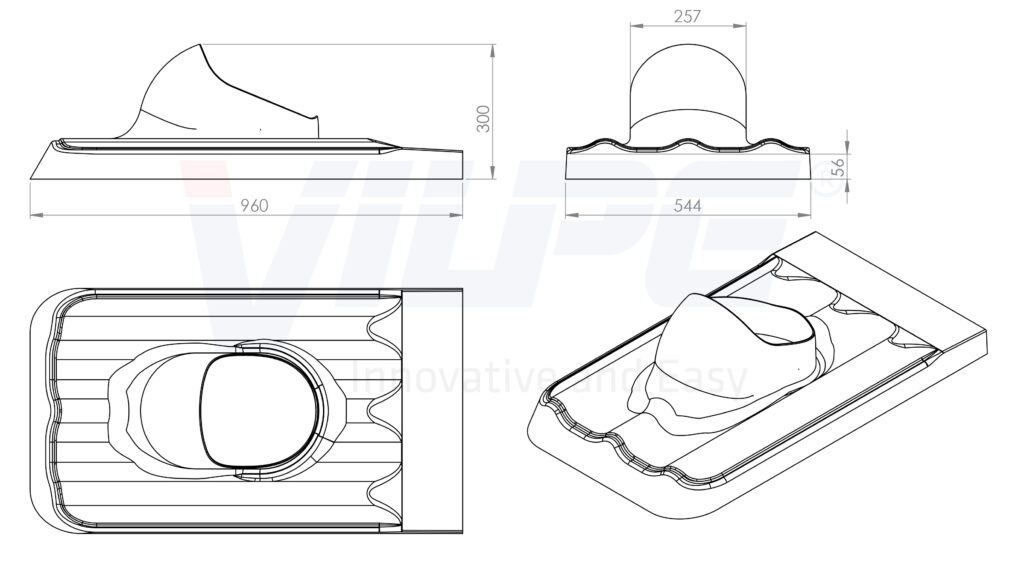

Download CAD Models

Download DWG-file
73550x.dwg
MagiCAD file

Materials & Installation

Send document by email

  • This field is for validation purposes and should be left unchanged.
Product categories: Pass-throughs, Pass-throughs for tile roofing
