High-quality pass-throughs for tile roofing

High-quality and easy to install pass-throughs for tile roofing from VILPE. One person can do the installation and no special knowledge is needed. All parts required for the installation are included. Find the right product here.

Show all products

Evo 2K Pass-Through

For plain Monier/Braas Teviva/Braas Tegalit tile roofs (with 420 mm by 330 mm tiles)

Includes Underlay 2K Seal, the new-generation VILPE® solution for completely waterproofing the underlay

Designed for Ø 75, 110, 125 or 160 mm pipes

Unitile 2K Pass-Through

For all tile roofs (ceramic, clay, concrete and special tiles, 1- and 2-wave tiles and plain tiles)

Includes Underlay 2K Seal, the new-generation VILPE® solution for completely waterproofing the underlay

Designed for Ø 75, 110, 125 or 160 mm pipes

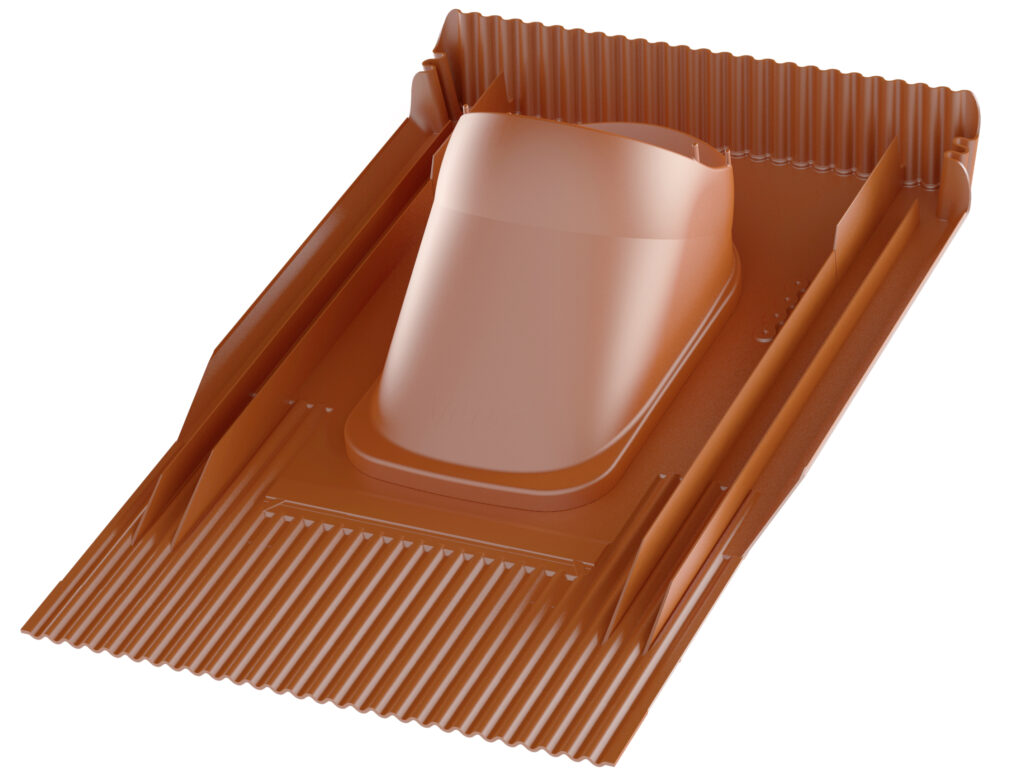

Tile Pass-Through

For most common concrete tile roofs (replaces one 2-wave concrete tile with a width of up to 330 mm and a wave height of 27-40 mm)

Seal on the bottom of the pass-through guarantees a fully waterproof end result

Designed for Ø 75, 110, 125 or 160 mm pipes

Unitile Pass-Through

For all tile roofs (ceramic, clay, concrete and special tiles, 1- and 2-wave tiles and plain tiles)

Seal on the bottom of the pass-through guarantees a fully waterproof end result

Designed for Ø 75, 110, 125 or 160 mm pipes

Vittinge Pass-Through

For vittinge clay tile roofs

Seal on the bottom of the pass-through guarantees a fully waterproof end result

Designed for Ø 75, 110, 125 or 160 mm pipes

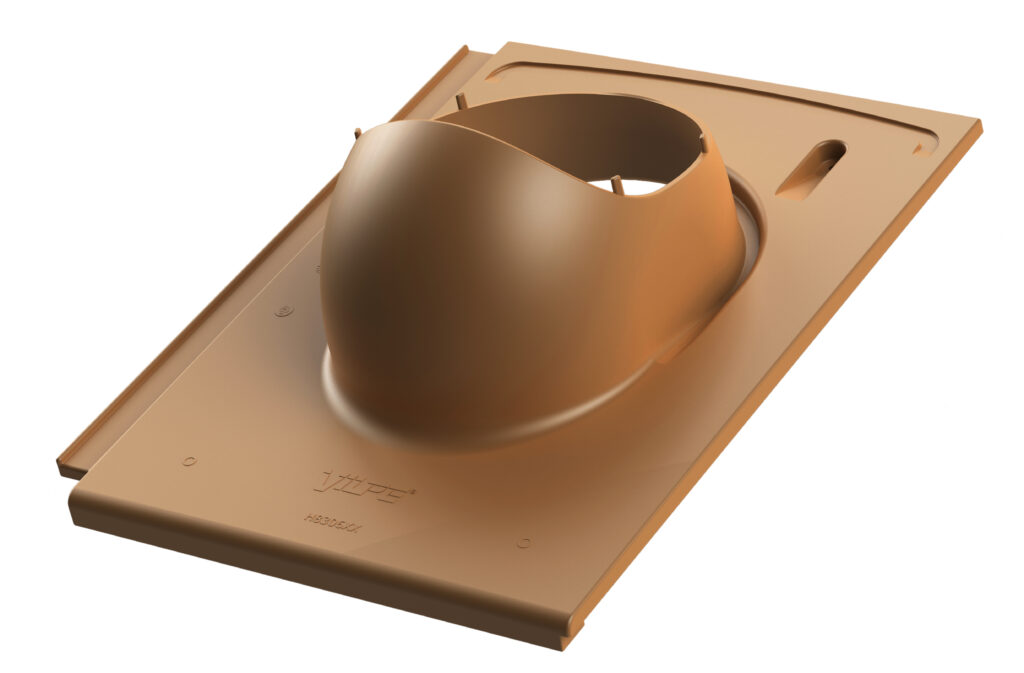

Evo Pass-Through

For plain Monier/Braas Teviva/Braas Tegalit tile roofs (with 420 mm by 330 mm tiles)

Seal on the bottom of the pass-through guarantees a fully waterproof end result

Designed for Ø 75, 110, 125 or 160 mm pipes

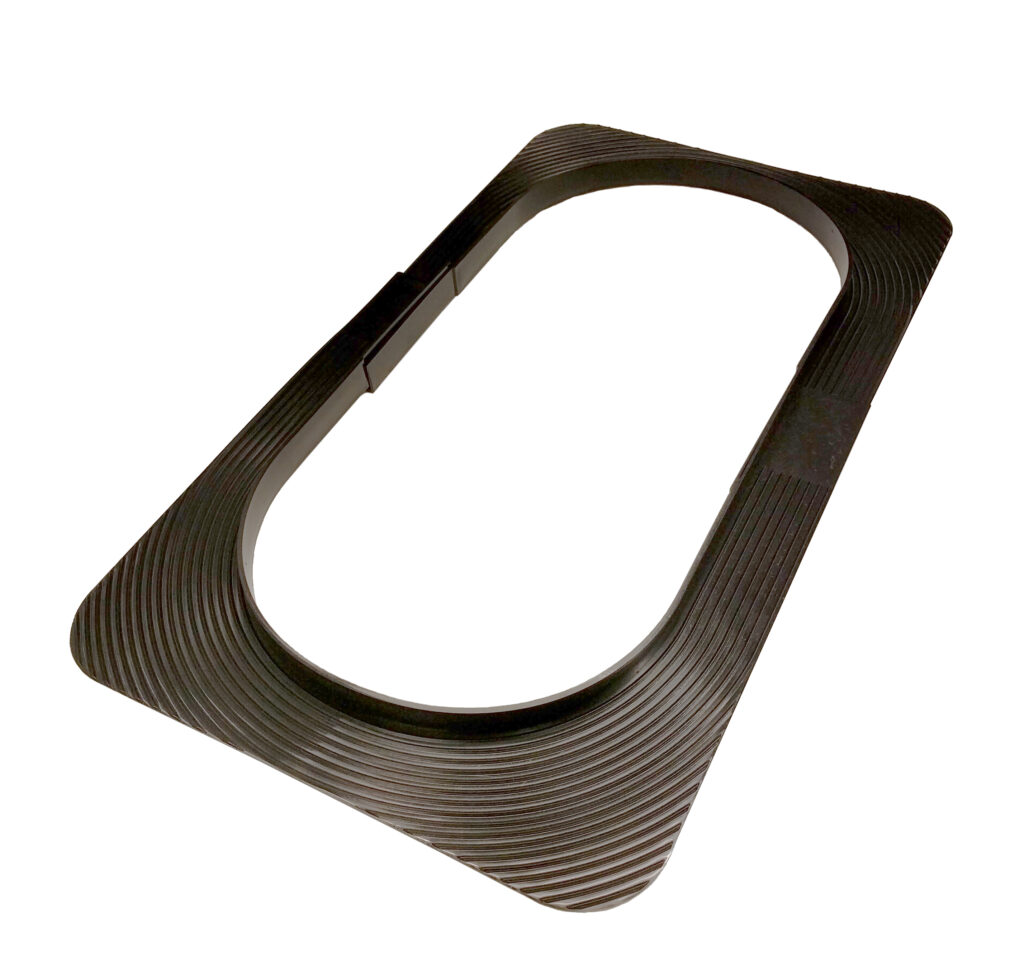

Underlay Ring

For fastening underlay material to roof battens, raising the underlay and ensuring that water is kept out of roof structures and insulation material

Also included in all VILPE^® pass-through sets

For a more advanced solution, try the VILPE^® Underlay 2K Seal instead

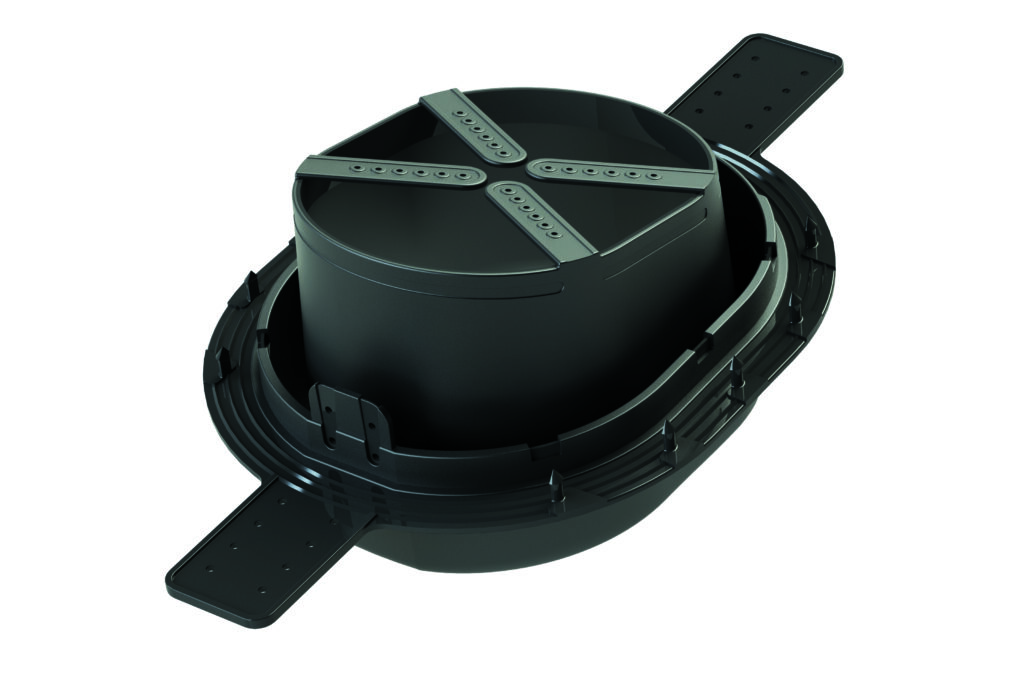

Underlay 2K Seal

For fastening underlay material to roof battens, extending to the upper edge of the pass-through and ensuring a watertight seal between the underlay and the roofing material

Also included in all VILPE^® 2K pass-through sets

Patented two-component (2K) underlay seal which is just as easy to install as the older VILPE® Underlay Ring

XL Tile Pass-Through

For most common concrete tile roofs (replaces two 2-wave concrete tiles with a width of up to 330 mm and a wave height of 27-40 mm)

Seal on the bottom of the pass-through guarantees a fully waterproof end result

Designed for Ø 160-250 mm pipes

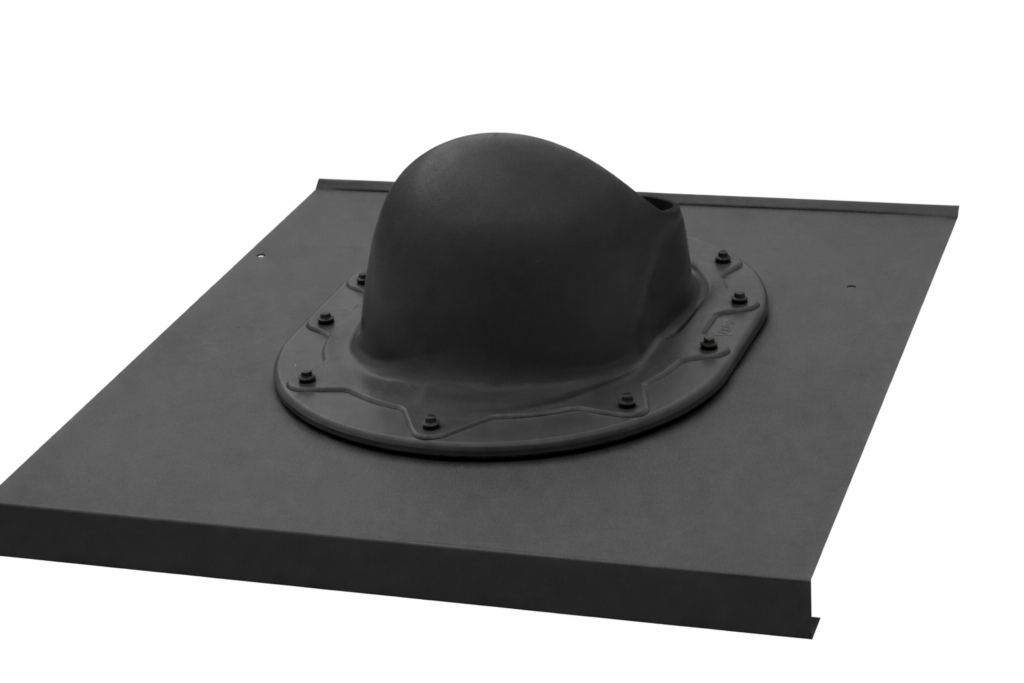

XL Universal Pass-Through

For all profiled steel and tile roofs

Seal on the bottom of the pass-through guarantees a fully waterproof end result

Designed for Ø 160-250 mm pipes

XL Underlay Ring

For fastening underlay material to roof battens, raising the underlay and ensuring that water is kept out of roof structures and insulation material

Also included in all VILPE XL pass-through sets

Tile 2K Pass-Through

Description: The VILPE Tile 2K is a new, progressive pass-through for most common concrete tile roofs--it replaces one 2-wave concrete tile with a width of up to 330 mm and a wave height of 27-40 mm. The product ensemble includes the Underlay 2K Seal, the new-generation VILPE solution for completely waterproofing the underlay. The two-component underlay seal straddles the underlay and the top of the pass-through seamlessly, preventing any rainfall, snow or moisture from reaching the roof structures or insulation material below. The seal on the bottom of the pass-through guarantees a fully waterproof end result, and is attached to the bottom of the flange. Installing the VILPE Tile 2K Pass-Through is simple and easy: the pass-through includes spikes for attaching the Underlay 2K Seal, and the kit includes all installation materials and clear instructions. The pass-through enables the installation of VILPE roof fans, exhaust pipes, ventilation pipes and antenna pass-throughs onto the roof. Designed for Ø 75, 110, 125 or 160 mm pipes. Contents: Pass-through, underlay 2K seal, screws, installation instructions/template for underlay seal and pass-through.
