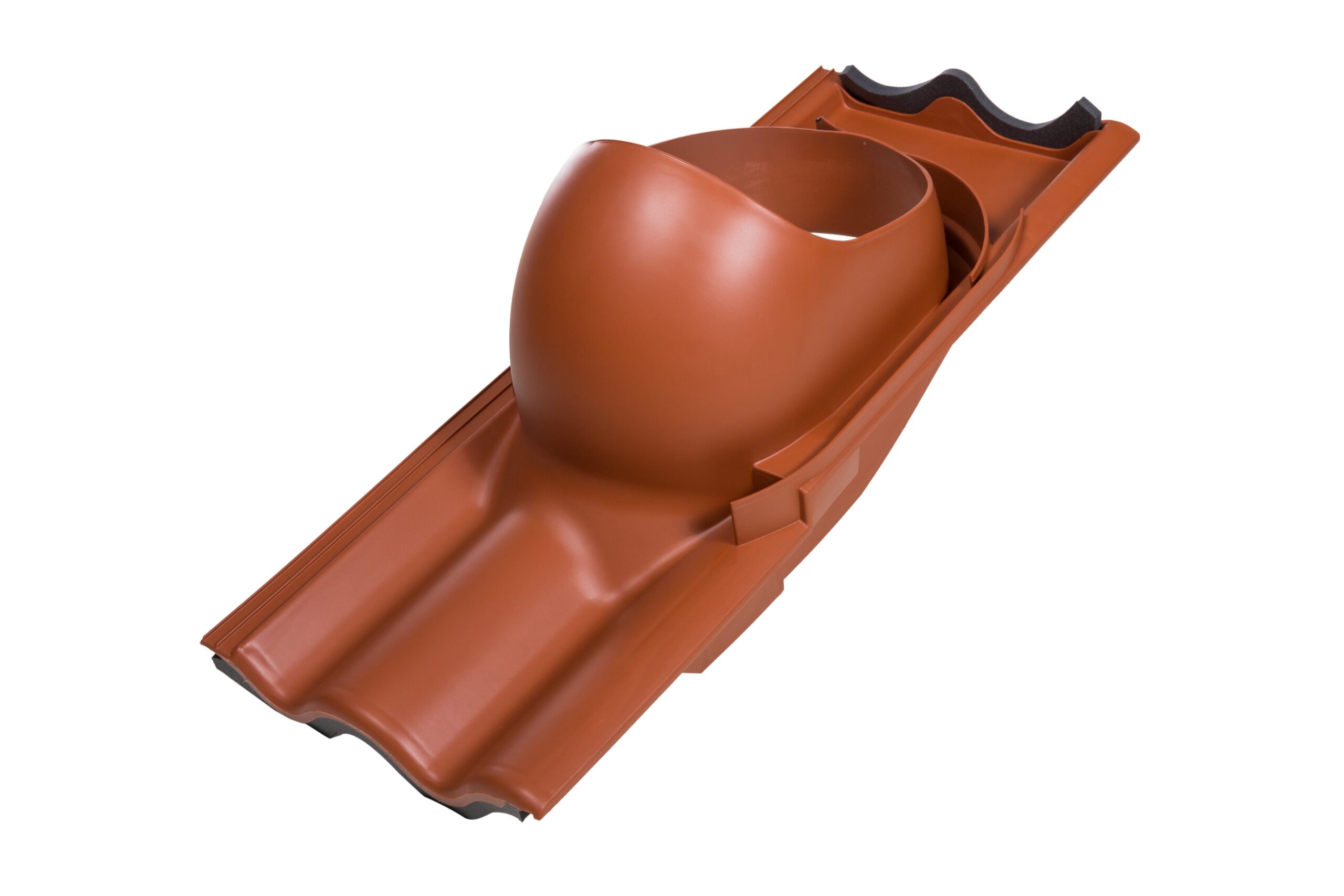

XL Tile Pass-Through

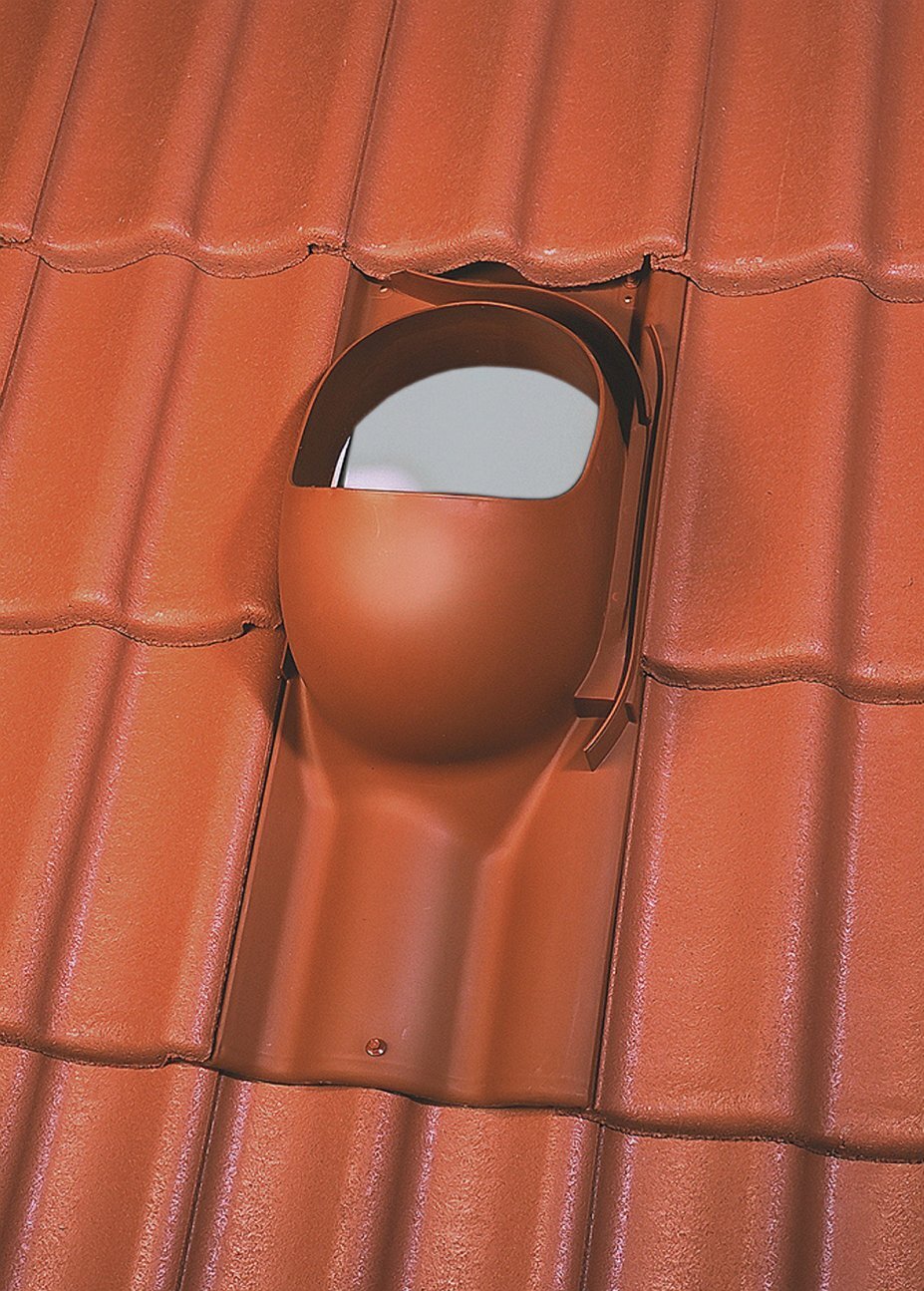

For most common concrete tile roofs–it replaces two 2-wave concrete tiles with a width of up to 330 mm and a wave height of 27-40 mm. The seal on the bottom of the pass-through guarantees a fully waterproof end result, and is attached to the bottom of the flange. Installing the VILPE XL Tile Pass-Through is simple and easy: the kit includes all installation materials and clear instructions. The pass-through enables the installation of VILPE roof fans, exhaust pipes, ventilation pipes and antenna pass-throughs onto the roof. Designed for Ø 160-250 mm pipes.

Contents: Pass-through, two-piece XL underlay ring, screws, installation instructions.

Color
Black
Brown
Green
Grey
Red
Brick Red
Product number740102
LVI Code7813612
EAN Code6410457401024
Color Black | RR33 | RAL9005
Weight Gross: 3.068kg, Net: 2.19kg
Product number740104
LVI Code7813614
EAN Code6410457401048
Color Brown | RR32
Weight Gross: 3.068kg, Net: 2.19kg
Product number740106
LVI Code7813616
EAN Code6410457401062
Color Green | RR11
Weight Gross: 3.068kg, Net: 2.19kg
Product number740107
LVI Code7813617
EAN Code6410457401079
Color Grey | RR23 | RAL7015
Weight Gross: 3.068kg, Net: 2.19kg
Product number740108
LVI Code7813618
EAN Code6410457401086
Color Red | RR29 | RAL3009
Weight Gross: 3.068kg, Net: 2.19kg
Product number740109
LVI Code7813619
EAN Code6410457401093
Color Brick Red | RR750 | RAL8004
Weight Gross: 3.068kg, Net: 2.19kg
