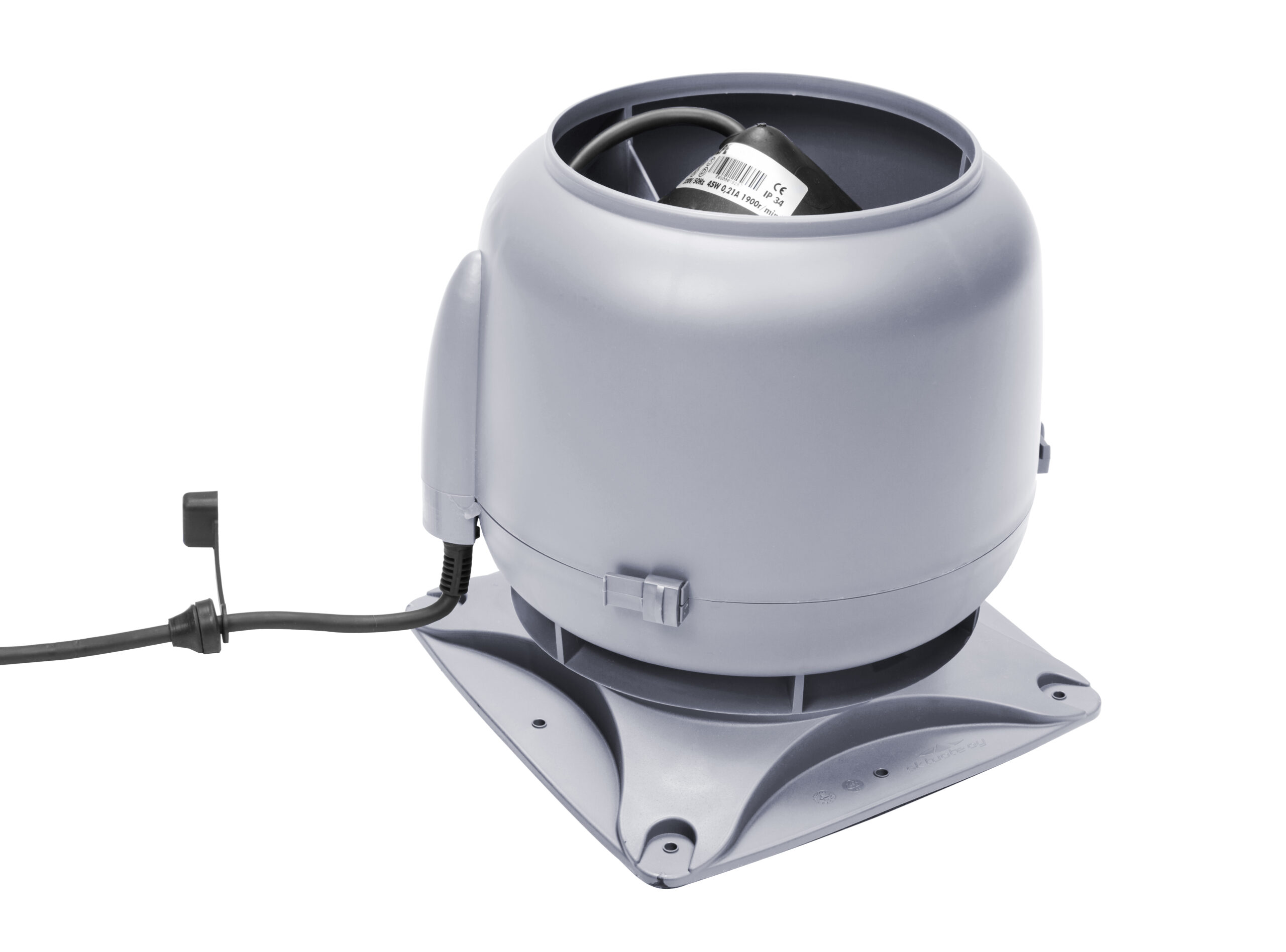

E120S/Ø125 Roof Fan + Installation Set

DISCONTINUED

Description: Roof fan for the top of an air conduit or silencer. An installation set for a flat surface is included with this product.

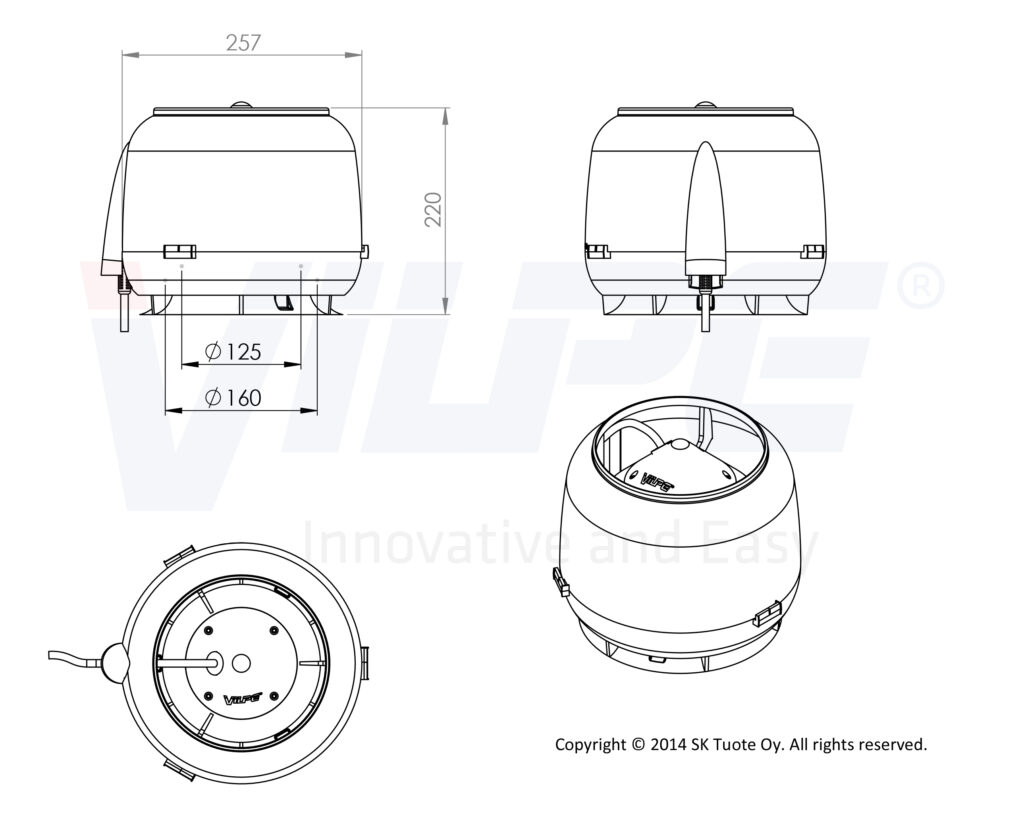

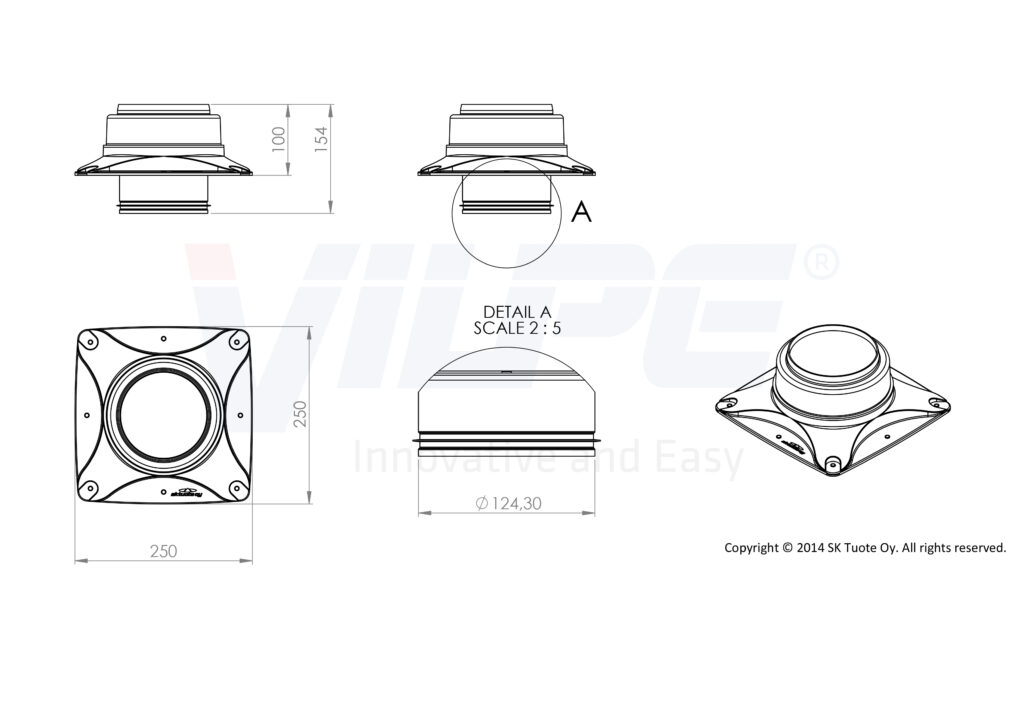

Dimensions: Duct size Ø 125 mm; installation set 250 x 250 mm, installation area must be at least the same size.

Contents: Roof fan, installation set, screws, installation, operating and maintenance instructions.

Compatible controllers
Color
Black
Brick Red
Brown
Green
Grey
Red
Light Grey
Product number737202
LVI Code7820220
EAN Code6410457372027

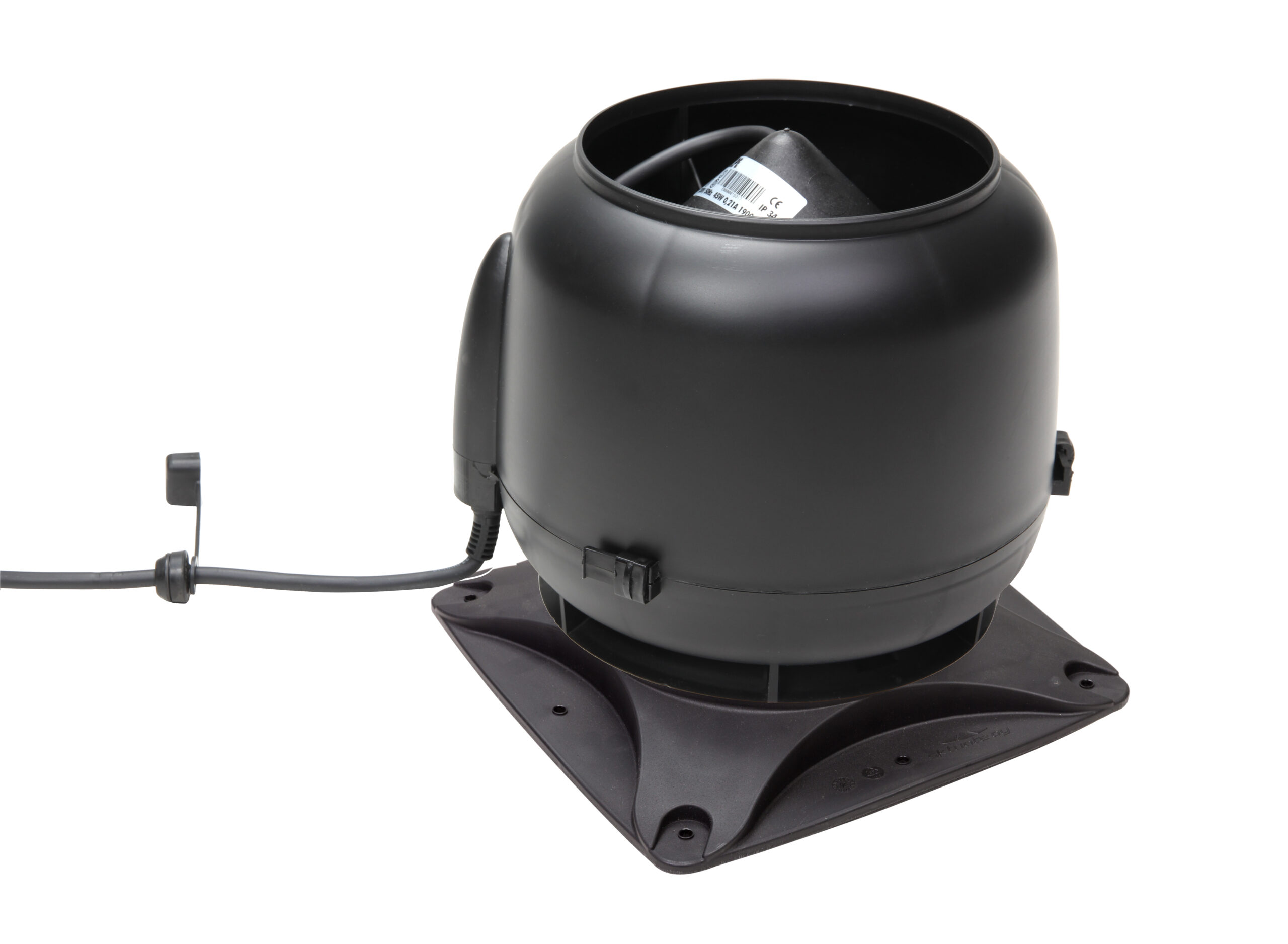

Color Black | RR33 | RAL9005
Weight Gross: 4.21kg, Net: 4.13kg
Product number737209
LVI Code7820225
EAN Code6410457372096
Color Brick Red | RR750 | RAL8004
Weight Gross: 4.157kg, Net: 3.671kg
Product number737204
LVI Code7820221
EAN Code6410457372041
Color Brown | RR32
Weight Gross: 4.157kg, Net: 3.671kg
Product number737206
LVI Code7820222
EAN Code6410457372065
Color Green | RR11
Weight Gross: 4.041kg, Net: 3.575kg
Product number737207
LVI Code7820223
EAN Code6410457372072

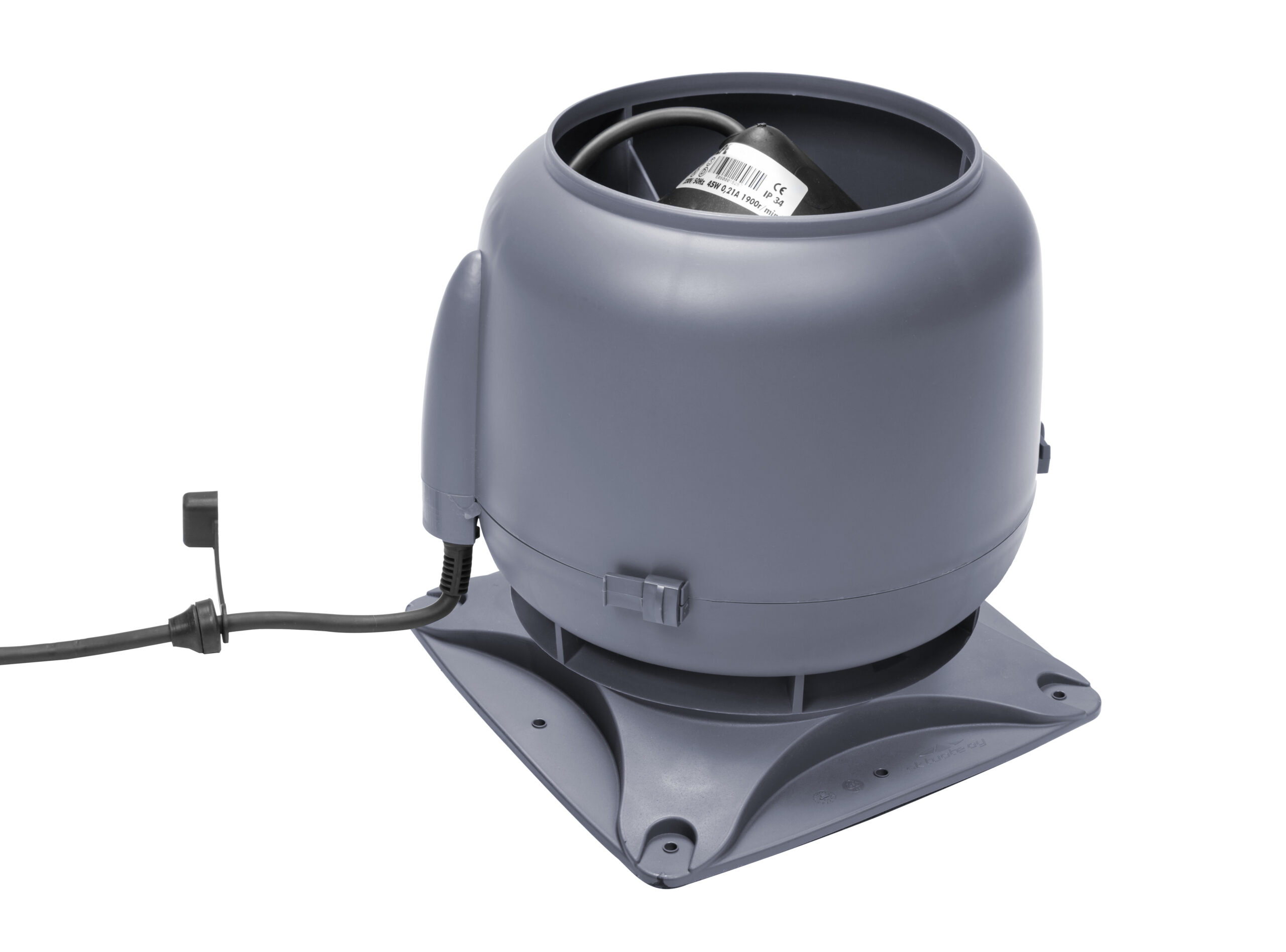

Color Grey | RR23 | RAL7015
Weight Gross: 4.157kg, Net: 3.671kg
Product number737208
LVI Code7820224
EAN Code6410457372089
Color Red | RR29 | RAL3009
Weight Gross: 4.157kg, Net: 3.671kg
Product number737201
LVI Code7820219
EAN Code6410457372010
Color Light Grey | RAL7040
Weight Gross: 4.041kg, Net: 3.575kg
SKU: N/A Category:
Share product page
Print pdf

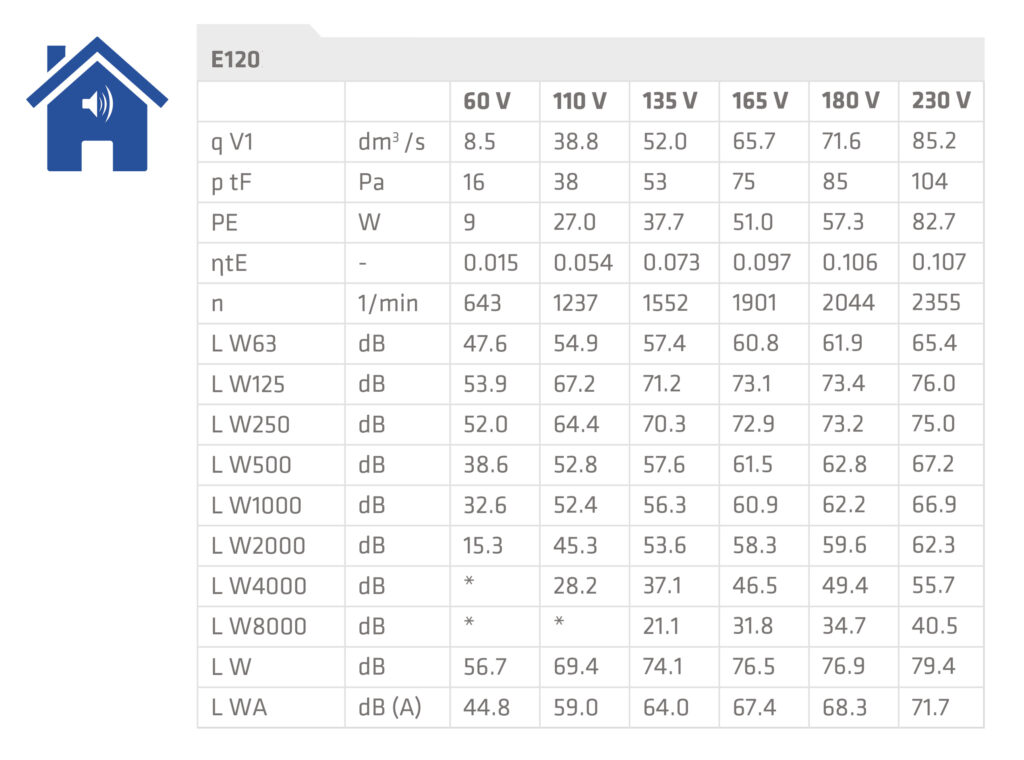

Duct size125 Ø
Voltage230V/50Hz
Current0,23 A
Rotation speed (rpm)2350 rpm
Capacitor1,5 µF
Power52 W
Fan typeAC

Download CAD Models

MagiCAD file

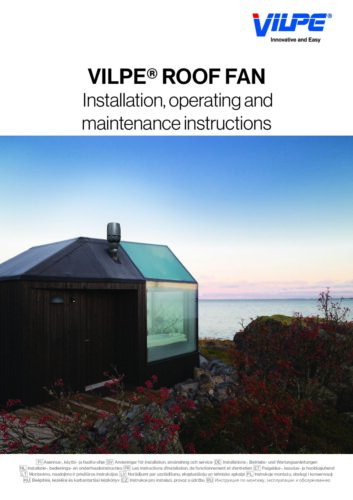

Materials & Installation

Send document by email

  • This field is for validation purposes and should be left unchanged.

Certificates

Videos

Product categories: Discontinued
