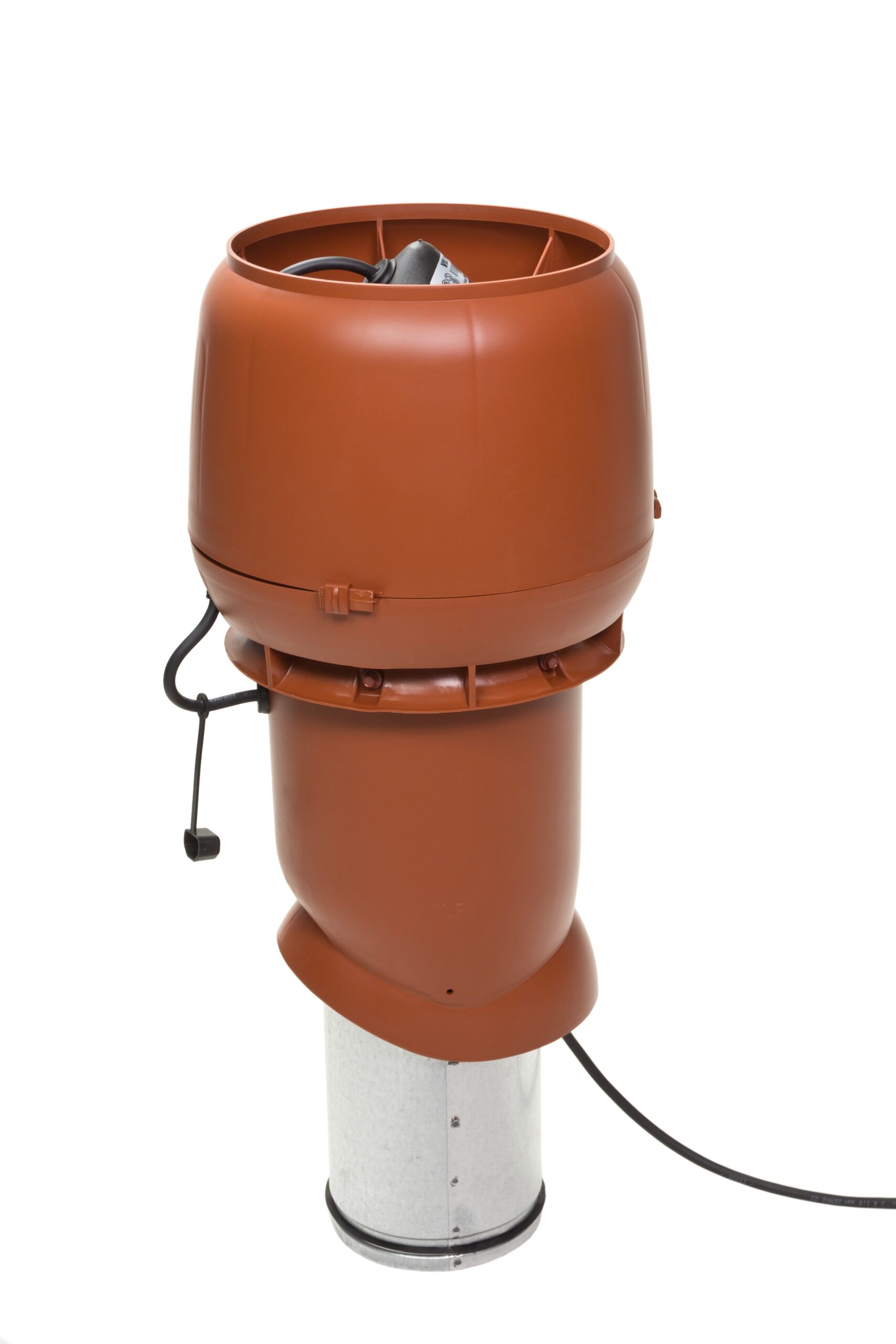

E220P/Ø160/500 Roof Fan

Description: Insulated roof fan. Includes a galvanized steel inner pipe with a lip seal. VILPE pass-throughs suitable for a range of roofing types and material are available separately. VILPE P-series roof fans are compatible with all VILPE pass-through set types, although please note that P-series XL roof fans require an XL pass-through.

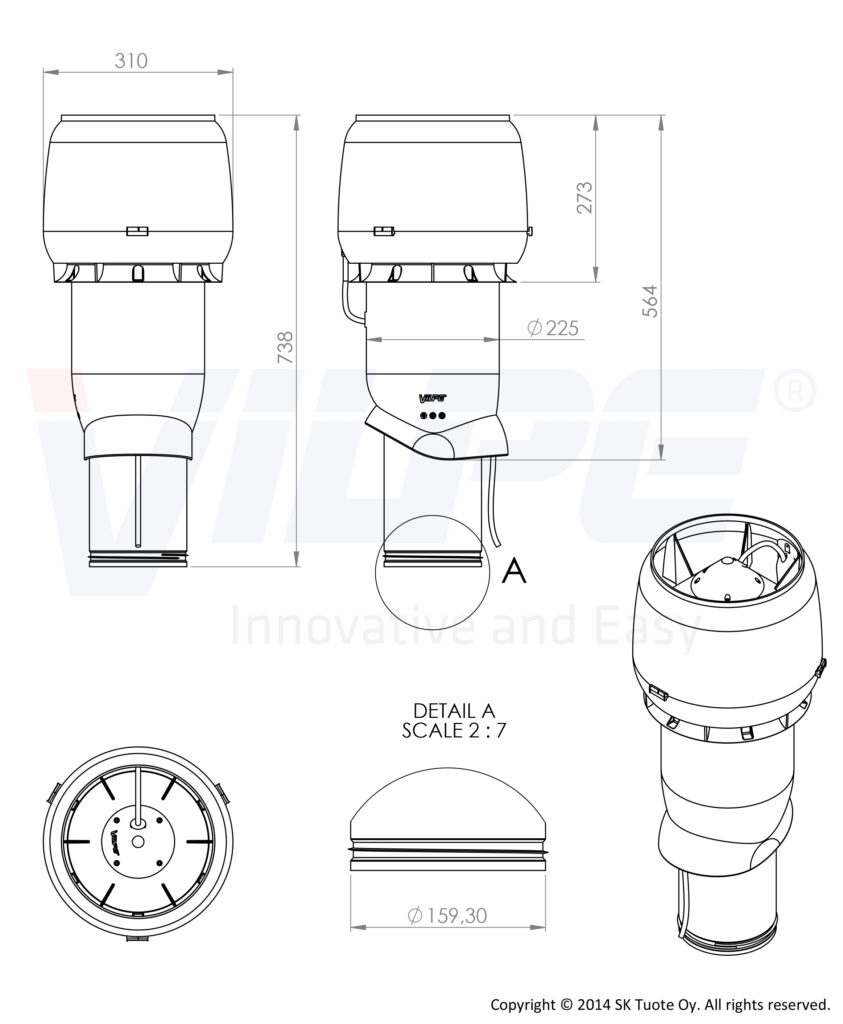

Dimensions: Duct size Ø 160 mm, external Ø 225 mm, height above roof approx. 500 mm.

Contents: Roof fan, screws, installation, operating and maintenance instructions.

Compatible controllers

Color
Light Grey
Black
Brown
Green
Grey
Red
Brick Red
Product number73471
EAN Code6417323734712
Color Light Grey | RAL7040
Weight Gross: 6.051kg, Net: 5.171kg
Product number73472
EAN Code6417323734729
Color Black | RR33 | RAL9005
Weight Gross: 6.051kg, Net: 5.171kg
Product number73474
EAN Code6417323734743
Color Brown | RR32
Weight Gross: 6.051kg, Net: 5.171kg
Product number73476
EAN Code6417323734767
Color Green | RR11
Weight Gross: 6.051kg, Net: 5.171kg
Product number73477
EAN Code6417323734774
Color Grey | RR23 | RAL7015
Weight Gross: 6.051kg, Net: 5.171kg
Product number73478
EAN Code6417323734781
Color Red | RR29 | RAL3009
Weight Gross: 6.051kg, Net: 5.171kg
Product number73479
EAN Code6417323734798
Color Brick Red | RR750 | RAL8004
Weight Gross: 6.051kg, Net: 5.171kg
SKU: N/A Categories: ,
Share product page
Duct size160 Ø
Materialsexpanded polystyrene, galvanized sheet steel , polypropene plastic (PP)
Package includescowl, fixing screws
Voltage230V/50Hz
Current0,39 A
Rotation speed (rpm)2100 rpm
Capacitor2 µF
Power88 W
Fan typeAC

Download CAD Models

Videos

Product categories: P-Series roof fans, Roof fans
