Evo 2K Pass-Through

The VILPE Evo 2K is a new, progressive pass-through for plain Monier/Braas Teviva/Braas Tegalit tile roofs (with 420 mm by 330 mm tiles). The product ensemble includes the Underlay 2K Seal, the new-generation VILPE solution for completely waterproofing the underlay. The two-component underlay seal straddles the underlay and the top of the pass-through seamlessly, preventing any rainfall, snow or moisture from reaching the roof structures or insulation material below. The seal on the bottom of the pass-through guarantees a fully waterproof end result, and is attached to the bottom of the flange. Installing the VILPE Evo 2K Pass-Through is simple and easy: the pass-through includes spikes for attaching the Underlay 2K Seal, and the kit includes all installation materials and clear instructions. The pass-through enables the installation of VILPE roof fans, exhaust pipes, ventilation pipes and antenna pass-throughs onto the roof. Designed for Ø 75, 110, 125 or 160 mm pipes.

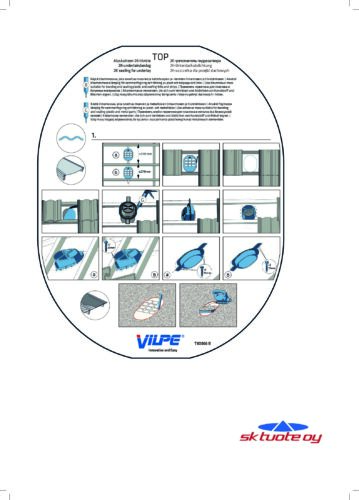

Contents: Pass-through, underlay 2K seal, screws, installation instructions/template for underlay seal and pass-through.

Color
Anthracite
Black
Brown
Grey
Red
Brick Red
Product number30007G
EAN Code6417323850832
Color Anthracite
Weight Gross: 1.69kg, Net: 1.34kg
Product number300072
LVI Code7820253
EAN Code6410453000726
Color Black | RR33 | RAL9005
Weight Gross: 1.69kg, Net: 1.34kg
Product number300074
LVI Code7820254
EAN Code6410453000740
Color Brown | RR32 | RAL9005
Weight Gross: 1.69kg, Net: 1.34kg
Product number300077
LVI Code7820255
EAN Code6410453000771
Color Grey | RR23 | RAL7015
Weight Gross: 1.69kg, Net: 1.34kg
Product number300078
LVI Code7820256
EAN Code6410453000788
Color Red | RR29 | RAL3009
Weight Gross: 1.69kg, Net: 1.34kg
Product number300079
LVI Code7820257
EAN Code6410453000795
Color Brick Red | RR750 | RAL8004
Weight Gross: 1.69kg, Net: 1.34kg
