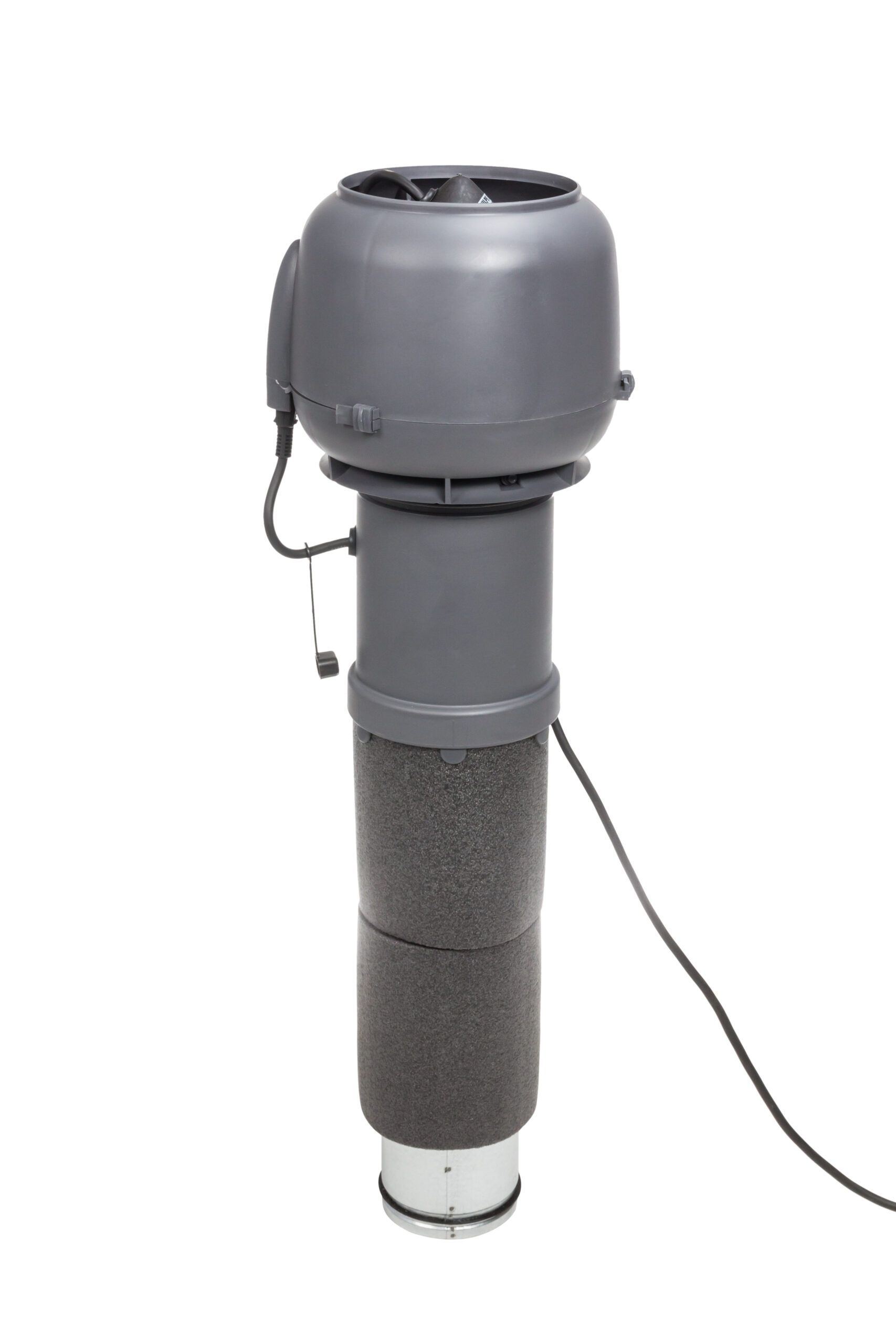

E120C/Ø125/400 ROOF FAN

DISCONTINUED

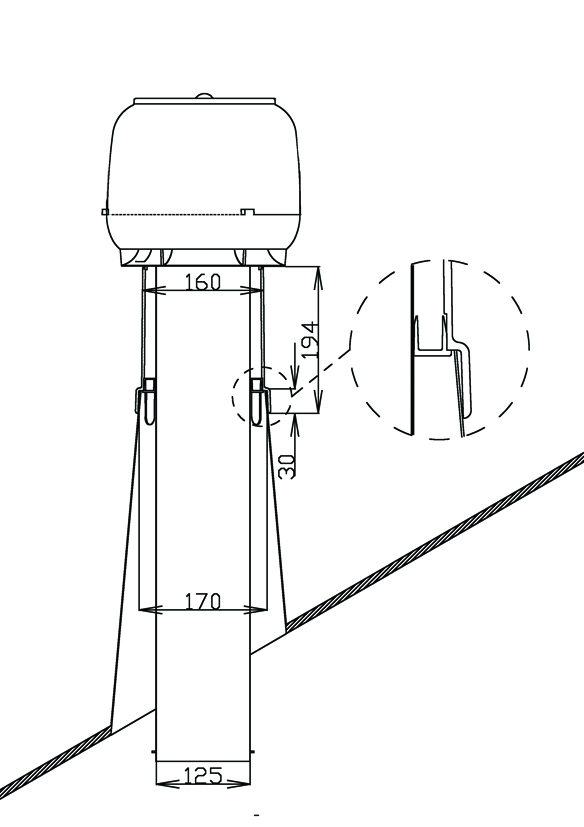

Description: Insulated roof fan. Includes a galvanized steel inner pipe with a lip seal. Should be installed in a sheet metal cone with a Ø 170 mm opening, made by a tinsmith.

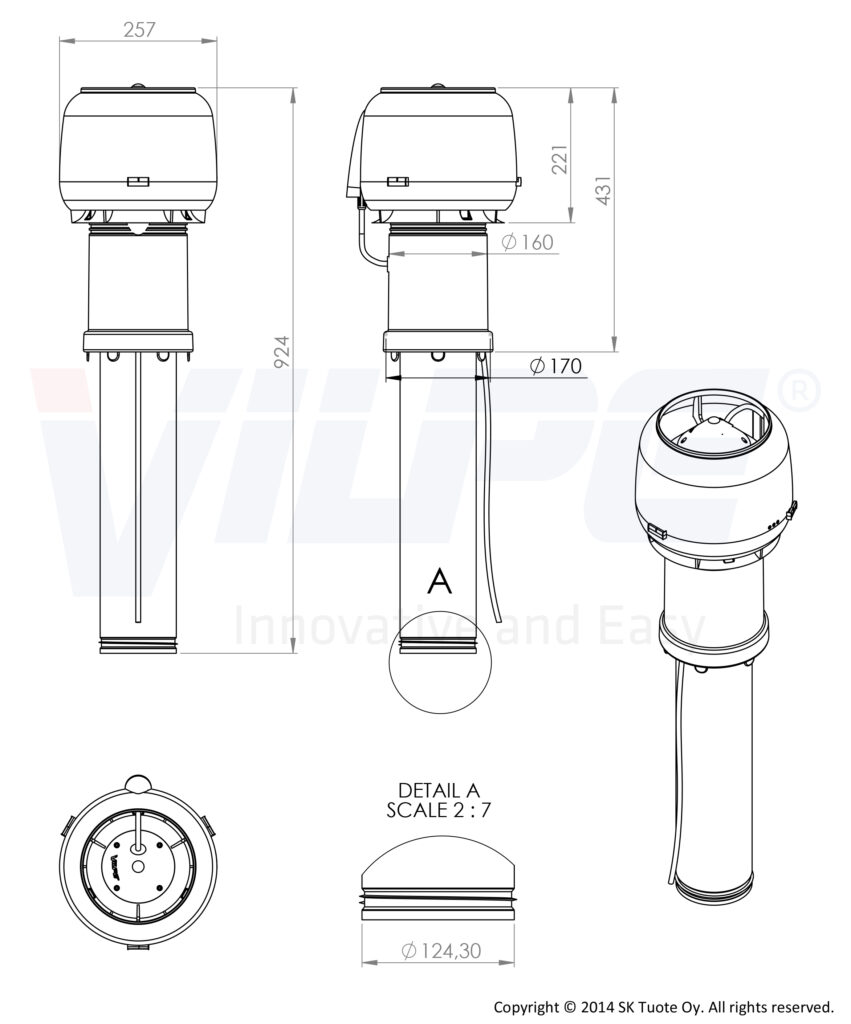

Dimensions: Duct size Ø 125 mm, external Ø 160 mm, height 400 mm.

Contents: Roof fan, screws; installation, operating and maintenance instructions.

Compatible controllers
Color
Light Grey
Black
Brown
Green
Grey
Red
Brick Red
Product number791341
LVI Code7820063
EAN Code6410457913411
Color Light Grey | RAL7040
Weight Gross: 5.456kg, Net: 4.656kg
Product number791342
LVI Code7814942
EAN Code6410457913428
Color Black | RR33 | RAL9005
Weight Gross: 5.456kg, Net: 4.656kg
Product number791344
LVI Code7814944
EAN Code6410457913442
Color Brown | RR32
Weight Gross: 5.456kg, Net: 4.656kg
Product number791346
LVI Code7814946
EAN Code6410457913466
Color Green | RR11
Weight Gross: 5.456kg, Net: 4.656kg
Product number791347
LVI Code7814947
EAN Code6410457913473
Color Grey | RR23 | RAL7015
Weight Gross: 5.456kg, Net: 4.656kg
Product number791348
LVI Code7814948
EAN Code6410457913480
Color Red | RR29 | RAL3009
Weight Gross: 5.456kg, Net: 4.656kg
Product number791349
LVI Code7814949
EAN Code6410457913497
Color Brick Red | RR750 | RAL8004
Weight Gross: 5.456kg, Net: 4.656kg
SKU: N/A Category:
Share product page
Print pdf
Duct size125 Ø
Package includescowl, fixing screws
Voltage230V/50Hz
Current0,23 A
Rotation speed (rpm)2350 rpm
Capacitor1,5 µF
Power52 W
Fan typeAC

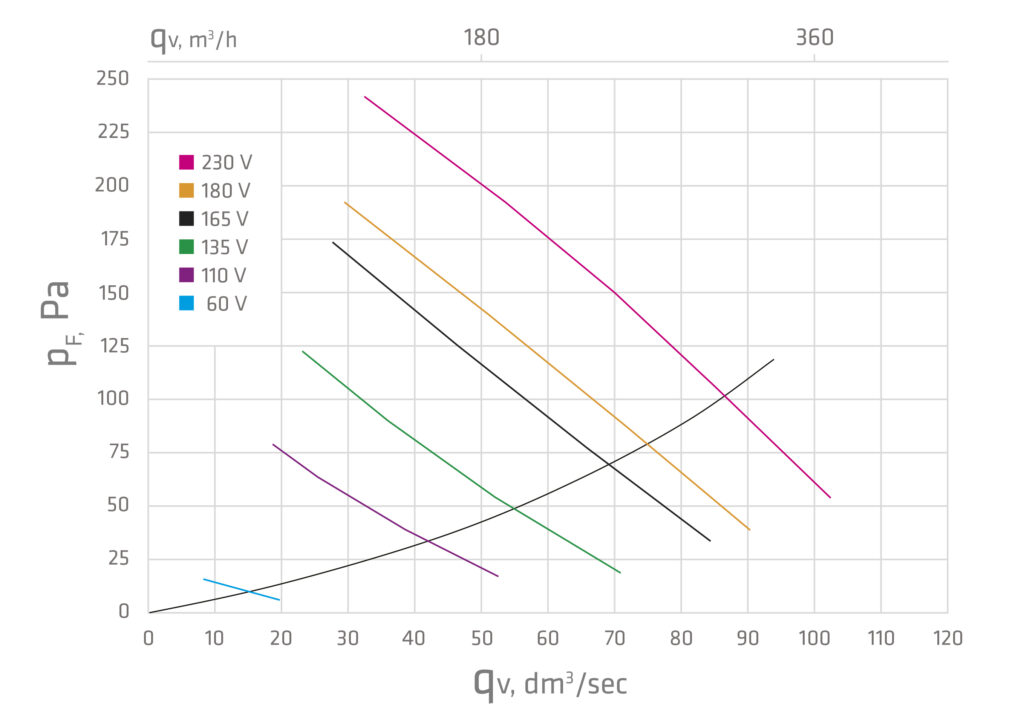

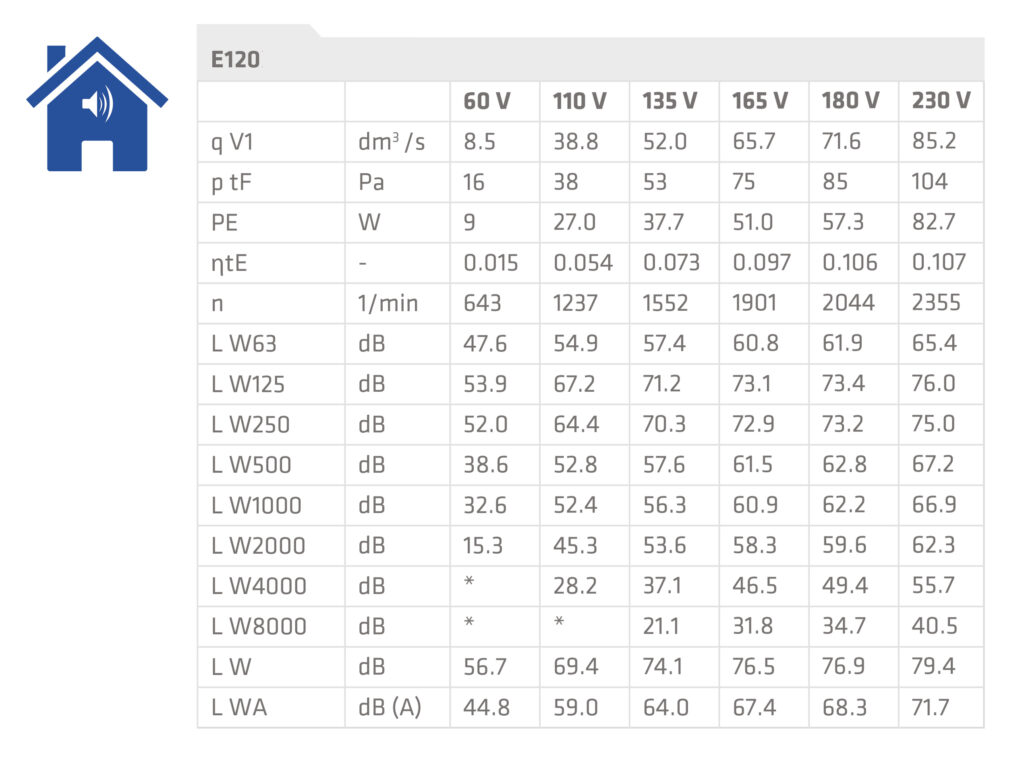

Performance data graphs

VILPE E120 - ISO 5801:1997 - ISO 3741:1988 - ISO 5221:1984

Air density: 1.2

10V
180V
160V
135V
120V
100V
80V
10V
180V
160V
135V
120V
100V
80V
10V
180V
160V
135V
120V
100V
80V

Download CAD Models

Download DWG-file
79134x.dwg
MagiCAD file

Materials & Installation

Send document by email

  • This field is for validation purposes and should be left unchanged.

Certificates

Product categories: Discontinued
