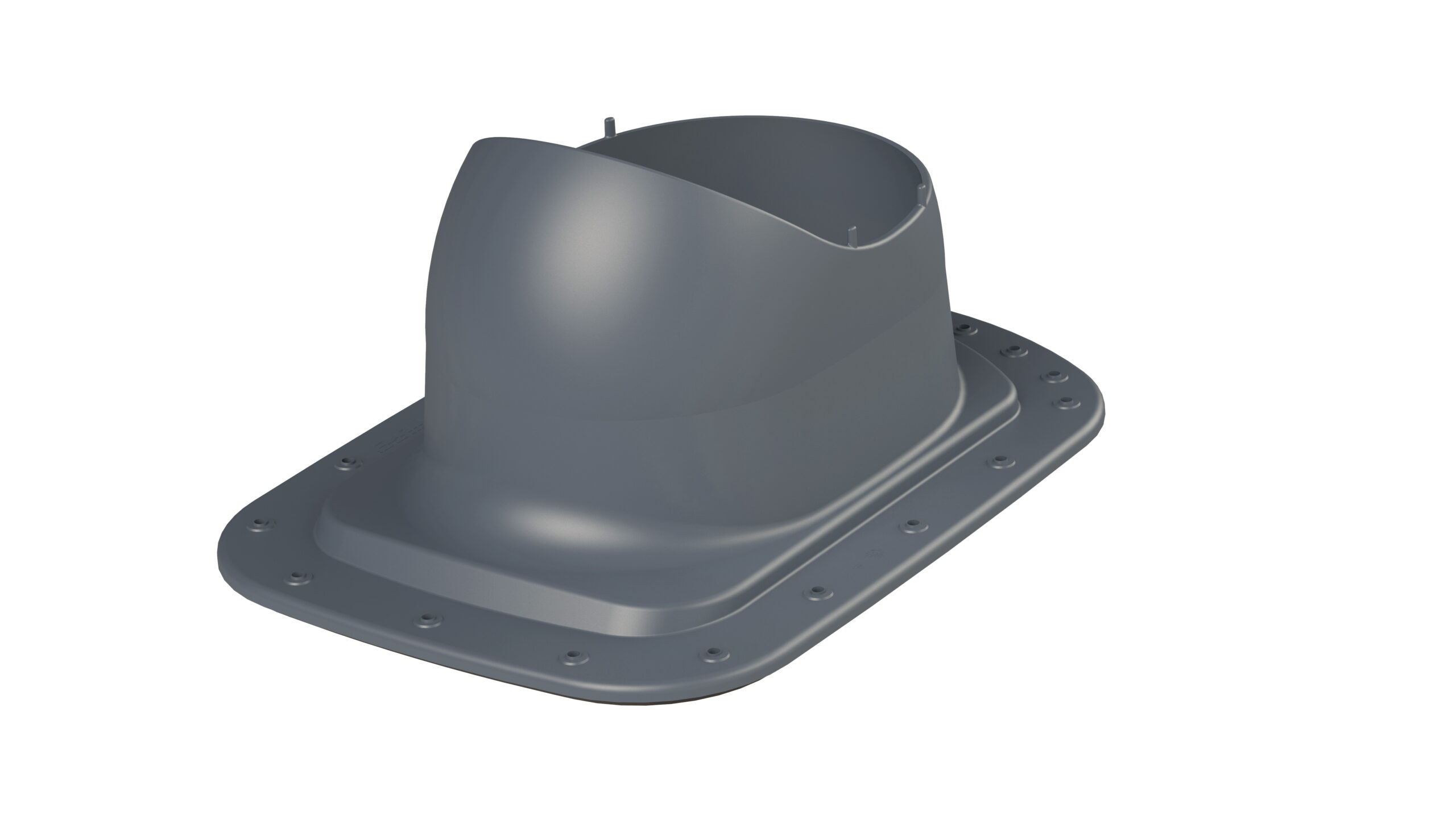

CLASSIC PASS-THROUGH LOW PITCH

CLASSIC PASS-THROUGH LOW PITCH

DISCONTINUED

This pass-through is available in VILPE’s selection under a new name and with new packaging contents. The new package includes a Click underlay seal, which is why the word “Click” has been added to the product name.
Replacement product: Classic Loiva Click (36013X)

Description: Plain standing seam roofing with roof pitches of 5-27°. Thick rubber seal on the bottom of the flange. Used with VILPE P-series roof fans and ventilation pipes with a diameter of 110–160 mm.

Contents: Pass-through, underlay ring, screws, installation instructions/templates for the underlay seal and the pass-through.
Color
Black
Brown
Grey
Red
Brick Red
Chocolate Brown
Black
Grey
Product number746042
LVI Code7820593
EAN Code6410457656813
Color Black | RR33 | RAL9005
Weight Gross: 0.921kg, Net: 0.756kg
Product number746044
LVI Code7820595
EAN Code6410457656820
Color Brown | RR32 | RAL8019
Weight Gross: 0.921kg, Net: 0.756kg
Product number746047
LVI Code7820596
EAN Code6410457656837
Color Grey | RR23 | RAL7024
Weight Gross: 0.921kg, Net: 0.756kg
Product number746048
LVI Code7820597
EAN Code6410457656844
Color Red | RR29 | RAL3009
Weight Gross: 0.923kg, Net: 0.758kg
Product number746049
LVI Code7820598
EAN Code6410457656851
Color Brick Red | RR750 | RAL8004
Weight Gross: 0.923kg, Net: 0.758kg
Product number74604B
EAN Code6410457658978
Color Chocolate Brown | RR887 | RAL8017
Weight Gross: 0.932kg, Net: 0.755kg
Product number746052
EAN Code6410457659036
Color Black | RR33 | RAL9005
Product number746057
EAN Code6410457659043
Color Grey | RR23 | RAL7015
SKU: N/A Categories: ,
Share product page
Print pdf
Pipe diameterRoofpitch (min-max)
Pipe Ø1105°-27°
Pipe Ø1255°-27°
Pipe Ø1605°-27°

Download CAD Models

Download DWG-file
74604x-36013x.dwg

Materials & Installation
