High-quality chimney pass-throughs from VILPE

High-quality VILPE chimney pass-throughs are designed for prefabricated, insulated metal chimneys (both round and modular), allowing either to be safely secured on a variety of different roof surfaces. As with all VILPE products, our chimney pass-throughs and associated accessories are designed for both technical functionality and ease of installation. Expense is also reduced, as there is no need for costly sheet metal work. With all necessary parts included in the package, these pass-throughs are ideal for DIY installation. Find the right product for your needs below.
Read the FAQ

Show all products

CHIMNEY PASS-THROUGH SET NO. 1 ROUND

Designed for passing prefabricated round, metal, insulated chimneys with an outer diameter of 200-265 mm through a roof

VILPE^® Flashing Set and Chimney Underlay Seal also required for installation on tile or sheet metal roofs

Tested for fire safety and certified

CHIMNEY PASS-THROUGH SET NO. 2 ROUND

Designed for passing prefabricated round, metal, insulated chimneys with an outer diameter of 270-380 mm through a roof

VILPE^® Flashing Set and Chimney Underlay Seal also required for installation on tile or sheet metal roofs

Tested for fire safety and certified

Round Chimney Pass-Through No.1

Designed for passing prefabricated round, metal, insulated chimneys with an outer diameter of 200-265 mm through a roof

Tested for fire safety and certified

Round Chimney Pass-Through No.2

Designed for passing prefabricated round, metal, insulated chimneys with an outer diameter of 270-380 mm through a roof

Tested for fire safety and certified

Chimney Underlay Seal 200-380

Designed for use with a VILPE^® Chimney Pass-Through and three-part Flashing Set

For installation on tile or sheet metal roofs

FLASHING EXTENSION CHIMNEY NO. 1 ROUND

Designed to extend the flashing of a VILPE^® Round Chimney Pass-Through No.1 to facilitate installation of a chimney further from the ridge of a roof

Overlap 10 cm, length 700 mm

FLASHING EXTENSION CHIMNEY NO. 2 ROUND

Designed to extend the flashing of a VILPE^® Round Chimney Pass-Through No.2 to facilitate installation of a chimney further from the ridge of a roof

Overlap 10 cm, length 1,100 mm

Vapour Barrier Seal Ø100-380

Vapour barrier seal for round chimneys installed on a roof

Made of silicone rubber

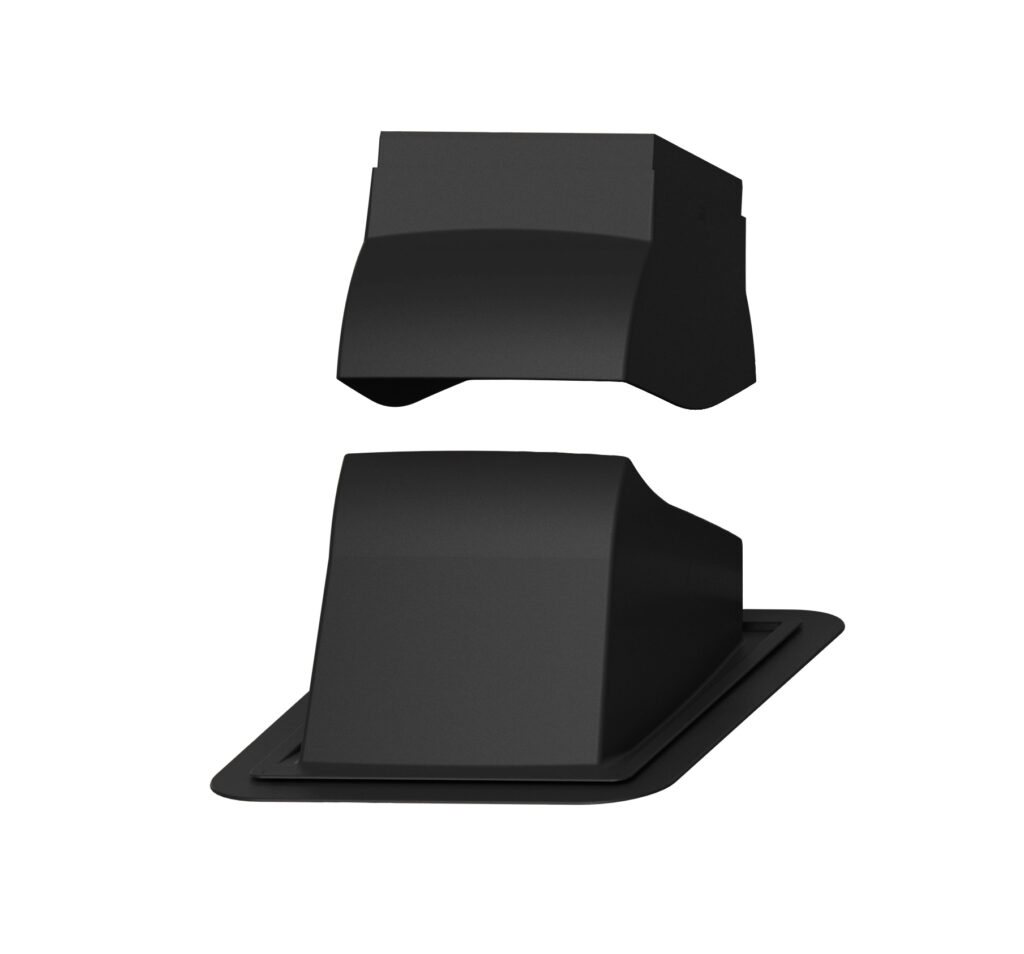

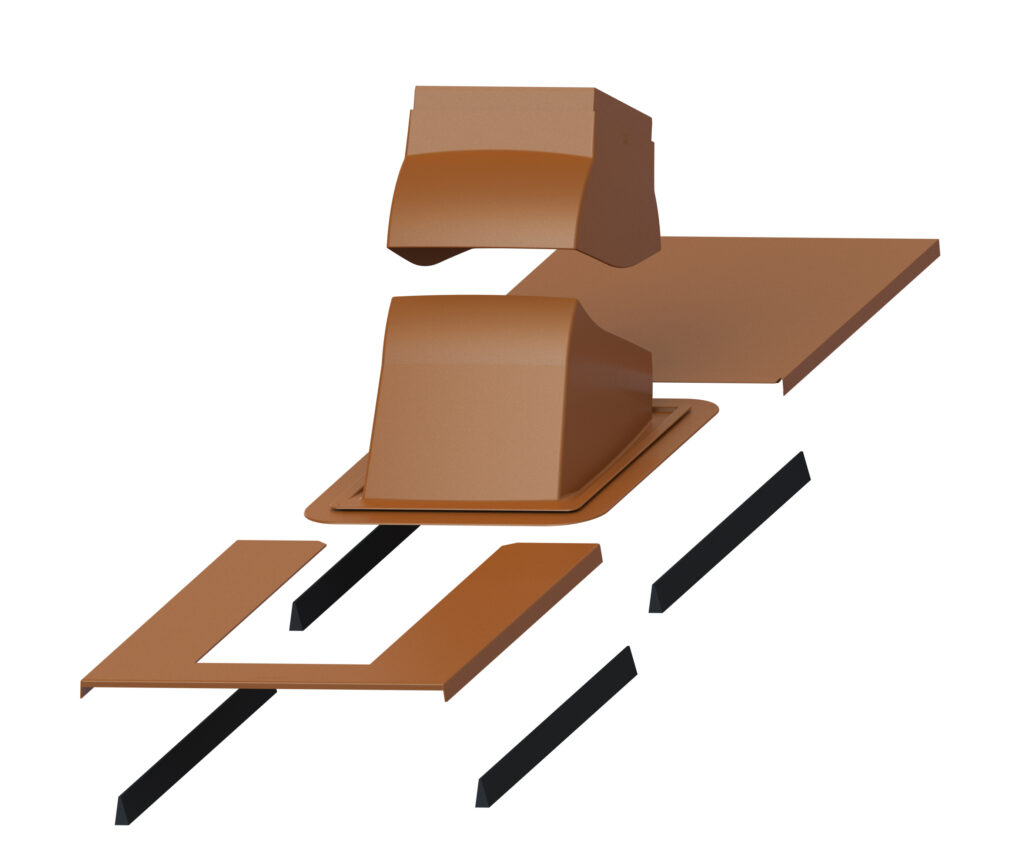

ROOF PASS-THROUGH MODULAR CHIMNEY

Designed for passing modular chimneys with a width of 320-370 mm and a height (from the roof) of 1106-1721 mm through a roof

Suitable for all roofing materials (standing seam metal, profiled steel, 1- and 2-wave tiles, or felt (roll/pieces))

Compatible with most common roof pitches

ROOF PASS-THROUGH MODULAR CHIMNEY FELT

Designed for passing modular chimneys with a width of 320-370 mm and a height (from the roof) of 1106-1721 mm through a roof

Suitable for felt roofs only

Compatible with most common roof pitches

Modular Chimney Casing

Chimney casing for modular chimneys with a width of 320-370 mm and a height (from the roof) of 1106-1721 mm

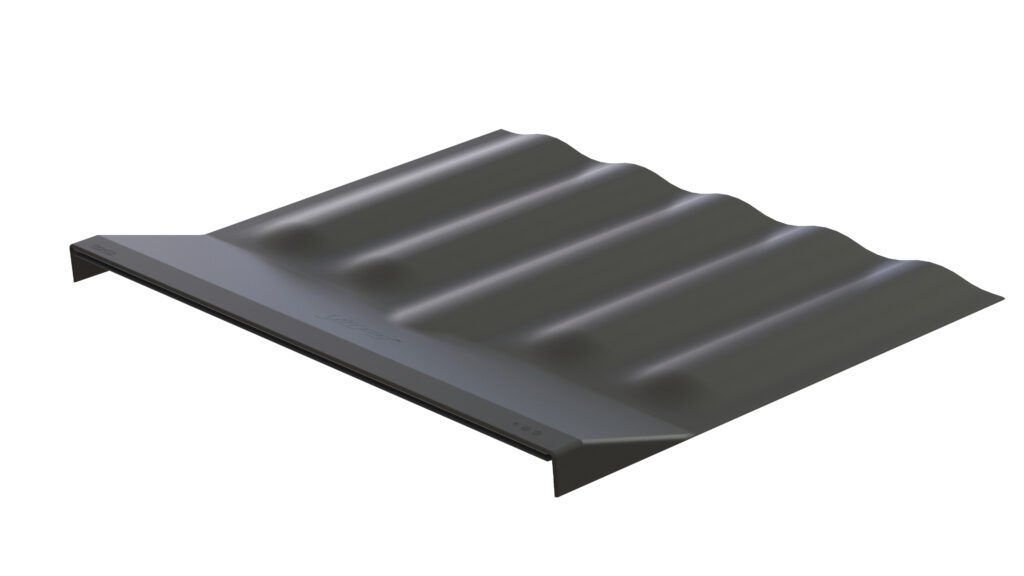

EPDM Tile Adaptor

Flexible flue joint for tile roofs

Available for the VILPE^® Round Chimney Pass-Through No.1 and No.2

VILPE^® Round Chimney Pass-Through No.2 model also suitable for the VILPE^® Modular Chimney Pass-Through

Chimney Fixing Battens for Flashing Set

Facilitates installation of the three-part VILPE^® Flashing Set onto plain steel roofs
