Round Chimney Pass-Through Set No.2

Description: Designed for passing prefabricated round, metal, insulated chimneys with an outer diameter of 270-380 mm through a roof. Installed on roofs with pitches Ø 270 10-60°, Ø 380 10-50°. A rubber gasket and a fastener are provided for attachment to the plastic Chimney Pass-Through plate. If the product is being installed on a tile or sheet metal roof, the three-part VILPE Flashing Set and Chimney Underlay Seal 200-380 (both not incl.) should also be used; this is not required for installation on felt roofs. VILPE Chimney Pass-Throughs have been tested for fire safety and certified by the VTT Technical Research Centre of Finland. Chimney pass-throughs must be installed on roofing according to VILPE’s installation instructions. Other technical details, such as safety distance to burning material, are provided by the chimney seller.

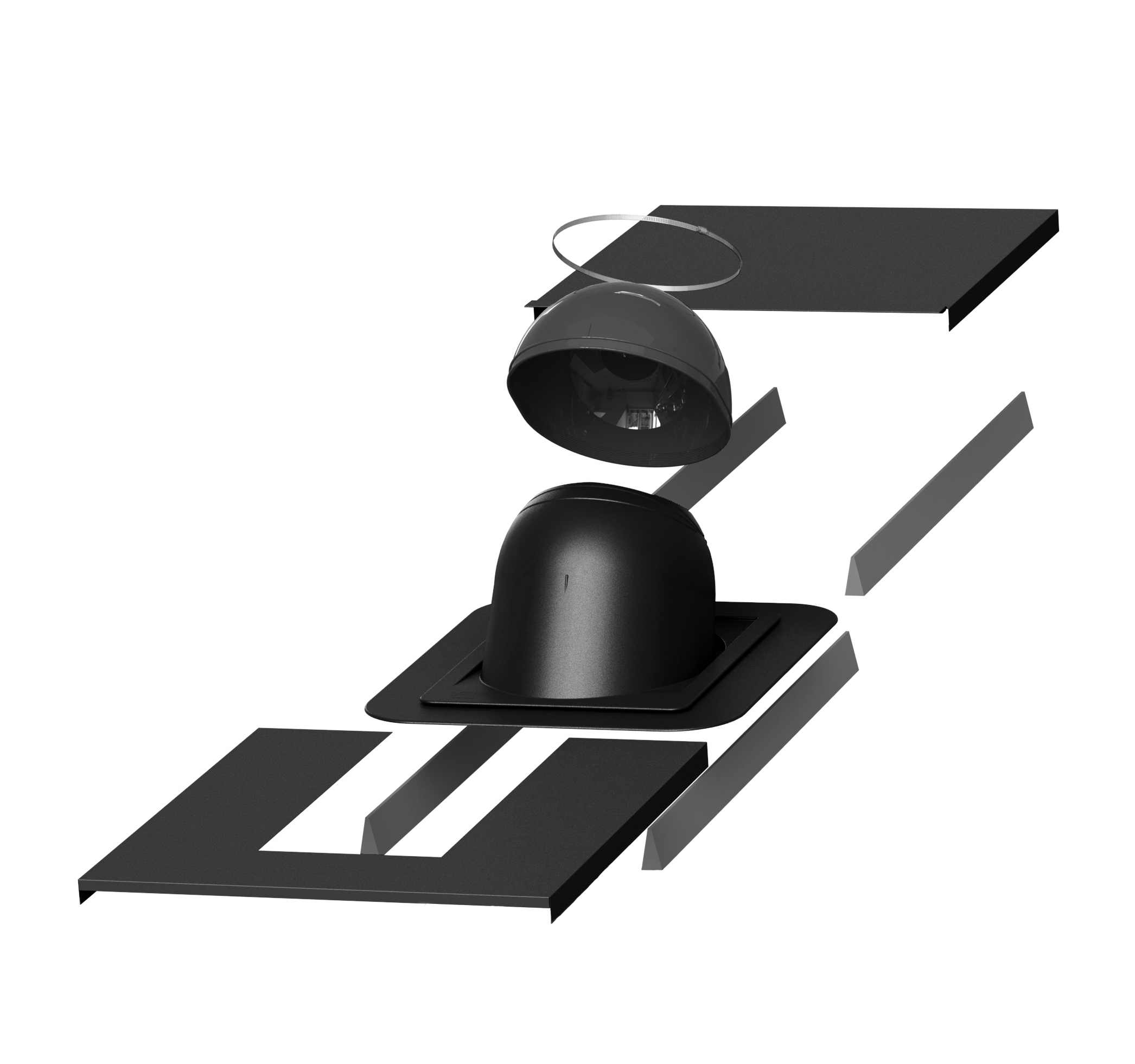

Contents: Pass-through, rubber seal & clamp, flashing set, fixing screws, design & installation manual.

Brick Red
Product number742432
LVI Code5086138
EAN Code6410457424320
Color Black | RR33 | RAL9005
Weight Gross: 15.3kg, Net: 13.3kg
Product number742437
LVI Code5086141
EAN Code6410457424375
Color Grey | RR23 | RAL7015
Weight Gross: 15.3kg, Net: 13.3kg
Product number742439
LVI Code5086143
EAN Code6410457424399
Color Brick Red | RR750 | RAL8004
Weight Gross: 15.3kg, Net: 13.3kg
