Round Chimney Pass-Through Set No.1

Round Chimney Pass-Through Set No.1

Description: Designed for passing prefabricated round, metal, insulated chimneys with an outer diameter of 200-265 mm through a roof. Installed on roofs with pitches Ø 200 8-50°, Ø 265 8-40°. A rubber gasket and a fastener are provided for attachment to the plastic Chimney Pass-Through plate. VILPE Chimney Pass-Throughs have been tested for fire safety and certified by the Eurofins Expert Services.

Chimney pass-throughs must be installed on roofing according to VILPE’s installation instructions. Other technical details, such as safety distance to burning material, are provided by the chimney seller.

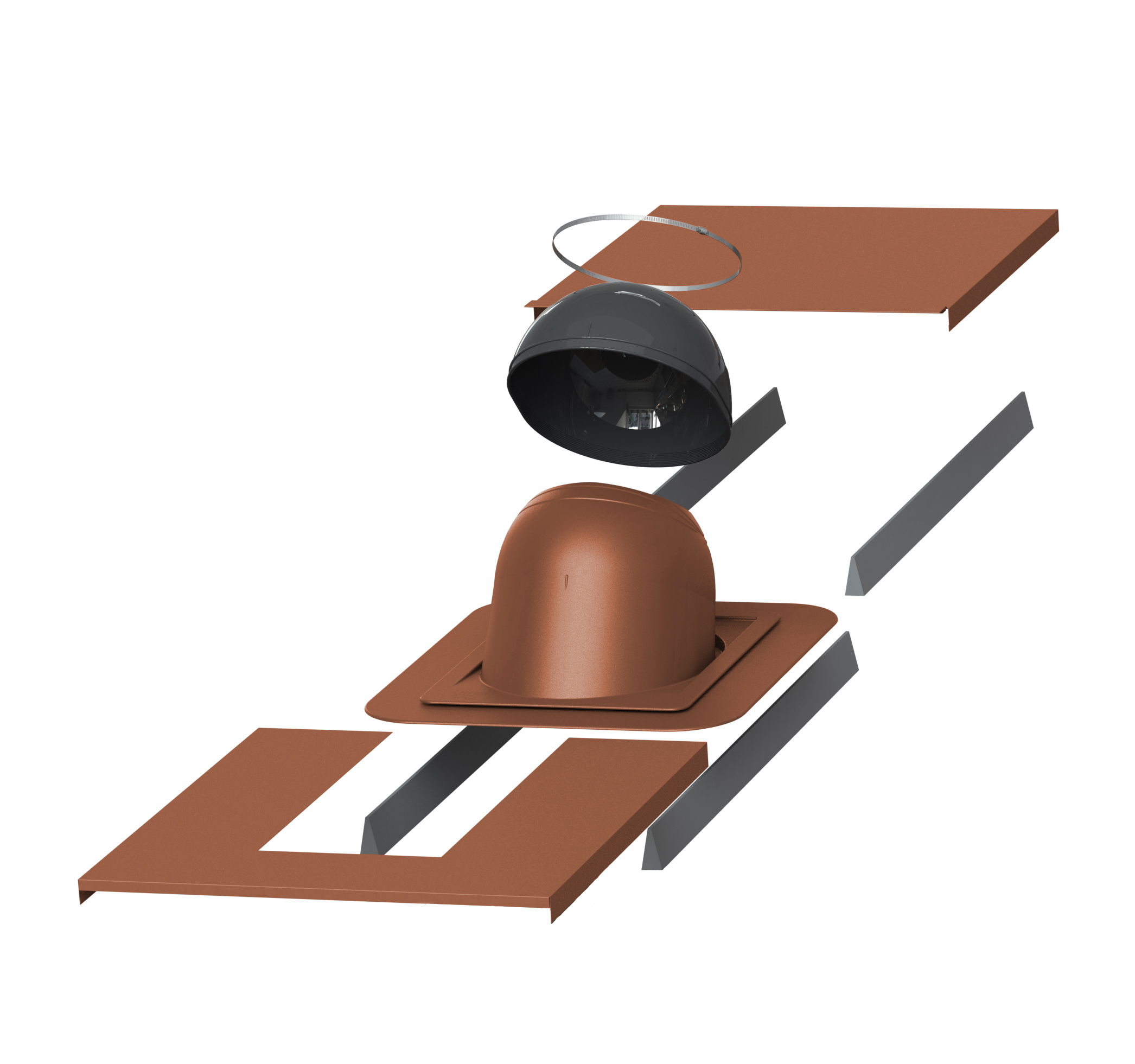

Contents: Pass-through, rubber seal & clamp, flashing set, fixing screws, design & installation manual.
Color
Brown
Black
Grey
Brick Red
Product number742424
LVI Code5086133
EAN Code6410457424245
Color Brown | RR32 | RAL8019
Weight Gross: 9.255kg, Net: 8.275kg
Product number742422
LVI Code5086132
EAN Code6410457424221
Color Black | RR33 | RAL9005
Weight Gross: 9.384kg, Net: 8.404kg
Product number742427
LVI Code5086135
EAN Code6410457424276
Color Grey | RR23 | RAL7024
Weight Gross: 9.429kg, Net: 8.449kg
Product number742429
LVI Code5086137
EAN Code6410457424290
Color Brick Red | RR750 | RAL8004
Weight Gross: 9.429kg, Net: 8.449kg
SKU: N/A Categories: ,
Share product page
Print pdf

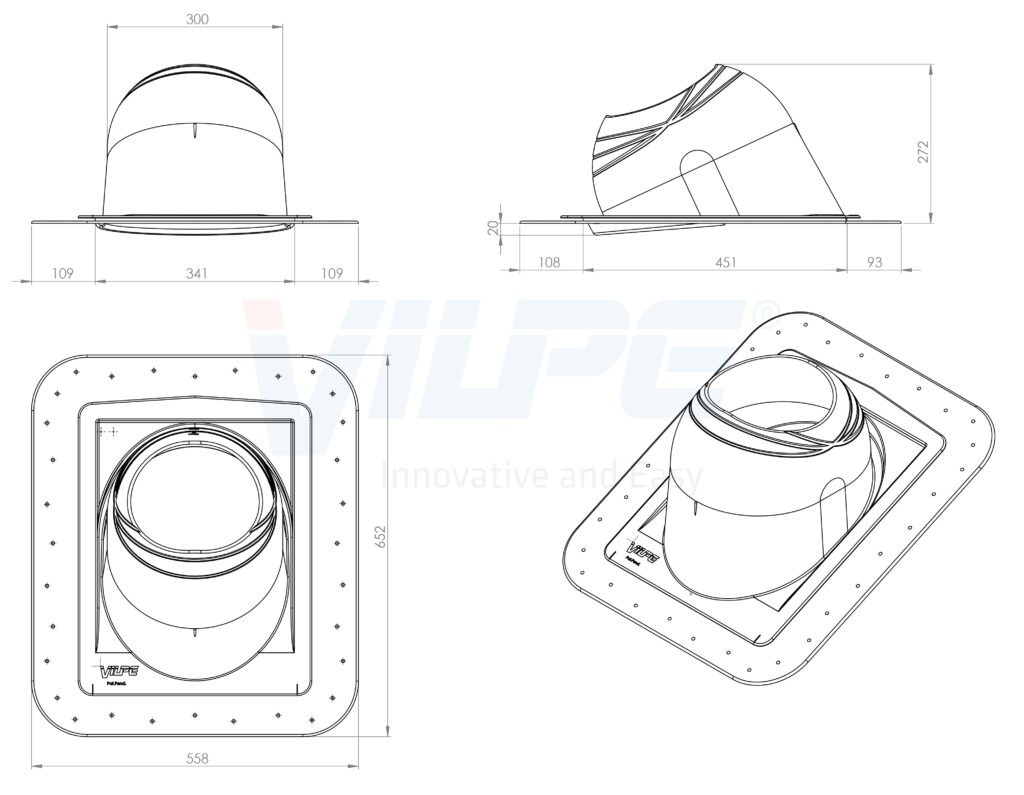

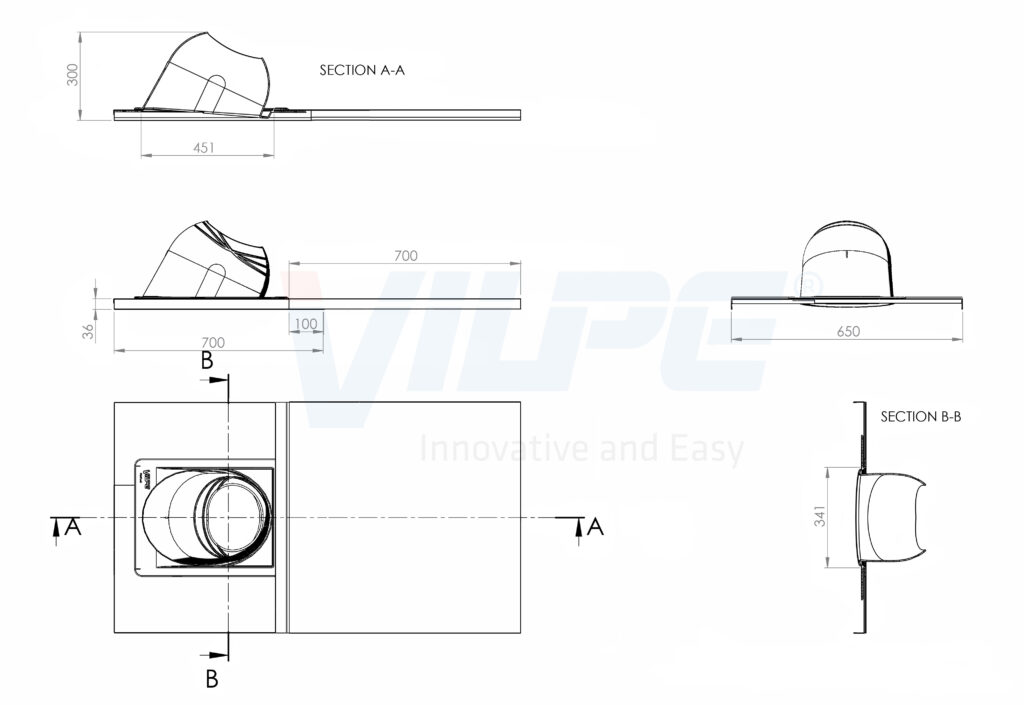

Download CAD Models

Download DWG-file
74242x.dwg

Materials & Installation

Send document by email

  • This field is for validation purposes and should be left unchanged.

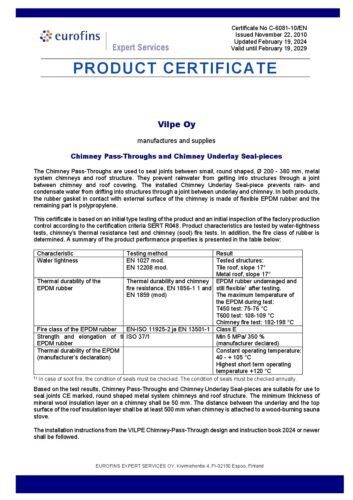

Certificates

Videos

https://www.youtube.com/watch?v=fQnxoDeMwuc
Product categories: Chimney pass-throughs, For round chimneys
