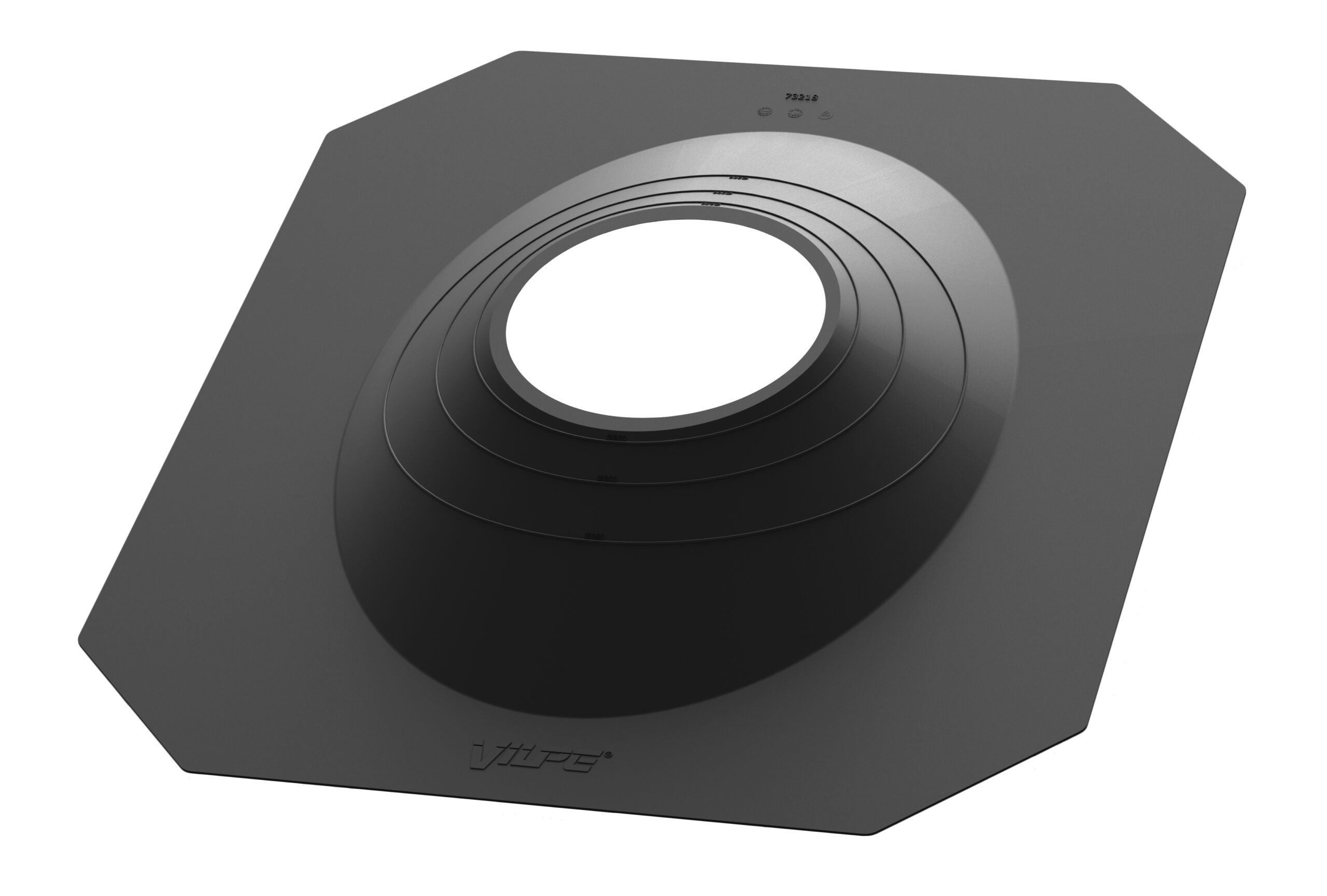

Chimney Underlay Seal 200-380
Chimney Underlay Seal 200-380 - Image 2

Chimney Underlay Seal 200-380

Description: Designed for use with a VILPE Chimney Pass-Through and three-part Flashing Set. Prevents water from entering a roof’s insulation material. Made of EPDM rubber. Assembly requires tape (not included) which can be used with both the chimney pass-through and EPDM rubber. For installation on tile or sheet metal roofs.

Contents: Underlay seal.
Model
Sealing for underlay
ModelSealing for underlay
Product number73218
LVI Code5086160
EAN Code6417323732183
Color Black | RR33 | RAL9005
Weight Gross: 1.443kg, Net: 1.095kg
SKU: N/A Categories: ,
Share product page
Print pdf

Download CAD Models

Download DWG-file
73218.dwg

Materials & Installation

Send document by email

  • This field is for validation purposes and should be left unchanged.
Product categories: Chimney pass-throughs, For round chimneys
