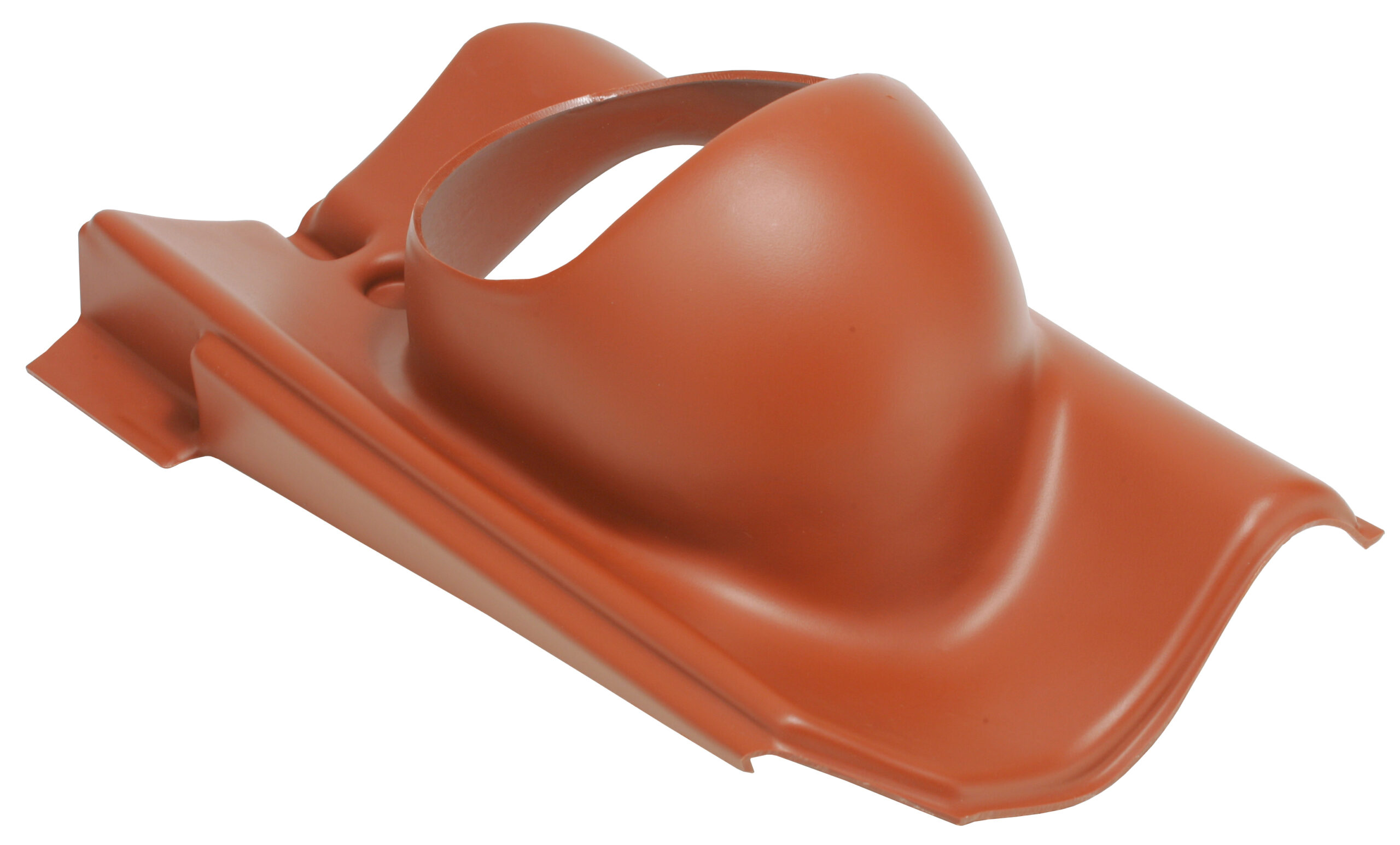

Vittinge Pass-Through

Description: For vittinge clay tile roofs. Vittinge Pass-Through sets are available for 1- and 2-wave clay tiles: the Vittinge 1-wave Pass-Through set is suitable for E13 clay tiles (dimensions 420 x 235 mm), while the Vittinge 2-wave Pass-Through set is suitable for T11 clay tiles (dimensions 420 x 280 mm). The seal on the bottom of the pass-through guarantees a fully waterproof end result, and is attached to the bottom of the flange. Installing the VILPE Vittinge Pass-Through is simple and easy: the kit includes all installation materials and clear instructions. The pass-through enables the installation of VILPE roof fans, exhaust pipes, ventilation pipes and antenna pass-throughs onto the roof. Designed for Ø 75, 110, 125 or 160 mm pipes.

Contents: Pass-through, underlay ring, screws, installation instructions.

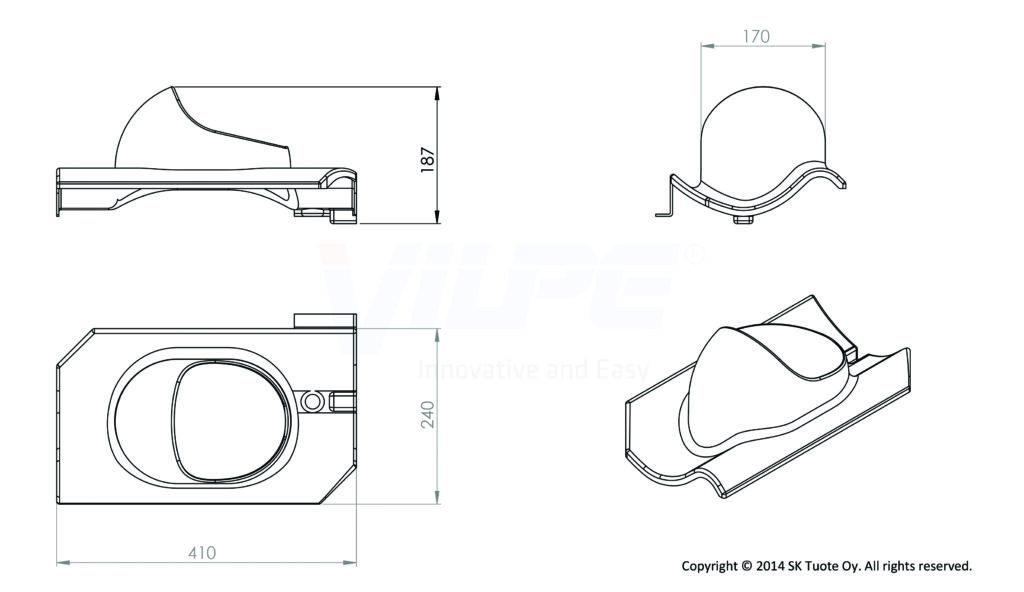

1-waved (E13)
2-waved (T11)
Model1-waved (E13)
Product number74009
LVI Code7814241
EAN Code6417323740096
Color Brick Red | RR750 | RAL8004
Weight Gross: 0.974kg, Net: 0.545kg
Model2-waved (T11)
Product number74010
LVI Code7814242
EAN Code6417323740102
Color Brick Red | RR750 | RAL8004
Weight Gross: 1.004kg, Net: 0.575kg
