VITTINGE CLICK PASS-THROUGH

VITTINGE CLICK PASS-THROUGH

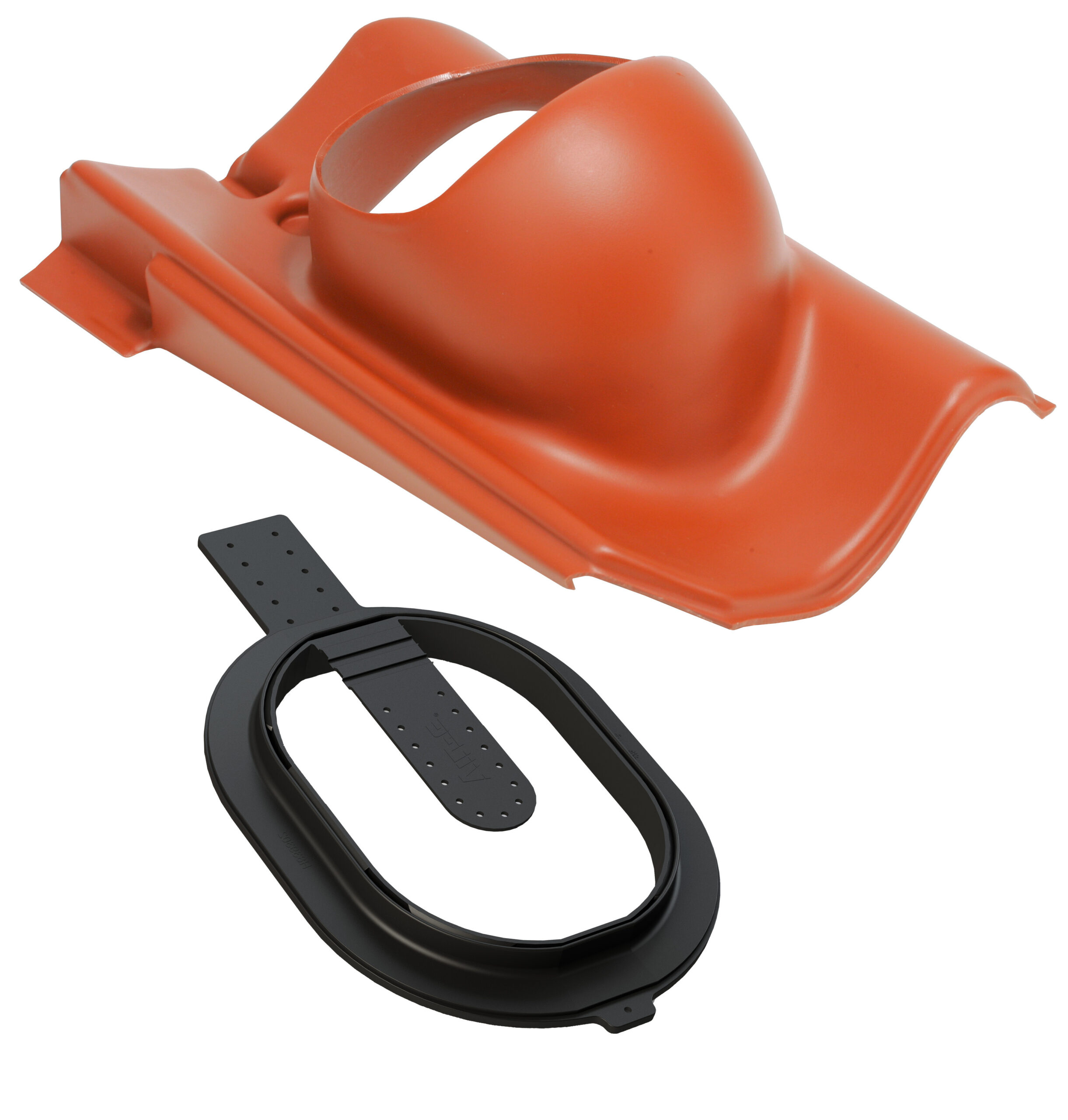

Description: Vittinge clay tile roofing.
Contents: Pass-through, Click underlay seal, screws, installation instructions.

Model

Model

1-waved (E13)

2-waved (T11)

Model	1-waved (E13)
Product number	360038
LVI Code	7820651
EAN Code	6410457659470
Color	Brick Red \| RR750 \| RAL8004
Weight	Gross: 0.6kg, Net: 0.6kg

Model	2-waved (T11)
Product number	360039
LVI Code	7820692
EAN Code	6410457659487
Color	Brick Red \| RR750 \| RAL8004
Weight	Gross: 0.6kg, Net: 0.6kg

SKU: N/A Categories: Pass-throughs, Pass-throughs for tile roofing

Share product page

Pipe diameter	Roofpitch (min-max)
Pipe Ø110	18.4°-45° (1-w). 18.4°-55° (2-w)
Pipe Ø125	18.4°-40° (1-w). 18.4°-50° (2-w)
Pipe Ø160	18.4°-30° (1-w). 18.4°-35° (2-w)

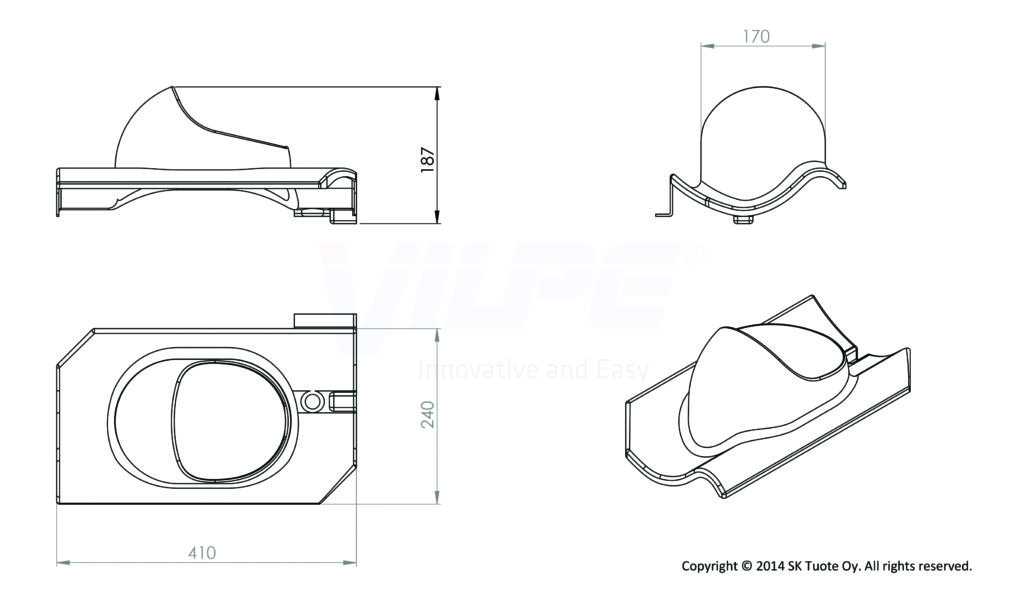

Download CAD Models

Download DWG-file

Download DWG-file

Product categories: Pass-throughs, Pass-throughs for tile roofing
