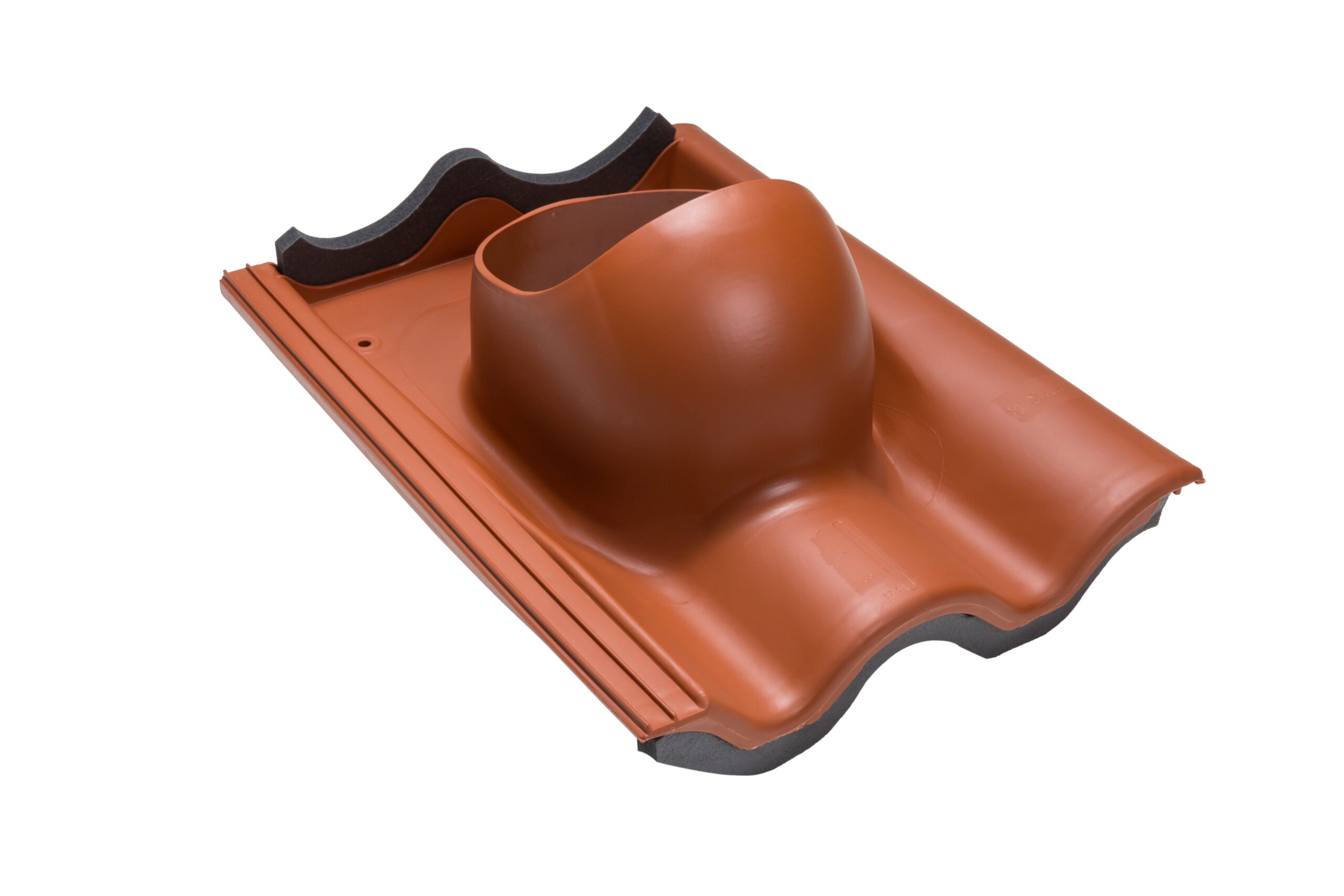

Tile Pass-Through

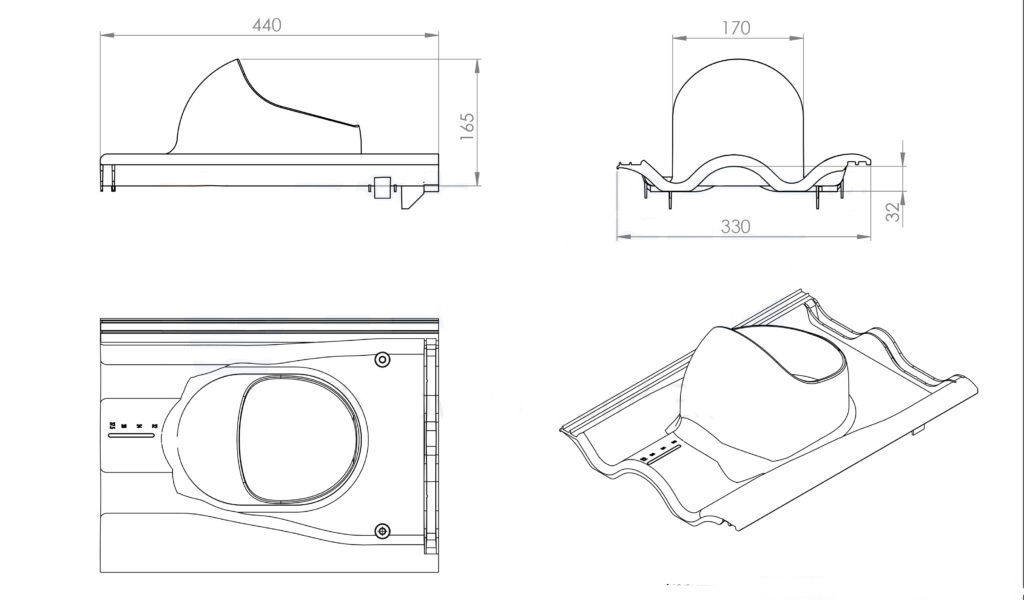

For most common concrete tile roofs–it replaces one 2-wave concrete tile with a width of up to 330 mm and a wave height of 27-40 mm. The seal on the bottom of the pass-through guarantees a fully waterproof end result, and is attached to the bottom of the flange. Installing the VILPE Tile Pass-Through is simple and easy: the kit includes all installation materials and clear instructions. The pass-through enables the installation of VILPE roof fans, exhaust pipes, ventilation pipes and antenna pass-throughs onto the roof. Designed for Ø 75, 110, 125 or 160 mm pipes.

Contents: Pass-through, underlay ring, screws, installation instructions.

Color
Black
Brown
Green
Grey
Red
Brick Red
Light Grey
Blue
Anthracite
Product number74011
LVI Code7813124
EAN Code6417323740119
Color Black | RR33 | RAL9005
Weight Gross: 1.412kg, Net: 1.072kg
Product number74013
LVI Code7813126
EAN Code6417323740133
Color Brown | RR32
Weight Gross: 1.412kg, Net: 1.072kg
Product number74019
LVI Code7813129
EAN Code6417323740195
Color Green | RR11
Weight Gross: 1.412kg, Net: 1.072kg
Product number74017
LVI Code7813125
EAN Code6417323740171
Color Grey | RR23 | RAL7015
Weight Gross: 1.412kg, Net: 1.072kg
Product number74015
LVI Code7813128
EAN Code6417323740157
Color Red | RR29 | RAL3009
Weight Gross: 1.412kg, Net: 1.072kg
Product number74021
LVI Code7813127
EAN Code6417323740218
Color Brick Red | RR750 | RAL8004
Weight Gross: 1.412kg, Net: 1.072kg
Product number74012
LVI Code7820026
EAN Code6417323740126
Color Light Grey | RAL7040
Weight Gross: 1.412kg, Net: 1.072kg
Product number74014
EAN Code6417323740140
Color Blue | RR35 | RAL5007
Weight Gross: 1.412kg, Net: 1.072kg
Product number7401G
EAN Code6417323850528
Color Anthracite
Weight Gross: 1.412kg, Net: 1.072kg
