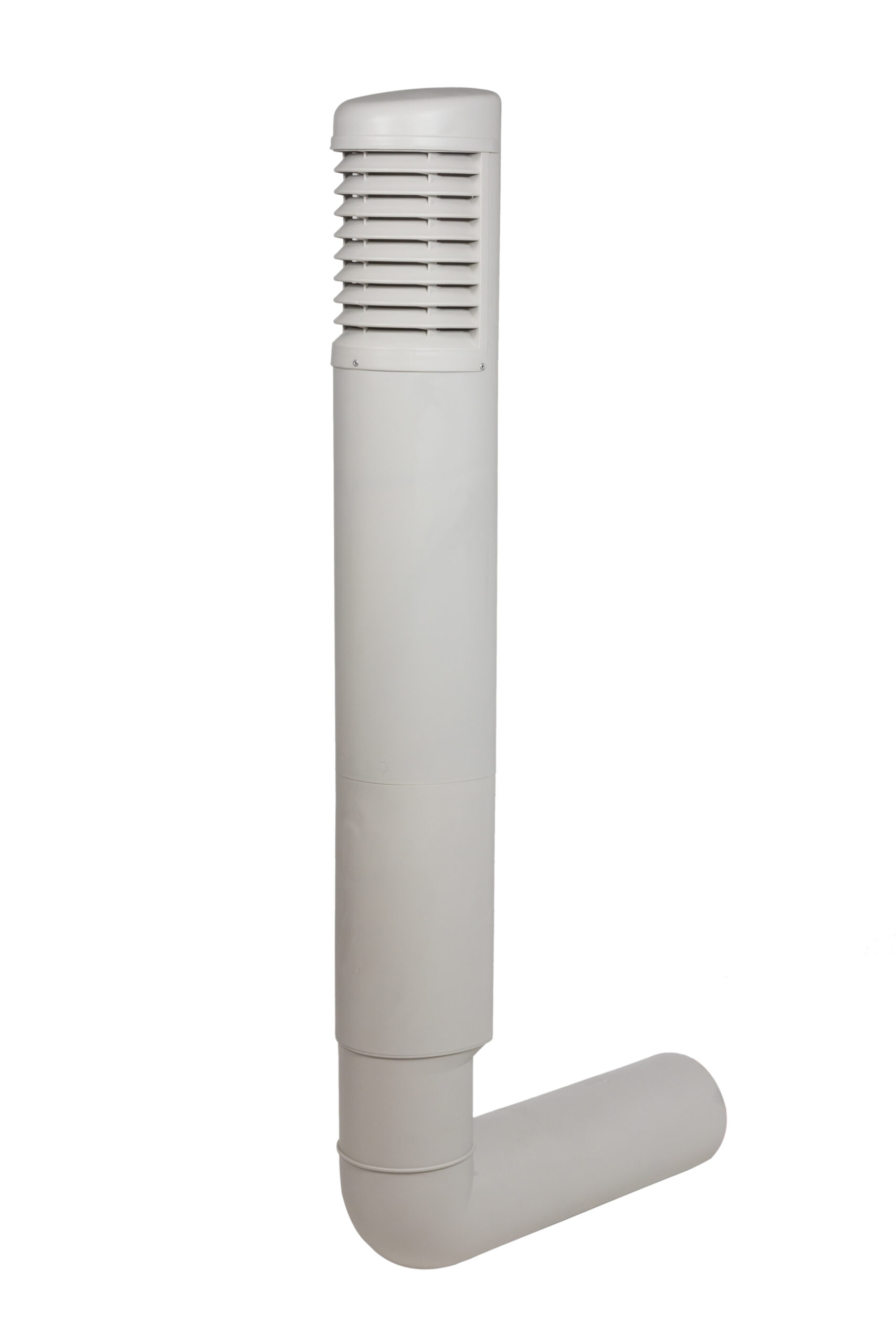

Ross Ventilation Pole 200/210

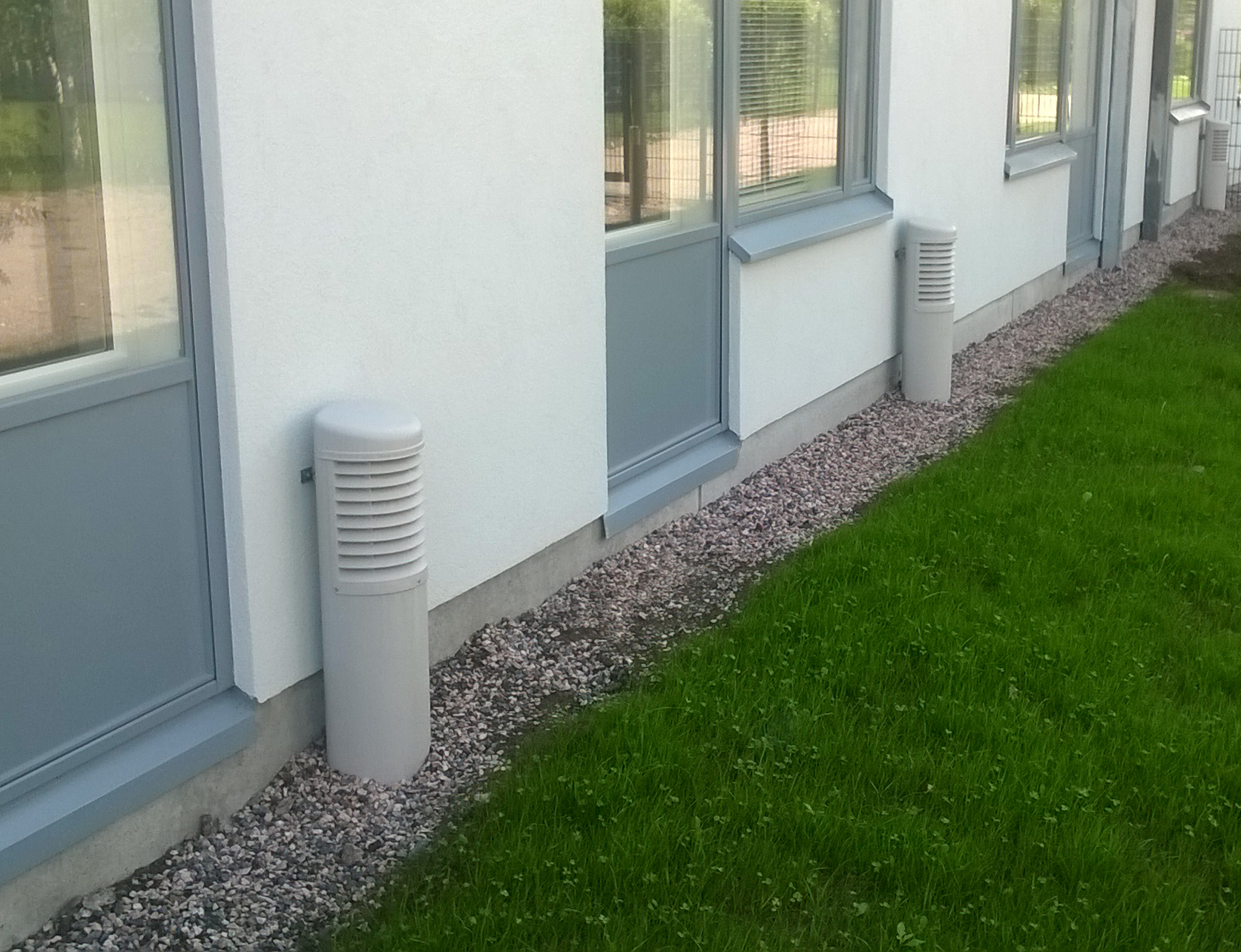

Description: For ventilating the crawl space of a house, thus preventing moisture damage and radon problems in ground floors. Can also be used as an inlet air pipe. The pole is designed to let air flow through it with practically no obstruction, preventing the creation of an air lock. The structure also prevents snow, trash and small animals from entering the space in the base floor. The Ross–200 can be connected to a 200 mm ventilation duct, and requires an approx. 248 mm opening for installation.

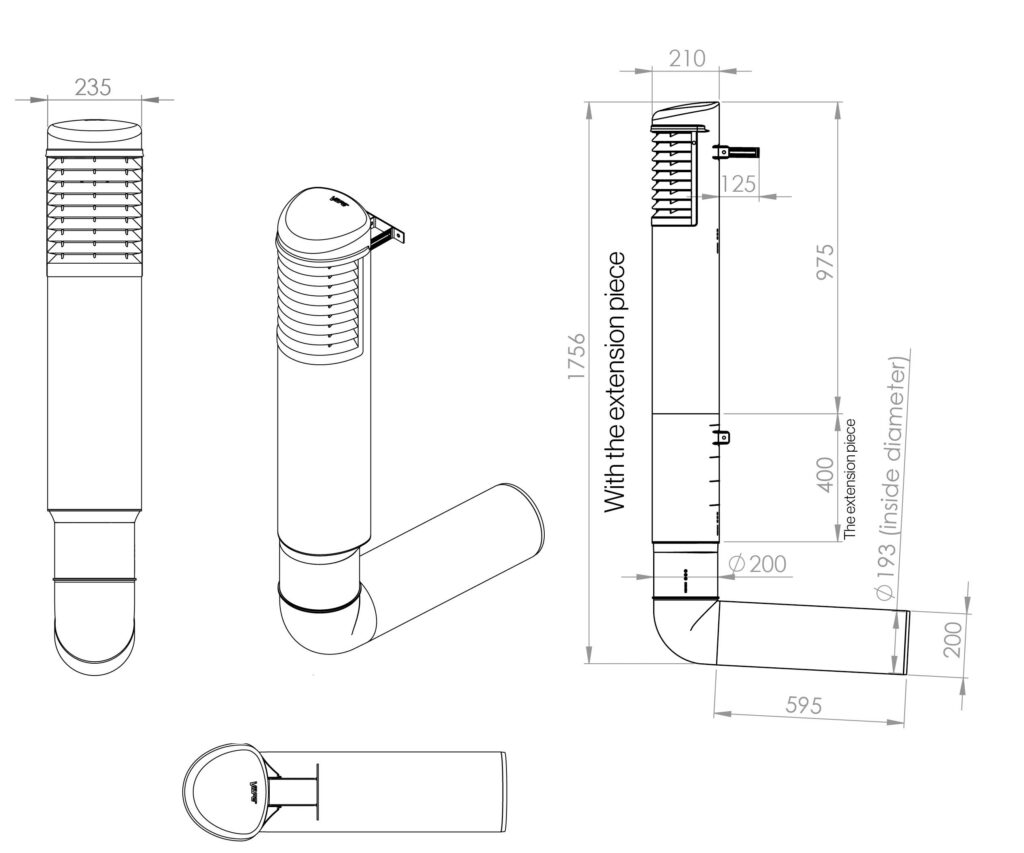

Dimensions: Inner Ø of angle pipe 200 mm, outer Ø 208 mm.

Contents: Cowl, vertical pipe, wall fasteners with screws, angle pipe, installation instructions.

Color
Light Grey
Black
Grey
Product number790381
LVI Code7820067
EAN Code6410457903818
Color Light Grey | RR11
Weight Gross: 9.209kg, Net: 7.93kg
Product number790382
LVI Code7820068
EAN Code6410457903825
Color Black | RR33 | RAL9005
Weight Gross: 9.209kg, Net: 7.93kg
Product number790387
LVI Code7820069
EAN Code6410457903870
Color Grey | RR23 | RAL7015
Weight Gross: 9.209kg, Net: 7.93kg
