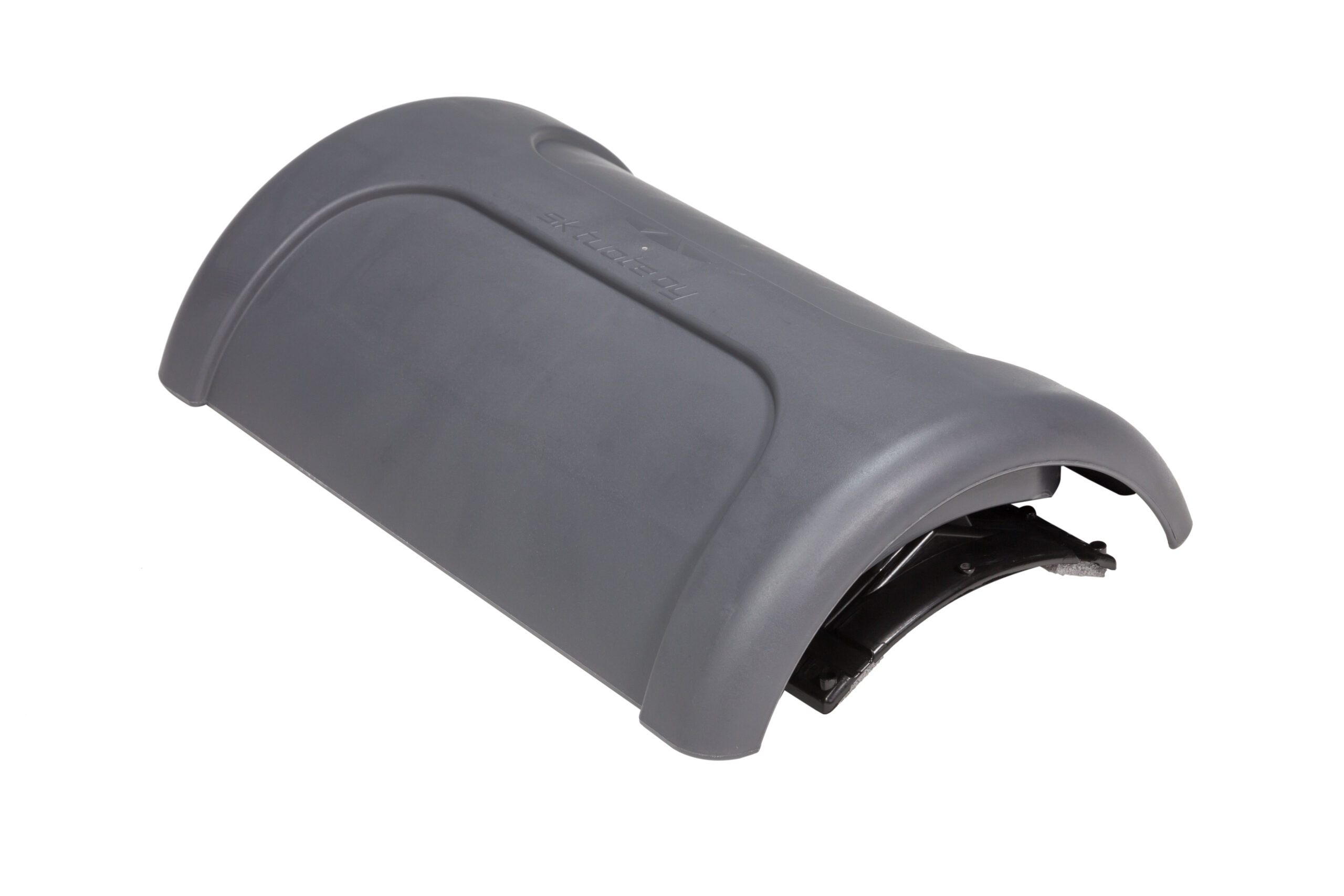

Ridge Capping Vent

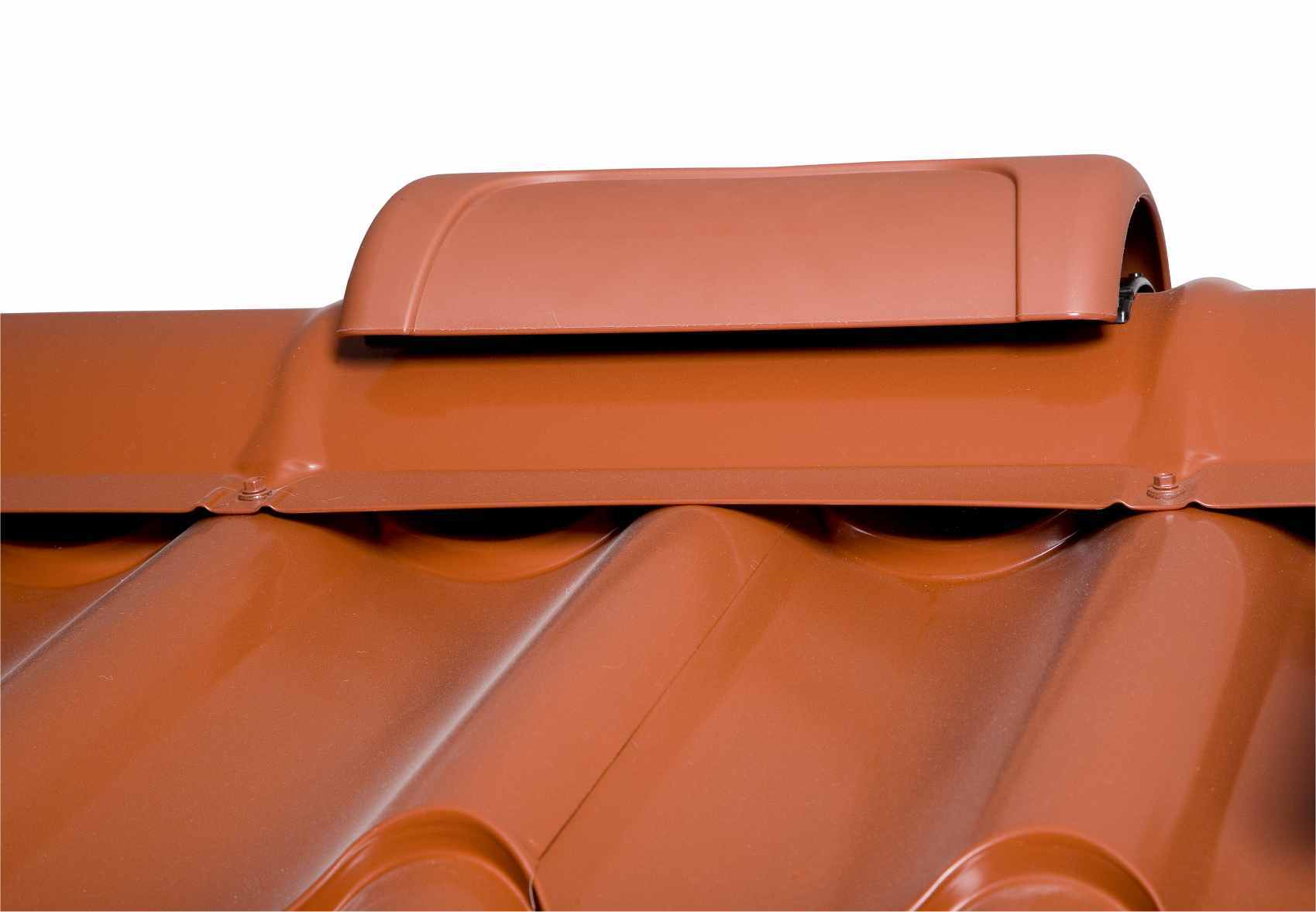

Description: Negative pressure air vent for the ventilation of sheet metal roof structures. Installed in round, angular or V-shaped ridge capping–the fixing frame makes the product compatible with most common ridge cappings. Also incorporates a flexible fastening part to adapt to various ridge angles. Retrofittable. The filter material in the vent prevents water and snow from entering the building structures.

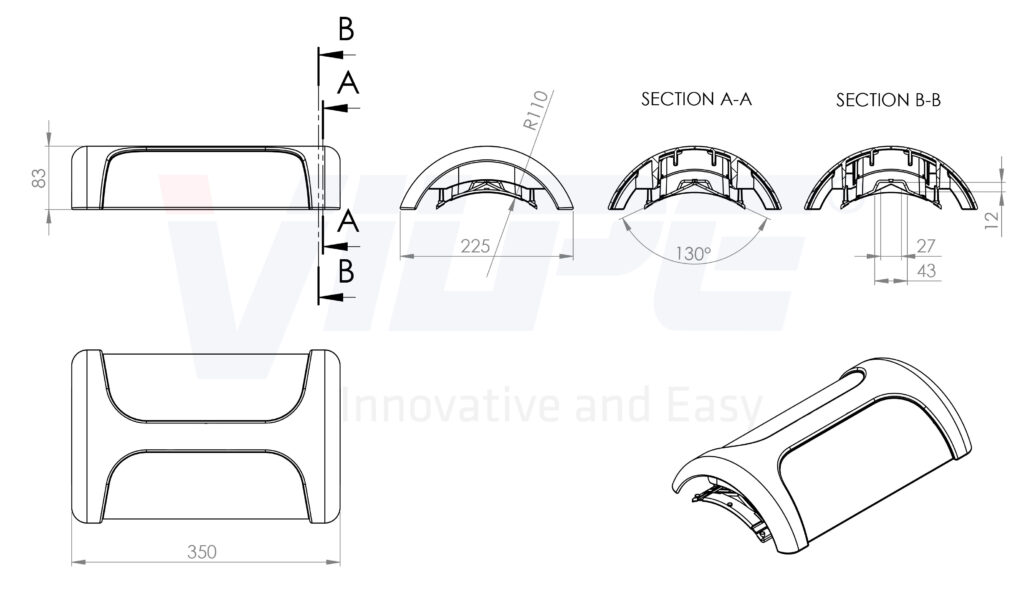

Dimensions: Ø 160 mm.

Contents: Frame, seals, cover piece with a filter, screws, installation instructions.

Color
Black
Brown
Green
Grey
Red
Brick Red
Chocolate Brown
Winered
Product number733912
LVI Code7813392
EAN Code6410457339129
Color Black | RR33 | RAL9005
Weight Gross: 0.73kg, Net: 0.657kg
Product number733914
LVI Code7813394
EAN Code6410457339143
Color Brown | RR32 | RAL8019
Weight Gross: 0.731kg, Net: 0.658kg
Product number733916
LVI Code7813396
EAN Code6410457339167
Color Green | RR11 | RAL6020
Weight Gross: 0.628kg, Net: 0.555kg
Product number733917
LVI Code7813397
EAN Code6410457339174
Color Grey | RR23 | RAL7024
Weight Gross: 0.628kg, Net: 0.555kg
Product number733918
LVI Code7813398
EAN Code6410457339181
Color Red | RR29 | RAL3009
Weight Gross: 0.628kg, Net: 0.555kg
Product number733919
LVI Code7813399
EAN Code6410457339198
Color Brick Red | RR750 | RAL8004
Weight Gross: 0.628kg, Net: 0.555kg
Product number73391B
EAN Code6417323850450
Color Chocolate Brown | RR887 | RAL8017
Weight Gross: 0.743kg, Net: 0.67kg
Product number73391W
EAN Code6417323850467
Color Winered | RR798 | RAL3005
Weight Gross: 0.743kg, Net: 0.67kg
SKU: N/A Categories: ,
Share product page

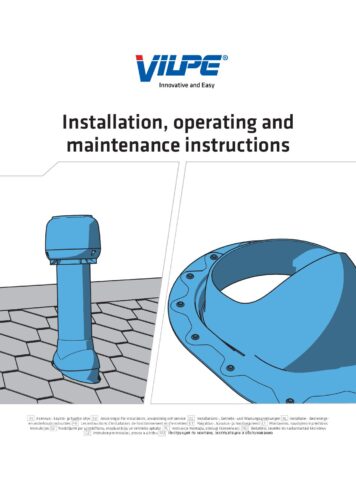

Materials & Installation

Send document by email

  • This field is for validation purposes and should be left unchanged.

Videos

Product categories: Ridge, Ventilation of structures
