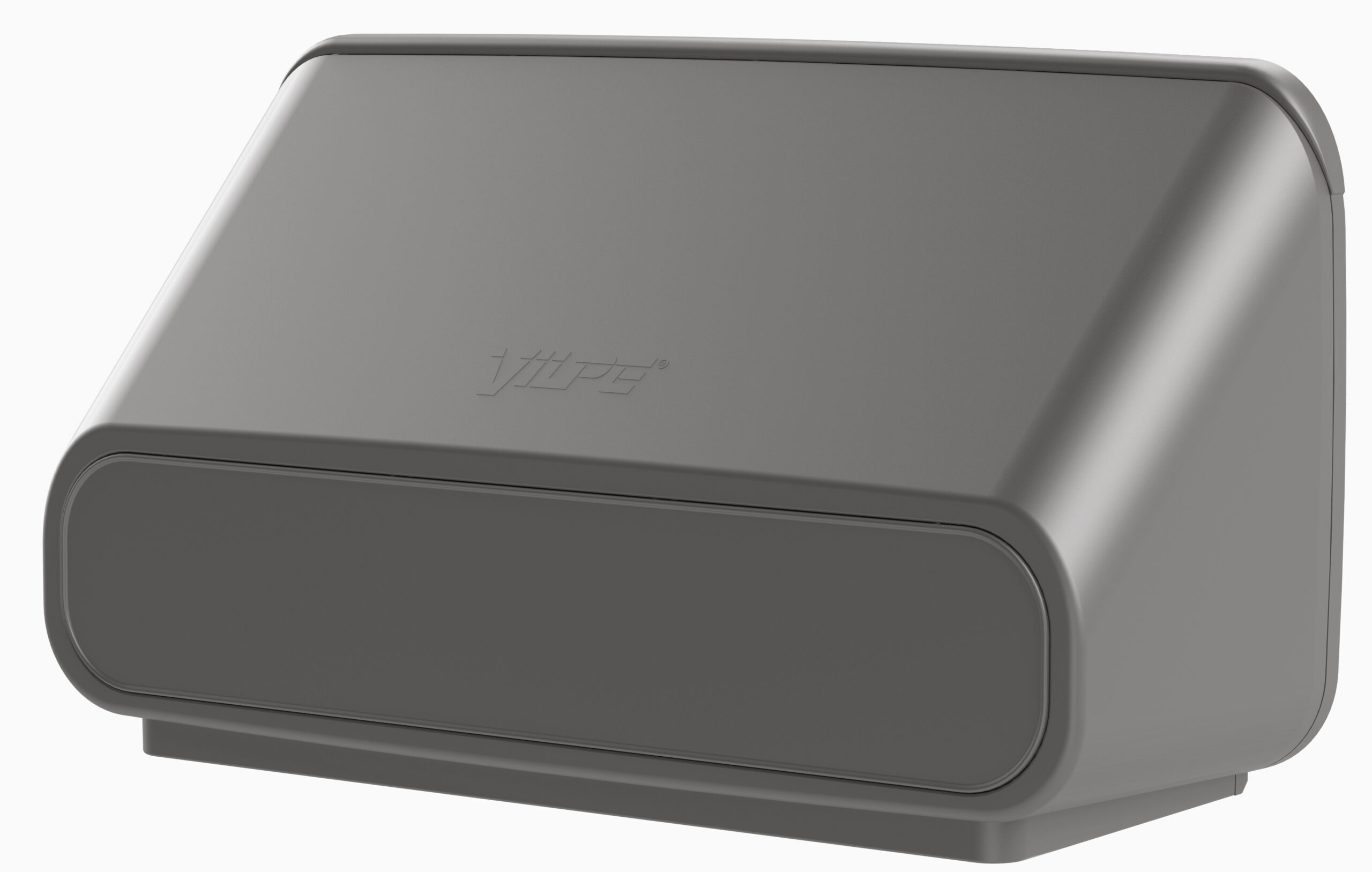

IO 125/160 Intake Wall Element

Description: Exterior wall-mounted product which directs intake air through the exterior wall, either into a ventilation unit or as an air inlet for basement spaces. Thanks to the ambidextrous design of the product, the same unit can be adapted to both left- and right-sided air intake configurations.

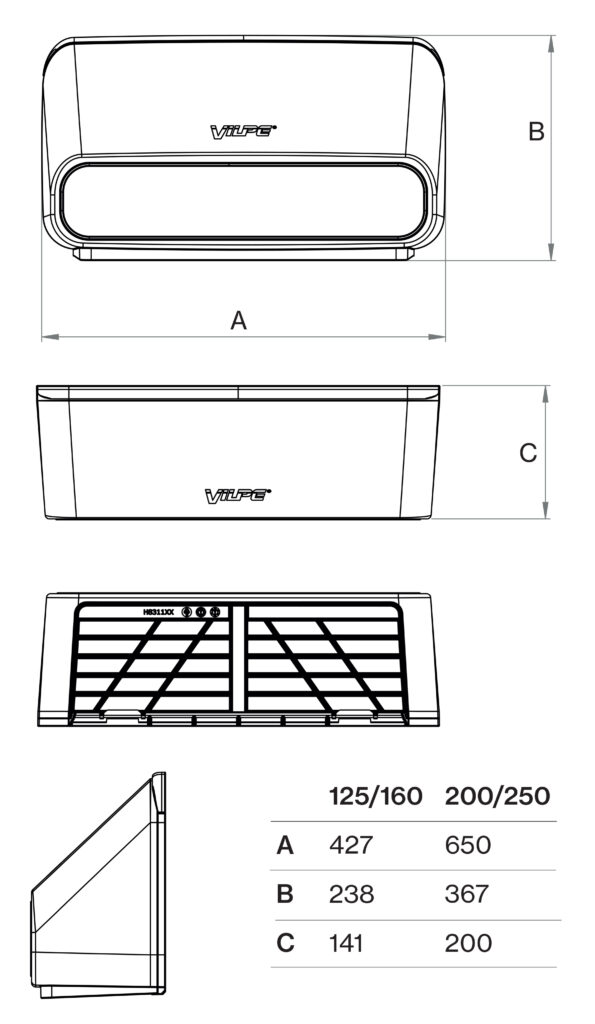

Dimensions: Duct size ⌀ 125/160 mm.

Contents: VILPE IO intake air element, screws and screw plugs, installation instructions.
Color
Red
Black
Grey
White
Brick Red
Product number370128
LVI Code7820569
EAN Code6410457654093
Color Red | RR29 | RAL3009
Weight Gross: 1.323kg, Net: 0.894kg
Product number370122
LVI Code7820567
EAN Code6410457654079
Color Black | RR33 | RAL9005
Weight Gross: 1.287kg, Net: 0.858kg
Product number370127
LVI Code7820568
EAN Code6410457654086
Color Grey | RR23 | RAL7015
Weight Gross: 1.323kg, Net: 0.894kg
Product number370120
LVI Code7820566
EAN Code6410457654062
Color White | RR20
Weight Gross: 1.287kg, Net: 0.858kg
Product number370129
LVI Code7820580
EAN Code6410457655618
Color Brick Red | RR750 | RAL8004
Weight Gross: 1.323kg, Net: 0.894kg
SKU: N/A Categories: ,
Share product page
Print pdf

Materials & Installation

Send document by email

  • This field is for validation purposes and should be left unchanged.

Certificates

Product categories: IO wall elements, Wall elements
