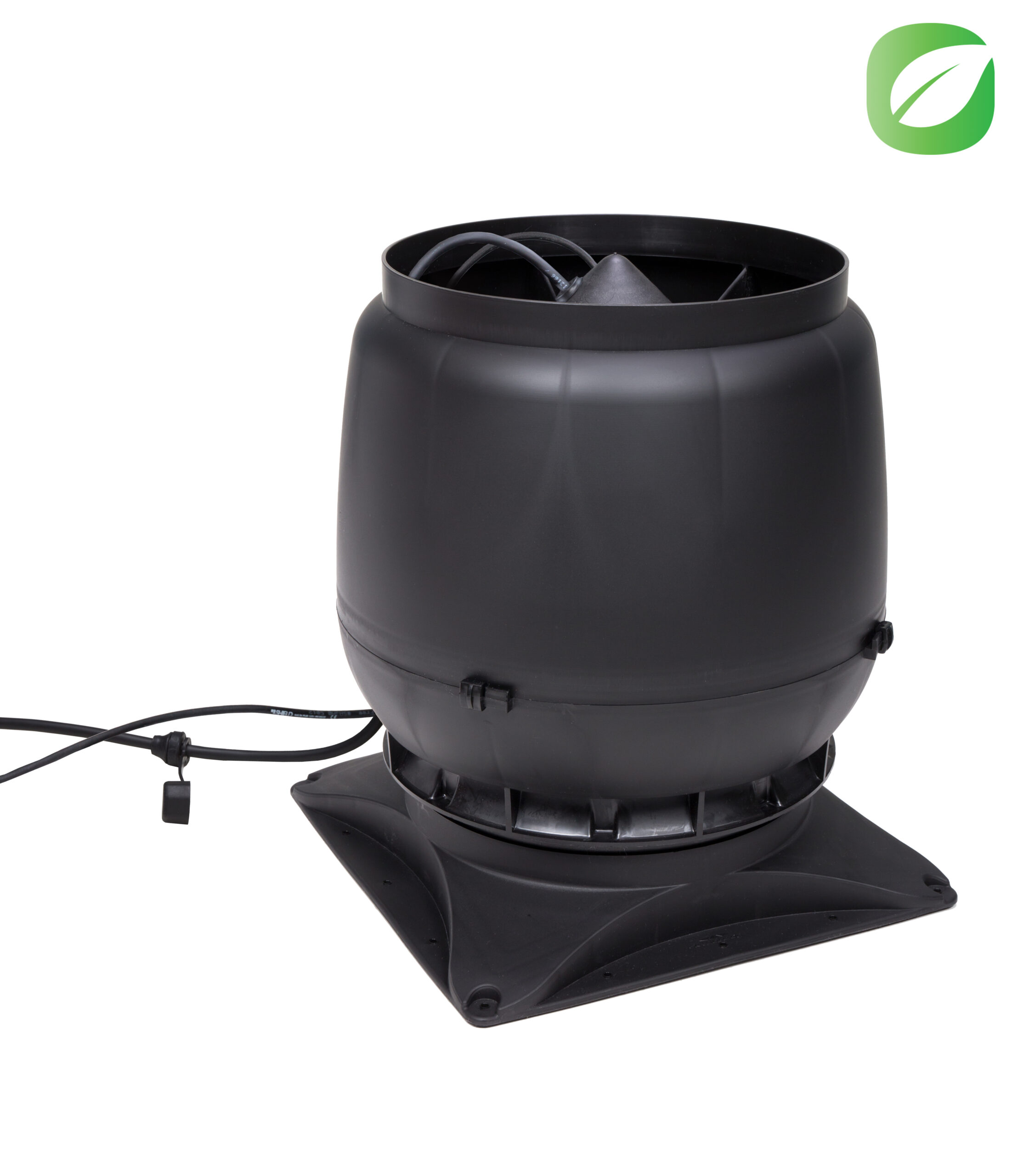

ECO250S/Ø200 XL ROOF FAN + INSTALLATION SET

DISCONTINUED

Description: Energy-efficient insulated roof fan with a DC motor for the top of an air conduit or silencer, controlled with a 0–10 V voltage. An installation set for installation on a flat surface is included. VILPE ECo Controller is available separately.

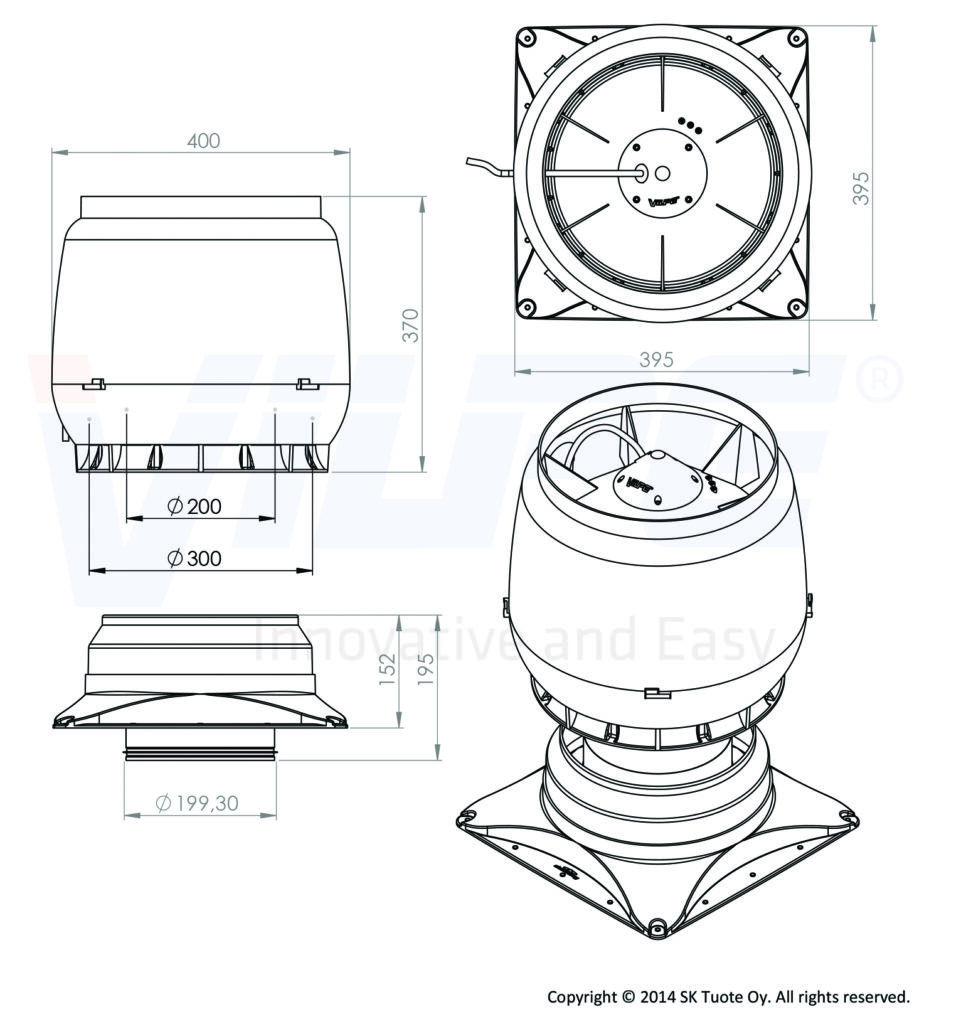

Dimensions: Duct size Ø 200 mm, (installation set 400 x 400 mm, installation area must be at least the same size).

Contents: Roof fan, installation set, screws, Installation, operating and maintenance instructions.

This product will be replaced by a modern and energy efficient FLOW product.
Color
Black
Brown
Green
Grey
Red
Brick Red
Product number737452
LVI Code7820141
EAN Code6410457374526
Color Black | RR33 | RAL9005
Weight Gross: 8.204kg, Net: 7.532kg
Product number737454
LVI Code7820142
EAN Code6410457374540
Color Brown | RR32
Weight Gross: 8.204kg, Net: 7.532kg
Product number737456
LVI Code7820143
EAN Code6410457374564
Color Green | RR11
Weight Gross: 8.204kg, Net: 7.532kg
Product number737457
LVI Code7820144
EAN Code6410457374571
Color Grey | RR23 | RAL7015
Weight Gross: 8.204kg, Net: 7.532kg
Product number737458
LVI Code7820145
EAN Code6410457374588
Color Red | RR29 | RAL3009
Weight Gross: 8.204kg, Net: 7.532kg
Product number737459
LVI Code7820146
EAN Code6410457374595
Color Brick Red | RR750 | RAL8004
Weight Gross: 8.204kg, Net: 7.532kg
SKU: N/A Category:
Share product page
Print pdf
Duct size200 Ø
Voltage230V/50Hz
Current1,4 A
Rotation speed (rpm)2560 rpm
Power165 W
Fan typeEC

Energy efficiency data

Download energy efficiency pass

Download CAD Models

Download DWG-file
737452.dwg

Materials & Installation

Send document by email

  • This field is for validation purposes and should be left unchanged.

Videos

Product categories: Discontinued
