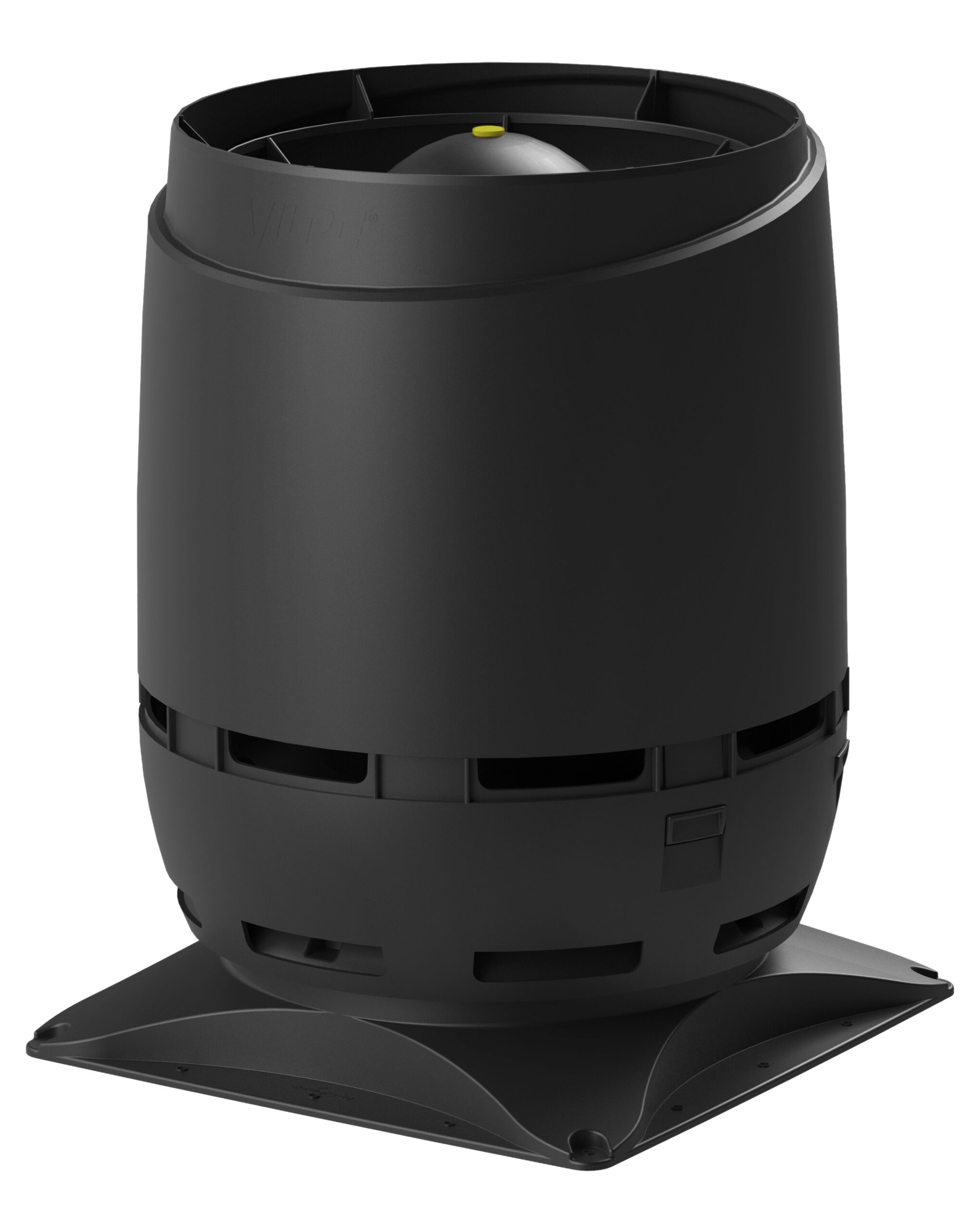

ECo 200S FLOW Roof Fan + Installation Set 400 X 400

Description: Energy-efficient insulated roof fan with FLOW cowl and EC motor (with 0-10V control voltage) for the top of an air conduit or silencer. An installation set for a flat surface is included with this product. VILPE ECo Controller control panel available separately.

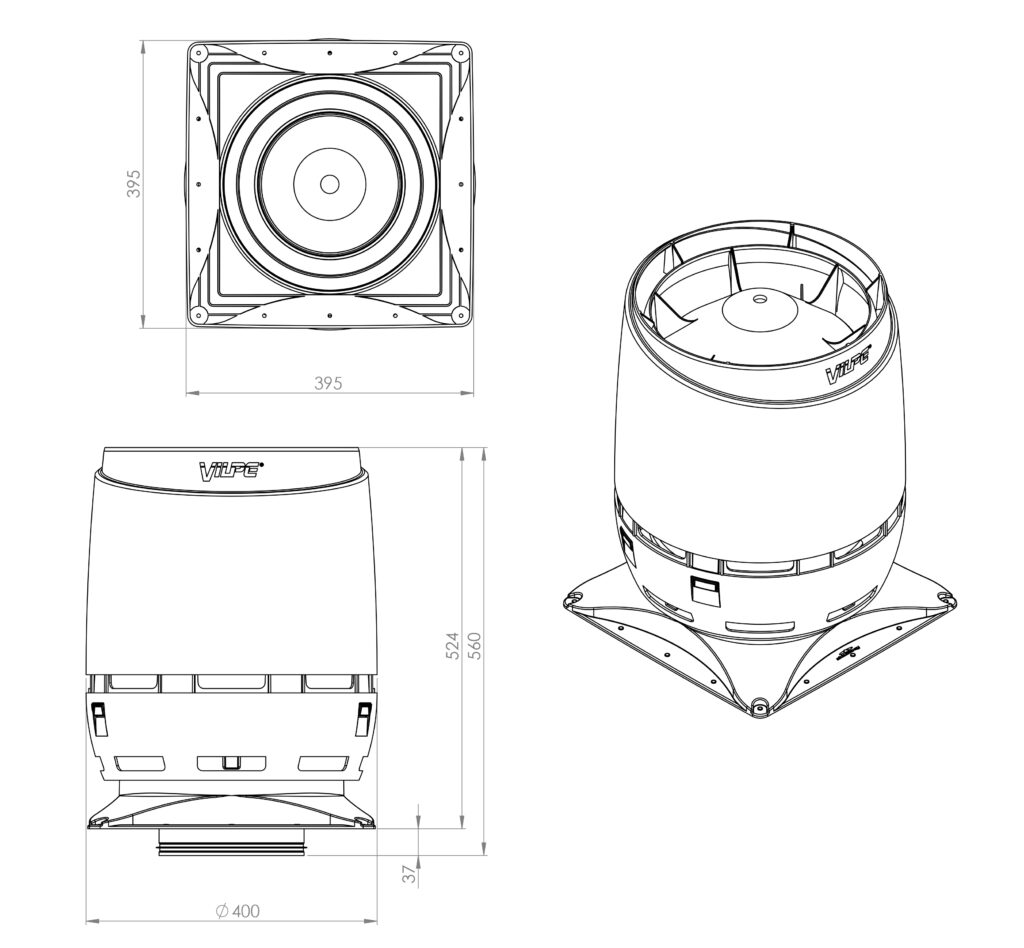

Dimensions: Duct size Ø 200 mm; installation set 400 x 400 mm, installation area must be at least the same size.

Compatible controllers

Contents: Roof fan, installation set, screws, installation, operating and maintenance instructions.
Color
Black
Brown
Grey
Red
Brick Red
Product number350312
LVI Code7820385
EAN Code6410453503128
Color Black | RR33 | RAL9005
Weight Gross: 8.231kg, Net: 7.424kg
Product number350314
LVI Code7820386
EAN Code6410453503142
Color Brown | RR32 | RAL8019
Weight Gross: 8.231kg, Net: 7.424kg
Product number350317
LVI Code7820388
EAN Code6410453503173
Color Grey | RR23 | RAL7024
Weight Gross: 8.231kg, Net: 7.424kg
Product number350318
LVI Code7820389
EAN Code6410453503180
Color Red | RR29 | RAL3009
Weight Gross: 8.231kg, Net: 7.424kg
Product number350319
LVI Code7820390
EAN Code6410453503197
Color Brick Red | RR750 | RAL8004
Weight Gross: 8.231kg, Net: 7.424kg
SKU: N/A Categories: ,
Share product page
Print pdf
Duct size200 Ø
Voltage230 V, 50 Hz
Current1.40 A
Rotation speed (rpm)2510 rpm
Power170 W
Fan typeEC

Performance data graphs

VILPE ECo FLOW 200 - ISO 5801:2017

Air density: 1.2

10V
8V
7V
6V
5V
4V
3V
2V
10V
8V
7V
6V
5V
4V
3V
2V
10V
8V
7V
6V
5V
4V
3V
2V

Download CAD Models

Download DWG-file
35031x.dwg
MagiCAD file

Materials & Installation

Send document by email

  • This field is for validation purposes and should be left unchanged.

Certificates

Videos

Product categories: Roof fans, S-Series roof fans
