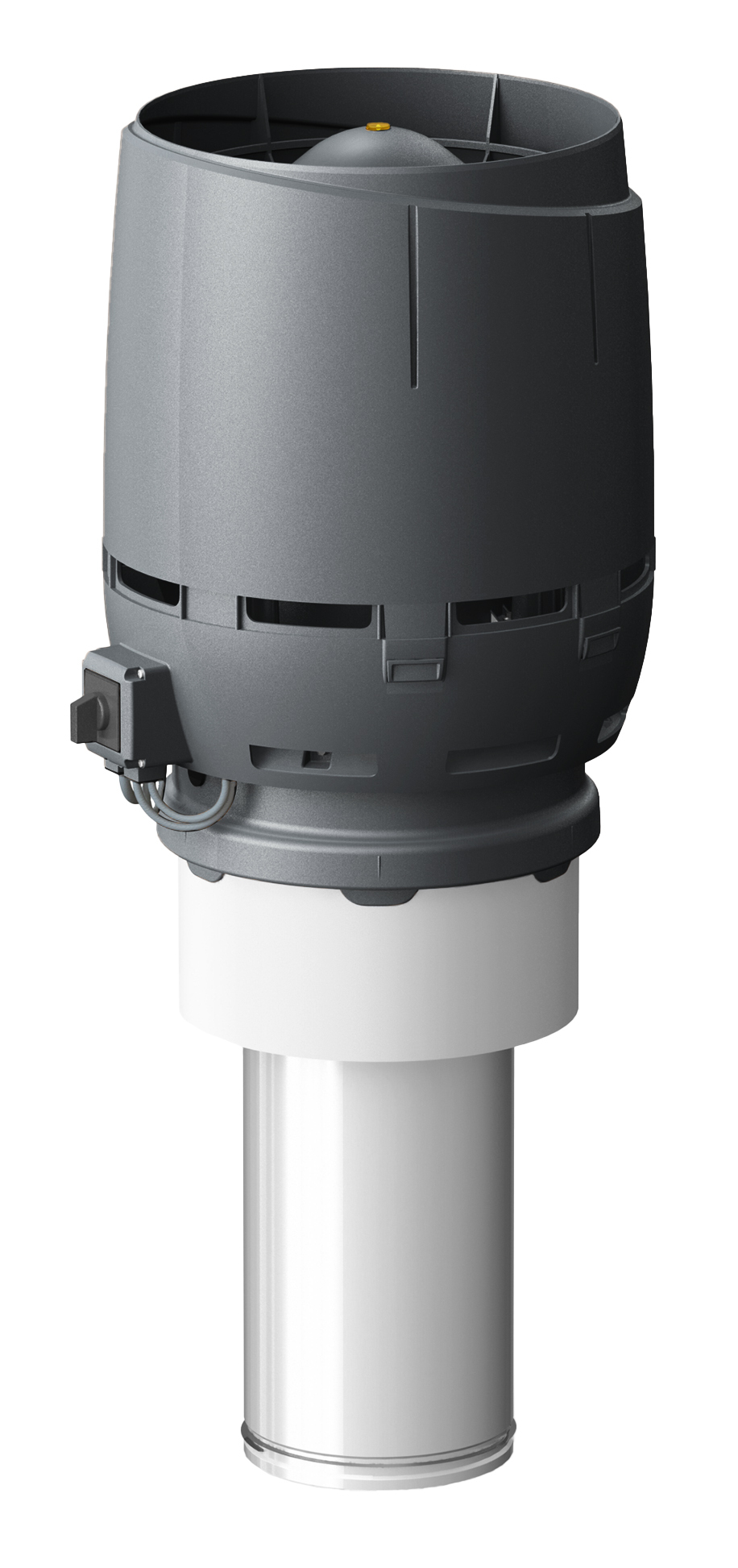

ECo 200C/400 FLOW XL Roof Fan

Description: Energy-efficient insulated XL roof fan with FLOW cowl and EC motor (with 0-10V control voltage). Includes a galvanized steel inner pipe with a lip seal. A separate control panel–either the VILPE ECo Ideal Wireless or the VILPE ECo Controller 0–10 V–is needed to adjust the roof fan. Should be installed in a sheet metal cone with a Ø 315 mm opening, made by a tinsmith.

Dimensions: Duct size Ø 200 mm, external Ø 300 mm, height above roof approx. 700 mm.

Contents: Roof fan, screws; installation, operating and maintenance instructions.

Compatible controllers

Color
Black
Brown
Grey
Red
Brick Red
Product number350592
LVI Code7820526
EAN Code6410453505924
Color Black | RR33 | RAL9005
Weight Gross: 9.403kg, Net: 8.175kg
Product number350594
LVI Code7820527
EAN Code6410453505948
Color Brown | RR32
Weight Gross: 9.403kg, Net: 8.175kg
Product number350597
LVI Code7820528
EAN Code6410453505979
Color Grey | RR23 | RAL7015
Weight Gross: 9.403kg, Net: 8.175kg
Product number350598
LVI Code7820529
EAN Code6410453505986
Color Red | RR29 | RAL3009
Weight Gross: 9.403kg, Net: 8.175kg
Product number350599
LVI Code7820530
EAN Code6410453505993
Color Brick Red | RR750 | RAL8004
Weight Gross: 9.403kg, Net: 8.175kg
SKU: N/A Categories: ,
Share product page
Duct size200 Ø
Voltage230V/50Hz
Current1.40 A
Rotation speed (rpm)2510 rpm
Power170 W
Fan typeEC

Download CAD Models

Materials & Installation

Send document by email

  • This field is for validation purposes and should be left unchanged.

Certificates

Product categories: C-Series roof fans, Roof fans
