ECo 160C/400 FLOW Roof Fan

Description: Energy-efficient insulated roof fan with FLOW cowl and EC motor. Includes a galvanized steel inner pipe with a lip seal. The motor is preadjusted to 3V. Should be installed in a sheet metal cone with a Ø 170 mm opening, made by a tinsmith.

Dimensions: Duct size Ø 160 mm, external Ø 160 mm, height 400 mm.

Contents: Roof fan, screws; installation, operating and maintenance instructions.

Compatible controllers
Color
Black
Light Grey
Brown
Grey
Product number350582
LVI Code7820520
EAN Code6410453505825
Color Black | RR33 | RAL9005
Weight Gross: 7.537kg, Net: 5.886kg
Product number350581
LVI Code7820519
EAN Code6410453505818
Color Light Grey | RAL7040
Weight Gross: 7.51kg, Net: 5.859kg
Product number350584
LVI Code7820521
EAN Code6410453505849
Color Brown | RR32
Weight Gross: 7.537kg, Net: 5.886kg
Product number350587
LVI Code7820523
EAN Code6410453505870

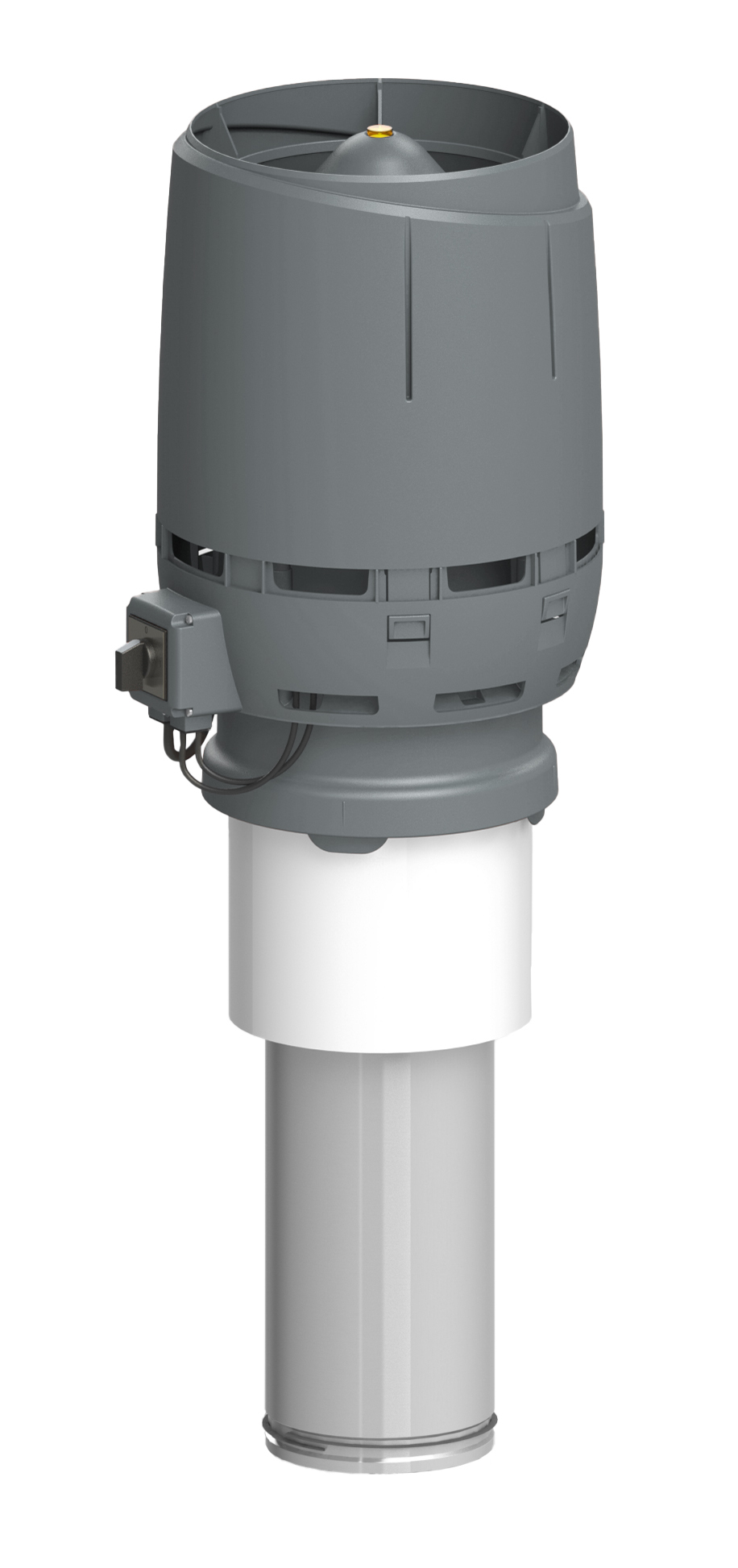

Color Grey | RR23 | RAL7015
Weight Gross: 7.537kg, Net: 5.886kg
SKU: N/A Categories: ,
Share product page
Print pdf
Duct size160 Ø
Voltage230V/50Hz
Current0,7 A
Rotation speed (rpm)2580 rpm
Power85 W
Fan typeEC

Performance data graphs

VILPE ECo FLOW 160 - ISO 5801:2017

Air density: 1.2

10V
8V
7V
6V
5V
4V
3V
2V
10V
8V
7V
6V
5V
4V
3V
2V
10V
8V
7V
6V
5V
4V
3V
2V

Energy efficiency data

Energy class
D,B

Download CAD Models

Download DWG-file
35058x.dwg

Materials & Installation

Send document by email

  • This field is for validation purposes and should be left unchanged.

Certificates

Product categories: C-Series roof fans, Roof fans
