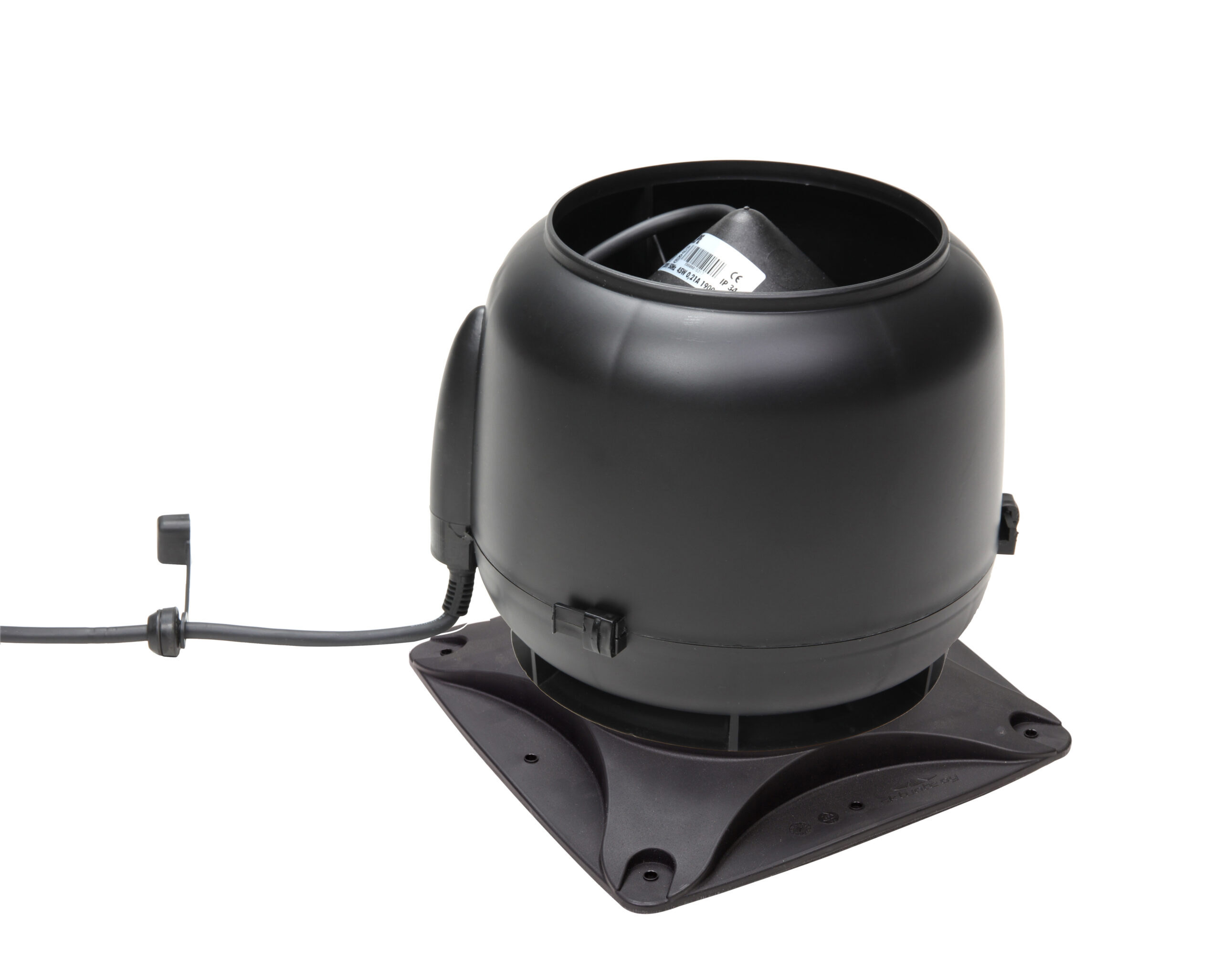

ECo 110S/Ø110 Roof Fan + Installation Set

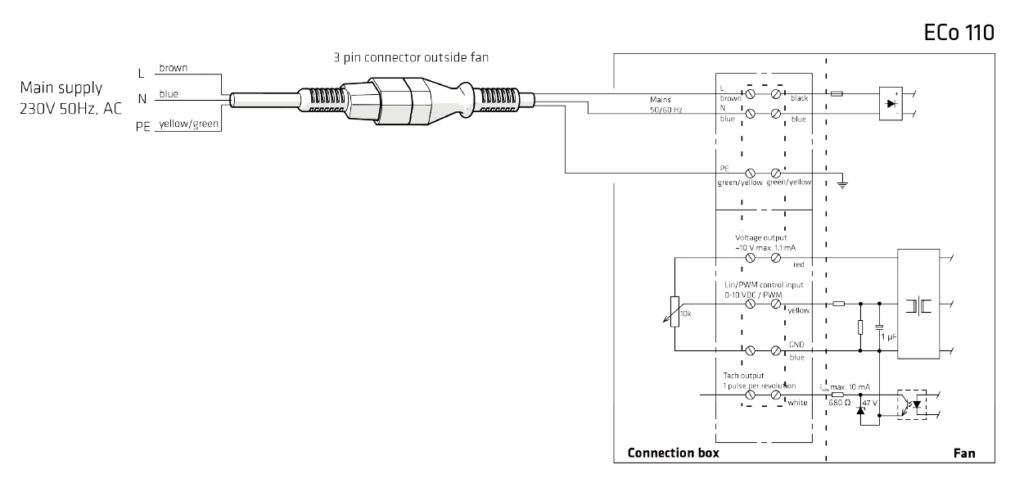

Description: Energy-efficient roof fan with EC motor for radon ventilation. Also suitable for ventilating a garage or an ecological toilet. Compatible with the VILPE 110 mm insulated pipe or other pipes with external dimensions of Ø 160 mm. The motor is preadjusted to 3V. The fan’s rpm is controlled by the potentiometer installed in the link box in its cowl—this potentiometer can then be adjusted based on measurements taken inside the building. This fan does not use a separate control panel. An installation set for a flat surface is included with this product.

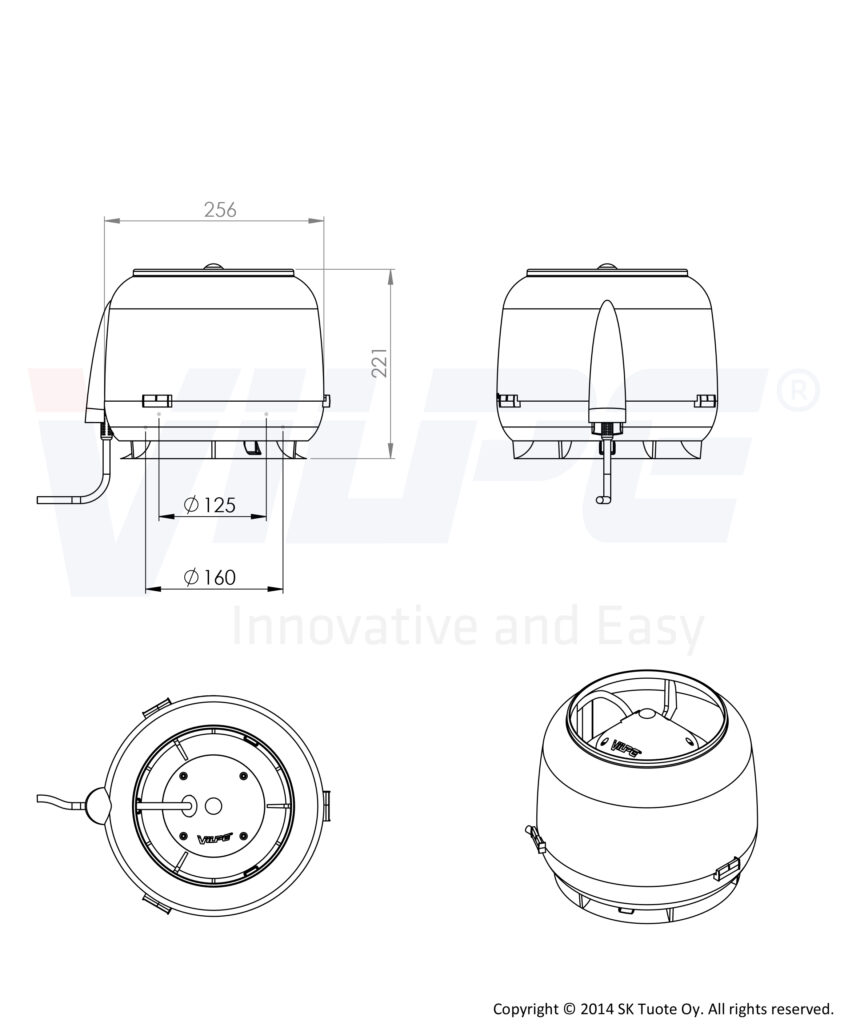

Dimensions: Duct size Ø 110 mm; installation set 250 x 250 mm, installation area must be at least the same size.

Contents: Roof fan, installation set, screws, installation, operating and maintenance instructions.

This product has been replaced by a modern and more energy-efficient FLOW product.

Color
Black
Brown
Green
Grey
Red
Brick Red
Light Grey
Product number737532
LVI Code7820213
EAN Code6410457375325
Color Black | RR33 | RAL9005
Weight Gross: 3.764kg, Net: 3.297kg
Product number737534
LVI Code7820214
EAN Code6410457375349
Color Brown | RR32
Weight Gross: 3.764kg, Net: 3.297kg
Product number737536
LVI Code7820215
EAN Code6410457375363
Color Green | RR11
Weight Gross: 3.764kg, Net: 3.297kg
Product number737537
LVI Code7820216
EAN Code6410457375370
Color Grey | RR23 | RAL7015
Weight Gross: 3.764kg, Net: 3.297kg
Product number737538
LVI Code7820217
EAN Code6410457375387
Color Red | RR29 | RAL3009
Weight Gross: 3.764kg, Net: 3.297kg
Product number737539
LVI Code7820218
EAN Code6410457375394
Color Brick Red | RR750 | RAL8004
Weight Gross: 3.764kg, Net: 3.297kg
Product number737531
LVI Code7820212
EAN Code6410457375318
Color Light Grey | RR33 | RAL7040
Weight Gross: 3.764kg, Net: 3.297kg
SKU: N/A Categories: ,
Share product page
Duct size110 Ø
Voltage230V/50Hz
Current0,75 A
Rotation speed (rpm)3200 rpm
Power83 W
Fan typeEC

Download CAD Models

Videos

Product categories: Roof fans, S-Series roof fans
