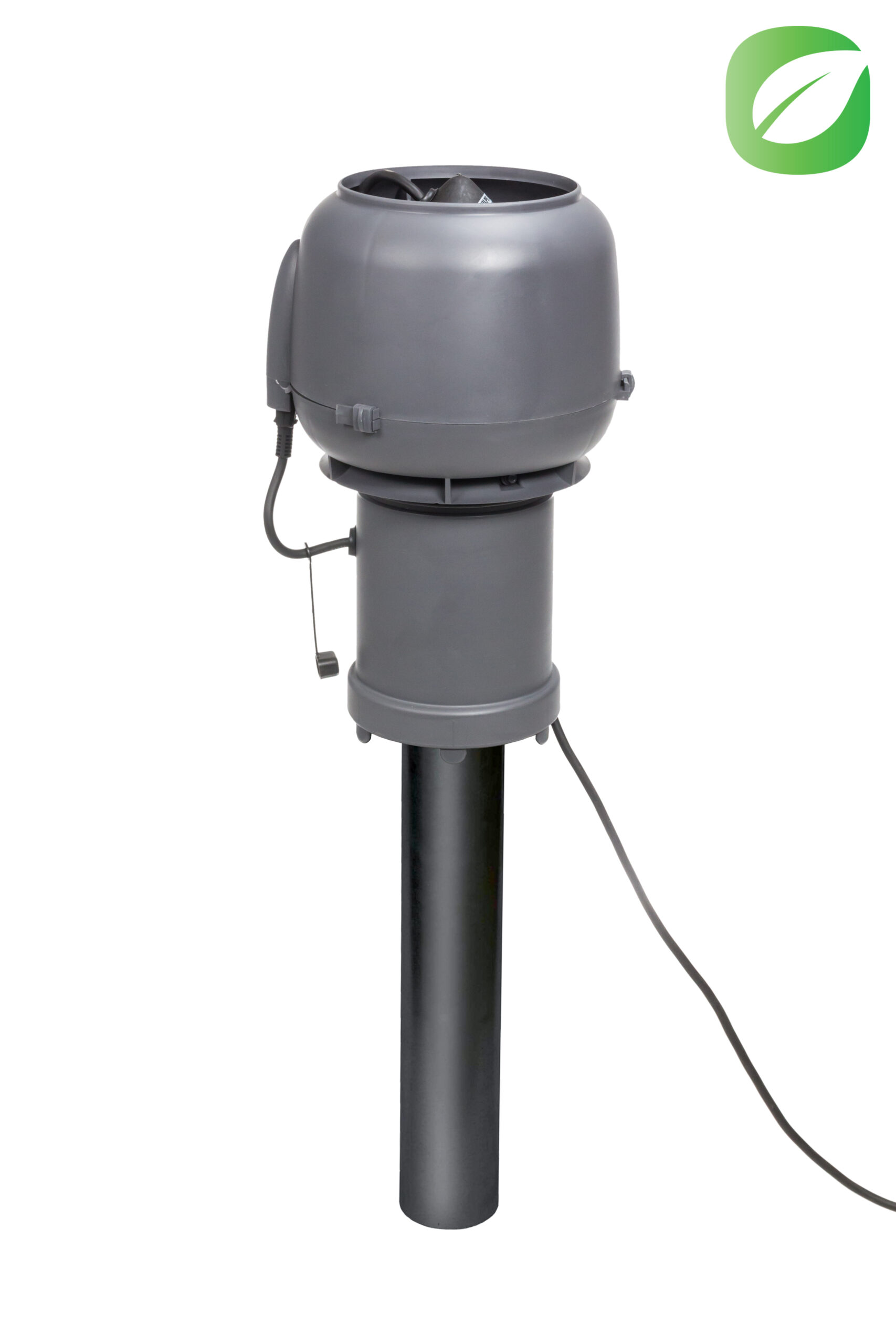

ECo 110C/Ø110/400 Roof Fan

ECo 110C/Ø110/400 Roof Fan

DISCONTINUED

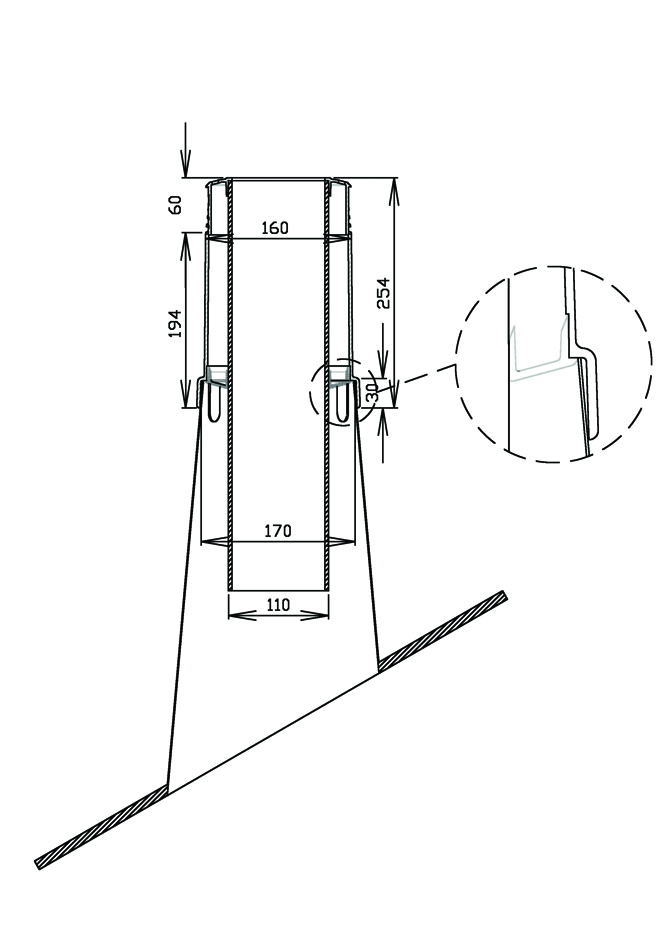

Description: Energy-efficient insulated roof fan with EC motor for radon ventilation. Also suitable for ventilating an ecological toilet. The motor is preadjusted to 3V. Not suitable for indoor air ventilation. Should be installed in a sheet metal cone with a Ø 170 mm opening, made by a tinsmith.

Dimensions: Duct size Ø 110 mm, external Ø 160 mm, height 400 mm.

Contents: Roof fan, screws; installation, operating and maintenance instructions.
Color
Green
Light Grey
Black
Brown
Grey
Red
Brick Red
Product number737366
LVI Code7820115
EAN Code6410457373666
Color Green | RR11
Weight Gross: 5.5kg, Net: 4.692kg
Product number737361
LVI Code7820112
EAN Code6410457373611
Color Light Grey | RAL7040
Weight Gross: 5.5kg, Net: 4.692kg
Product number737362
LVI Code7820113
EAN Code6410457373628
Color Black | RR33 | RAL9005
Weight Gross: 5.5kg, Net: 4.692kg
Product number737364
LVI Code7820114
EAN Code6410457373642
Color Brown | RR32
Weight Gross: 5.5kg, Net: 4.692kg
Product number737367
LVI Code7820116
EAN Code6410457373673
Color Grey | RR23 | RAL7015
Weight Gross: 5.5kg, Net: 4.692kg
Product number737368
LVI Code7820117
EAN Code6410457373680
Color Red | RR29 | RAL3009
Weight Gross: 5.5kg, Net: 4.692kg
Product number737369
LVI Code7820118
EAN Code6410457373697
Color Brick Red | RR750 | RAL8004
Weight Gross: 5.5kg, Net: 4.692kg
SKU: N/A Category:
Share product page
Print pdf
Duct size110 Ø
Materialspolypropene plastic (PP), polyurethane
Voltage230V/50Hz
Current0,75 A
Rotation speed (rpm)3200 rpm
Power83 W
Fan typeEC

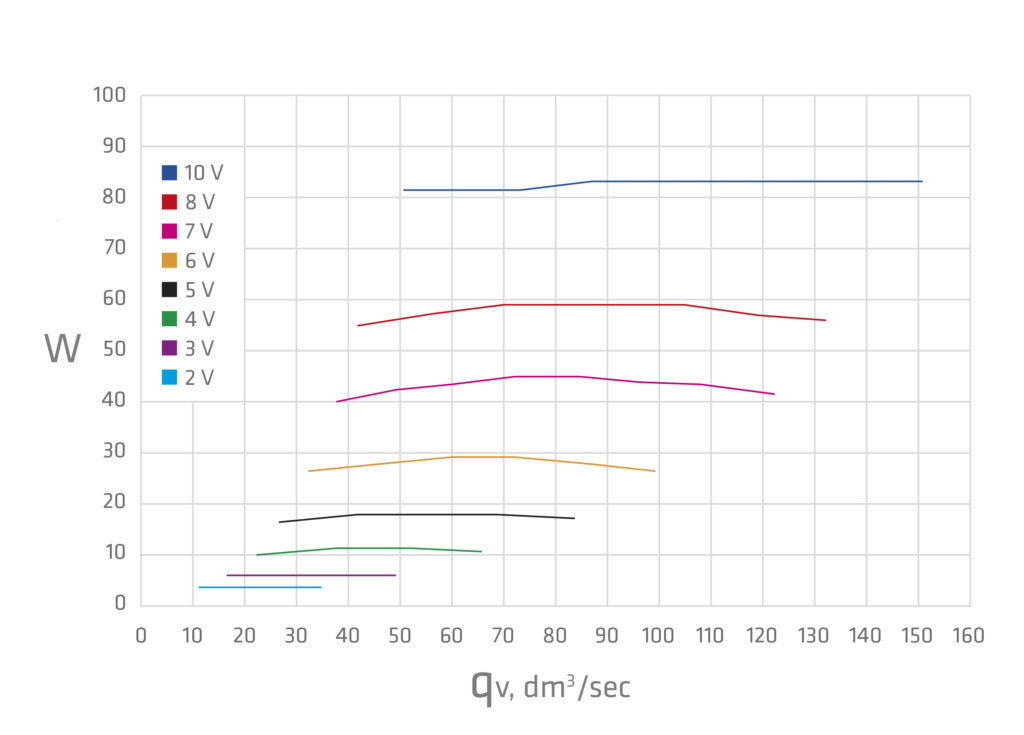

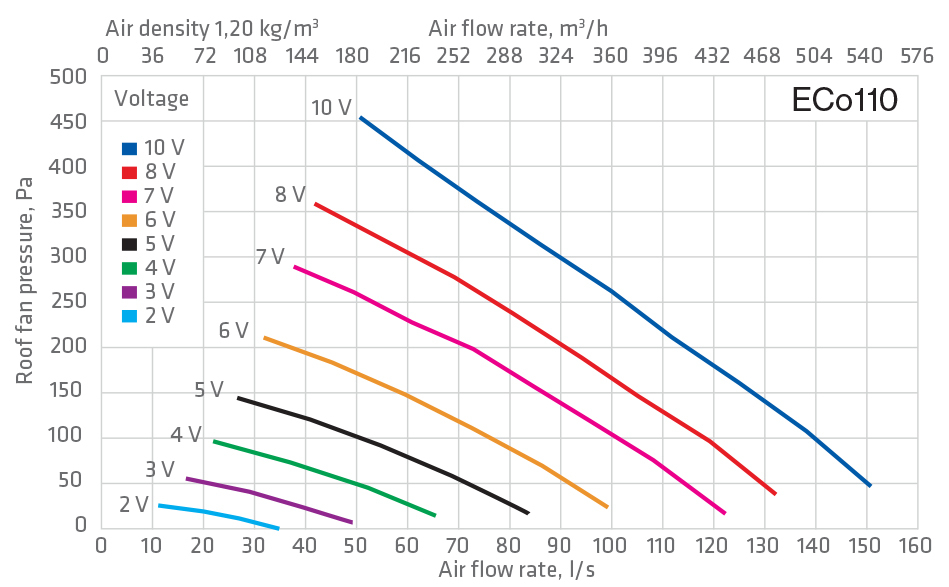

Performance data graphs

VILPE ECO 110 - ISO 5801:2008

Air density: 1.2

10V
8V
7V
6V
5V
4V
3V
2V
10V
8V
7V
6V
5V
4V
3V
2V
10V
8V
7V
6V
5V
4V
3V
2V

Download CAD Models

Download DWG-file
73736x.dwg
MagiCAD file

Materials & Installation

Send document by email

  • This field is for validation purposes and should be left unchanged.

Certificates

Product categories: Discontinued
