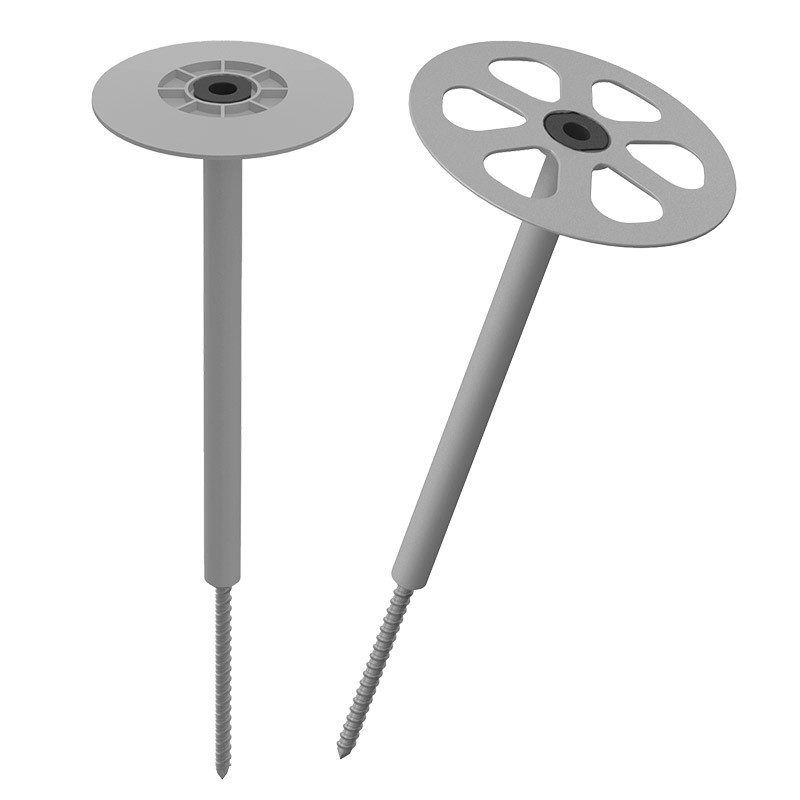

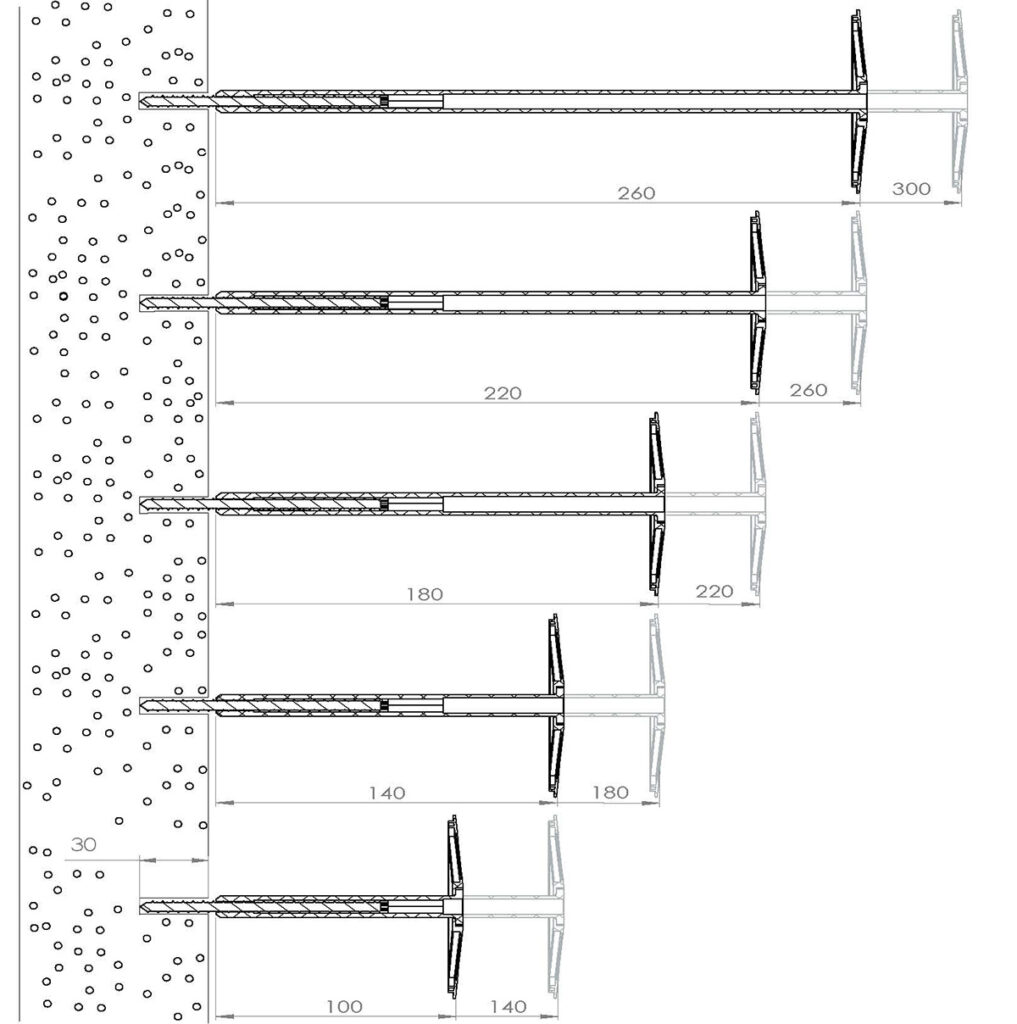

A VILPE adjustable insulation anchor facilitates and speeds up operation on the construction site. Concrete walls cast on the site may have an uneven surface which may vary from a few millimetres to several centimetres. In this case, insulation is also installed on an uneven surface, which makes installation more difficult. An adjustable insulation fastener solves the problem, as a single fastener length is suitable for several different insulation thicknesses.
Another advantage of the adjustable insulation anchor is that the installer can conveniently adjust the tightness of the insulation fastening.

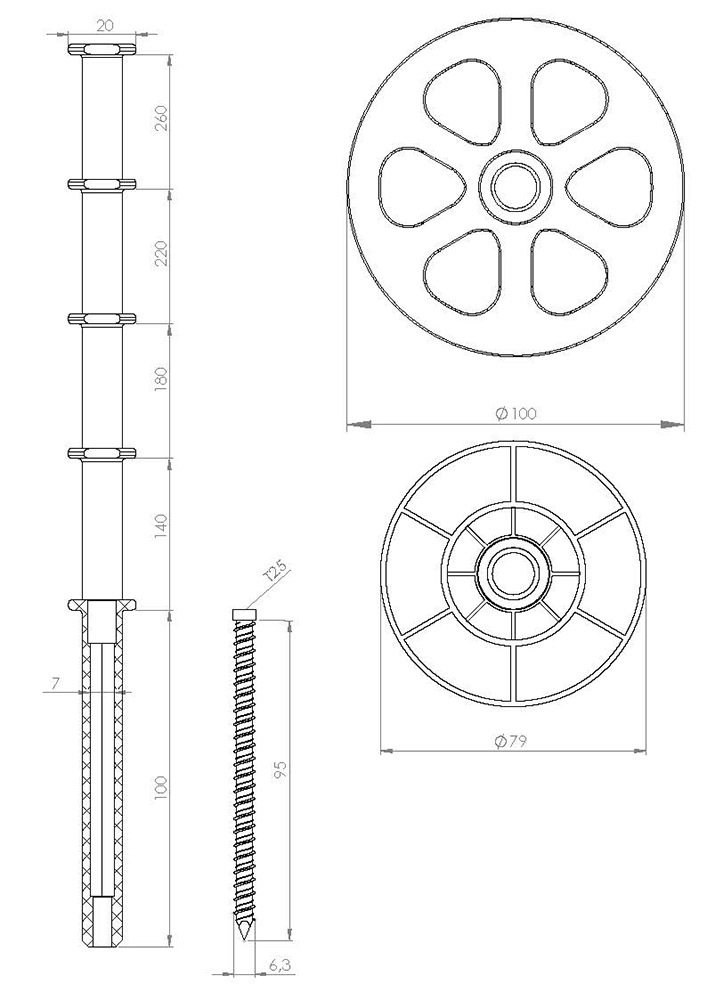

A thin ø 80 mm base washer and a thick 100 mm base washer are available separately.
The screw has passed the accelerated corrosion test according to standard ISO 6988 / DIN 50018
Installation
Compared to other products, the VILPE adjustable insulation anchor is very quick and simple to install as it requires only one tool.
For installation, a hole is drilled 30 mm deep with a 5 mm concrete drill bit. The screw on the anchor is 6.3x95 mm, and the cross groove in the base is a Torx T25. Rotate the screw with a hexagonal 7 mm screwdriver with a T25 tip.
When the screw reaches the bottom of the drilled hole, pull the screwdriver out of the cross groove. The anchor can be rotated so that the end is attached to the insulation. The tightness of the insulation fastening can still be adjusted flexibly after this.
The number of fasteners is determined by the planner.
