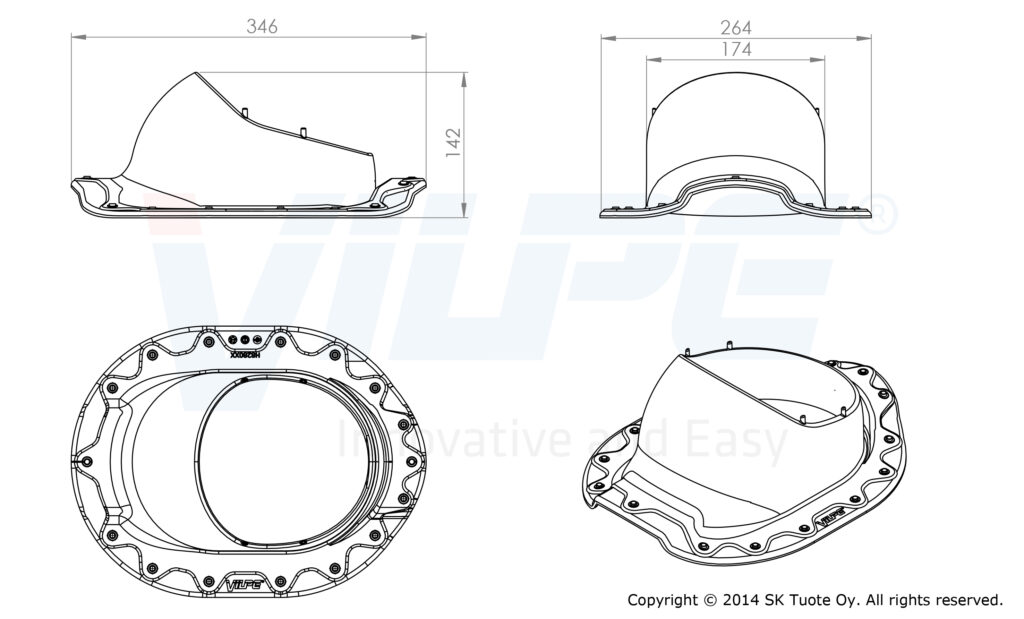

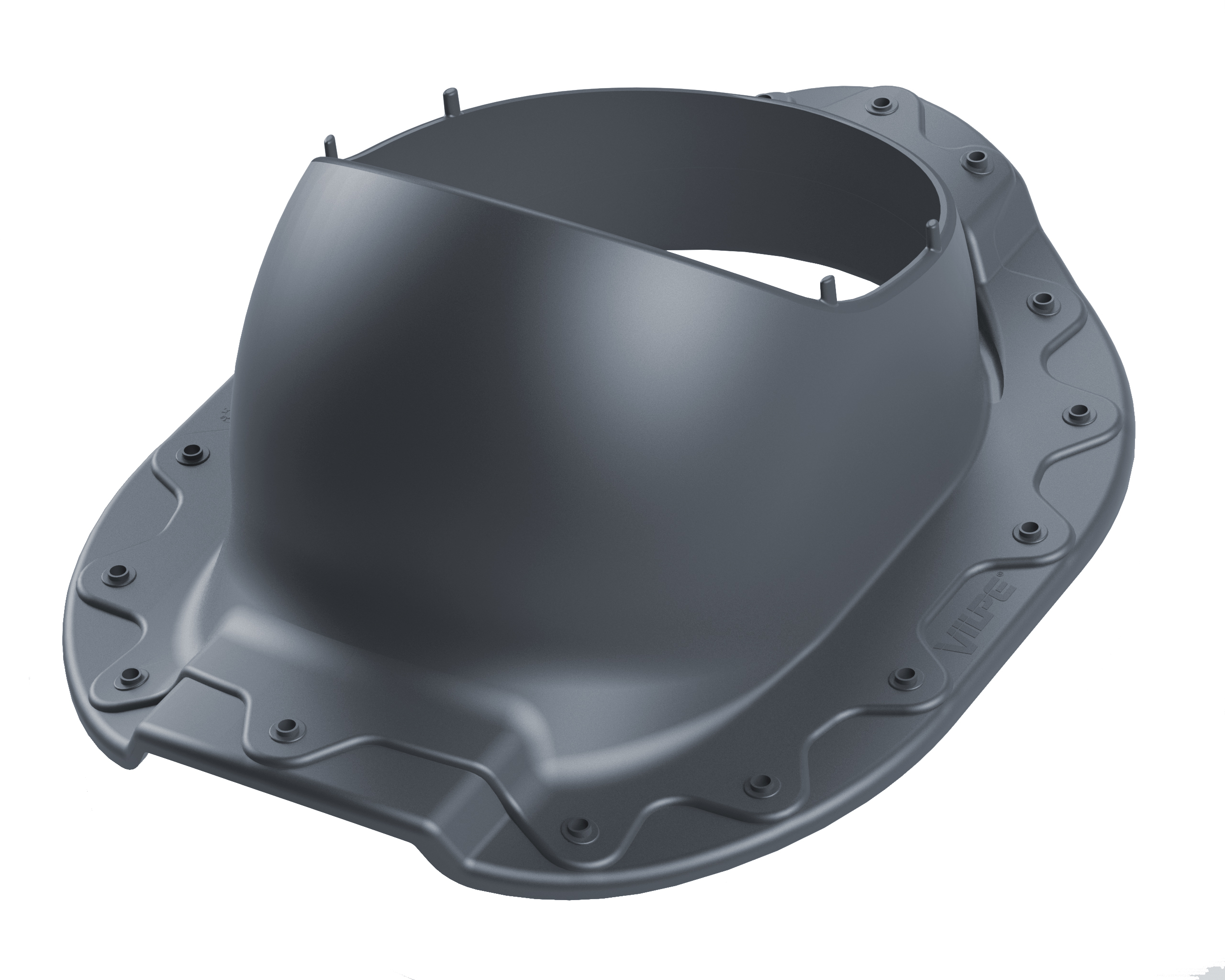

Aalto Pass-Through

For sheet metal roofs such as Ruukki’s Adamante, or other equivalent round-profile, tile-patterned roofs. The seal on the bottom of the pass-through guarantees a fully waterproof end result, and is attached to the bottom of the flange. Installing the VILPE Aalto Pass-Through is simple and easy: the kit includes all installation materials and clear instructions. The pass-through enables the installation of VILPE roof fans, exhaust pipes, ventilation pipes and antenna pass-throughs onto the roof. Designed for Ø 75, 110, 125 or 160 mm pipes.

Contents: Pass-through, underlay ring, upper edge seal set, bottom bracket, screws, installation instructions.

Color
Black
Brown
Grey
Red
Brick Red
Chocolate Brown
Anthracite
Product number740802
EAN Code6410457408023
Color Black | RR33 | RAL9005
Weight Gross: 0.981kg, Net: 0.721kg
Product number740804
EAN Code6410457408047
Color Brown | RR32
Weight Gross: 0.981kg, Net: 0.721kg
Product number740807
EAN Code6410457408078
Color Grey | RR23 | RAL7015
Weight Gross: 0.981kg, Net: 0.721kg
Product number740808
EAN Code6410457408085
Color Red | RAL3031
Weight Gross: 0.981kg, Net: 0.721kg
Product number740809
EAN Code6410457408092
Color Brick Red | RR750 | RAL8004
Weight Gross: 0.981kg, Net: 0.721kg
Product number74080B
EAN Code6417323850849
Color Chocolate Brown | RR887
Weight Gross: 0.981kg, Net: 0.721kg
Product number74080G
EAN Code6417323850856
Color Anthracite
Weight Gross: 0.981kg, Net: 0.721kg
