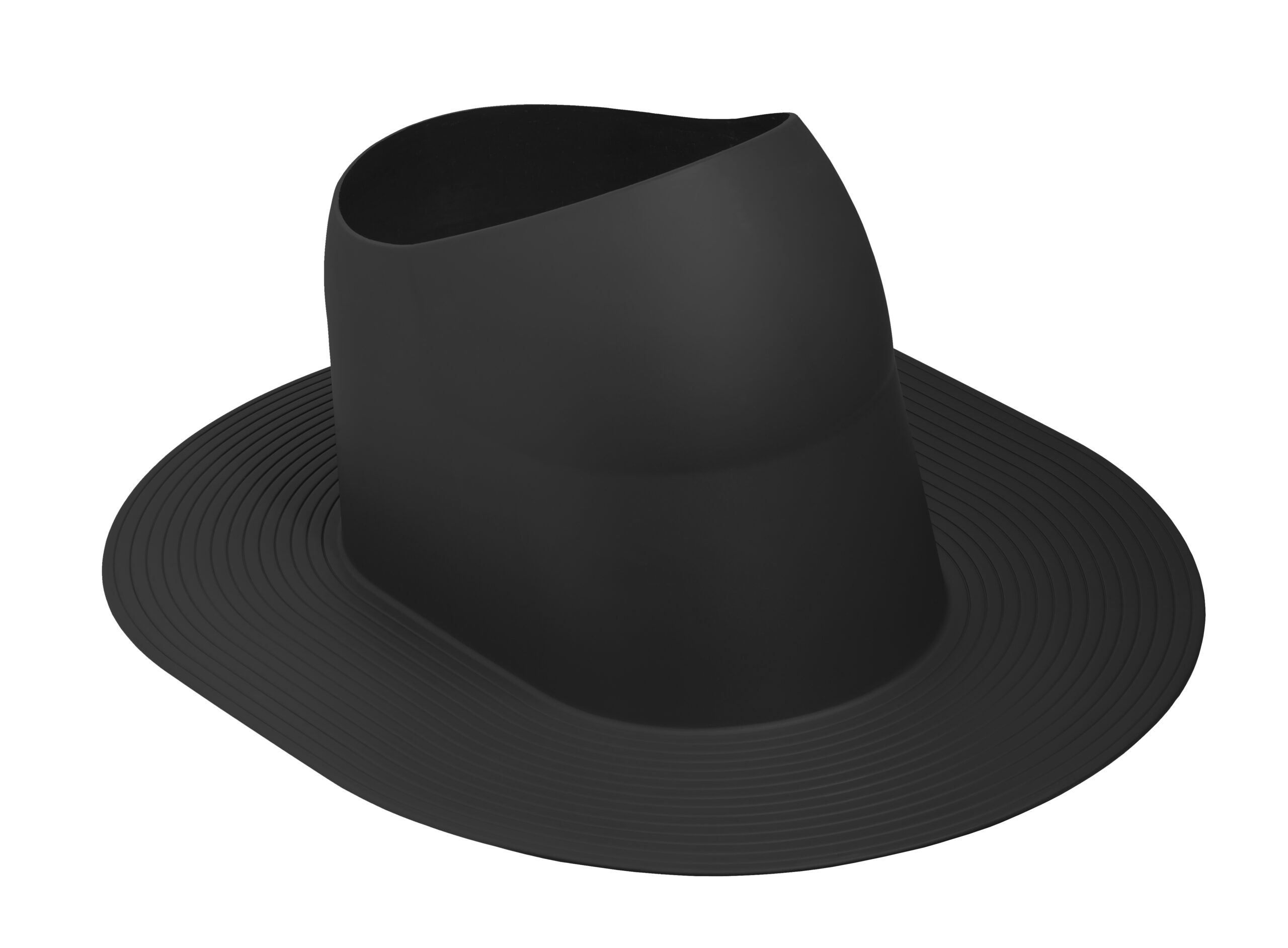

XL Tall Felt Pass-Through

Description: For felt roofs with a pitch of less than 1:5 (11.5°). The seal on the bottom of the pass-through guarantees a fully waterproof end result, and is attached to the bottom of the flange. Installing the VILPE XL Tall Felt Pass-Through is simple and easy: the kit includes all installation materials and clear instructions. The pass-through enables the installation of VILPE roof fans, exhaust pipes, ventilation pipes and antenna pass-throughs onto the roof. Designed for Ø 160-250 mm pipes.

Dimensions: Height 300 mm, flange width 152-154 mm.

Contents: Pass-through, two-piece XL underlay ring, screws, installation instructions.
Color
Black
Grey
Product number740052
LVI Code7820000
EAN Code6410457400522
Color Black | RR33 | RAL9005
Weight Gross: 1.732kg, Net: 1.732kg
Product number740057
LVI Code7820001
EAN Code6410457400577
Color Grey | RR23 | RAL7015
Weight Gross: 1.732kg, Net: 1.732kg
