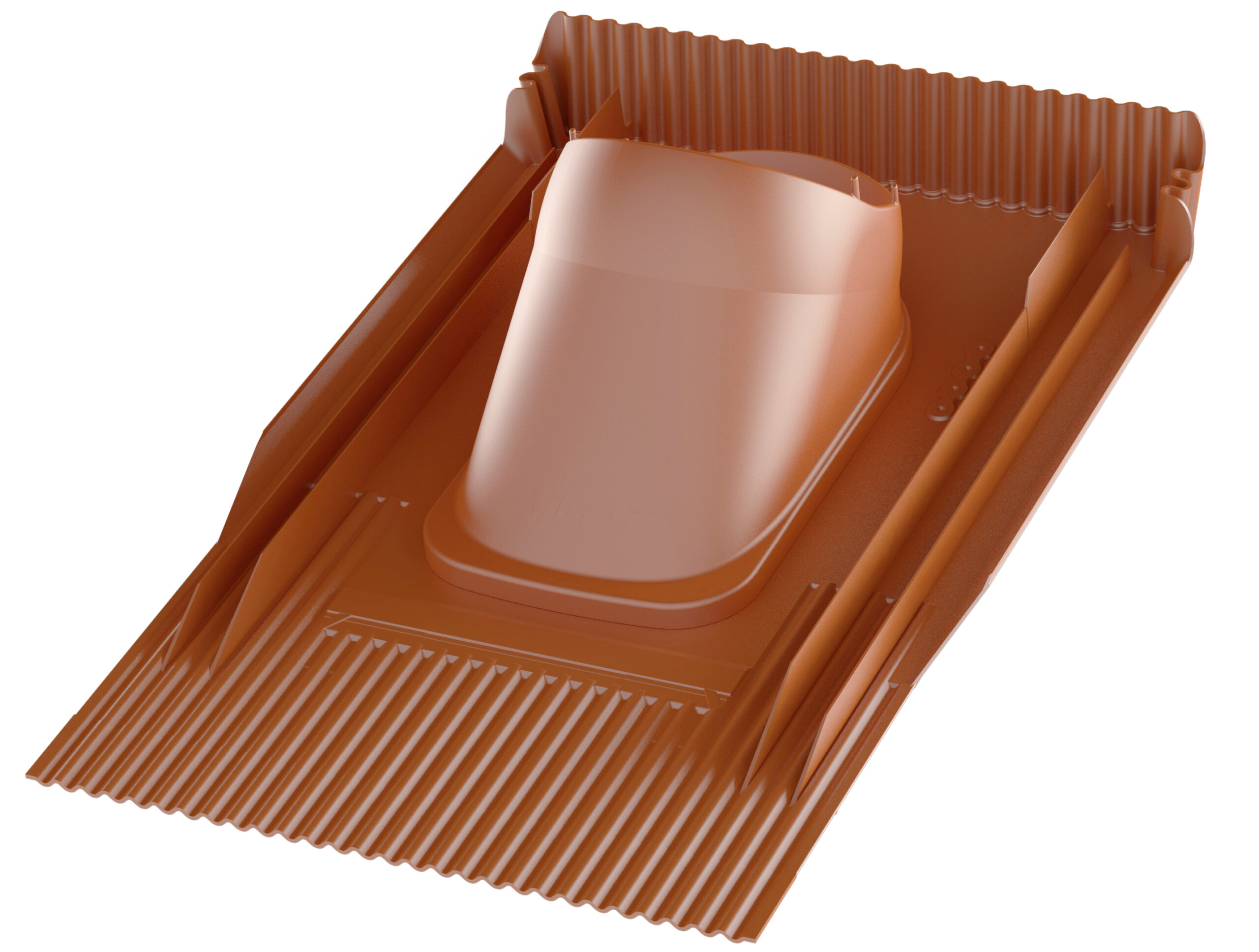

Unitile Pass-Through

Description: For all tile roofs (ceramic, clay, concrete and special tiles, 1- and 2-wave tiles and plain tiles). The seal on the bottom of the pass-through guarantees a fully waterproof end result, and is attached to the bottom of the flange. Installing the VILPE Unitile Pass-Through is simple and easy: the kit includes all installation materials and clear instructions. The pass-through enables the installation of VILPE roof fans, exhaust pipes, ventilation pipes and antenna pass-throughs onto the roof. Designed for Ø 75, 110, 125 or 160 mm pipes.

Contents: Pass-through, underlay ring, upper edge seal set, bottom bracket, screws, installation instructions.

Color
Anthracite
Brick Red
Black
Brown
Grey
Red
Brick Red
Product number74090G
EAN Code6417323850863
Color Anthracite
Weight Gross: 2.5kg, Net: 1.93kg
Product number739149
EAN Code6410457652143
Color Brick Red | RR750 | RAL8004
Weight Gross: 2.5kg, Net: 1.93kg
Product number740902
EAN Code6410457409020
Color Black | RR33 | RAL9005
Weight Gross: 2.5kg, Net: 1.93kg
Product number740904
EAN Code6410457409044
Color Brown | RR32
Weight Gross: 2.5kg, Net: 1.93kg
Product number740907
EAN Code6410457409075
Color Grey | RR23 | RAL7015
Weight Gross: 2.5kg, Net: 1.93kg
Product number740908
EAN Code6410457409082
Color Red | RR29 | RAL3009
Weight Gross: 2.5kg, Net: 1.93kg
Product number740909
EAN Code6410457409099
Color Brick Red | RR750 | RAL8004
Weight Gross: 2.5kg, Net: 1.93kg
