Unitile 2K Pass-Through

Unitile 2K Pass-Through

DISCONTINUED

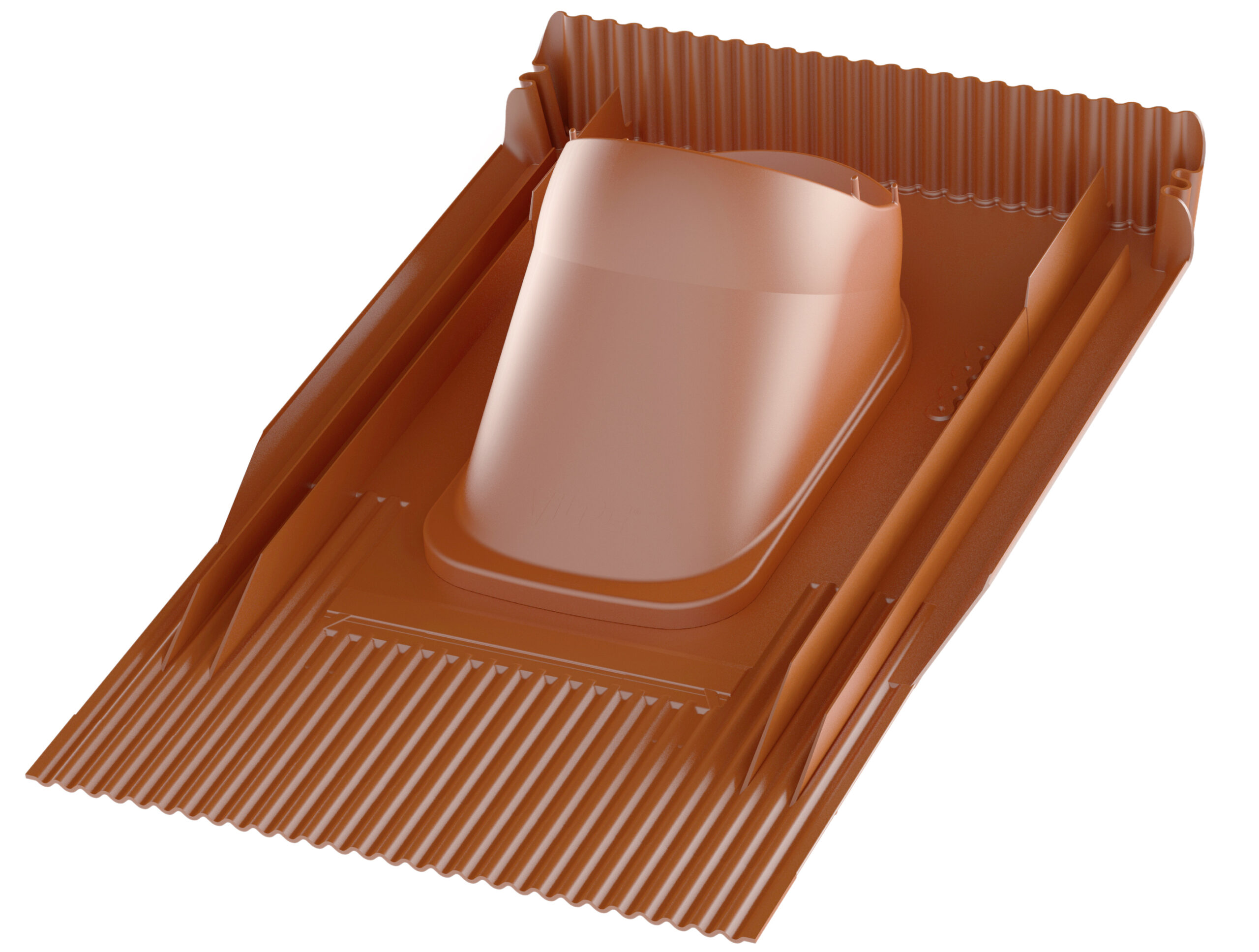

Description: The VILPE Unitile 2K is a pass-through for all tile roofs (ceramic, clay, concrete and special tiles, 1- and 2-wave tiles and plain tiles). The product ensemble includes the Underlay 2K Seal. Installing the VILPE Unitile 2K Pass-Through is simple and easy: the pass-through includes spikes for attaching the Underlay 2K Seal, and the kit includes all installation materials and clear instructions. The pass-through enables the installation of VILPE roof fans, exhaust pipes, ventilation pipes and antenna pass-throughs onto the roof.

Used with VILPE P-series roof fans and ventilation pipes with a diameter of 110–160 mm.

Contents: Pass-through, underlay 2K seal, upper edge seal set, bottom bracket, screws, installation instructions/template for underlay seal and pass-through.
Color
Black
Brown
Grey
Red
Brick Red
Product number300062
LVI Code7820247
EAN Code6410453000627
Color Black | RR33 | RAL9005
Weight Gross: 2.703kg, Net: 2.145kg
Product number300064
LVI Code7820248
EAN Code6410453000641
Color Brown | RR32 | RAL8019
Weight Gross: 2.703kg, Net: 2.145kg
Product number300067
LVI Code7820250
EAN Code6410453000672
Color Grey | RR23 | RAL7024
Weight Gross: 2.703kg, Net: 2.145kg
Product number300068
LVI Code7820251
EAN Code6410453000689
Color Red | RR29 | RAL3009
Weight Gross: 2.089kg, Net: 1.532kg
Product number300069
LVI Code7820252
EAN Code6410453000696
Color Brick Red | RR750 | RAL8004
Weight Gross: 2.705kg, Net: 2.148kg
SKU: N/A Category:
Share product page
Print pdf
Pipe diameterRoofpitch (min-max)
Pipe Ø11011.5°-48°
Pipe Ø12511.5°-46°
Pipe Ø16011.5°-43°
Roof MaterialTile

Download CAD Models

Download DWG-file
36011x-30006x-74090x.dwg
