Tile 2K Pass-Through

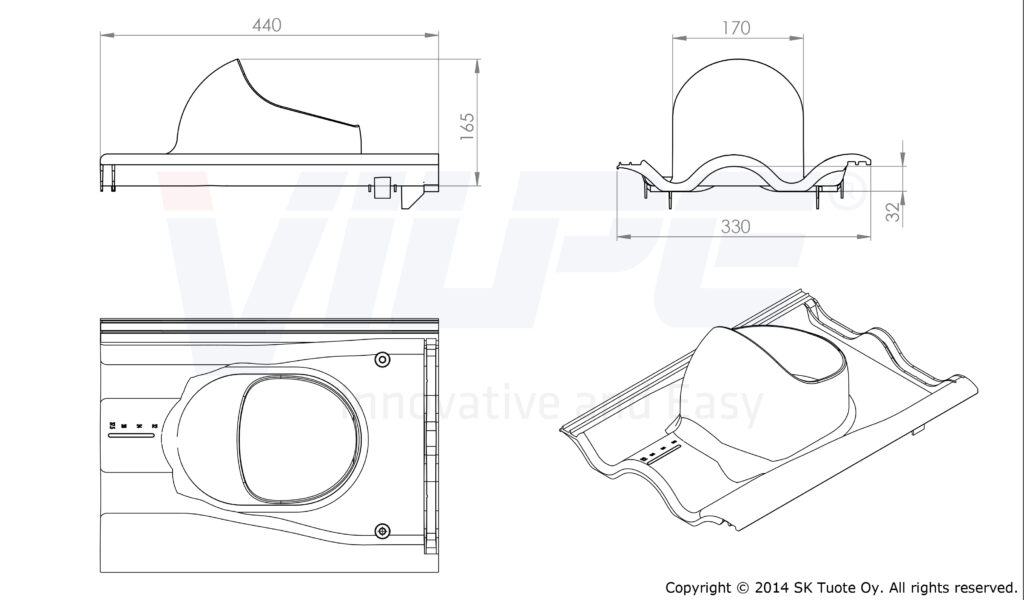

Description: The VILPE Tile 2K is a new, progressive pass-through for most common concrete tile roofs–it replaces one 2-wave concrete tile with a width of up to 330 mm and a wave height of 27-40 mm. The product ensemble includes the Underlay 2K Seal, the new-generation VILPE solution for completely waterproofing the underlay. The two-component underlay seal straddles the underlay and the top of the pass-through seamlessly, preventing any rainfall, snow or moisture from reaching the roof structures or insulation material below. The seal on the bottom of the pass-through guarantees a fully waterproof end result, and is attached to the bottom of the flange. Installing the VILPE Tile 2K Pass-Through is simple and easy: the pass-through includes spikes for attaching the Underlay 2K Seal, and the kit includes all installation materials and clear instructions. The pass-through enables the installation of VILPE roof fans, exhaust pipes, ventilation pipes and antenna pass-throughs onto the roof. Designed for Ø 75, 110, 125 or 160 mm pipes.

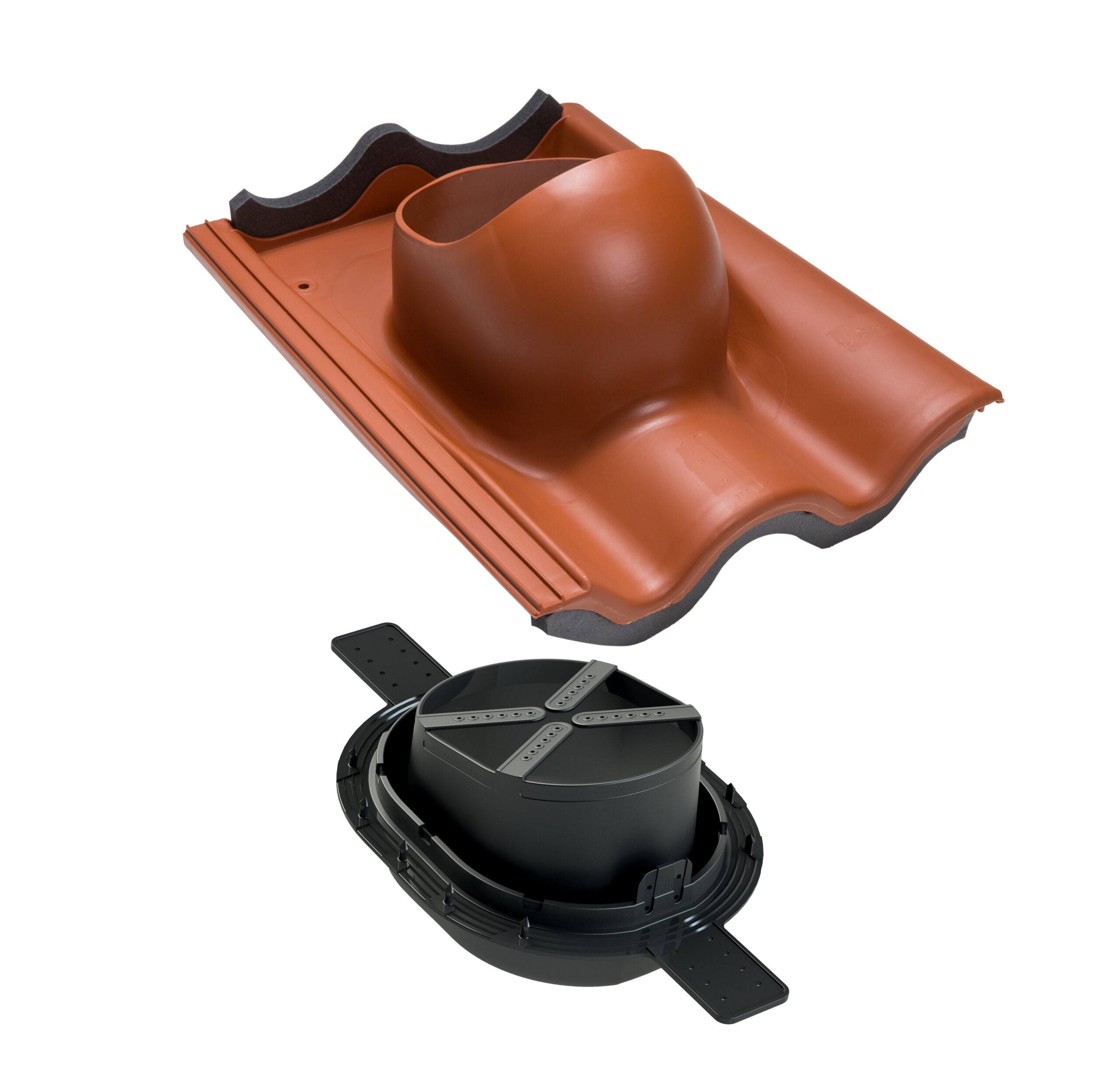

Contents: Pass-through, underlay 2K seal, screws, installation instructions/template for underlay seal and pass-through.

Color
Grey
Light Grey
Black
Brown
Green
Red
Brick Red
Product number300007
LVI Code7820152
EAN Code6410453000078
Color Grey | RR23 | RAL7024
Weight Gross: 1.932kg, Net: 1.439kg
Product number300001
LVI Code7820148
EAN Code6410453000016
Color Light Grey | RAL7040
Weight Gross: 2.108kg, Net: 1.714kg
Product number300002
LVI Code7820149
EAN Code6410453000023
Color Black | RR33 | RAL9005
Weight Gross: 1.912kg, Net: 1.419kg
Product number300004
LVI Code7820150
EAN Code6410453000047
Color Brown | RR32 | RAL8019
Weight Gross: 1.932kg, Net: 1.439kg
Product number300006
LVI Code7820151
EAN Code6410453000061
Color Green | RR11 | RAL6020
Weight Gross: 1.932kg, Net: 1.439kg
Product number300008
LVI Code7820153
EAN Code6410453000085
Color Red | RR29 | RAL3009
Weight Gross: 1.932kg, Net: 1.439kg
Product number300009
LVI Code7820154
EAN Code6410453000092
Color Brick Red | RR750 | RAL8004
Weight Gross: 1.932kg, Net: 1.439kg
