Solar Tile Pass-Through

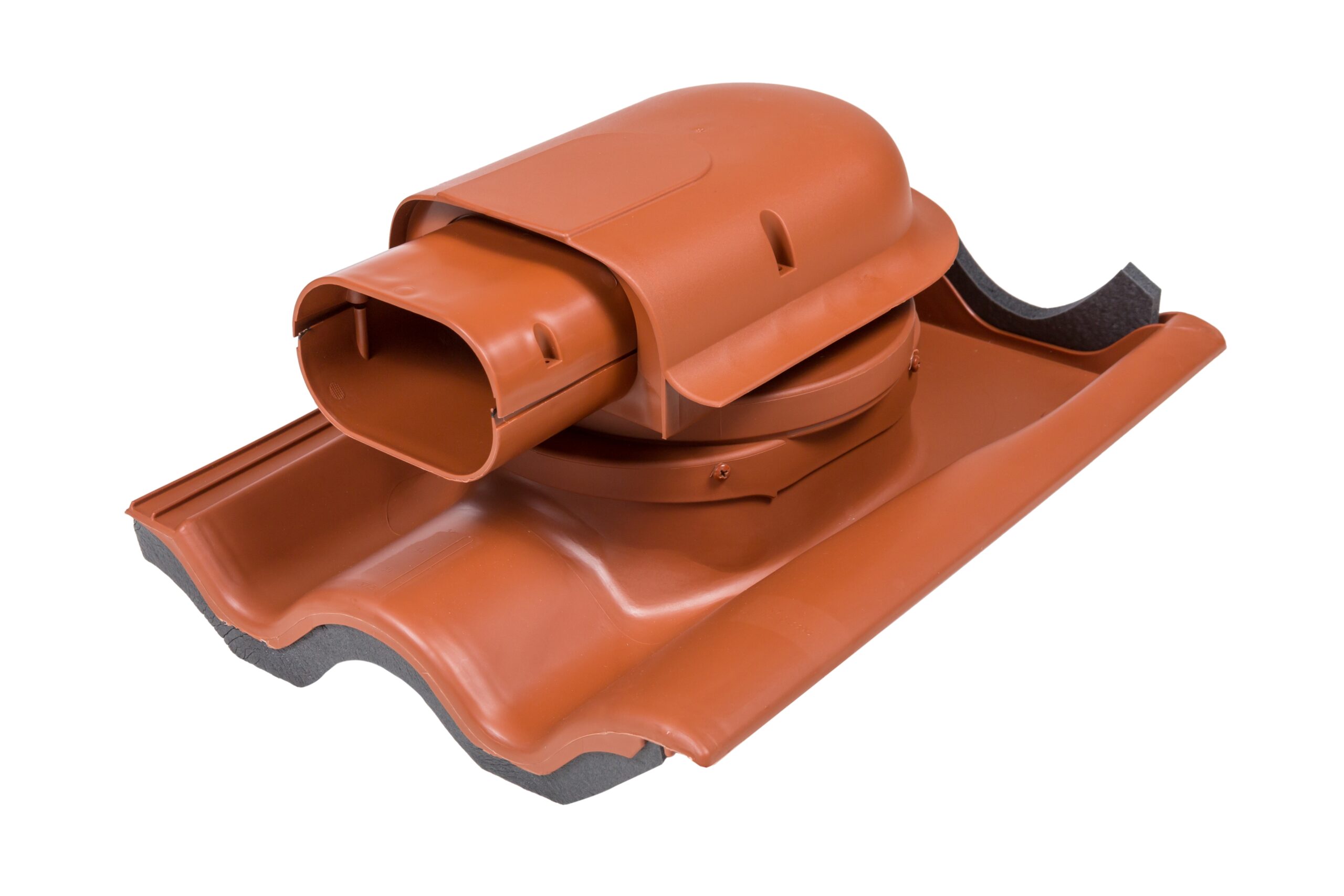

The VILPE Solar Tile Pass-Through is designed for passing small pipes (such as solar collector pipes) through most common concrete tile roofs–it replaces one 2-wave concrete tile with a width of 330 mm and a wave height of 27-40 mm. The cover of a Solar Tile Pass-Through is detachable, which facilitates service of the pipes; the flange and the cover can also be turned 90 degrees sideways to match the direction of the pipes, which makes installation easier.

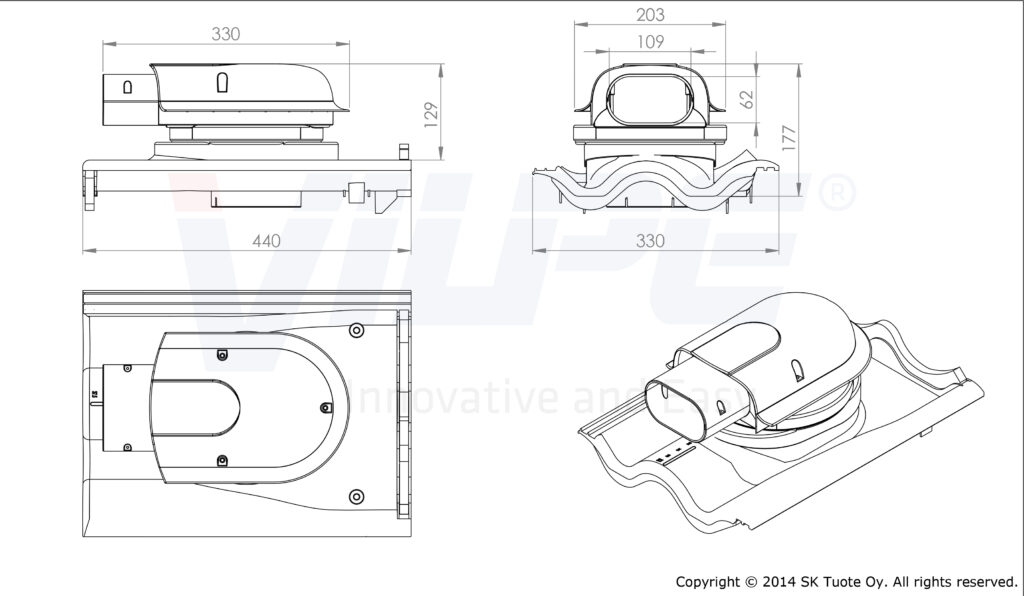

Dimensions: Length 440 mm, front pipe hole 100mm x 60mm.

Contents: Pass-through, underlay ring, flange, cover, shrinking tube, screws, installation instructions/templates for underlay ring and pass-through.

Color
Black
Brown
Green
Grey
Red
Brick Red
Product number75602
LVI Code5289200
EAN Code6417323756028
Color Black | RR33 | RAL9005
Weight Gross: 2.086kg, Net: 1.746kg
Product number75604
LVI Code5289201
EAN Code6417323756042
Color Brown | RR32
Weight Gross: 2.086kg, Net: 1.746kg
Product number75606
LVI Code5289202
EAN Code6417323756066
Color Green | RR11
Weight Gross: 2.086kg, Net: 1.746kg
Product number75607
LVI Code5289203
EAN Code6417323756073
Color Grey | RR23 | RAL7015
Weight Gross: 2.086kg, Net: 1.746kg
Product number75608
LVI Code5289204
EAN Code6417323756080
Color Red | RR29 | RAL3009
Weight Gross: 2.086kg, Net: 1.746kg
Product number75609
LVI Code5289205
EAN Code6417323756097
Color Brick Red | RR750 | RAL8004
Weight Gross: 2.086kg, Net: 1.746kg
