Solar Profiled Steel Pass-Through

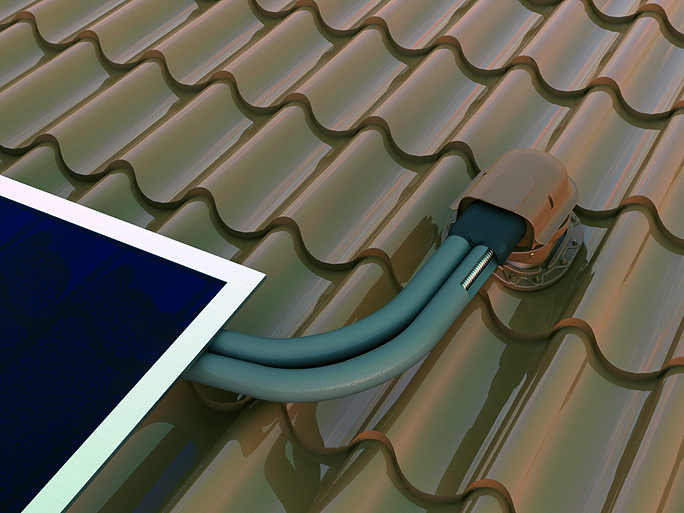

The VILPE Solar Profiled Steel Pass-Through is designed for passing small pipes (such as solar collector pipes) through round-profile sheet metal roofs (i.e. roof tile profiles) with a minimum profiled roof tile length of 350 mm. The Solar Profiled Steel Pass-Through is fully waterproof due to the rubber seal mounted on its lower surface; a flexible combination of rubber and plastic also allows shaping and ensures a good fit on different kinds of profiled roofs. The cover of a Solar Profiled Steel Pass-Through is detachable, which facilitates service of the pipes; the flange and the cover can also be turned 90 degrees sideways to match the direction of the pipes, which makes installation easier.

Dimensions: Front pipe hole 100mm x 60mm.

Contents: Pass-through, underlay ring, sealing compound, flange, cover, shrinking tube, screws, installation instructions/templates for underlay seal and pass-through.

Color
Black
Brown
Green
Grey
Red
Brick Red
Product number75632
LVI Code5289218
EAN Code6417323756325
Color Black | RR33 | RAL9005
Weight Gross: 1.746kg, Net: 1.486kg
Product number75634
LVI Code5289219
EAN Code6417323756349
Color Brown | RR32
Weight Gross: 1.746kg, Net: 1.486kg
Product number75636
LVI Code5289220
EAN Code6417323756363
Color Green | RR11
Weight Gross: 1.746kg, Net: 1.486kg

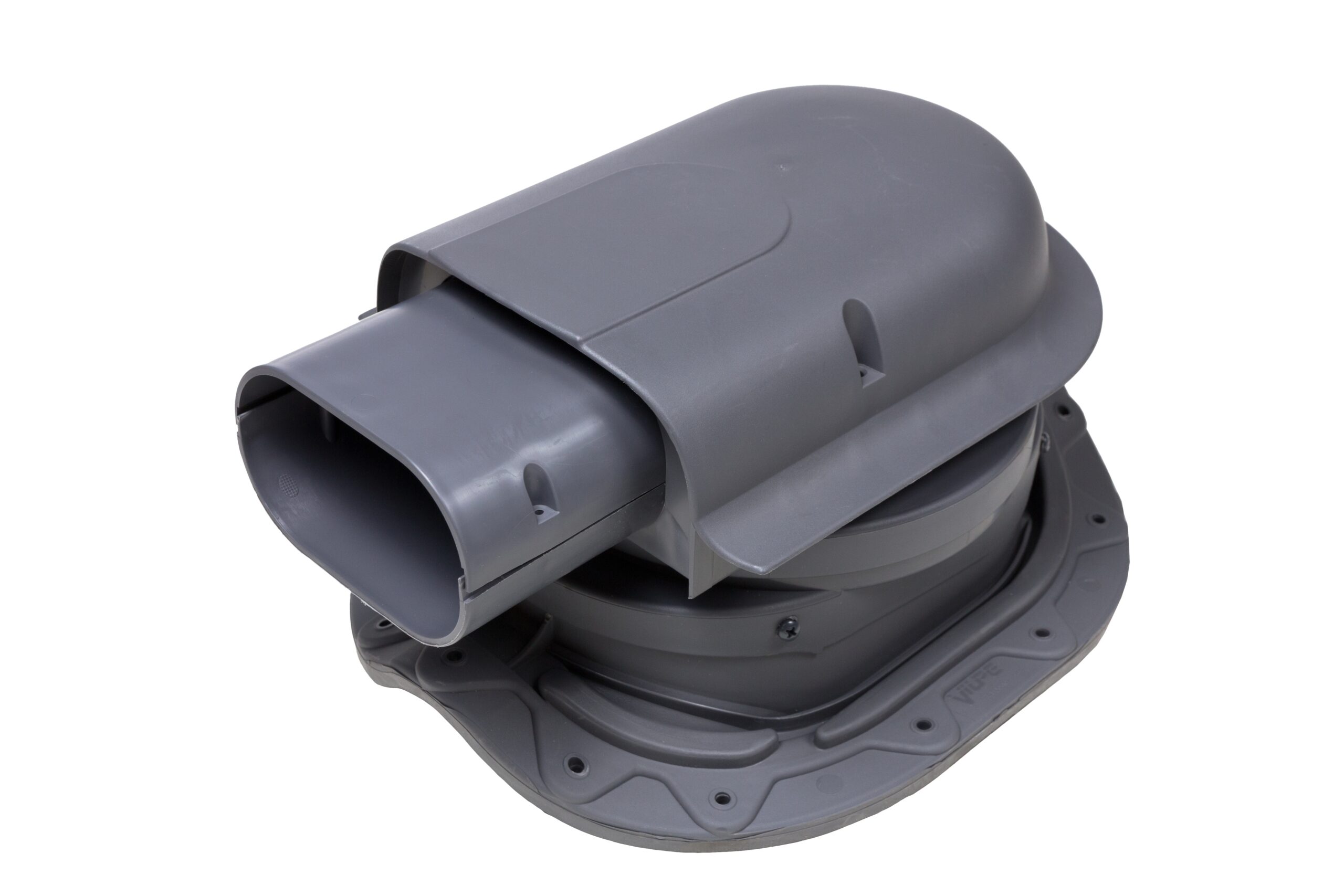

Product number75637
LVI Code5289221
EAN Code6417323756370
Color Grey | RR23 | RAL7015
Weight Gross: 1.746kg, Net: 1.486kg

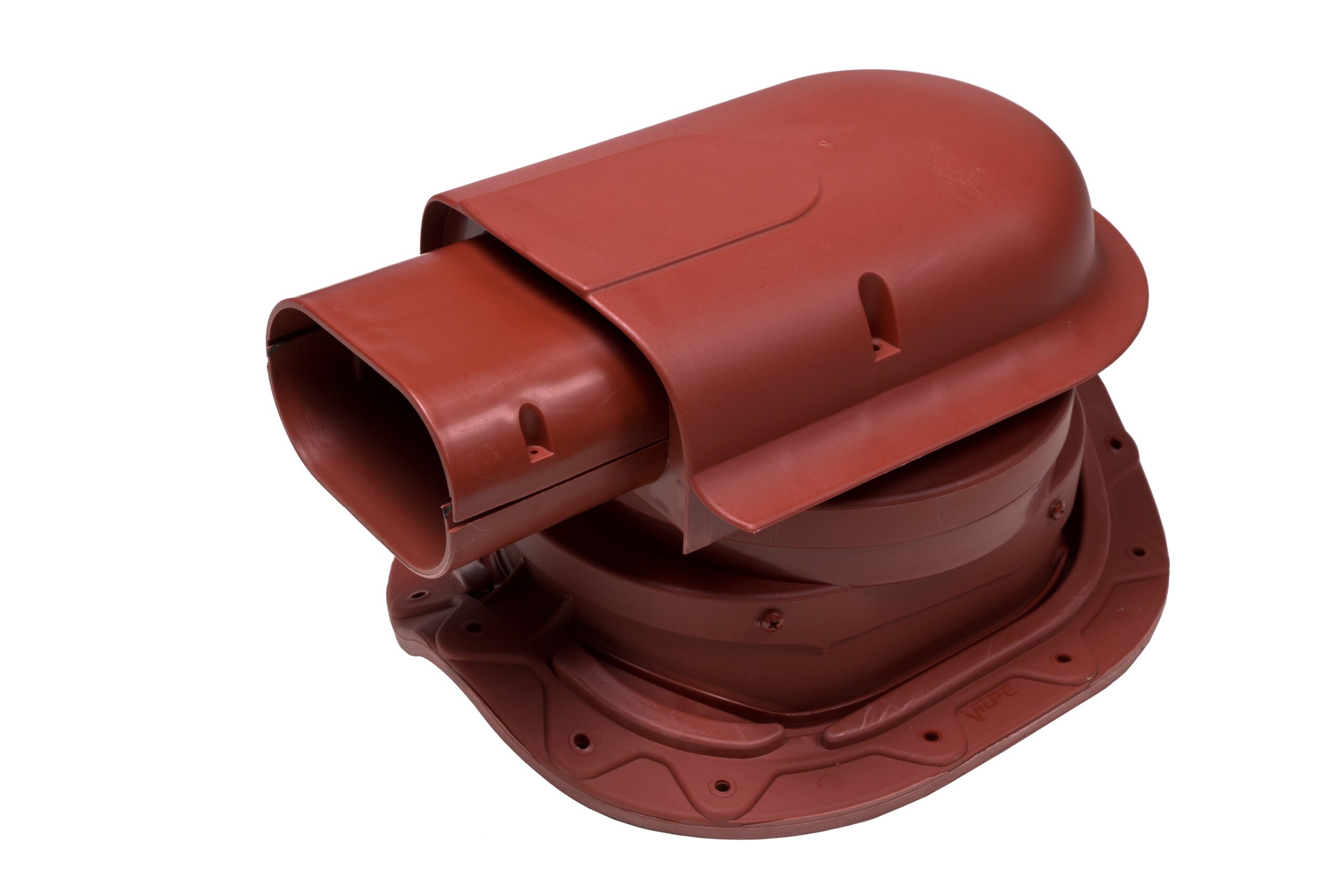

Product number75638
LVI Code5289222
EAN Code6417323756387
Color Red | RR29 | RAL3009
Weight Gross: 1.746kg, Net: 1.486kg
Product number75639
LVI Code5289223
EAN Code6417323756394
Color Brick Red | RR750 | RAL8004
Weight Gross: 1.746kg, Net: 1.486kg
