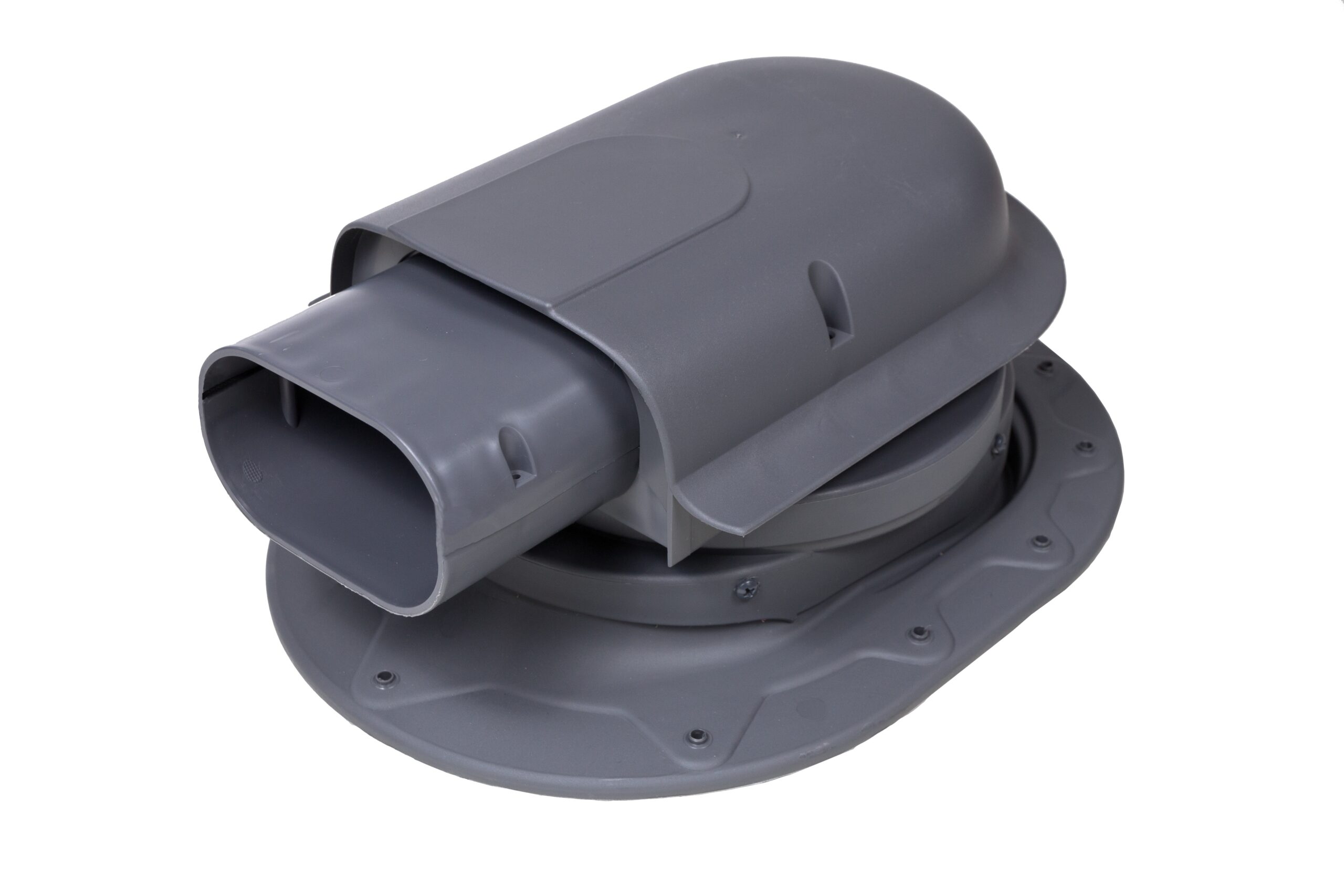

Solar Classic Pass-Through

The VILPE Solar Classic Pass-Through is designed for passing small pipes (such as solar collector pipes) through plain standing seam roofs or felt roofs (if retrofitted). The Solar Classic Pass-Through is fully waterproof due to the rubber seal mounted on its lower surface. The cover of a Solar Classic Pass-Through is detachable, which facilitates service of the pipes; the flange and the cover can also be turned 90 degrees sideways to match the direction of the pipes, which makes installation easier. Sealing compound (not incl.) required for installation on felt roofs.

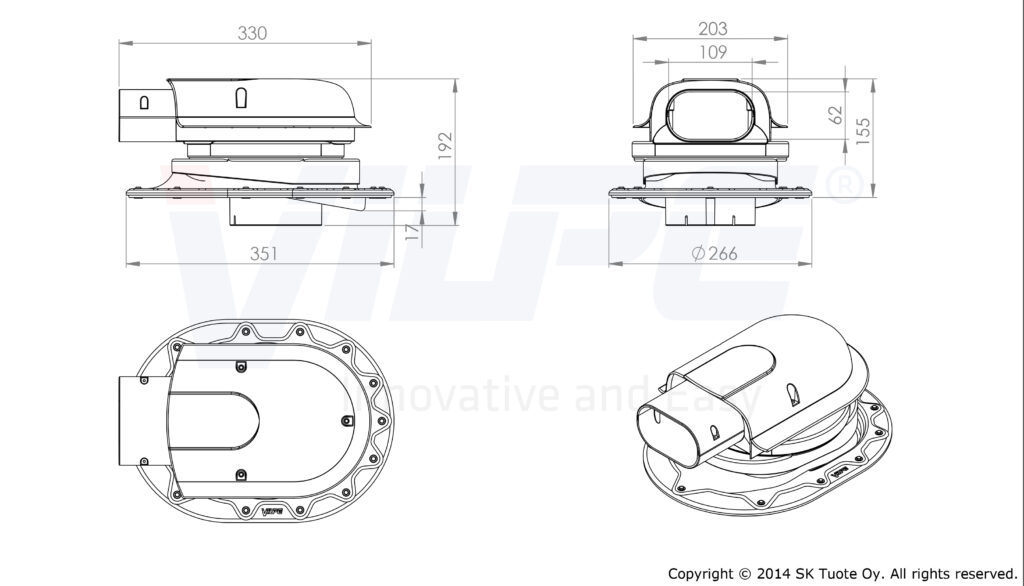

Dimensions: Length 328 mm, width 266 mm, front pipe hole 100mm x 60mm.

Contents: Pass-through, underlay ring, flange, cover, shrinking tube, screws, installation instructions/templates for underlay ring and pass-through.

Color
Black
Brown
Green
Grey
Red
Brick Red
Product number75622
LVI Code5289212
EAN Code6417323756226
Color Black | RR33 | RAL9005
Weight Gross: 1.653kg, Net: 1.393kg
Product number75624
LVI Code5289213
EAN Code6417323756240
Color Brown | RR32
Weight Gross: 1.653kg, Net: 1.393kg
Product number75626
LVI Code5289214
EAN Code6417323756264
Color Green | RR11
Weight Gross: 1.653kg, Net: 1.393kg
Product number75627
LVI Code5289215
EAN Code6417323756271
Color Grey | RR23 | RAL7015
Weight Gross: 1.653kg, Net: 1.393kg
Product number75628
LVI Code5289216
EAN Code6417323756288
Color Red | RR29 | RAL3009
Weight Gross: 1.653kg, Net: 1.393kg
Product number75629
LVI Code5289217
EAN Code6417323756295
Color Brick Red | RR750 | RAL8004
Weight Gross: 1.653kg, Net: 1.393kg
