Roof Seal Retrofitting Set

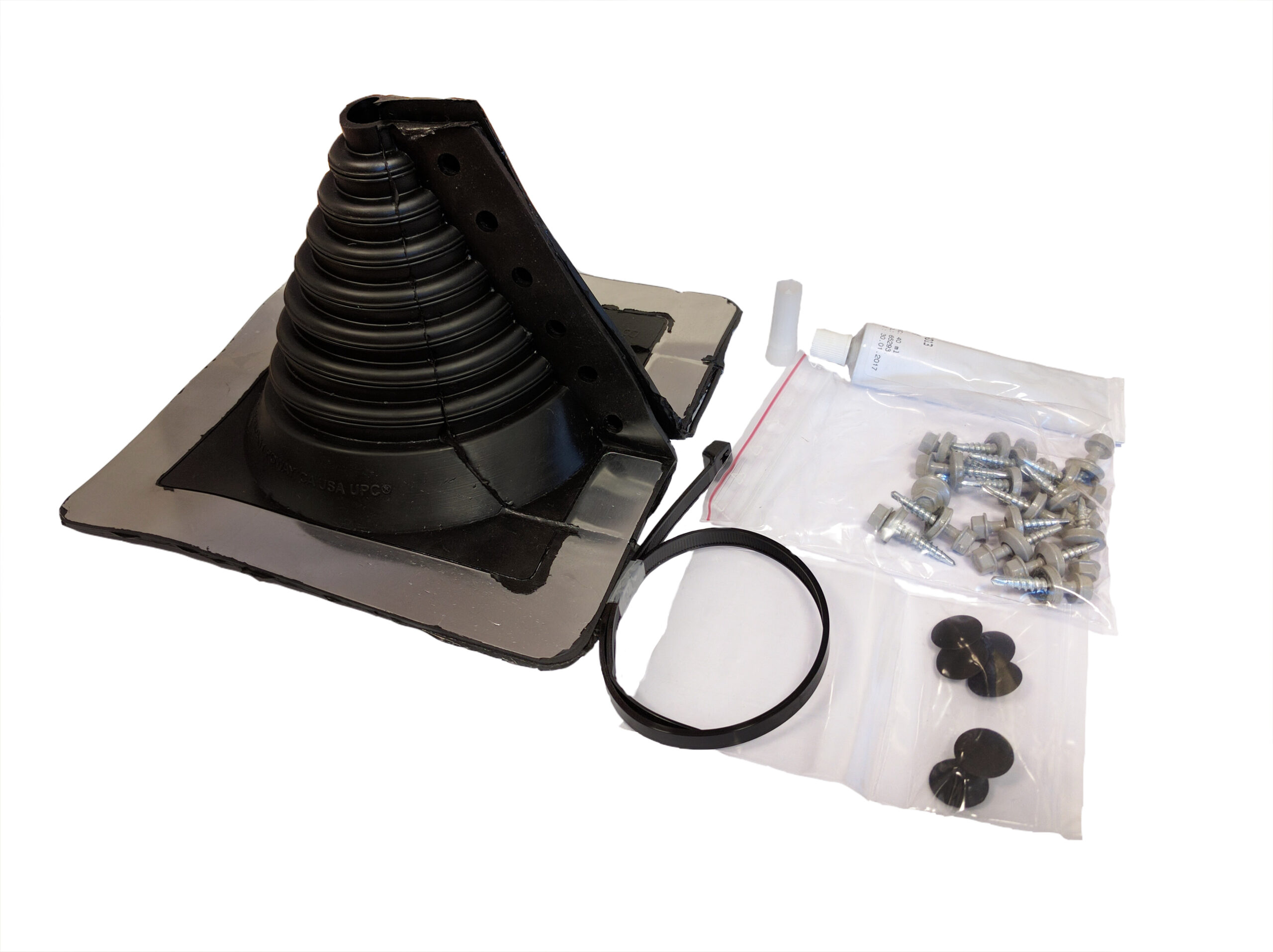

Description: Pass-through seal for different kinds of pipes (e.g. mountings for billboards and flagpoles or electrical wires) installed on a metal roof while retrofitting. The weather- and ozone-resistant properties of EPDM rubber are the best possible, and it can endure continuous heat stress of +90°C (and intermittently up to +150°C). EPDM rubber also tolerates the acids and alkalis often found in the air in industrial areas. Should be installed with hot bitumen between two felt layers. Pass-through seals are recommended to use on flat roofs (< 11,5° slope). Dimensions: Available in 2 sizes with diameters of 10-100 and 100-230 mm. Contents: Seal, screws, clamp, sealing compound.

Model
Ø 10-100 mm
Ø 100-230 mm
ModelØ 10-100 mm
Product number71742
LVI Code7814422
EAN Code6417323717425
Weight Gross: 0.52kg, Net: 0.405kg
ModelØ 100-230 mm
Product number71744
LVI Code7814424
EAN Code6417323717449
Weight Gross: 1.844kg, Net: 1.584kg
