RHS Seal

Description: Pass-through seal for square pipes installed on a felt roof. The weather- and ozone-resistant properties of EPDM rubber are the best possible, and it can endure continuous heat stress of +90°C (and intermittently up to +150°C). EPDM rubber also tolerates the acids and alkalis often found in the air in industrial areas. Should be installed with hot bitumen between two felt layers. A separately available RHS Clamp RST A2 should also purchased, and selected based on the size of the pipe.

Contents: Seal.
Model
40x40/50x50/60x60/70x70 mm
80x80/100x100/120x120/140x140 mm

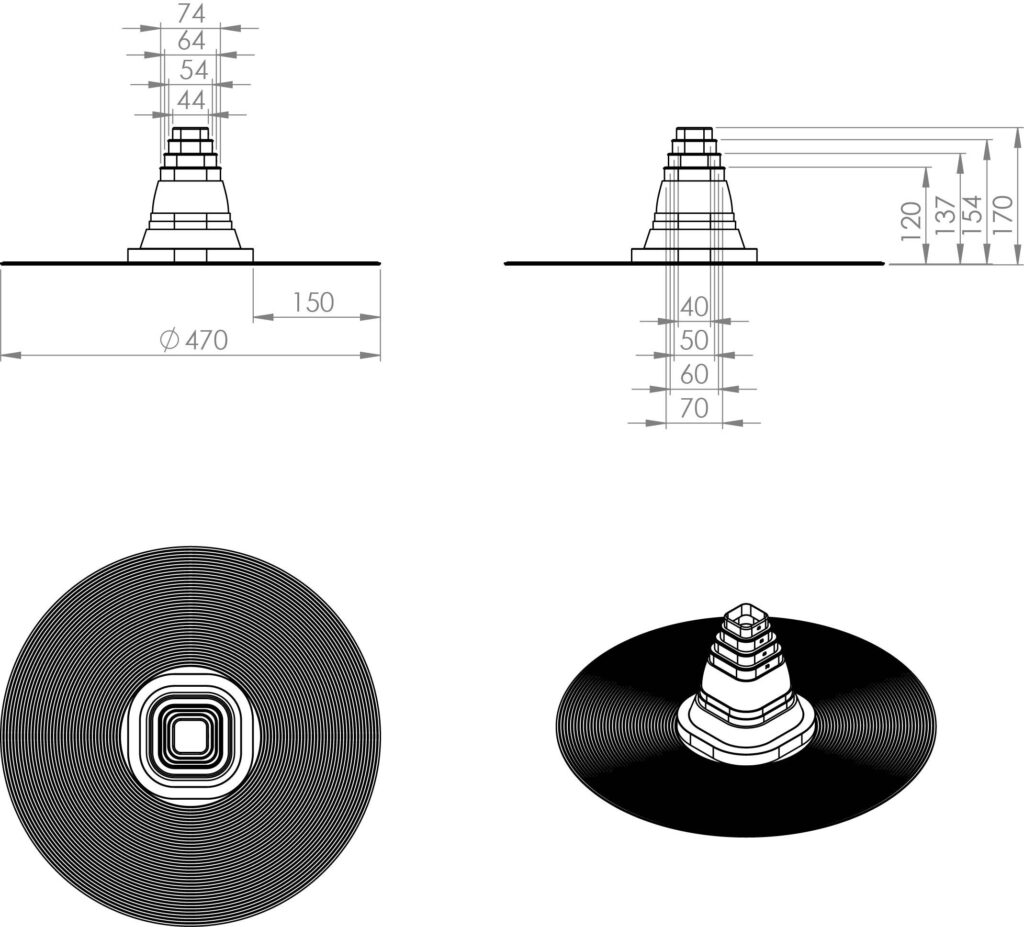

Model40x40/50x50/60x60/70x70 mm
Product number71090
LVI Code7814222
EAN Code6417323710907
Weight Gross: 0.661kg, Net: 0.58kg

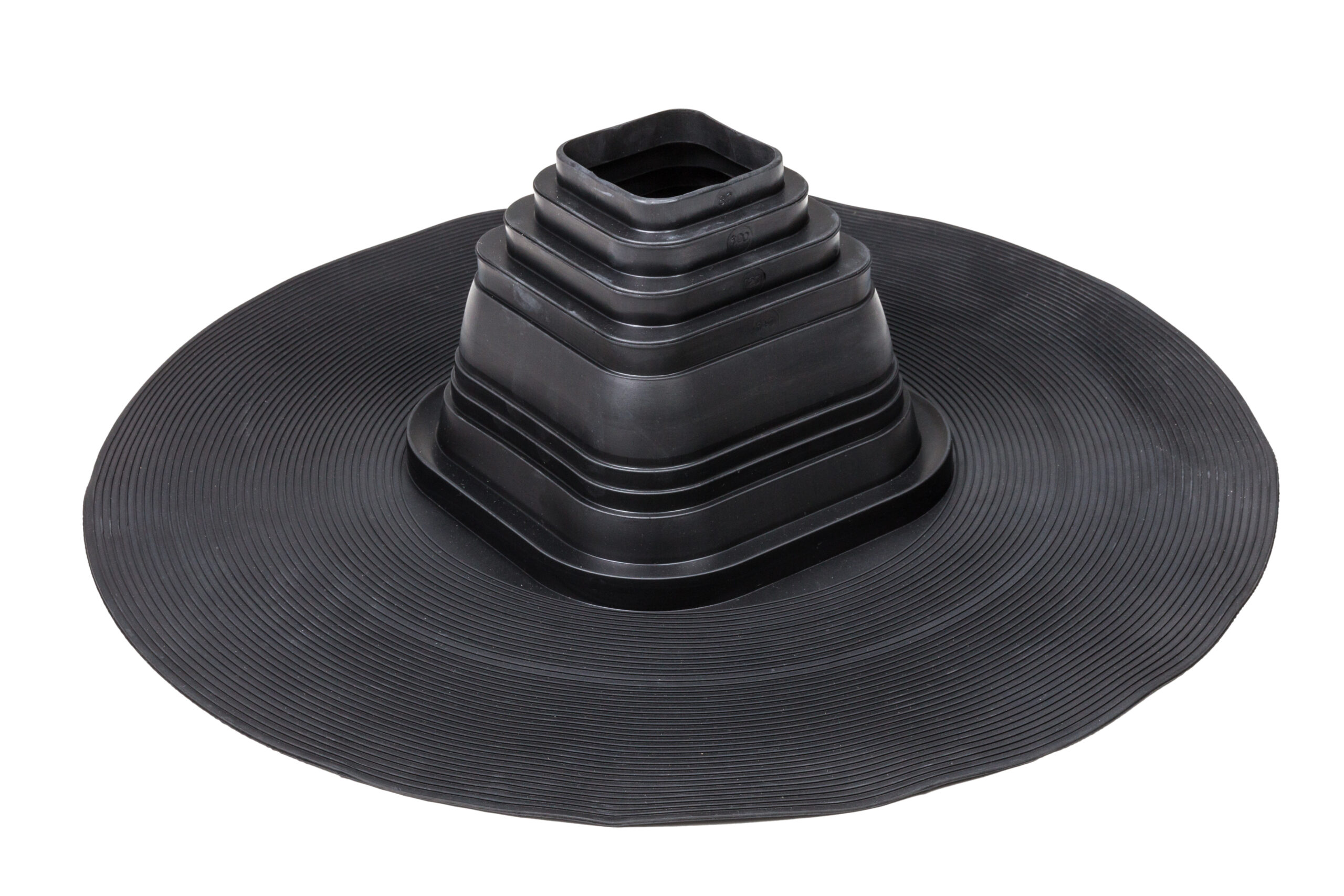

Model80x80/100x100/120x120/140x140 mm
Product number71094
LVI Code7814224
EAN Code6417323710945
Weight Gross: 1.051kg, Net: 0.82kg
SKU: N/A Categories: ,
Share product page
Print pdf

Download CAD Models

Download DWG-file
71090.dwg
Download DWG-file
71094.dwg

Materials & Installation
