Profiled Steel 2K Pass-Through

Description: The VILPE Profiled Steel 2K is a new, progressive pass-through for round-profile sheet metal roofs (i.e. roof tile profiles) with a minimum profiled roof tile length of 350 mm. A flexible combination of rubber and plastic allows for shaping, and ensures a good fit on different kinds of profiled roofing. The product ensemble includes the Underlay 2K Seal, the new-generation VILPE solution for completely waterproofing the underlay. The two-component underlay seal straddles the underlay and the top of the pass-through seamlessly, preventing any rainfall, snow or moisture from reaching the roof structures or insulation material below. The seal on the bottom of the pass-through guarantees a fully waterproof end result, and is attached to the bottom of the flange. Installing the VILPE Profiled Steel 2K Pass-Through is simple and easy: the pass-through includes spikes for attaching the Underlay 2K Seal, and the kit includes all installation materials and clear instructions. The pass-through enables the installation of VILPE roof fans, exhaust pipes, ventilation pipes and antenna pass-throughs onto the roof. Designed for Ø 75, 110, 125 or 160 mm pipes.

Contents: Pass-through, underlay 2K seal, sealing compound, screws, installation instructions/template for underlay seal and pass-through.

Brick Red
Product number30003D
LVI Code7820613
EAN Code6410457656974
Color Anthracite
Weight Gross: 1.816kg, Net: 1.386kg
Product number300032
LVI Code7820165
EAN Code6410453000320
Color Black | RR33 | RAL9005
Weight Gross: 1.855kg, Net: 1.426kg
Product number300034
LVI Code7820166
EAN Code6410453000344
Color Brown | RR32
Weight Gross: 1.855kg, Net: 1.426kg
Product number300036
LVI Code7820167
EAN Code6410453000368
Color Green | RR11
Weight Gross: 1.816kg, Net: 1.386kg
Product number300037
LVI Code7820168
EAN Code6410453000375

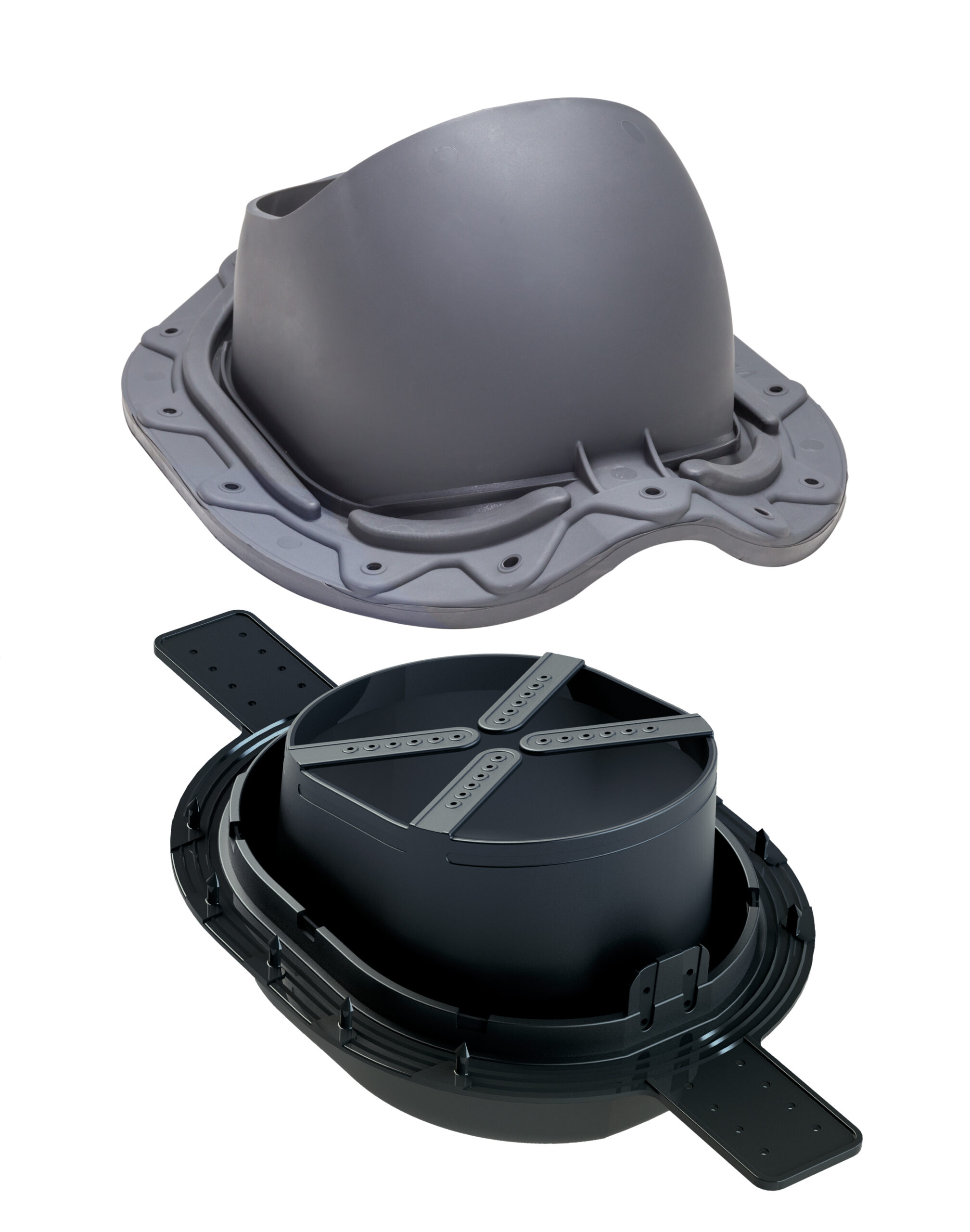

Color Grey | RR23 | RAL7015
Weight Gross: 1.816kg, Net: 1.386kg
Product number300038
LVI Code7820169
EAN Code6410453000382
Color Red | RR29 | RAL3009
Weight Gross: 1.816kg, Net: 1.386kg
Product number300039
LVI Code7820170
EAN Code6410453000399

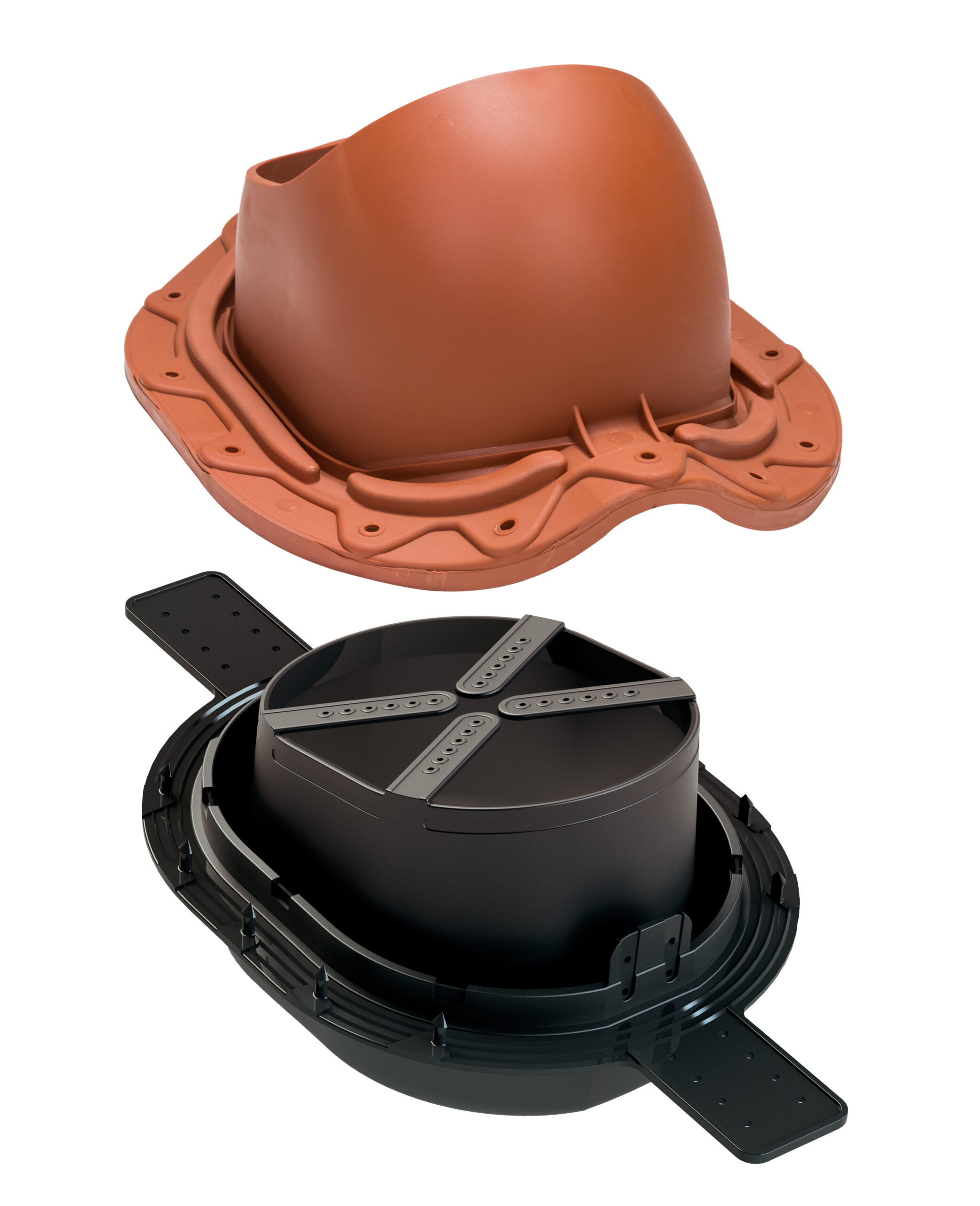

Color Brick Red | RR750 | RAL8004
Weight Gross: 1.816kg, Net: 1.386kg
