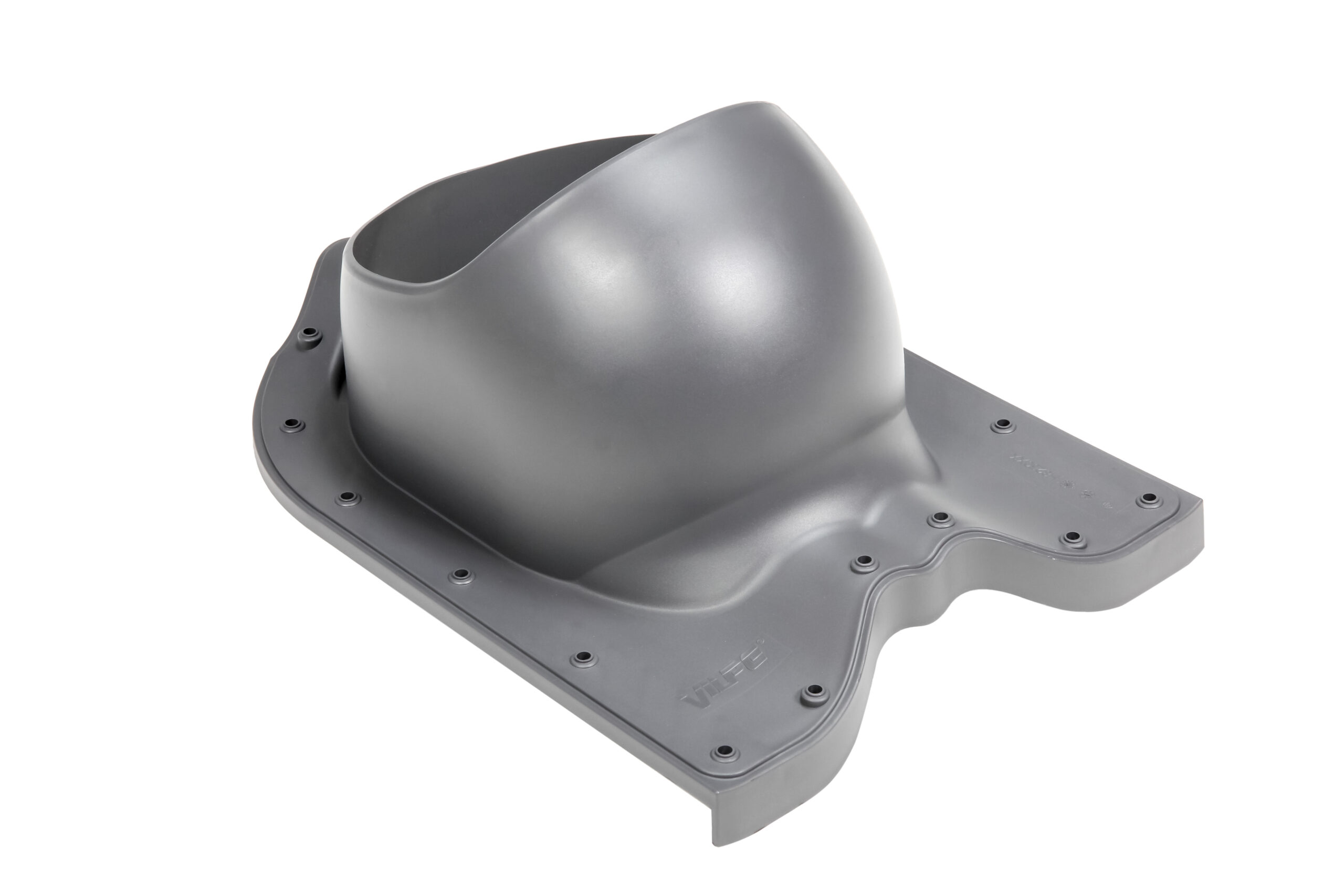

Nera Pass-Through

Nera Pass-Through

DISCONTINUED

This pass-through is available in VILPE’s selection under a new name and with new packaging contents. The new package includes a Click underlay seal, which is why the word “Click” has been added to the product name.
Replacement product: Nera Click (36000X)

Description: For Ruukki´s Finnera or Finnera Plus roofs. The seal on the bottom of the pass-through guarantees a fully waterproof end result, and is attached to the bottom of the flange. Installing the VILPE Nera Pass-Through is simple and easy: the kit includes all installation materials and clear instructions. The pass-through enables the installation of VILPE roof fans, exhaust pipes, ventilation pipes and antenna pass-throughs onto the roof. Designed for Ø 110-160 mm pipes and roof fans. This product used to be referred to as the VILPE SPT 60 Pass-Through or VILPE Finnera Plus Pass-Through.
Contents: Pass-through, underlay ring, sealing compound, screws, installation instructions.
Color
Black
Brown
Grey
Green
Product number740762
LVI Code7820033
EAN Code6410457407620
Color Black | RR33 | RAL9005
Weight Gross: 1.081kg, Net: 0.652kg
Product number740764
LVI Code7820034
EAN Code6410457407644
Color Brown | RR32 | RAL8019
Weight Gross: 1.081kg, Net: 0.652kg
Product number740767
LVI Code7820035
EAN Code6410457407675
Color Grey | RR23 | RAL7024
Weight Gross: 1.141kg, Net: 0.712kg
Product number740766
EAN Code6410457407668
Color Green | RR11
Weight Gross: 0.968kg, Net: 0.635kg
SKU: N/A Categories: ,
Share product page
Print pdf
Roof MaterialSteel

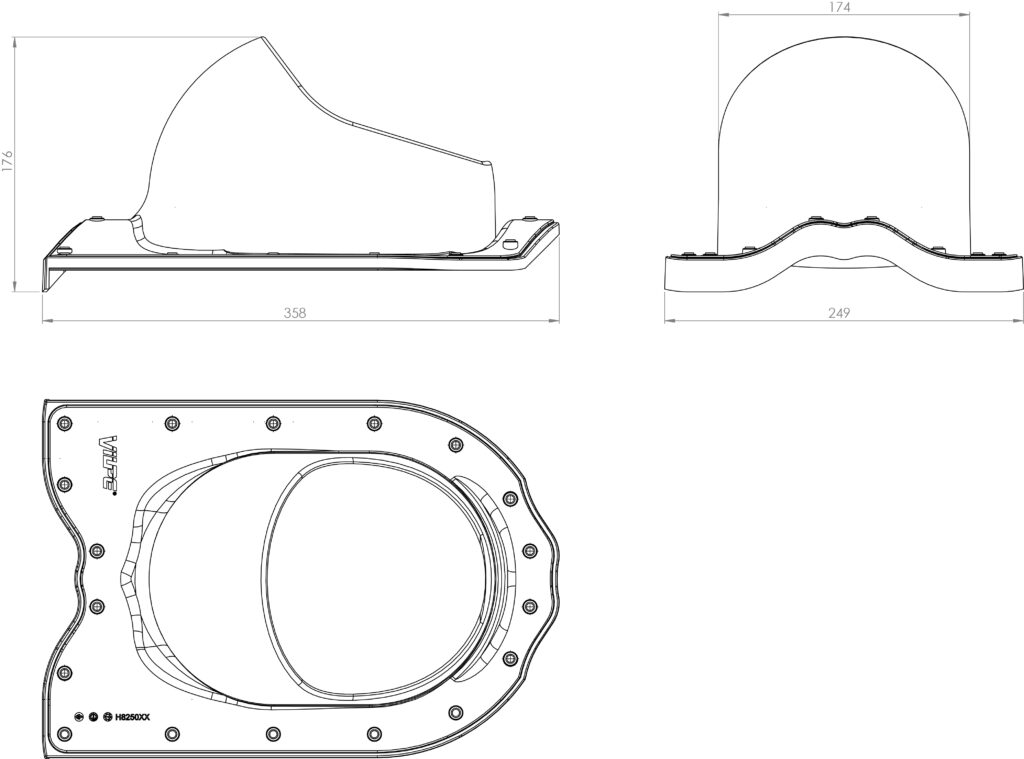

Download CAD Models

Download DWG-file
36005x-74076x.dwg

Materials & Installation

Send document by email

  • This field is for validation purposes and should be left unchanged.
Product categories: Pass-throughs, Pass-throughs for steel roofing
