Multifunction Grille 150 x 150

Description: The VILPE Multifunction Grille works as a ventilation grille for different types of spaces, and can also be used as an intake or exhaust vent for mechanical ventilation systems. If the product is to be used as a ventilation grille in a natural ventilation system, it is ready for use as it is. In a mechanical ventilation arrangement, an intake or exhaust air duct can be attached to the product–in this case, a duct fitting plate is required in addition to the vent. The ventilation grille can also be fitted with an insect net, which is supplied as an accessory, and it can be opened and locked for cleaning with an easy lock mechanism. The unique airflow design of the Multifunction Grille results in a large cross-sectional area in both directions of flow and good water/snow shedding properties. The pressure loss of the new Multifunction Grille is the smallest of any on the market for both intake and exhaust air. Effective area 84,5 cm2. When used in a mechanical ventilation system, a Ø 60 or 100 mm duct fitting plate is required.

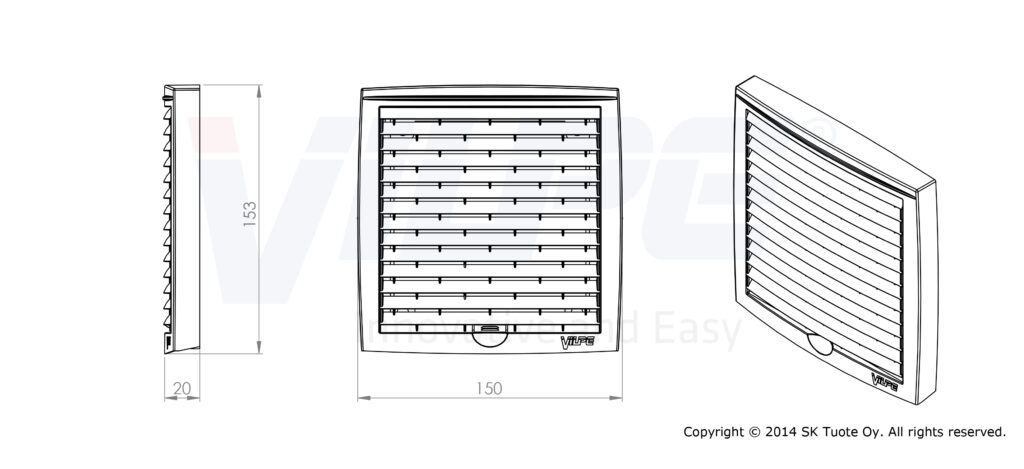

Dimensions: 150 x 150 mm.

Contents: Multifunction grille, 6 mm plugs, screws.

Color
Chocolate Brown
Anthracite
White
Beige
Light Grey
Grey
Red
Black
Product number79332B
EAN Code6410457652303
Color Chocolate Brown | RR887
Weight Gross: 0.219kg, Net: 0.187kg
Product number79332G
EAN Code6410457654376
Color Anthracite
Weight Gross: 0.219kg, Net: 0.187kg
Product number793320
LVI Code8832000
EAN Code6410457933204

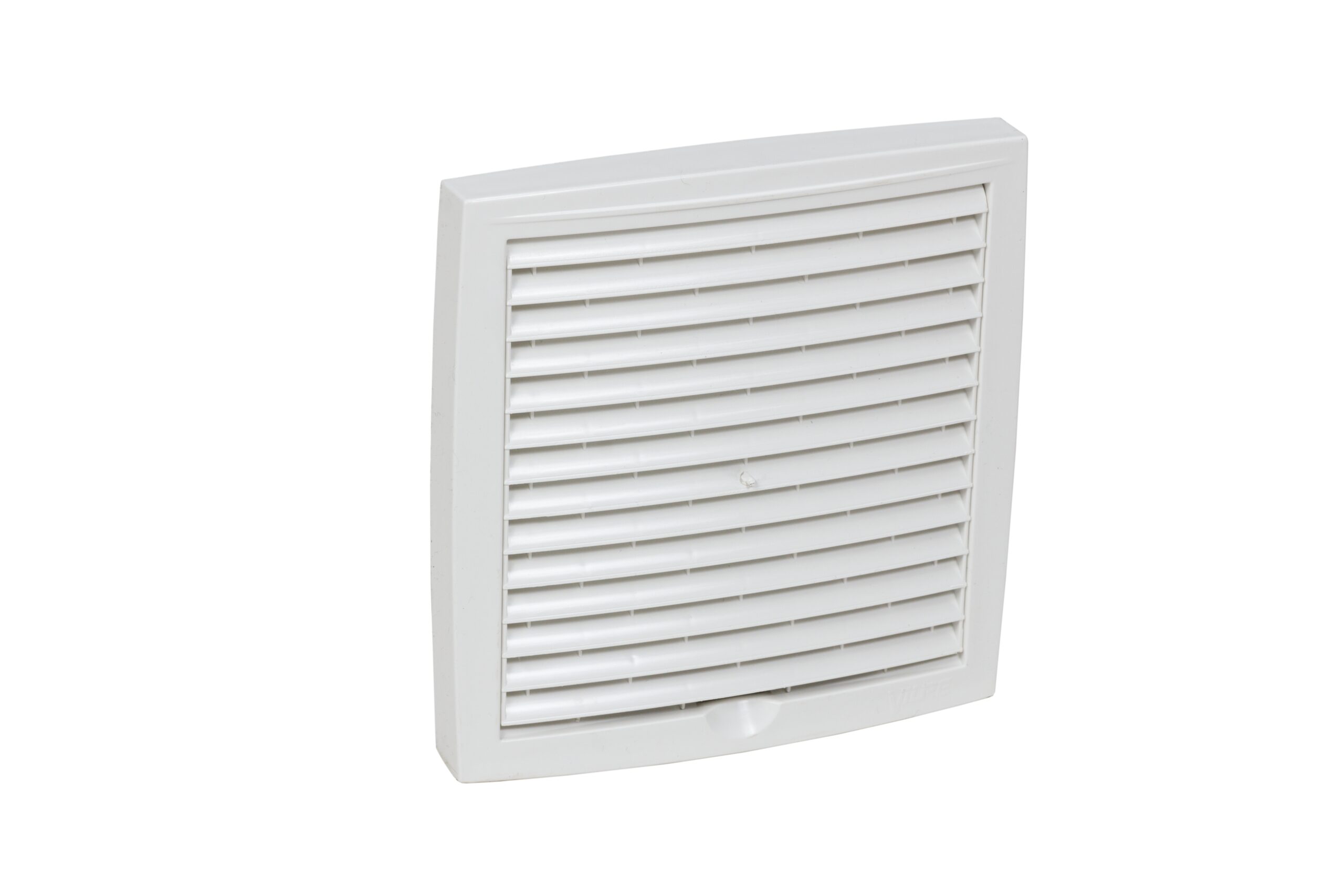

Color White | RR20
Weight Gross: 0.218kg, Net: 0.185kg
Product number793321
LVI Code8832001
EAN Code6410457933211

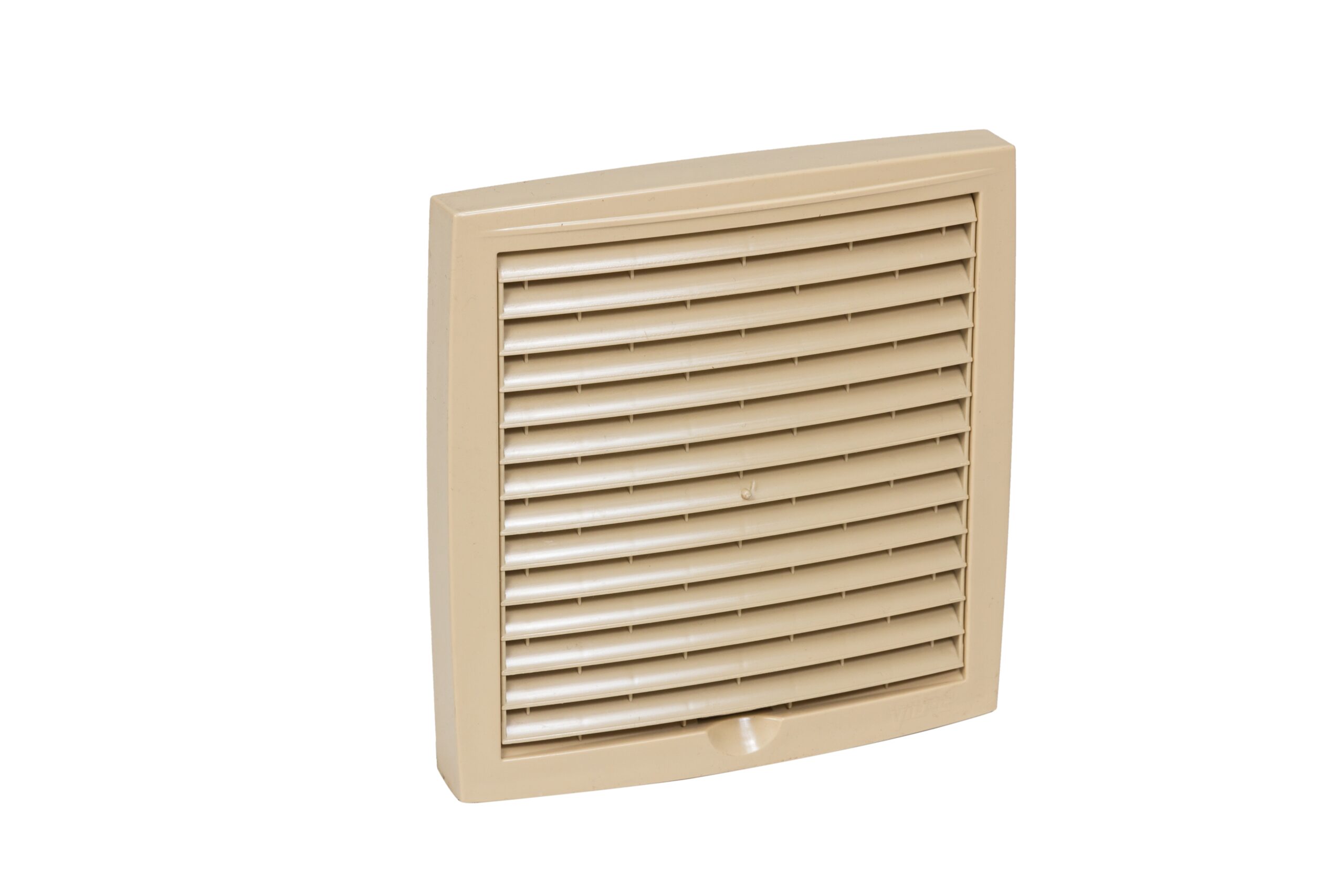

Color Beige | RR30
Weight Gross: 0.219kg, Net: 0.187kg
Product number793323
LVI Code8832002
EAN Code6410457933235
Color Light Grey
Weight Gross: 0.219kg, Net: 0.187kg
Product number793327
LVI Code8832003
EAN Code6410457933273
Color Grey | RR23 | RAL7015
Weight Gross: 0.219kg, Net: 0.187kg
Product number793328
LVI Code8832004
EAN Code6410457933280
Color Red | RR29 | RAL3009
Weight Gross: 0.219kg, Net: 0.187kg
Product number793322
LVI Code8832059
EAN Code6410457933228
Color Black | RR33 | RAL9005
Weight Gross: 0.219kg, Net: 0.187kg
