ECo 160P/500 FLOW Roof Fan

ECo 160P/500 FLOW Roof Fan

Description: Energy-efficient insulated roof fan with FLOW cowl and EC motor (with 0-10V control voltage). Includes a galvanized steel inner pipe with a lip seal. VILPE ECo control panels and VILPE pass-throughs suitable for a range of roofing types and material are available separately.

Dimensions: Duct size Ø 160 mm, external Ø 225 mm, height above roof approx. 500 mm.

Contents: Roof fan, screws, installation, operating and maintenance instructions.

Compatible controllers
Color
Black
Light Grey
Brown
Green
Grey
Red
Brick Red
Anthracite
Chocolate Brown
Product number350252
EAN Code6410453502527
Color Black | RR33 | RAL9005
Weight Gross: 6.757kg, Net: 5.574kg
Product number350251
EAN Code6410453502510
Color Light Grey | RR33 | RAL7040
Weight Gross: 6.73kg, Net: 5.547kg
Product number350254
EAN Code6410453502541
Color Brown | RR32 | RAL8019
Weight Gross: 6.757kg, Net: 5.574kg
Product number350256
EAN Code6410453502565
Color Green | RR11 | RAL6020
Weight Gross: 6.757kg, Net: 5.574kg
Product number350257
EAN Code6410453502572
Color Grey | RR23 | RAL7024
Weight Gross: 6.757kg, Net: 5.574kg
Product number350258
EAN Code6410453502589
Color Red | RR29 | RAL3009
Weight Gross: 6.757kg, Net: 5.574kg
Product number350259
EAN Code6410453502596
Color Brick Red | RR750 | RAL8004
Weight Gross: 6.757kg, Net: 5.574kg
Product number35025D
EAN Code6410457657292
Color Anthracite | RR2H3 | RAL7016
Weight Gross: 6.759kg, Net: 5.574kg
Product number35025B
EAN Code6410457658947
Color Chocolate Brown | RR887 | RAL8017
Weight Gross: 6.759kg, Net: 5.574kg
SKU: N/A Categories: ,
Share product page
Print pdf
Duct size160 Ø
Voltage230V/50Hz
Current0,7 A
Rotation speed (rpm)2580 rpm
Power85 W
Fan typeEC

Performance data graphs

VILPE ECo FLOW 160 - ISO 5801:2017

Air density: 1.2

10V
8V
7V
6V
5V
4V
3V
2V
10V
8V
7V
6V
5V
4V
3V
2V
10V
8V
7V
6V
5V
4V
3V
2V

Energy efficiency data

Energy class
D,B

Download CAD Models

MagiCAD file

Materials & Installation

Send document by email

  • This field is for validation purposes and should be left unchanged.

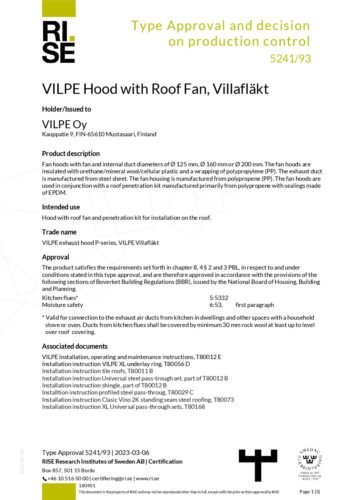

Certificates

Product categories: P-Series roof fans, Roof fans
