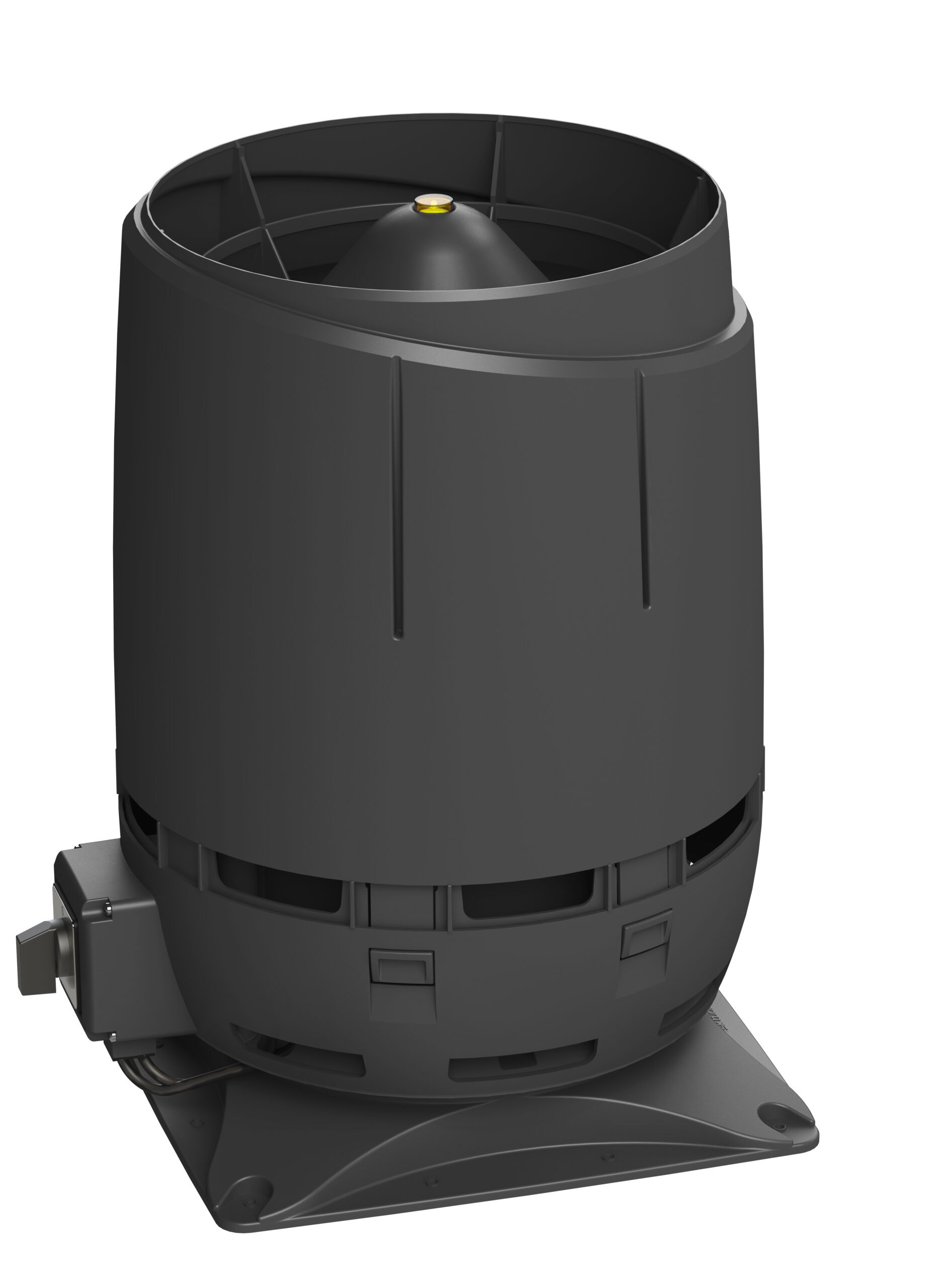

ECo 125S FLOW Roof Fan + Installation Set 300 X 300

Description: Energy-efficient roof fan with FLOW cowl and EC motor (with 0-10V control voltage) for the top of an air conduit or silencer. An installation set for a flat surface is included with this product. VILPE ECo Controller control panel available separately.

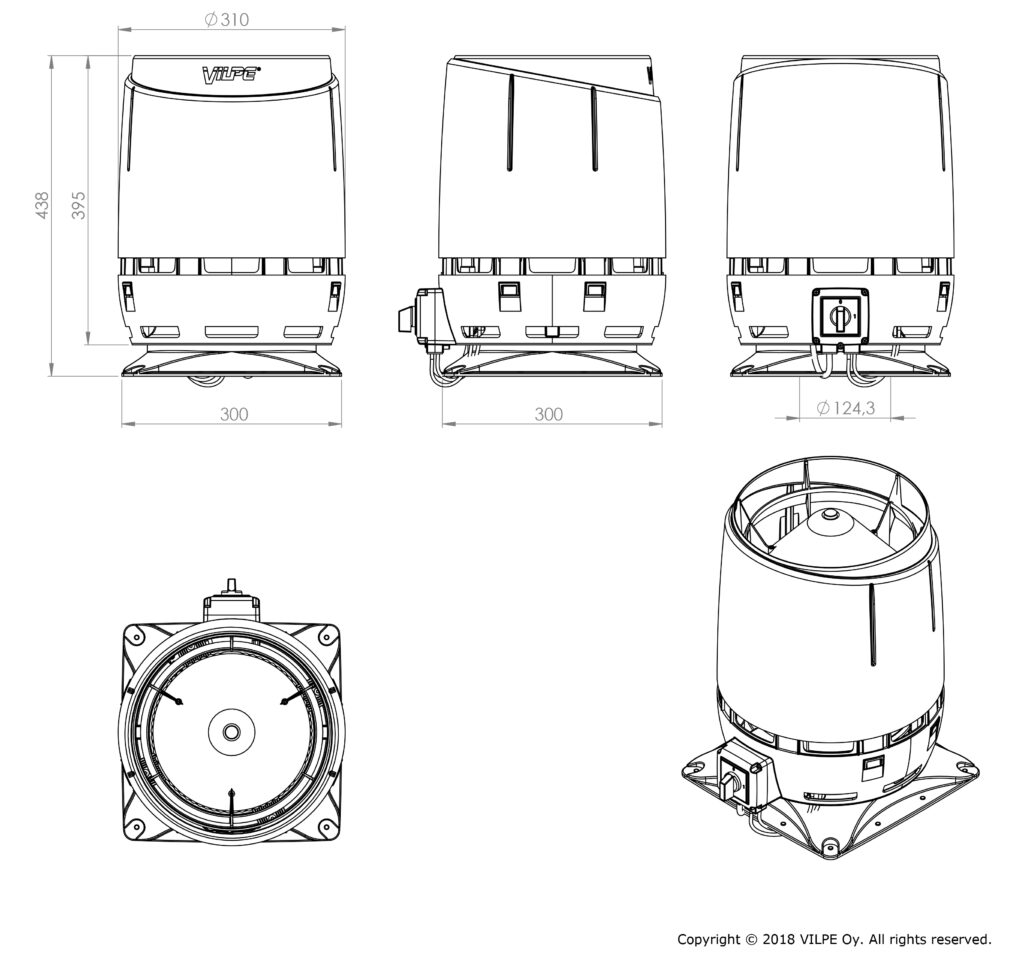

Dimensions: Duct size Ø 125 mm; installation set 300 x 300 mm, installation area must be at least the same size.

Contents: Roof fan, installation set, screws, installation, operating and maintenance instructions.

Compatible controllers
Color
Black
Brown
Green
Grey
Red
Brick Red
Light Grey
Product number350202
LVI Code7820307
EAN Code6410453502022
Color Black | RR33 | RAL9005
Weight Gross: 5.103kg, Net: 4.565kg
Product number350204
LVI Code7820308
EAN Code6410453502046
Color Brown | RR32 | RAL8019
Weight Gross: 5.051kg, Net: 4.512kg
Product number350206
LVI Code7820309
EAN Code6410453502060
Color Green | RR11 | RAL6020
Weight Gross: 5.051kg, Net: 4.512kg
Product number350207
LVI Code7820310
EAN Code6410453502077
Color Grey | RR23 | RAL7024
Weight Gross: 5.051kg, Net: 4.512kg
Product number350208
LVI Code7820311
EAN Code6410453502084
Color Red | RR29 | RAL3009
Weight Gross: 5.051kg, Net: 4.512kg
Product number350209
LVI Code7820312
EAN Code6410453502091
Color Brick Red | RR750 | RAL8004
Weight Gross: 5.051kg, Net: 4.512kg
Product number350201
LVI Code7820313
EAN Code6410453502015
Color Light Grey | RAL7040
Weight Gross: 5.071kg, Net: 4.532kg
SKU: N/A Categories: ,
Share product page
Print pdf
Duct size125 Ø
Voltage230V/50Hz
Current0,75 A
Rotation speed (rpm)3200 rpm
Power83 W
Fan typeEC

Performance data graphs

VILPE ECo FLOW 125 - ISO 5801:2017

Air density: 1.2

10V
8V
7V
6V
5V
4V
3V
2V
10V
8V
7V
6V
5V
4V
3V
2V
10V
8V
7V
6V
5V
4V
3V
2V

Energy efficiency data

Energy class
D,B

Download CAD Models

Download DWG-file
35020x.dwg
MagiCAD file

Materials & Installation

Send document by email

  • This field is for validation purposes and should be left unchanged.

Certificates

Videos

Product categories: Roof fans, S-Series roof fans
