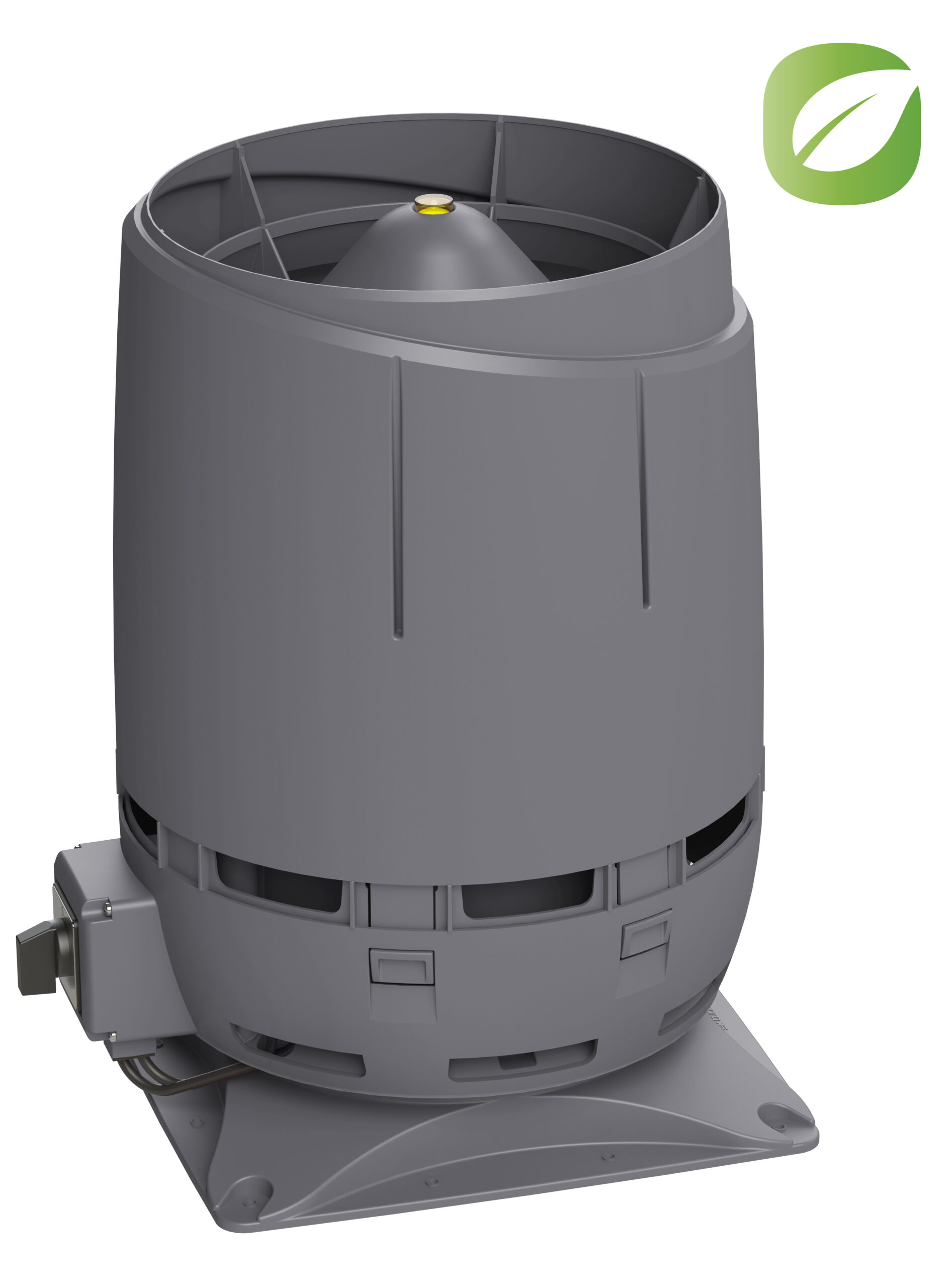

EC110S FLOW ROOF FAN 300X300

Roof fan for radon ventilation or as a fan for an eco-toilet. The radon fan is not suitable for indoor air ventilation. The product is equipped with a direct current (EC) motor. Can be controlled with, for example, the EC Motor Controller, EC Potentiometer, and home automation systems via a 0–10 V signal. The fan is equipped with an external service switch. Installed in the ventilation duct on top of a chimney or silencer. When installed on a horizontal flat surface, use the installation kit included in the package.

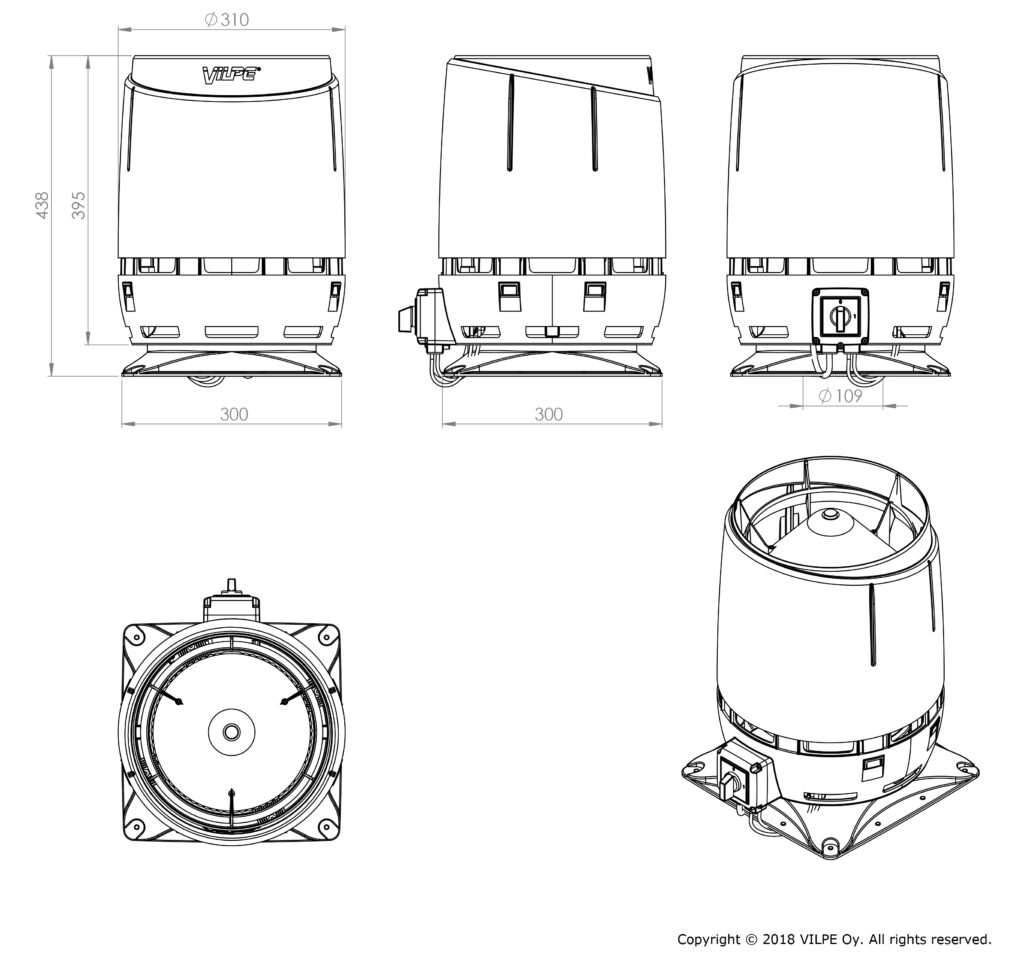

Dimensions: Duct size Ø 110 mm. Installation kit area 300 x 300 mm, and the installation surface must be at least the same size. Can only be retrofitted onto the end of a pipe with an external diameter of 225 mm (not suitable for retrofitting onto a Ø 160 mm radon ventilation pipe).

Contents: Roof fan, installation kit, screws, installation, operating and maintenance instructions.

Color
Grey
Black
Light Grey
Brown
Green
Red
Brick Red
Product number350287
LVI Code7820340
EAN Code6410453502879
Color Grey | RR23 | RAL7024
Weight Gross: 5.104kg, Net: 4.565kg
Product number350282
LVI Code7820337
EAN Code6410453502824

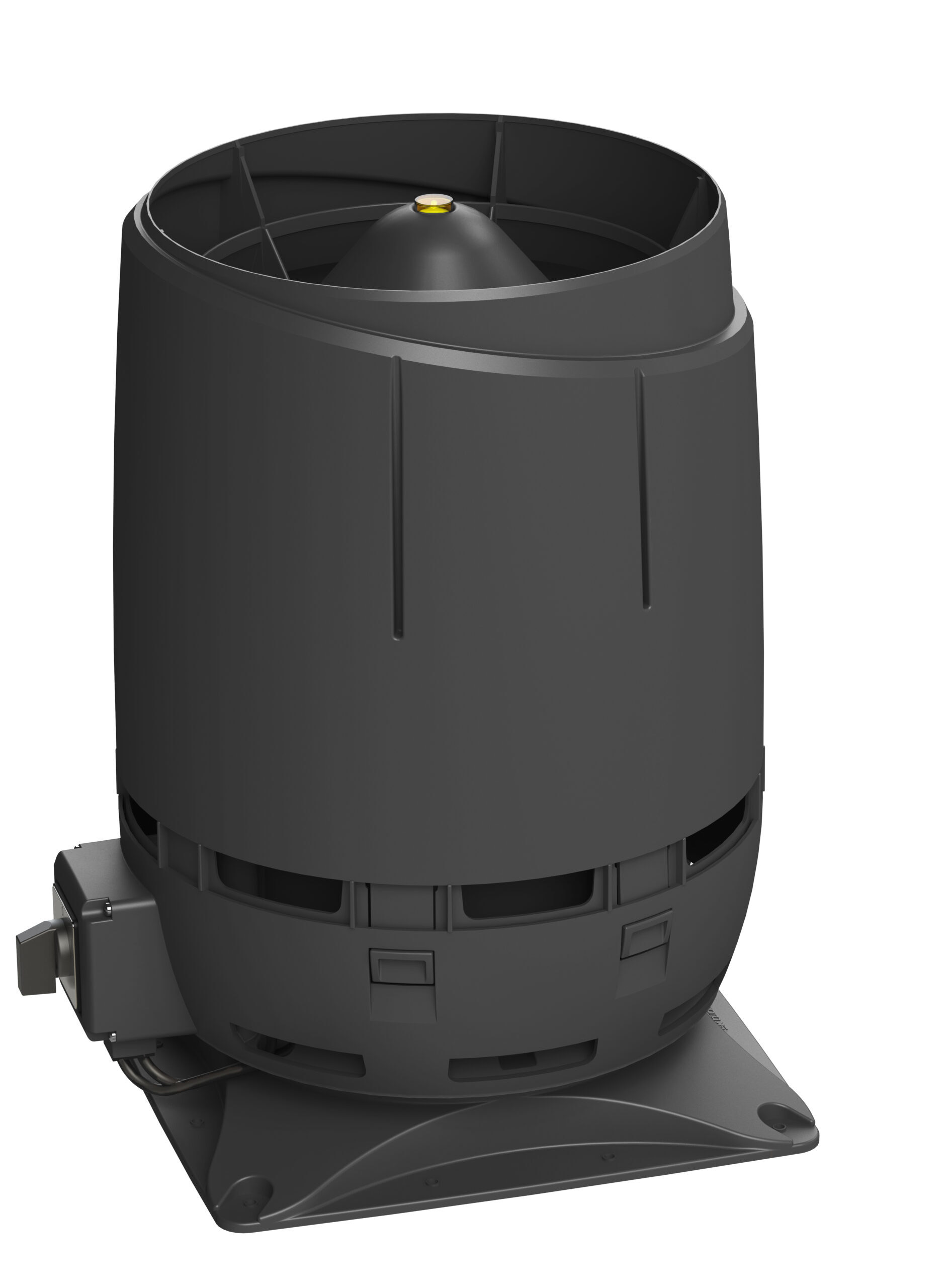

Color Black | RR33 | RAL9005
Weight Gross: 5.156kg, Net: 4.618kg
Product number350281
LVI Code7820336
EAN Code6410453502817
Color Light Grey | RR33 | RAL7040
Weight Gross: 5.123kg, Net: 4.585kg
Product number350284
LVI Code7820338
EAN Code6410453502848
Color Brown | RR32 | RAL8019
Weight Gross: 5.104kg, Net: 4.565kg
Product number350286
LVI Code7820339
EAN Code6410453502862
Color Green | RR11 | RAL6020
Weight Gross: 5.104kg, Net: 4.565kg
Product number350288
LVI Code7820341
EAN Code6410453502886
Color Red | RR29 | RAL3009
Weight Gross: 5.104kg, Net: 4.565kg
Product number350289
LVI Code7820342
EAN Code6410453502893
Color Brick Red | RR750 | RAL8004
Weight Gross: 5.104kg, Net: 4.565kg
SKU: N/A Categories: ,
Share product page
Duct size110 Ø
EPD LinkEPD-portal
Voltage230V/50Hz
Current0,75 A
Rotation speed (rpm)3200 rpm
Power83 W
Fan typeEC

Performance data graphs

VILPE EC FLOW 110 - ISO 5801:2017

Air density: 1.2

10V
8V
7V
6V
5V
4V
3V
2V
10V
8V
7V
6V
5V
4V
3V
2V
10V
8V
7V
6V
5V
4V
3V
2V
