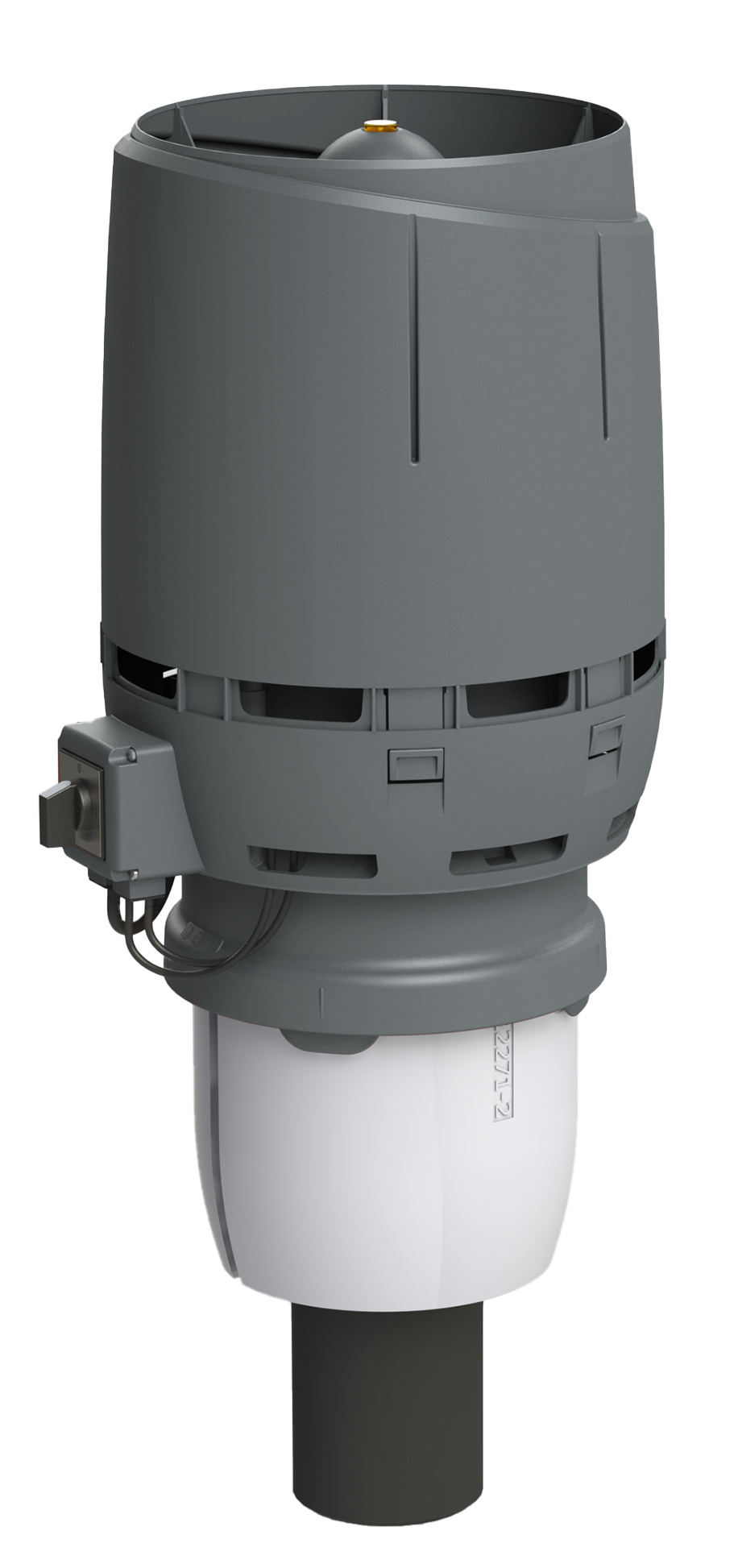

ECo 110C/400 FLOW Roof Fan

Description: Energy-efficient insulated roof fan with FLOW cowl and EC motor (with 0-10V control voltage). Also suitable for ventilation of an ecological toilet. Not for indoor air ventilation. Installed in a sheet metal cone with opening Ø 230 mm, made by a sheet metal worker. The motor is specially protected.

Dimensions: Duct size Ø 110 mm, external Ø 225 mm, height 400 mm.

Contents: Roof fan, screws; installation, operating and maintenance instructions.

Color
Green
Black
Light Grey
Brown
Grey
Red
Brick Red
Product number350566
LVI Code7820508
EAN Code6410453505665
Color Green | RR11
Weight Gross: 6.41kg, Net: 5.351kg
Product number350562
LVI Code7820506
EAN Code6410453505627
Color Black | RR33 | RAL9005
Weight Gross: 6.41kg, Net: 5.351kg
Product number350561
LVI Code7820505
EAN Code6410453505610
Color Light Grey | RAL7040
Weight Gross: 6.41kg, Net: 5.351kg
Product number350564
LVI Code7820507
EAN Code6410453505641
Color Brown | RR32
Weight Gross: 6.41kg, Net: 5.351kg
Product number350567
LVI Code7820509
EAN Code6410453505672
Color Grey | RR23 | RAL7015
Weight Gross: 6.41kg, Net: 5.351kg
Product number350568
LVI Code7820510
EAN Code6410453505689
Color Red | RR29 | RAL3009
Weight Gross: 6.41kg, Net: 5.351kg
Product number350569
LVI Code7820511
EAN Code6410453505696
Color Brick Red | RR750 | RAL8004
Weight Gross: 6.41kg, Net: 5.351kg
SKU: N/A Categories: ,
Share product page
Duct size110 Ø
Voltage230V/50Hz
Current0,75 A
Rotation speed (rpm)3200 rpm
Power83 W
Fan typeEC

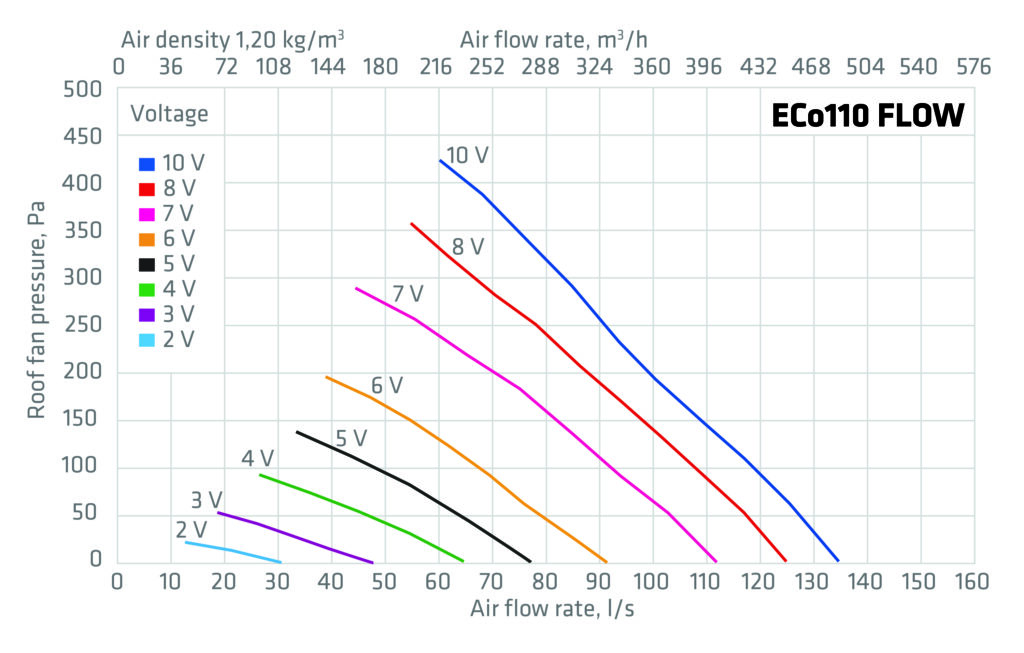

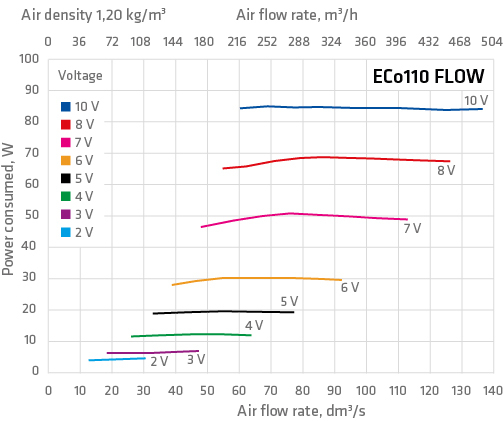

Performance data graphs

VILPE ECo FLOW 110 - ISO 5801:2017

Air density: 1.2

10V
8V
7V
6V
5V
4V
3V
2V
10V
8V
7V
6V
5V
4V
3V
2V
10V
8V
7V
6V
5V
4V
3V
2V

Download CAD Models

Product categories: C-Series roof fans, Roof fans
