E120P/Ø125/400 ROOF FAN

DISCONTINUED

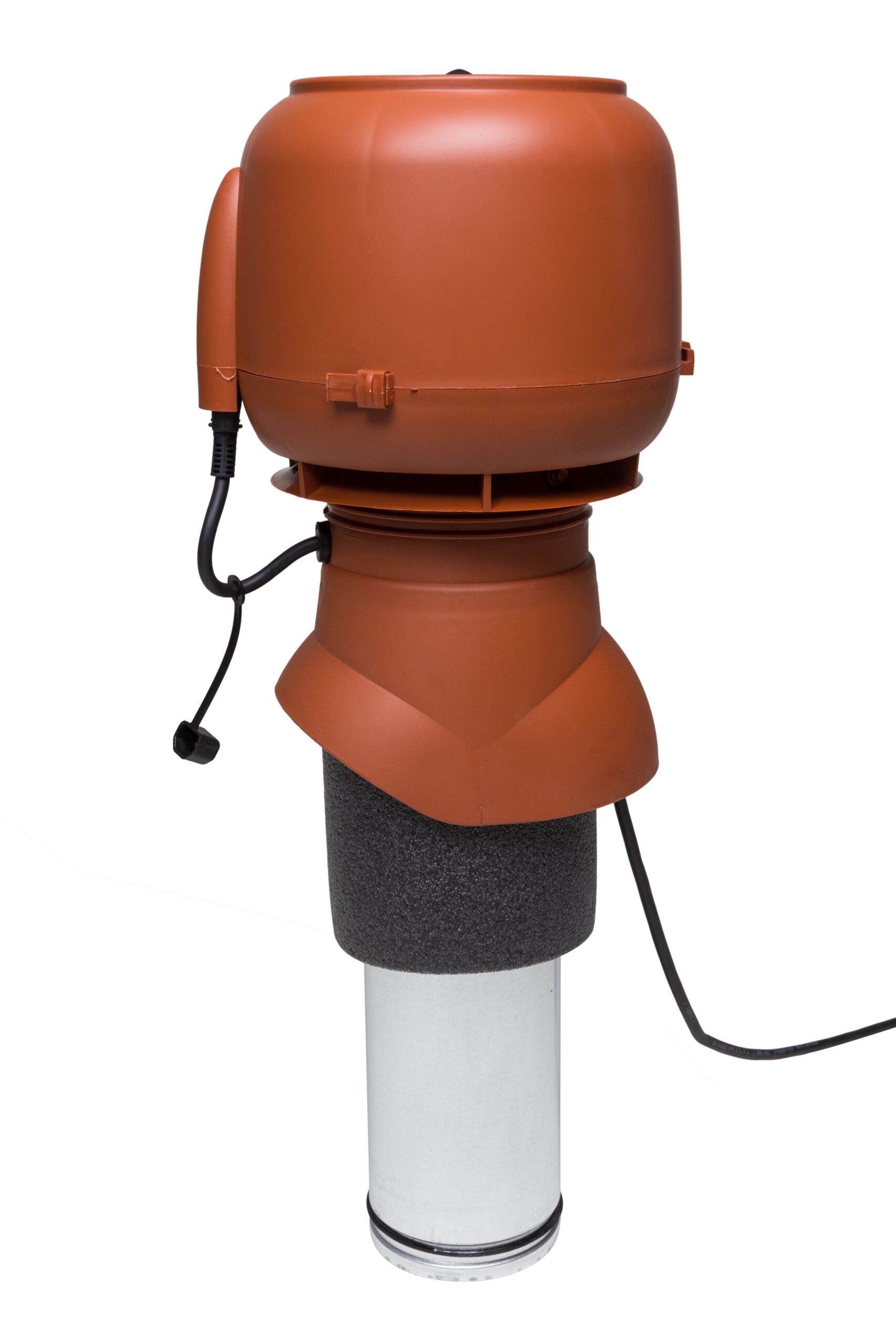

Description: Insulated roof fan. Inner pipe is made of galvanized steel and has a lip seal. A VILPEpass-through according to the roofing material is required separately.

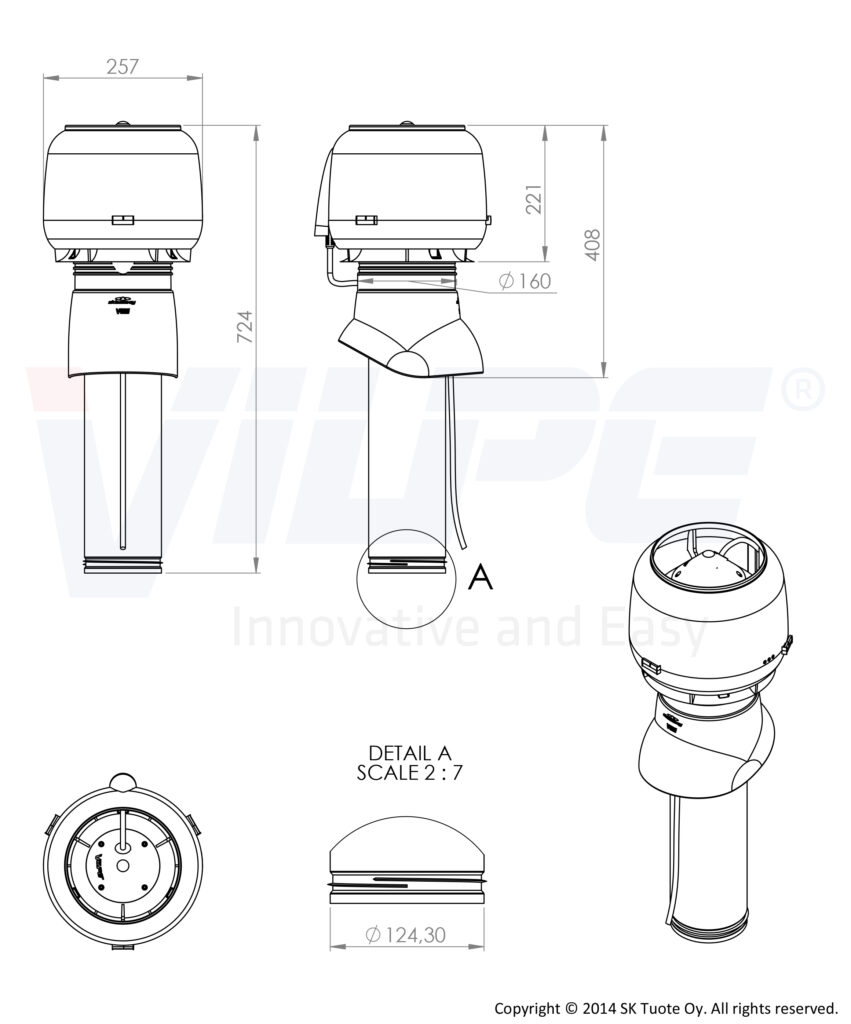

Dimensions: Duct size Ø 125 mm, external Ø 160 mm, height above roof approx. 400 mm.

Contents: Roof fan, screws, installation, operating and maintenance instructions.
Color
Black
Brown
Green
Grey
Red
Brick Red
Product number734492
EAN Code6410457344925
Color Black | RR33 | RAL9005
Weight Gross: 5.161kg, Net: 4.281kg
Product number734494
EAN Code6410457344949
Color Brown | RR32
Weight Gross: 5.161kg, Net: 4.281kg
Product number734496
EAN Code6410457344963
Color Green | RR11
Weight Gross: 5.161kg, Net: 4.281kg
Product number734497
EAN Code6410457344970
Color Grey | RR23 | RAL7015
Weight Gross: 5.161kg, Net: 4.281kg
Product number734498
EAN Code6410457344987
Color Red | RR29 | RAL3009
Weight Gross: 5.161kg, Net: 4.281kg
Product number734499
EAN Code6410457344994
Color Brick Red | RR750 | RAL8004
Weight Gross: 5.161kg, Net: 4.281kg
SKU: N/A Category:
Share product page
Print pdf
Duct size125 Ø
Materialsexpanded polystyrene, galvanized sheet steel , polypropene plastic (PP)
Package includescowl, fixing screws
Voltage230V/50Hz
Current0,23 A
Rotation speed (rpm)2350 rpm
Capacitor1,5 µF
Power52 W
Fan typeAC
