Decra Pass-Through
Decra Pass-Through - Image 2

Decra Pass-Through

DISCONTINUED

This pass-through is available in VILPE’s selection under a new name and with new packaging contents. The new package includes a Click underlay seal, which is why the word “Click” has been added to the product name.
Replacement product: Decra Click (36000X)

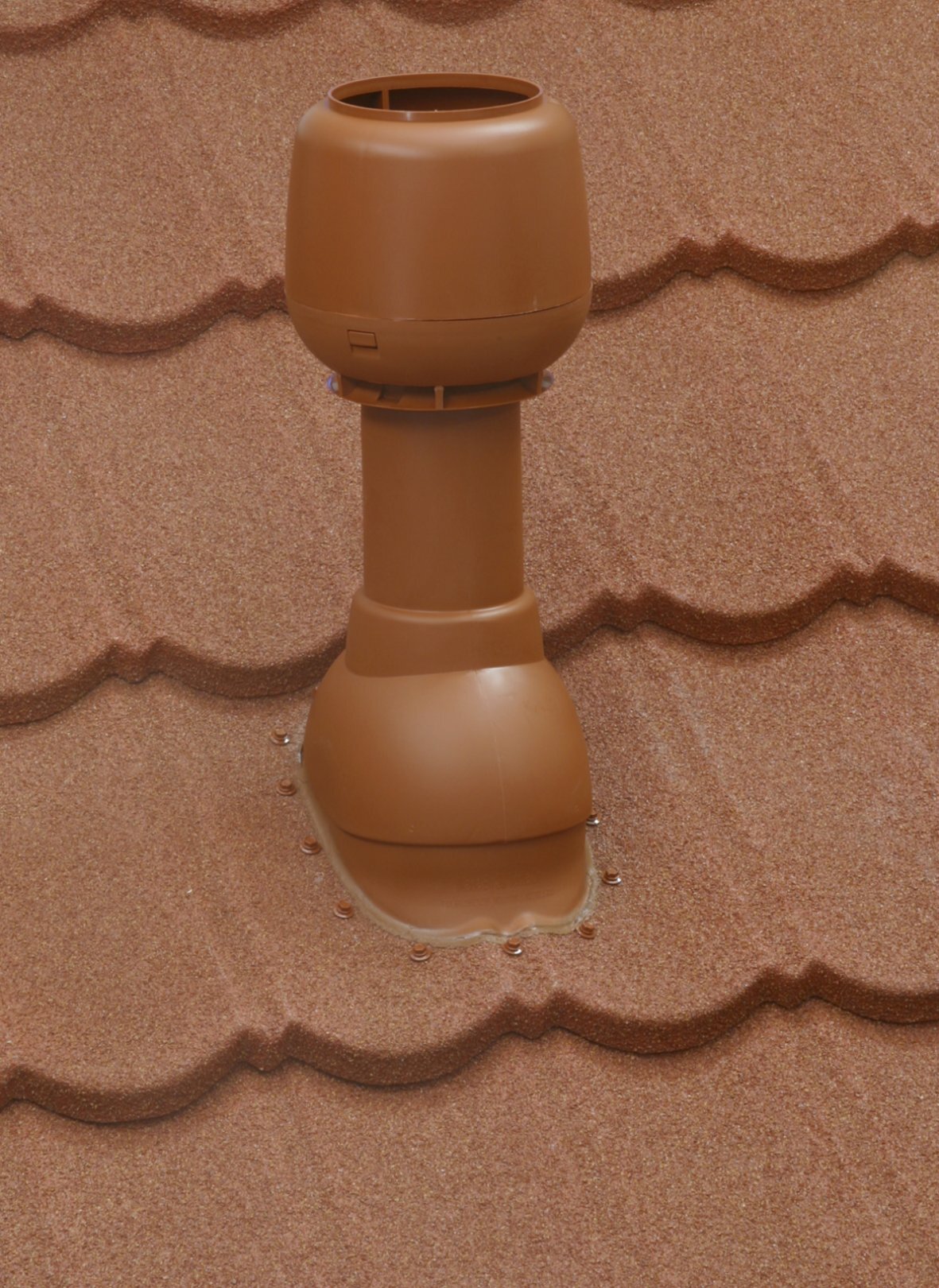

Description: For Decra roofs. The seal on the bottom of the pass-through guarantees a fully waterproof end result, and is attached to the bottom of the flange. Installing the VILPE Decra Pass-Through is simple and easy: the kit includes all installation materials and clear instructions. The pass-through enables the installation of VILPE roof fans, exhaust pipes, ventilation pipes and antenna pass-throughs onto the roof. Designed for Ø 110-160 mm pipes.

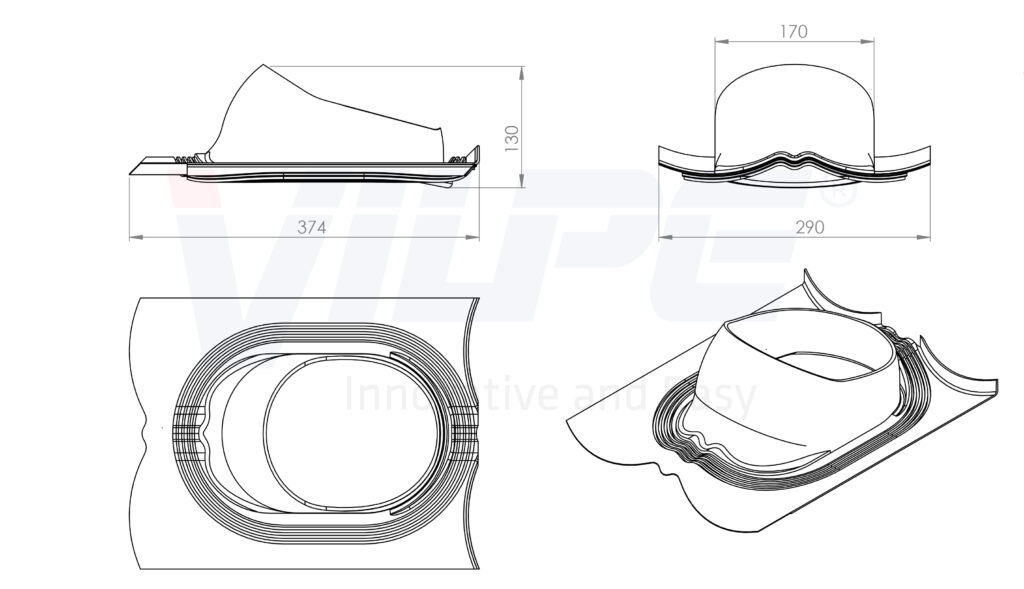

Dimensions: Length 374 mm, width 290 mm.

Contents: Pass-through, underlay ring, sealing compound, screws, installation instructions.
Color
Black
Green
Red
Brick Red
Product number732612
LVI Code7813192
EAN Code6410457326129
Color Black | RR33 | RAL9005
Weight Gross: 0.981kg, Net: 0.702kg
Product number732616
LVI Code7813196
EAN Code6410457326167
Color Green | RR11
Weight Gross: 1.122kg, Net: 0.782kg
Product number732618
LVI Code7813198
EAN Code6410457326181
Color Red | RR29 | RAL3009
Weight Gross: 1.122kg, Net: 0.782kg
Product number732619
LVI Code7813199
EAN Code6410457326198
Color Brick Red | RR750 | RAL8004
Weight Gross: 0.861kg, Net: 0.582kg
SKU: N/A Categories: ,
Share product page
Print pdf
Roof MaterialSteel

Download CAD Models

Download DWG-file
360002-73261x.dwg
MagiCAD file

Materials & Installation

Send document by email

  • This field is for validation purposes and should be left unchanged.
Product categories: Pass-throughs, Pass-throughs for steel roofing
