Classic Vino Pass-Through

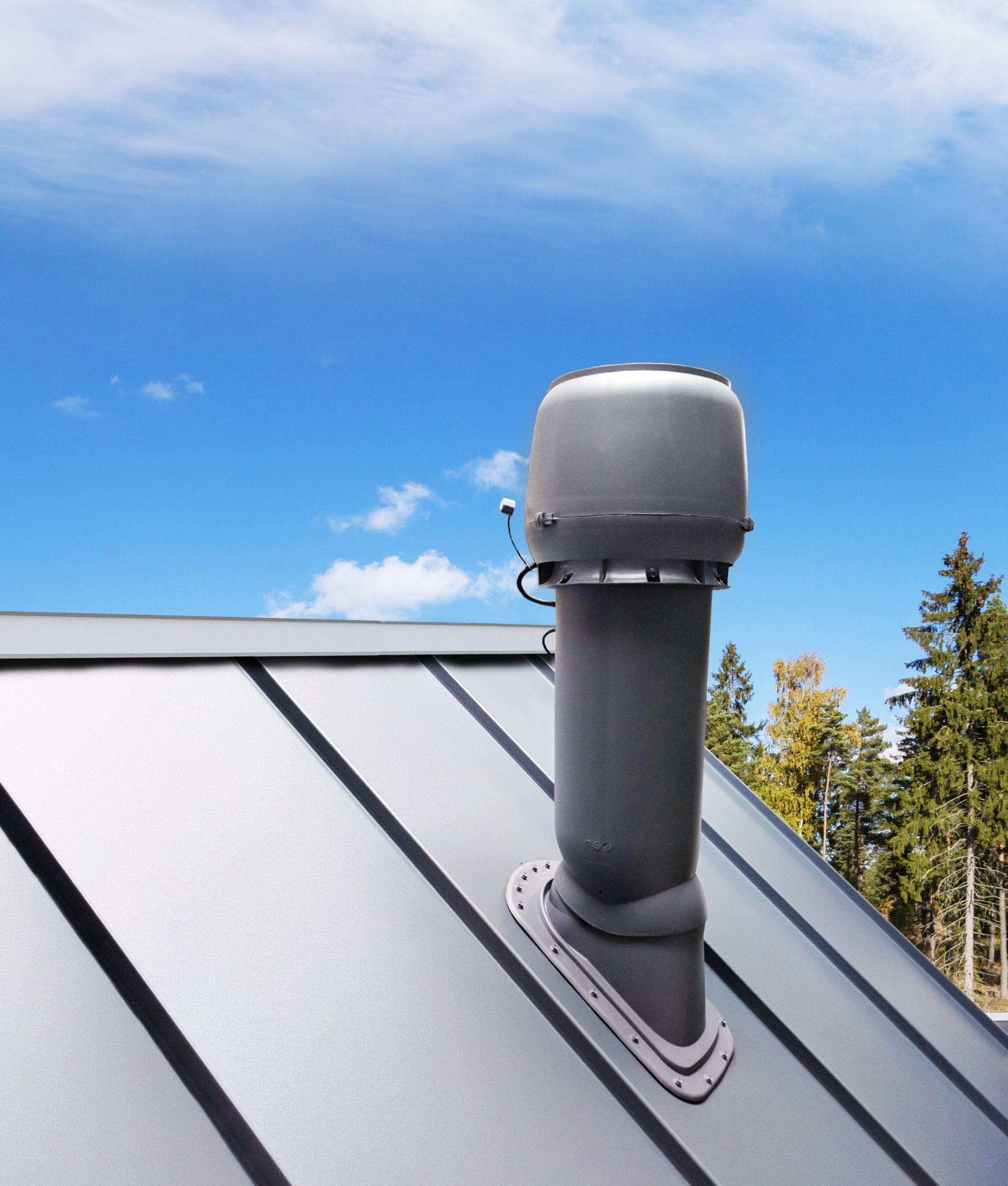

Description: For plain standing seam roofs or felt roofs (if retrofitted). Can be installed on roofs with pitches between 1:5 (11.5 degrees) and 57 degrees, as its collar is steeper than that of previous models–enabling installation on steeper roofs compared to the original VILPE Classic pass-through. The stylish and angular VILPE Classic Vino Pass-Through is also more elegant on a linear sheet metal roof than its predecessor. The seal on the bottom of the pass-through guarantees a fully waterproof end result, and is attached to the bottom of the flange.

Installing the VILPE Classic Vino Pass-Through is simple and easy: the kit includes all installation materials and clear instructions. The pass-through enables the installation of VILPE roof fans, exhaust pipes, ventilation pipes and antenna pass-throughs onto the roof. Designed for Ø 75, 110, 125 or 160 mm pipes. Sealing compound (not incl.) required for installation on felt roofs.

Contents: Pass-through, underlay ring, screws, installation instructions.

Color
Anthracite
Black
Brown
Green
Grey
Red
Brick Red
Light Grey
Chocolate Brown
Product number74602D
LVI Code7820600
EAN Code6410457657148
Color Anthracite
Weight Gross: 1.185kg, Net: 0.756kg
Product number746022
LVI Code7820391
EAN Code6410457460229
Color Black | RR33 | RAL9005
Weight Gross: 1.125kg, Net: 0.696kg
Product number746024
LVI Code7820392
EAN Code6410457460243
Color Brown | RR32
Weight Gross: 1.125kg, Net: 0.696kg
Product number746026
LVI Code7820393
EAN Code6410457460267
Color Green | RR11
Weight Gross: 1.185kg, Net: 0.756kg
Product number746027
LVI Code7820394
EAN Code6410457460274
Color Grey | RR23 | RAL7015
Weight Gross: 1.185kg, Net: 0.756kg
Product number746028
LVI Code7820395
EAN Code6410457460281
Color Red | RR29 | RAL3009
Weight Gross: 1.185kg, Net: 0.756kg
Product number746029
LVI Code7820396
EAN Code6410457460298
Color Brick Red | RR750 | RAL8004
Weight Gross: 1.185kg, Net: 0.756kg
Product number746021
LVI Code7820397
EAN Code6410457460212
Color Light Grey | RAL7040
Weight Gross: 1.125kg, Net: 0.696kg
Product number74602B
EAN Code6417323851006
Color Chocolate Brown | RR887
Weight Gross: 1.125kg, Net: 0.696kg
